BH-1003

Description
fuse holder modular fuseBLOCK
CategoryCircuit protection
File Size58KB,3 Pages
ManufacturerBussmann (Eaton)
Environmental Compliance
Download Datasheet Parametric Compare View All

BH-1003 Online Shopping

Suppliers Part Number Price MOQ In stock
BH-1003 - - View Buy Now

BH-1003 Overview

fuse holder modular fuseBLOCK

BH-1003 Parametric

Parameter NameAttribute value
ManufactureCooper Bussm
Product CategoryFuse Holde
RoHSYes
ProducFuse Modules
Current Rating400 A
Voltage Rating2.5 kV
Number of Poles1
ColBlack
IlluminatiNot Illuminated
PackagingBulk
Factory Pack Quantity1
Unit Weigh453.592 mg

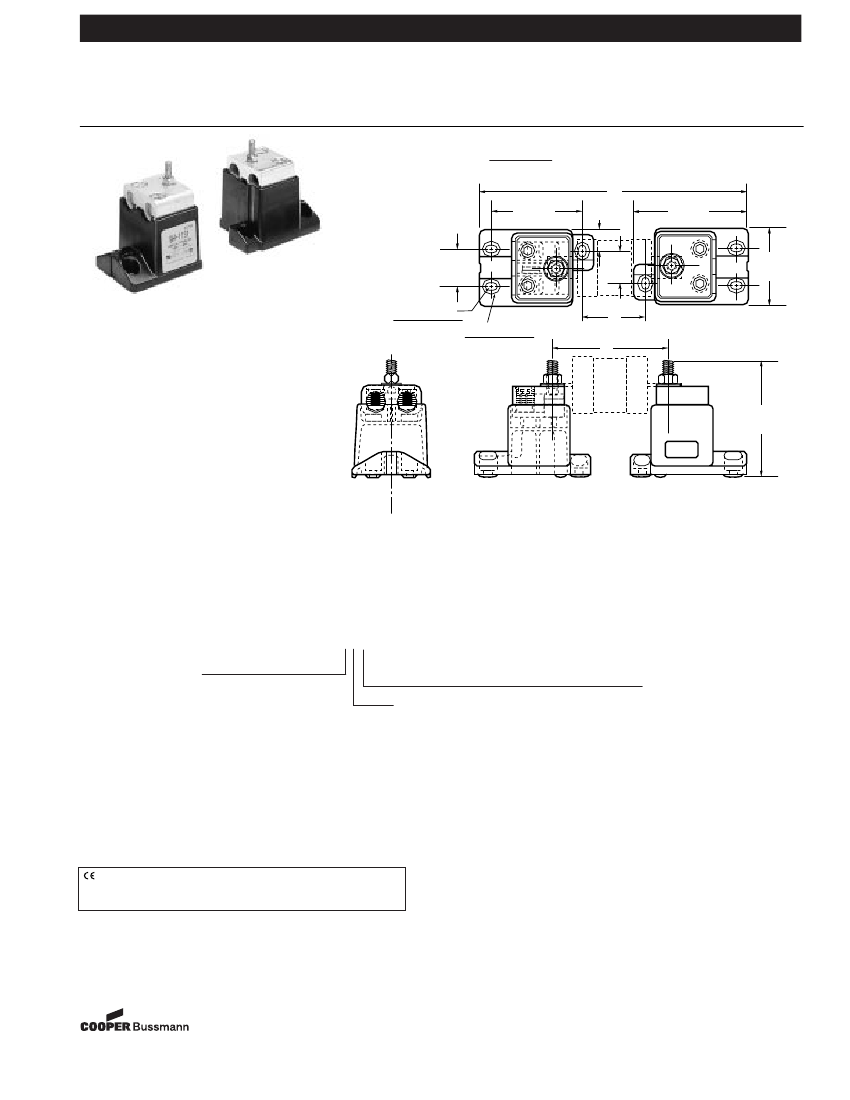

Bussmann
®
Modular Fuseblocks
0-2500 Volts, 400 Amps
Dimensional Data
mm (± .25)
Inches (± .01)
BH-1 Series
79.50
3.130"
B
17.78
0.7"
99.82
3.930"
®
Catalog Symbol:
BH-1 Series
Base:
Light-weight, high temperature
thermoplastic
Mounting Studs:
Plated steel
Connector:
Tin-plated aluminum.
Standard connector accepts #6 - 250 MCM
copper wire
Nut:
Plated steel
Washer:
Spring steel
Agency Information:
UL Recognized, Guide EZLT2, File E14853
up to 700 Volts
CSA Certified, Class 6225-01, File 47235
up to 700 Volts
Withstand Rating:
200,000A RMS Sym.
or interrupting rating of fuse used, whichever
is smaller.
(Typ. 3)
6.60 x 9.53
(Typ. 3)
.26" x .375"
13.97 x 15.62
.55" x .615"
A
C
Catalog Code Description:
Block Series
Agency Information
0 No Agency Information
1 UL Recognition and CSA Certification
2 UL Recognition Only
3 CSA Certification Only
BH - 1 X X X
Wire Connector
0 No Connector
3 2 Hole for #6 - 250 MCM Copper Wire
(for use with Base 1, 2, & 3)
Stud Size
1⁄Ω¢ - 20
2fiΩ¡§ - 18
3‹Ω• - 16
NOTES:
1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.
2. For applications above 700V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator
voltage withstand ratings.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
6-26-02
N02099
Buss
®
31.75
1.250"
Buss
31.75
1.250"
67.31
2.650"
100.96
3.975"
Form No. BH-1
Page 1 of 3
Data Sheet: 1201

BH-1003 Related Products

BH-1003 BH-1132
Description fuse holder modular fuseBLOCK fuse holder modular block
Manufacture Cooper Bussm Cooper Bussm
Product Category Fuse Holde Fuse Holde
RoHS Yes Yes
Produc Fuse Modules Fuse Modules
Current Rating 400 A 400 A
Voltage Rating 2.5 kV 2.5 kV
Number of Poles 1 1
Col Black Black
Illuminati Not Illuminated Not Illuminated
Packaging Bulk Bulk
Factory Pack Quantity 1 1
Unit Weigh 453.592 mg 707.604 g
