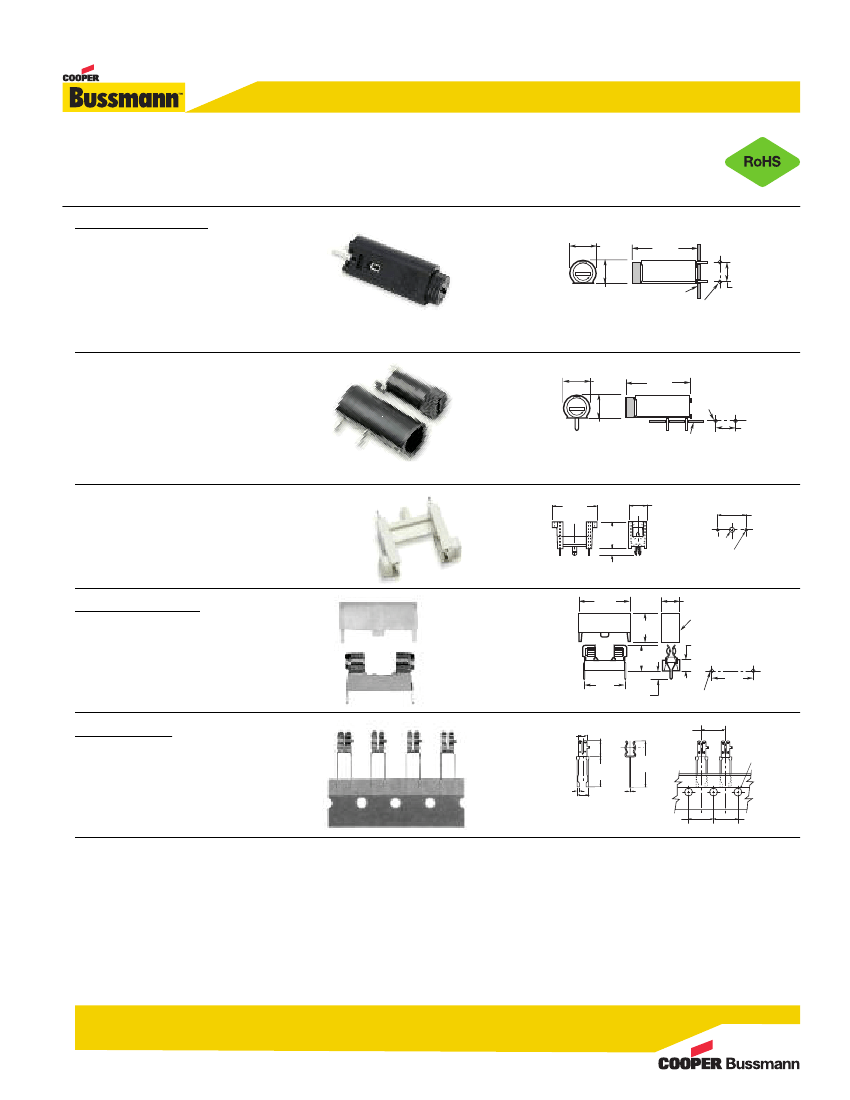

Fuse Holders for 5 x 20mm Fuses
PCB Fuse Holders
•
•
•
•
•
•
•
•
•
•
HTC Series - PCB Holders, Blocks & Clips and Panel Mount Holders
HTC-45M: Vertical Mount
250V AC, 10A, 2.5W
Bayonet Cap/Carrier
Operating Temperature Range: -30°C to 85°C
Specifications: See Below
Agency Information: 1, 2, 5 (See table below)
250V AC, 10A, 2.5W
Bayonet Cap/Carrier
Operating Temperature Range: -30°C to 85°C
Specifications: See Below
Agency Information: 1, 2 (See table below)
.512"
(13.0mm)
FU
SE
1.303
"
(33.1mm)
Mounting Holes
.461"
(11.7mm)
Printed Circuit
Board
.394"
(10.0mm)
_
.051
" + .002"
Dia. (Typ.)
_
(1.30 + .05mm)
HTC-50M: Horizontal Mount
.512"
(13.0mm)
FU
SE
1.303"
(33.1mm)
Mounting Holes
_
.051
" + .002"
Dia. (Typ.)
_
(1.30 + .05mm)
.461"
(11.7mm)
.394"
Printed Circuit
Board
(10.0mm)
•
•
•
•
HTC-60M - PCB Stand-Off Mount
• 250V, 6.3A, 1.6W
• Specifications: See Below
• Agency Information: 1, 3 (See table below)
HTC-15M & HTC-140M
(Block & Snap-On Cover)
PCB Fuse Blocks
250V AC, 6.3A
Valox 420 SEO; Bronze
Specifications: See Below
Agency Information: 1, 4 (See table below)
.886"
(22.5mm)
.354"
(9.0mm)
.591"
(15.0mm)
.551"
(3.5mm)
.102"
Dia. Hole
(2.6mm)
.051"
Dia. Hole
(1.3mm)
.138"
(3.5mm)
1.047"
(26.6mm)
.354"
(9.0mm)
No agency approvals
on HTC-140M
.866"
(22.0mm)
.571"
(14.5mm)
HTC-140M
Cover
.217"
.531"
(13.5mm)
(5.5mm)
Mounting Holes
.890"
(22.60mm)
PCB Fuseclip
HTC-200M
•
•
•
•
.177"
(4.5mm)
_
.059" + .002" Dia. (Typ.)
_
(1.50 + .05mm)
.177"
BUSS
.319"
(8.1mm)
.50"
(12.7mm)
BUSS
BUSS
(4.5mm)
Specifications
For 5mm diameter fuses
Tape and Fan Fold packed
Tin-plated bronze
Agency Information: No agency approvals.
Agency Information:
.157"
(3.99mm)
.929"
.61"
(15.5mm)
(23.6mm)
.031"
(.79mm)
.217"
(5.5mm)
.012"
(.3mm)
.50"
(12.7mm)
.50"
(12.7mm)
Terminals — Tin-plated brass.
Molded Materials — High temperature thermoplastic that meets the flamma-
bility ratings of UL 94VO (HTC-15M material meets UL 94V1); Glow Wire
Test: 960°C per IEC 695-2-1.
Solderability — In accordance with IEC 68-2-20.
Electrical — Contact Resistance: <10mW; Insulation Resistance: >10MW;
_
_
Dielectric Strength >2000Vac.
_
Shock Safety — PC2 (fuse holders).
Packaging — See table on page 2
1) cURus: Guide IZLT2 & IZLT8, File # E14853; 6.3A, 250V
2) SEMKO: 9226032; 6.3A, 250V
3) VDE: 4004439
4) VDE: 4004455
5) VDE: 4004456
0514
BU-SB12103
Page 1 of 2
Data Sheet 2110

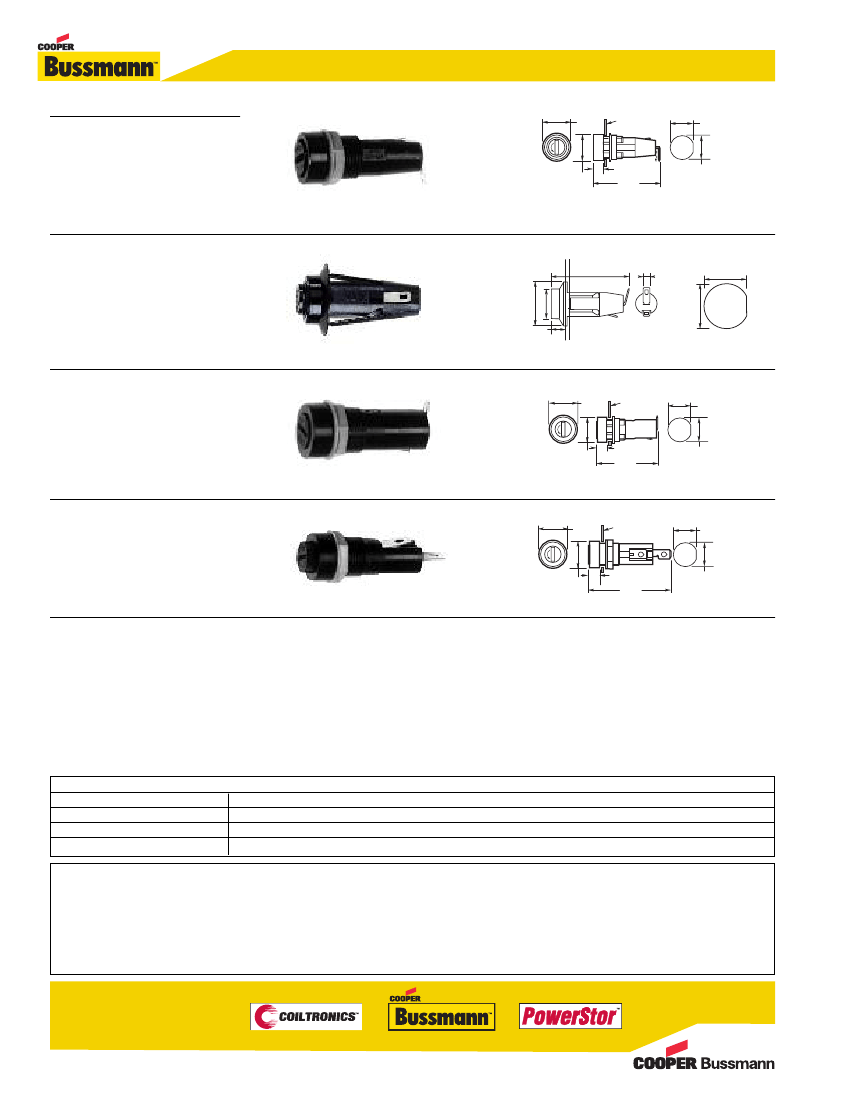

Panel Mount Fuse Holders
•
•
•
•
HTC-35M
Mounting Hole
.630
"
(16.0mm)
S
FU
E
250V, 10A, 2.5W
Threaded Cap/Carrier
Specifications: See Below
Agency Information: 1, 4 (See table below)
Mounting
Panel
_
.472
" + .002"
_
(12.0 + .05mm)
.217
"
.591
"
(15.0mm)
(5.5mm)
_
.500
" + .002"
_
(12.70 + .05mm)
1.476
"
(37.5mm)
•
•
•
•
HTC-40M
250V, 10A, 2.5W
Screwdriver slot
Specifications: See Below
Agency Information: 1, 3 (See table below)
37.5mm
3.0x0.51mm
+0.0
12.70mm
–0.1
+0.0
12.00mm
–0.1
Ø22mm
6.5mm
•
•
•
•
HTC-55M
250V, 10A, 2.5W
Bayonet Cap/Carrier
Specifications: See Below
Agency Information: 1, 5 (See table below)
Ø15mm
Mounting Hole
.630
"
(16.0mm)
S
FU
E
Mounting
Panel
_
.472
" + .002"
_
(12.0 + .05mm)
.217
"
.591
"
(15.0mm)
(5.5mm)
_
.500
" + .002"
1.417
"
(36.0mm)
_
(12.70 + .05mm)
•
•
•
•
HTC-70M
250V, 10A, 2.5W
Bayonet Cap/Carrier
Specifications: See Below
Agency Information: 1, 2 (See table below)
Mounting Hole
.630
"
(16.0mm)
S
FU
E
Mounting
Panel
_
.472
" + .002"
_
(12.0 + .05mm)
.217
"
.591
"
(15.0mm)
(5.5mm)
_
.500
" + .002"
1.799
"
(45.7mm)
_
(12.70 + .05mm)
Terminals — Tin-plated brass with 3mm (HTC-35M, -55M) and 4.8mm
(HTC-70M).
Molded Materials — High temperature thermoplastic that meets the
flammability ratings of UL 94VO; Glow Wire Test: 960°C per IEC 695-2-1.
Solderability — In accordance with IEC 68-2-20.
Electrical — Contact Resistance: <10mW; Insulation Resistance: >10MW;
_
_
Dielectric Strength >2000Vac.
_
Packaging Code Prefix
Blank
BK-
TR-
Specifications
Shock Safety — PC2 (fuse holders).
Agency Information:
1) cURus: Guide 1ZLT2 & IZLT8, File E14853
2) VDE: 40004457
3) VDE: 40004458
4) VDE: 40004459
5) VDE: 40004463
Description
10 pieces packed into a carton
100 pieces packed into a cardboard shelf package
HTC-200M only - 1000 pieces per box in Ammo pack
Packaging Codes
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to
result in significant injury to the user.
© 2014 Bussmann
w w w. c o o p e r b u s s m a n n . c o m
0514
BU-SB12103
Page 2 of 2
Data Sheet 2110
