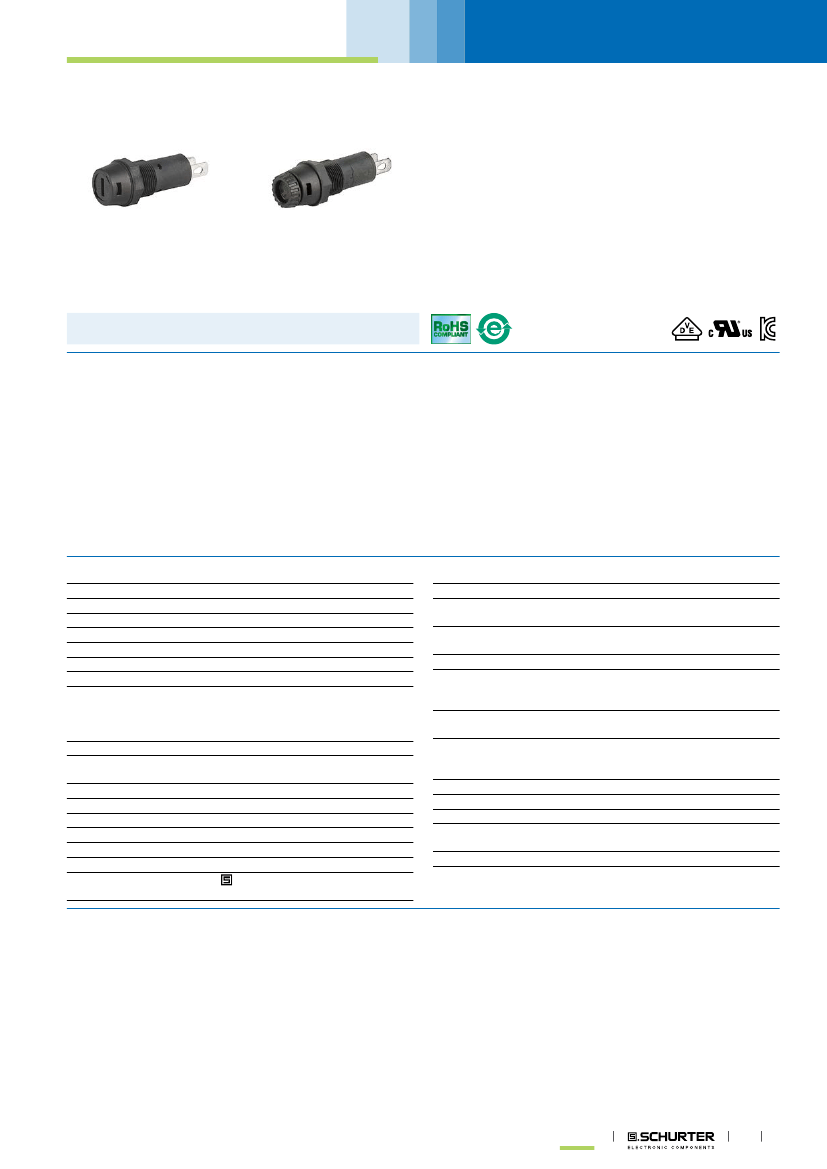

Shock-Safe Fuseholder, 5 x 20 mm, Slot/Fingergrip, IP 40 / IP 67, IEC 60335-1

FPG1

Fingergrip

250 VAC · 2.5 W / 10 A (VDE) · 400 VAC · 16 A (UL/CSA)

Description

- Meets the new requirements of IEC 60335-1 for appliances in unatten-

ded use (clause 30.2.3). This includes the enhanced requirements of

glow wire tests acc. to IEC 60695-2-12 and -13. Order numbers: xxxx.

xxxx.15

Applications

- Industrial electronic

- Household appliances

- Medical equipment

Standards

Weblinks

- IEC 60127-6

- UL 4248-1 / UL 512

- CSA C22.2 no. 39

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,

SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for

product

Approvals

Approval Reference Type: FPG1

VDE Certificate Number: 127216

UL File Number: E39328

CSA File Number: 38456

Technical Data

Shock-Safe Category

Fuse-Link

Mounting

Terminal

Rated Voltage

Rated current

Rated Power Acceptance IEC

PC2

5 x 20 mm

Panel Mount, Front Side

Fixing Nut

Solder or Quick-Connect 4.8 x 0.5 mm

250 VAC (VDE), 400 VAC (UL/CSA)

10 A (VDE), 16 A (UL/CSA)

2.5 W / 10 A @ Ta 23 °C

Admissible power acceptance at higher

ambient temperature see derating cur-

ves

Degree of Protection

IP 40 / IP 67

Protection Class

Suitable for appliances with protection

class I or II acc. to IEC 61140

Admissible Ambient Air Temp. -40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Socket

Thermoplastic, black, UL 94V-0

Material: Terminals

Tin-Plated Copper Alloy

Unit Weight (Socket/Cap)

5.7 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

, Type, Rated voltage, Power Acc./

Current Rating, Approvals

Soldering Methods

Solderability

Resistance to Soldering Heat

Contact Resistance

Dielectric Strength

Iron

350 °C / 2 sec acc. to IEC 60068-2-20,

Test Ta, method 2

350 °C / 10 sec acc. to IEC 60068-2-20,

Test Tb, method 2

< 5 mΩ at 20 mV

> 3 kV

> 4 kV between L/N-PE

(50 Hz; 1 min)

> 2.5 kV between L-N

> 6 kV between L/N-PE

> 10 MΩ between L-N

> 100 MΩ between L/N-PE

(500 VDC; 1 min)

I - II acc. to IEC 60664-1

1 - 3 acc. to IEC 60664-1

acc. to IEC 60068-2-6, test Fc

max 1.2 Nm

max 6 mm

Impulse Withstand Voltage

Insulation Resistance

Overvoltage Category

Pollution Degree

Resistance to Vibration

Admissible Torque on Fixing

Nut

Panel Thickness s

Fuses
