3101.8013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 3101.8013

3101.8013: Descriptionfuse holder fpg3/4/5/7 carrier 5x20 IP 40; CategoryCircuit protection; File Size269KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3101.8013 Overview

fuse holder fpg3/4/5/7 carrier 5x20 IP 40

3101.8013 Parametric

Parameter Name	Attribute value
Manufacture	Schurte
Product Category	Fuse Holde
Factory Pack Quantity	100
Unit Weigh	1.270 g

Preview

Download Datasheet

View All

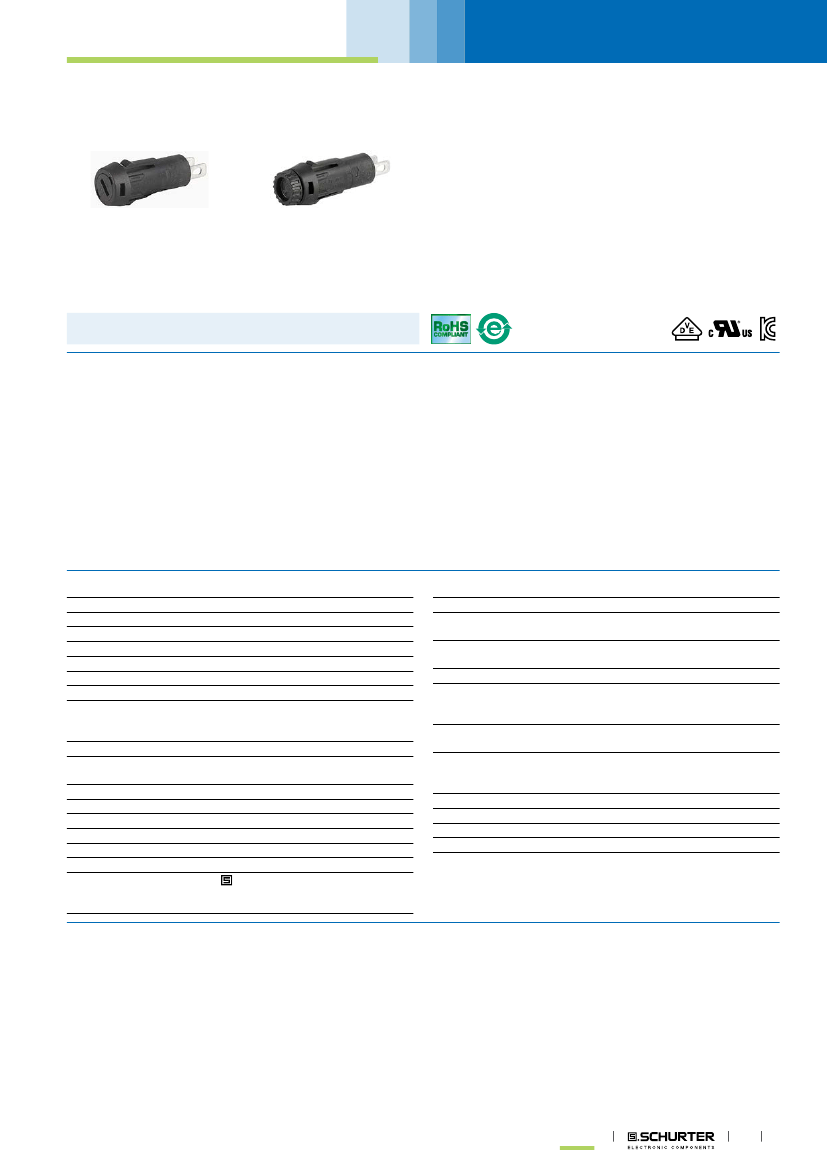

Fuseholders

www.schurter.com/PG02

Shock-Safe Fuseholder, 5 x 20 mm, Slot/Fingergrip, Snap stepless, 1.0 - 3.0 mm, IEC 60335-1

FPG3

Fingergrip

250 VAC · 2.5 W / 10 A (VDE) · 400 VAC · 16 A (UL/CSA)

Description

- Meets the new requirements of IEC 60335-1 for appliances in unatten-

ded use (clause 30.2.3). This includes the enhanced requirements of

glow wire tests acc. to IEC 60695-2-12 and -13. Order numbers: xxxx.

xxxx.15

- Panel Thickness 1.0 - 3.0 mm, Snap stepless

- Fuseholder available in black, grey and white

Applications

- Industrial electronic

- Household appliances

- Medical equipment

Weblinks

Standards

- IEC 60127-6

- UL 4248-1 / UL 512

- CSA C22.2 no. 39

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, e-Shop,

SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for

product

Approvals

- VDE Certificate Number: 127216

- UL File Number: E39328

- CSA File Number: 38456

Technical Data

PC2

5 x 20 mm

Panel Mount, Front Side

Snap-in

Solder or Quick-Connect 4.8 x 0.5 mm

250 VAC , 400 VAC (UL/CSA)

10 A (VDE), 16 A (UL/CSA)

2.5 W / 10 A @ Ta 23 °C

2.5 W / 10 A for xxxx.xxxx.15 versions

in horizontal position

Degree of Protection

IP 40

Protection Class

Suitable for appliances with protection

class I or II acc. to IEC 61140

Admissible Ambient Air Temp. -40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Socket

Thermoplastic, black, UL 94V-0

Material: Terminals

Tin-Plated Copper Alloy

Unit Weight (Socket/Cap)

5.3 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

, Type, Rated voltage, Power Acc./

Current Rating, Panel Thickness, Ap-

provals

Shock-Safe Category

Fuse-Link

Mounting

Terminal

Rated Voltage

Rated current

Rated Power Acceptance IEC

Soldering Methods

Solderability

Resistance to Soldering Heat

Contact Resistance

Dielectric Strength

Iron

350 °C / 2 sec acc. to IEC 60068-2-20,

Test Ta, method 2

350 °C / 10 sec acc. to IEC 60068-2-20,

Test Tb, method 2

< 5 mΩ at 20 mV

> 3 kV

> 4 kV between L/N-PE

(50 Hz; 1 min)

> 2.5 kV between L-N

> 6 kV between L/N-PE

> 10 MΩ between L-N

> 100 MΩ between L/N-PE

(500 VDC; 1 min)

I - II acc. to IEC 60664-1

1 - 3 acc. to IEC 60664-1

acc. to IEC 60068-2-6, test Fc

1.0 - 3.0 mm

Impulse Withstand Voltage

Insulation Resistance

Overvoltage Category

Pollution Degree

Resistance to Vibration

Panel Thickness s

Fuses

3101.8013 Related Products

	3101.8013	3101.8012	3101.023
Description	fuse holder fpg3/4/5/7 carrier 5x20 IP 40	fuse holder fpg3/4/5/7 carrier 5x20 IP 40	fuse holder fpg3 fuseholder 5x20 IP 40
Manufacture	Schurte	Schurte	Schurte
Product Category	Fuse Holde	Fuse Holde	Fuse Holde
Factory Pack Quantity	100	100	100
Unit Weigh	1.270 g	1.270 g	-

Recommended Resources

Design of temperature detection circuit implemented by single chip microcomputer

Preamplifier using OP37

Use CD4011 to create sound, light and touch three-control delay lamps

Thyristor tester circuit

Using LM199 to form a standard power supply circuit diagram

555 gas stove fire sound and light alarm circuit
