292XCXC-12.0MA/DC: DescriptionPower/Signal Relay, 3PDT, Momentary, 0.012A (Coil), 31.25VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,; CategoryMechanical and electronic products relay; File Size80KB，1 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

292XCXC-12.0MA/DC Overview

Power/Signal Relay, 3PDT, Momentary, 0.012A (Coil), 31.25VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,

292XCXC-12.0MA/DC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	34.4 mm
body height	46.4 mm
Body length or diameter	37.6 mm
Maximum coil current (DC)	0.012 A
Coil power	375 mW
Coil resistance	2604.17 Ω
Maximum coil voltage (DC)	31.25 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	SOCKET MOUNT
operating hours	20 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	37.6mm x 34.4mm x 46.4mm
Relay action	MOMENTARY
Relay function	3PDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

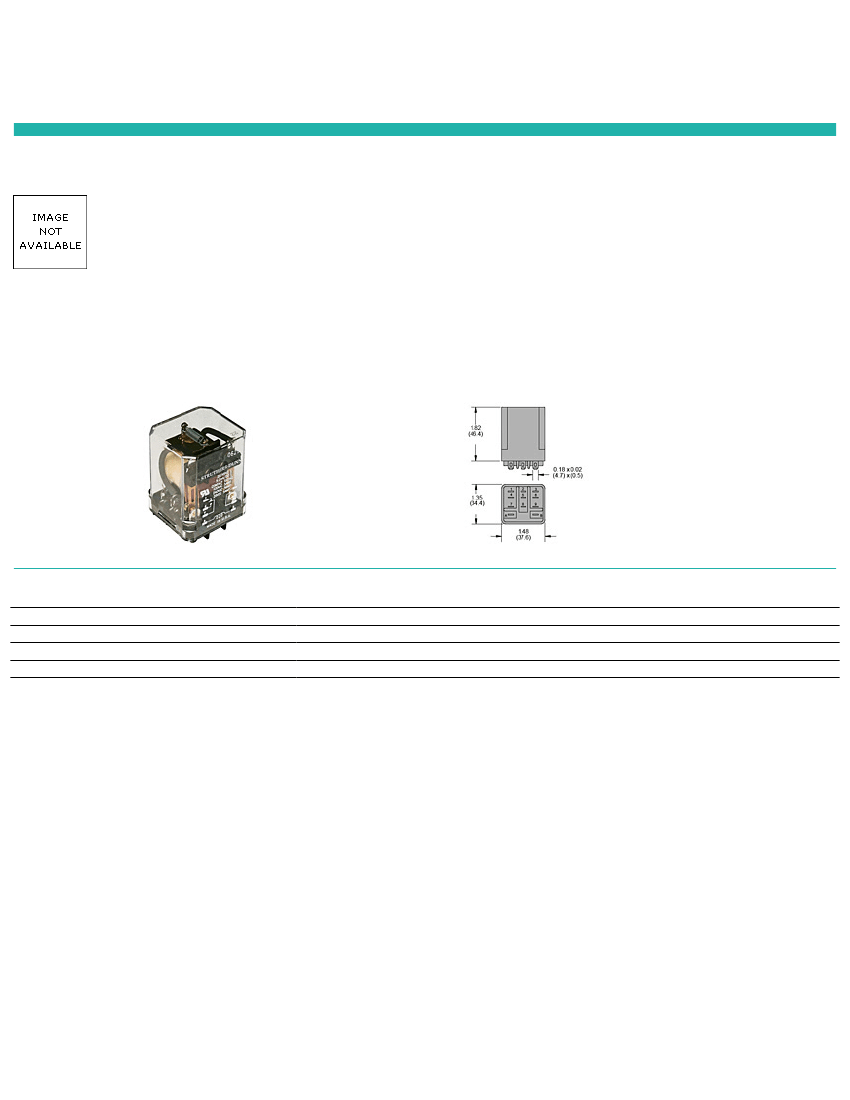

292 Series - Low Coil Power Sensitive Relays - Square Base

The 292 series is a square base, bladed version of DC sensitive relay. Single pole versions operate on as little as 125mW and are capable of switching 5 amps. Power

requirements increase by 125mW per pole up to 3 poles. Operating current can be as low as 11.1mA. The 292 series can withstand wide voltage ranges of up to

almost 4X minimum voltage without overheating. The package on this series is typically socket mounted. It can also be panel mounted allowing direct connections to

terminals with quick-connects or soldering.

For Additional Configuration please contact the manufacturer.

Results 1 - 4 of 4

Item #

292XAXC-5.0MA/DC

292XBXC-5.0MA/DC

292XCXC-6.0MA/DC

292XCXC-12.0MA/DC

Contact Arrangement

XAX (SPDT) - (1 form C)

XBX (DPDT) - (2 form C)

XCX (3PDT) - (3 form C)

Coil Current

5.0 MA/DC

6.0 MA/DC

12.0 MA/DC

Results 1 - 4 of 4

1/12/2012 | Page 1 of 1

292XCXC-12.0MA/DC Related Products

	292XCXC-12.0MA/DC	292XBXC-5.0MADC	292XBXC-5.0MA/DC	292XCXC-6.0MADC	292XCXC-6.0MA/DC	292XAXC-5.0MADC	292XAXC-5.0MA/DC	292XCXC-12.0MADC
Description	Power/Signal Relay, 3PDT, Momentary, 0.012A (Coil), 31.25VDC (Coil), 375mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount,	POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.005A (COIL), 50VDC (COIL), 250mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	Power/Signal Relay, DPDT, Momentary, 0.005A (Coil), 50VDC (Coil), 250mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	POWER/SIGNAL RELAY, 3PDT, MOMENTARY, 0.006A (COIL), 20.83VDC (COIL), 125mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	Power/Signal Relay, 3PDT, Momentary, 0.006A (Coil), 20.83VDC (Coil), 125mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.005A (COIL), 25VDC (COIL), 125mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	Power/Signal Relay, SPDT, Momentary, 0.005A (Coil), 25VDC (Coil), 125mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,	POWER/SIGNAL RELAY, 3PDT, MOMENTARY, 0.012A (COIL), 31.25VDC (COIL), 375mW (COIL), 5A (CONTACT), 28VDC (CONTACT), SOCKET MOUNT
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
body width	34.4 mm	34.4 mm	34.4 mm	34.4 mm	34.4 mm	34.4 mm	34.4 mm	34.4 mm
body height	46.4 mm	46.4 mm	46.4 mm	46.4 mm	46.4 mm	46.4 mm	46.4 mm	46.4 mm
Body length or diameter	37.6 mm	37.6 mm	37.6 mm	37.6 mm	37.6 mm	37.6 mm	37.6 mm	37.6 mm
Maximum coil current (DC)	0.012 A	0.005 A	0.005 A	0.006 A	0.006 A	0.005 A	0.005 A	0.012 A
Coil power	375 mW	250 mW	250 mW	125 mW	125 mW	125 mW	125 mW	375 mW
Coil resistance	2604.17 Ω	10000 Ω	10000 Ω	3471.67 Ω	3471.67 Ω	5000 Ω	5000 Ω	2604.17 Ω
Maximum coil voltage (DC)	31.25 V	50 V	50 V	20.83 V	20.83 V	25 V	25 V	31.25 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Maximum contact current (DC)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Contact (DC) maximum rated R load	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	SOCKET MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	SOCKET MOUNT
operating hours	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms	20 ms
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
physical size	37.6mm x 34.4mm x 46.4mm	37.6mm X 34.4mm X 46.4mm	37.6mm x 34.4mm x 46.4mm	37.6mm X 34.4mm X 46.4mm	37.6mm x 34.4mm x 46.4mm	37.6mm X 34.4mm X 46.4mm	37.6mm x 34.4mm x 46.4mm	37.6mm X 34.4mm X 46.4mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	3PDT	DPDT	DPDT	3PDT	3PDT	SPDT	SPDT	3PDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SNAP-ON	QUICK CONNECT	QUICK CONNECT	SOLDER/QUICK CONNECT	SOLDER/QUICK CONNECT	SCREW	SCREW	SNAP-ON
Base Number Matches	1	1	1	1	1	1	1	1
