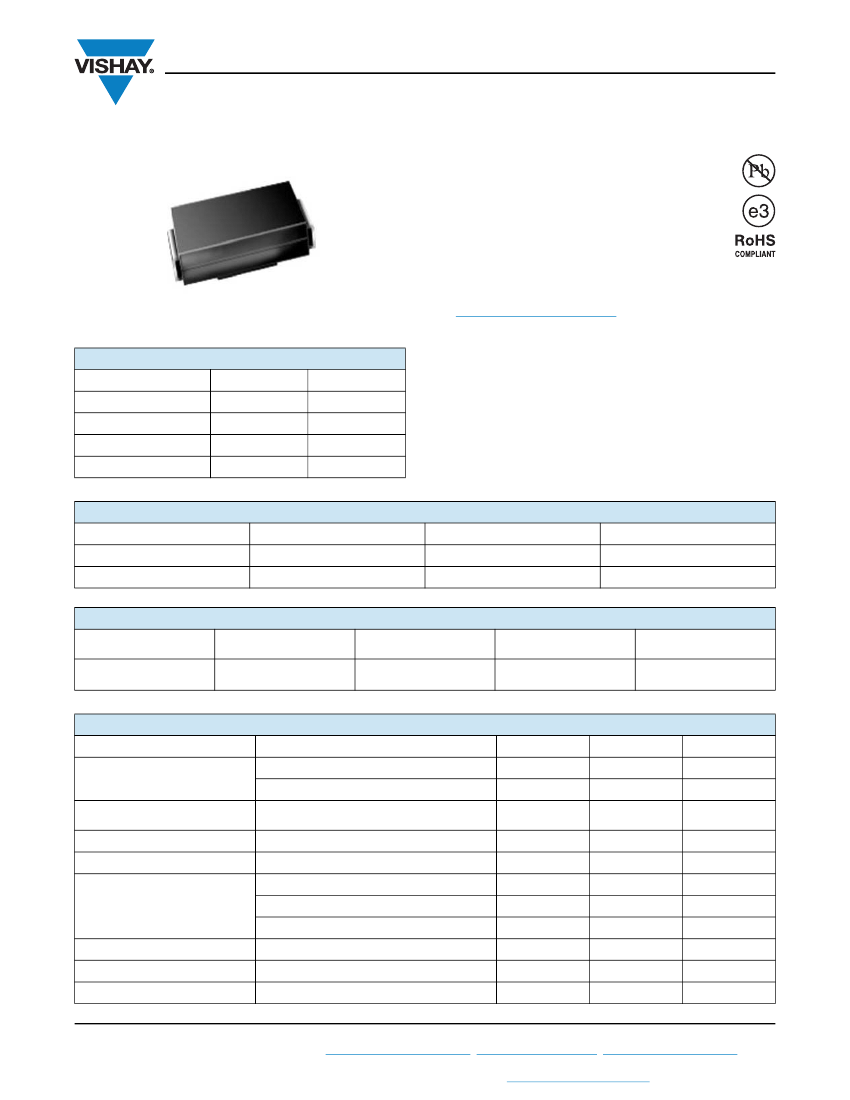

BZG04-Series
www.vishay.com
Vishay Semiconductors
Zener Diodes with Surge Current Specification
FEATURES
• High reliability
• Stand-off voltage range 8.2 V to 220 V
• Excellent clamping cabability
• Fast response time
• AEC-Q101 qualified
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
Z
specification
Int. construction
VALUE
10 to 270
2 to 50
Pulse current
Single
UNIT
V
mA
• Protection from high voltage, high energy transients
ORDERING INFORMATION
DEVICE NAME
BZG04-series
BZG04-series
ORDERING CODE
BZG04-series-TR3
BZG04-series-TR
TAPED UNITS PER REEL
6000 per 13" reel
1500 per 7" reel
MINIMUM ORDER QUANTITY
6000/box
PACKAGE
PACKAGE NAME
DO-214AC
WEIGHT
77 mg
MOLDING COMPOUND MOISTURE SENSITIVITY
FLAMMABILITY RATING
LEVEL
UL 94 V-0
MSL level 1
(according J-STD-020)
SOLDERING
CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Power dissipation
Non repetitive peak surge power
dissipation
Peak forward surge current
Junction to lead
Mounted on epoxy-glass hard tissue,fig. 1b
Junction to ambient air
Mounted on epoxy-glass hard tissue, fig. 1b
Mounted on Al-oxid-ceramic (Al
2
O
3
), fig. 1b
Junction temperature
Storage temperature range
Forward voltage (max.)
I
F
= 0.5 A
TEST CONDITION
R
thJA
< 25 K/W, T
amb
= 100 °C
R
thJA
< 100 K/W, T
amb
= 50 °C
t
p
= 10/1000 μs exp. pulse,
T
j
= 25 °C prior to surge
10 ms single half sine wave
SYMBOL
P
tot
P
tot
P
ZSM
I
FSM
R
thJL
R
thJA
R
thJA
R
thJA
T
j
T
stg
V
F
VALUE
3000
1250
300
50
25
150
125
100
150
- 65 to + 150
1.2
UNIT
mW
mW
W
A
K/W
K/W
K/W
K/W
°C
°C
V
Rev. 2.4, 11-Jul-12
Document Number: 85594
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BZG04-Series
www.vishay.com

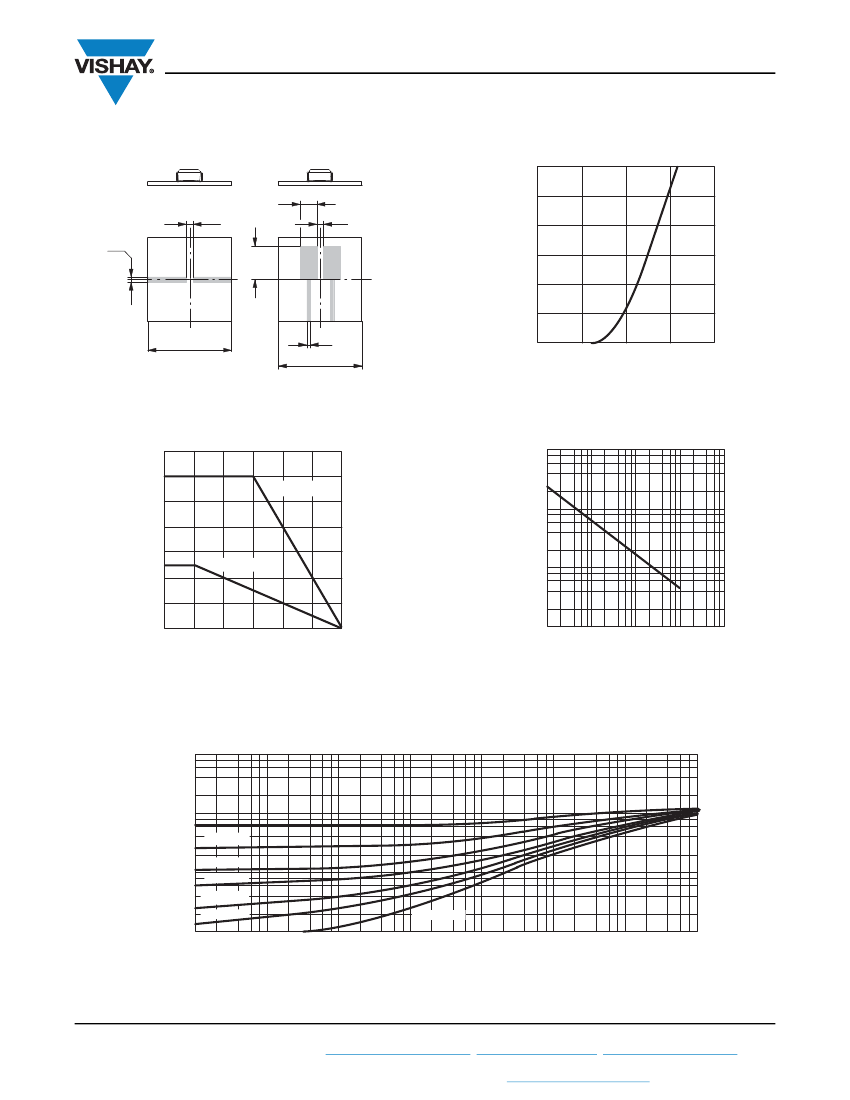

BASIC CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
3.0
a)
b)
5
2
1.5
10
2
Vishay Semiconductors
I
F
- Forward Current (A)
2.5
2.0
1.5
1.0
0.5
0
0
0.5
1.0
1.5
2.0
25
94 9313
1
25
94 9581
V
F
- Forward
Voltage
(V)
Fig. 1 -
Boards for R
thJA
Definition (Copper Overlay 35 µ)
Fig. 3 -
Forward Current vs. Forward Voltage
3
R
thJA
= 25 K/W
2.5
2
1.5
R
thJA
= 100 K/W
1
0.5
0
0
25
50
75
100
125
150
P
ZSM
-
Non-Repetitive
Surge Power
Dissipation (W)
3.5
10 000
P
tot
- Total Power Dissipation (W)
1000
100
10
0.01
0.1
1
10
100
94 9580
T
amb
- Ambient Temperature (°C)
94 9582
t
p
- Pulse Length (ms)
Fig. 2 -
Typ. Total Power Dissipation vs. Ambient Temperature
Fig. 4 -
Non Repetitive Surge Power Dissipation vs.
Pulse Length
Z
thp
- Thermal Resistance for Pulse Cond. (K/W)
1000
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
t
p
/T = 0.05
t
p
/T = 0.02
t
p
/T = 0.01
10
1
10
-5
94 9583
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
t
p
- Pulse Length (s)
Fig. 5 -
Thermal Response
Rev. 2.4, 11-Jul-12
Document Number: 85594
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
