23K-50-051/119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 23K-50-051/119

23K-50-051/119: DescriptionRF Connector, Female, Panel Mount; CategoryThe connector The connector; File Size330KB，5 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

23K-50-051/119 Overview

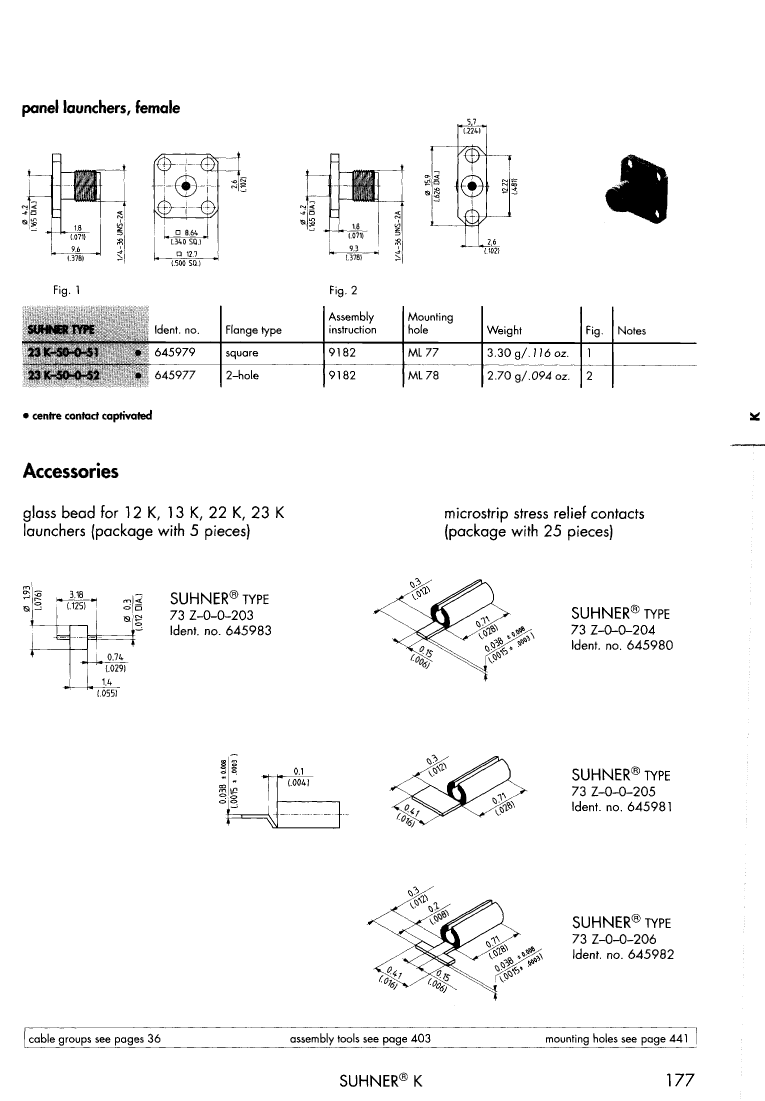

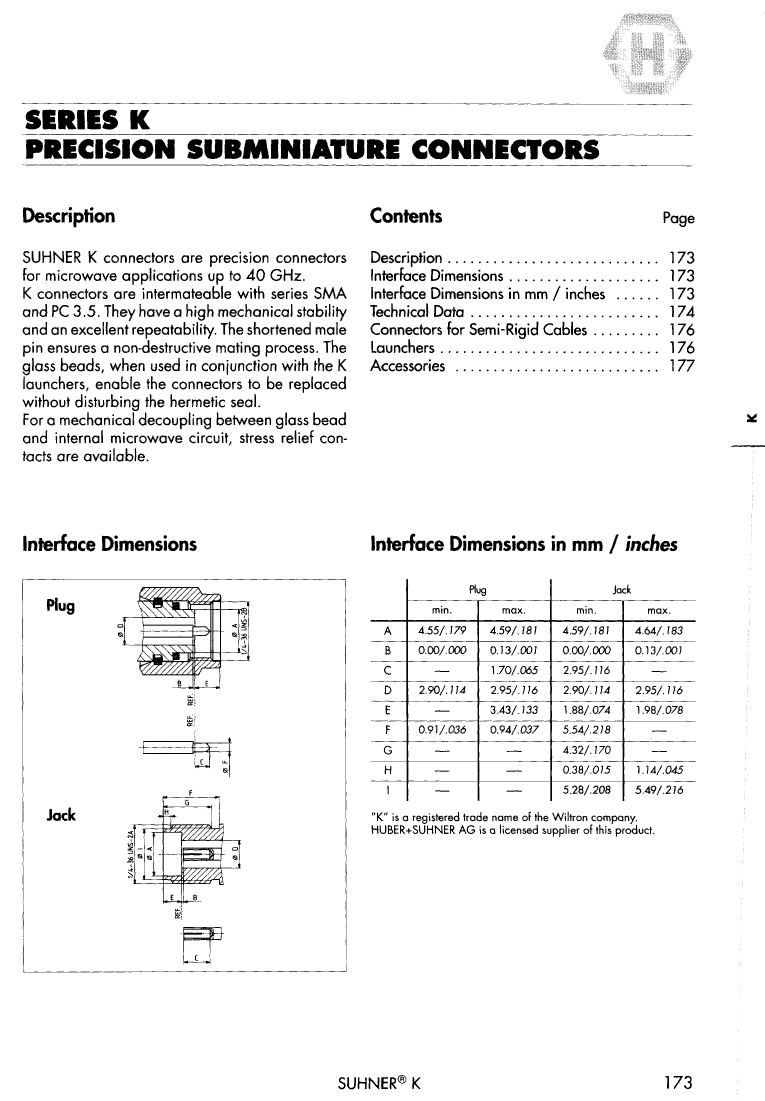

RF Connector, Female, Panel Mount

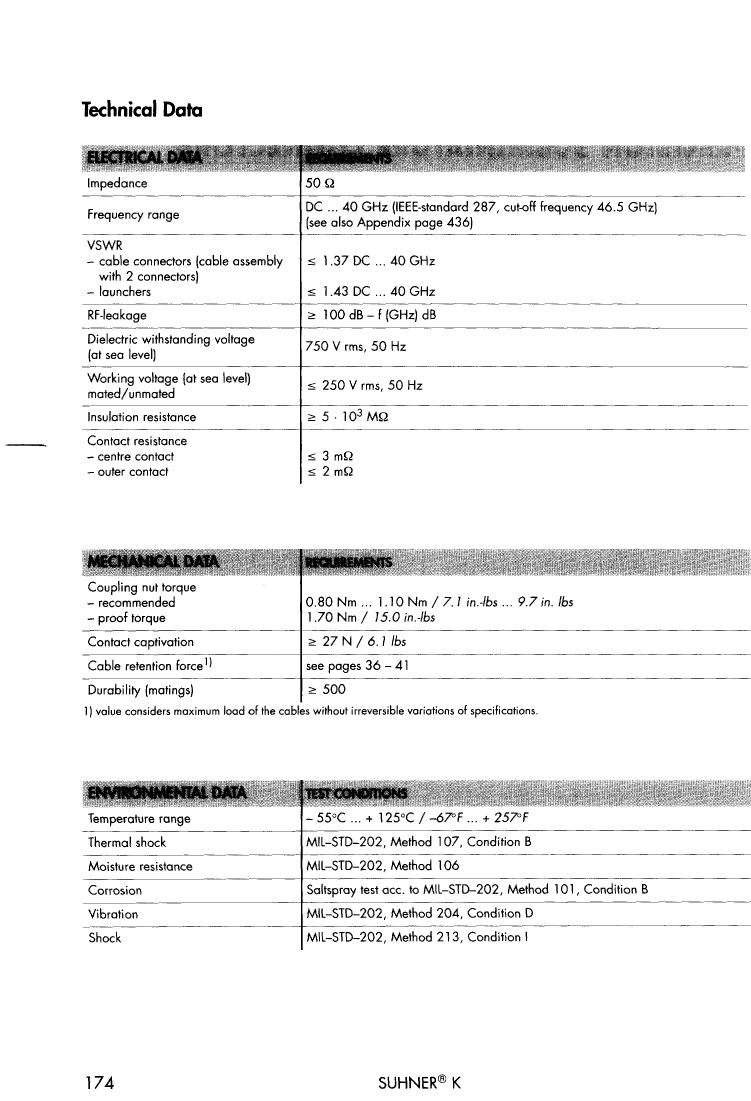

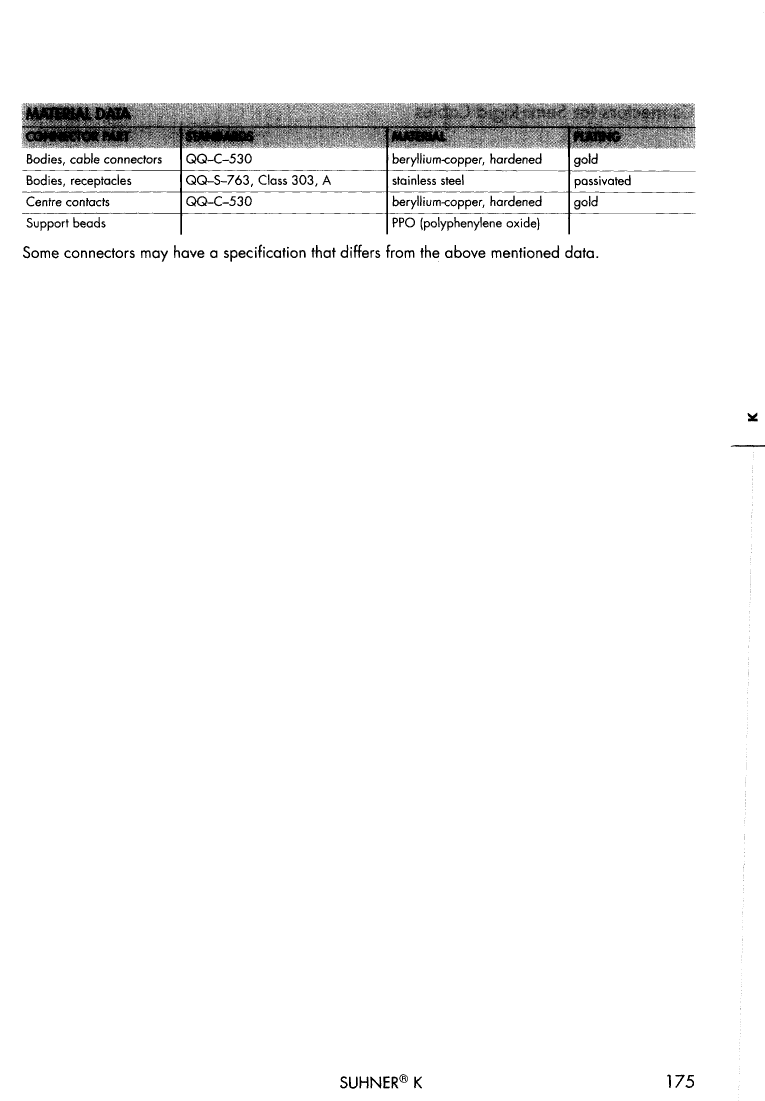

23K-50-051/119 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	CAPTIVE CENTER CONTACT
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.63 dB
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.43
Base Number Matches	1

Preview

Download Datasheet

View All

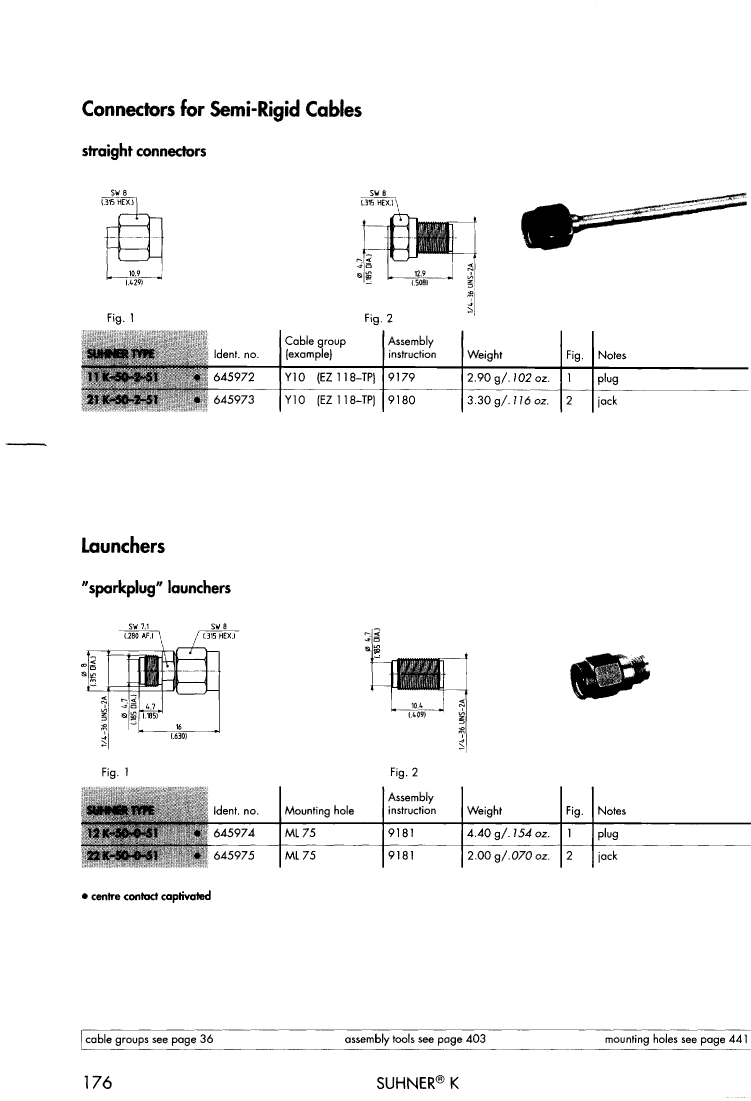

23K-50-051/119 Related Products

	23K-50-051/119	11K-50-2-51/119	12K-50-0-51/119	23K-50-052/119	21K-50-2-51/119	22K-50-0-51/119
Description	RF Connector, Female, Panel Mount	RF Connector, Male, Cable Mount	RF Connector, Male, Plug	RF Connector, Female, Panel Mount	RF Connector, Male, Cable Mount	RF Connector, Male, Plug
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant
Other features	CAPTIVE CENTER CONTACT	CAPTIVE CENTER CONTACT	CAPTIVE CENTER CONTACT	CAPTIVE CENTER CONTACT	CAPTIVE CENTER CONTACT	CAPTIVE CENTER CONTACT
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact point gender	FEMALE	MALE	MALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.63 dB	0.63 dB	0.63 dB	0.63 dB	0.63 dB	0.63 dB
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	K	K	K	K	K	K
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating frequency	40 GHz	40 GHz	40 GHz	40 GHz	40 GHz	40 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO	YES	NO	NO
voltage standing wave ratio	1.43	1.37	1.43	1.43	1.37	1.43
Base Number Matches	1	1	1	1	1	1
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
