NFP-40A-0134-BS: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Receptacle; CategoryThe connector The connector; File Size213KB，4 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

NFP-40A-0134-BS Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Receptacle

NFP-40A-0134-BS Parametric

Parameter Name	Attribute value
Objectid	303086607
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.335 inch
subject depth	0.508 inch
body length	1.303 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	NFP
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	12u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

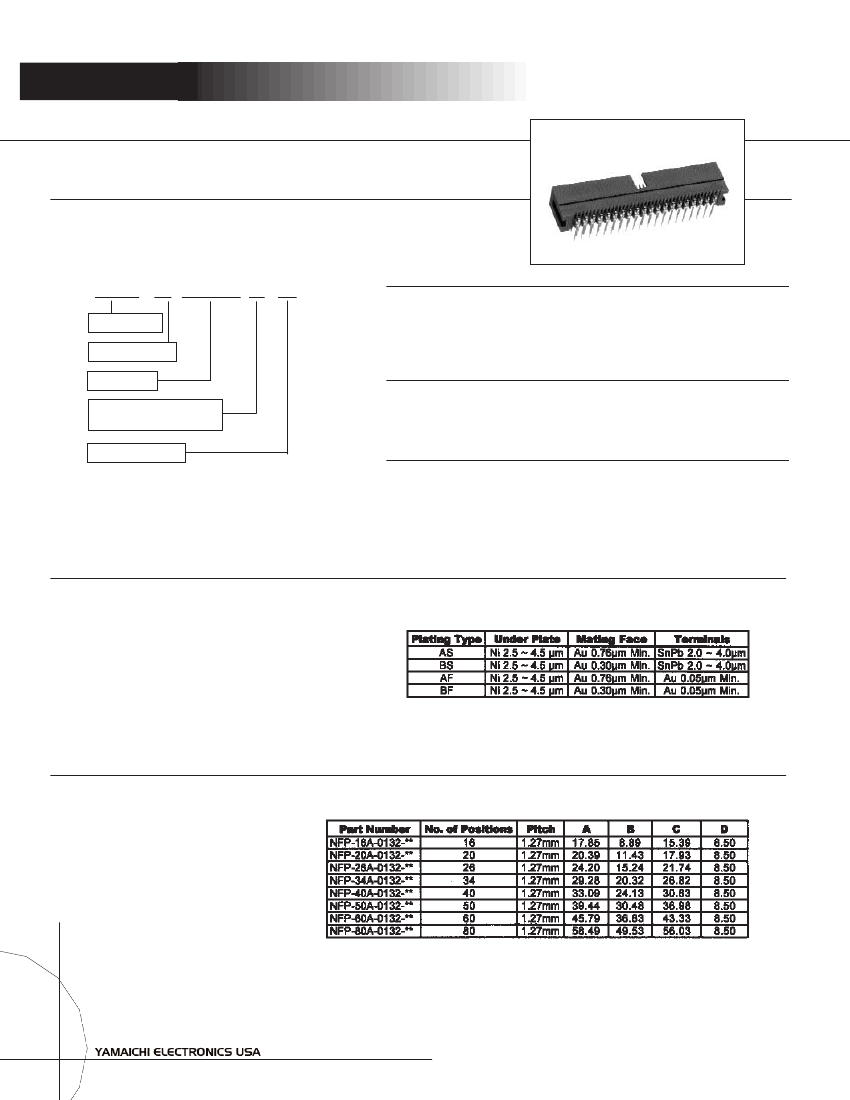

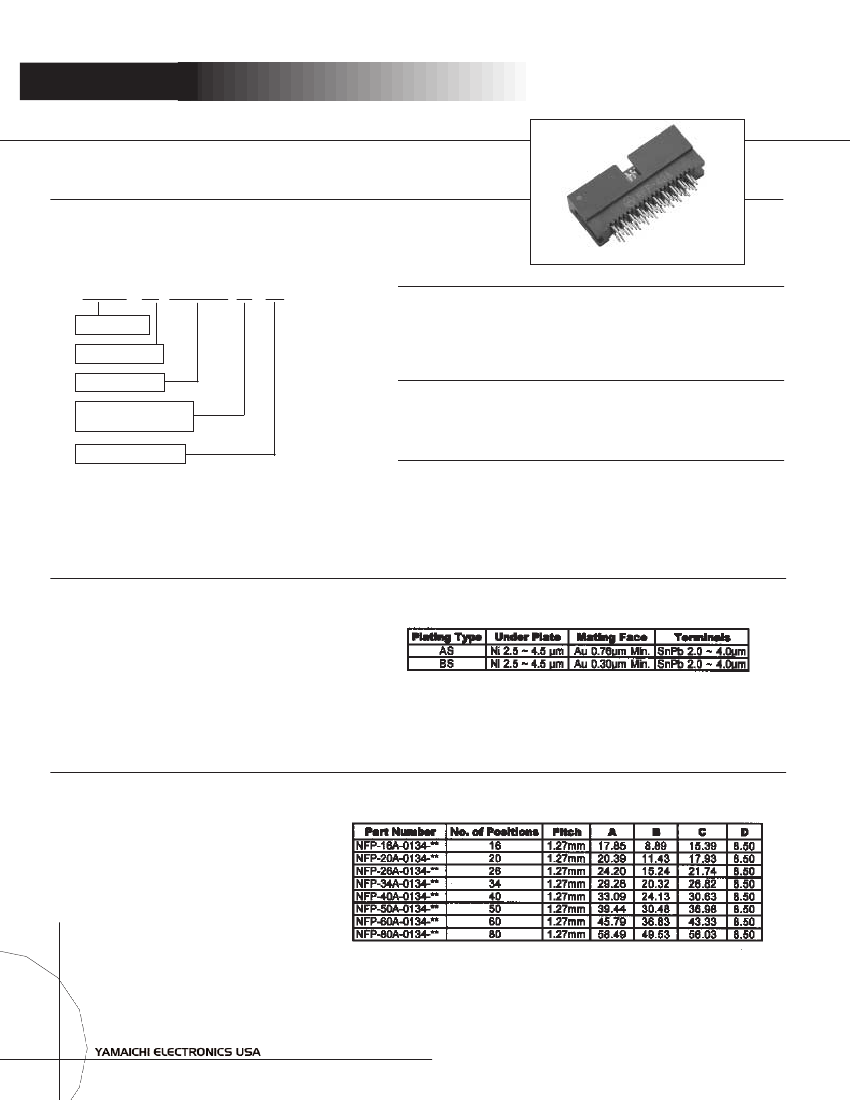

Box Header

(1.27mm, Right Angle, Solder Dip)

NFP SERIES

ORDERING INFORMATION

NFP- ** A-013 2- **

Header Series

No. of Positions

Box Header

Terminal Type:

2: Right Angle Solder Dip

Plating (see below)

Characteristics

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Contact Resistance:

Operating Temperature:

0.5A

1,000M½ Minimum at 500 VDC

500 VAC for 1 minute

15m½ Max. at 10mA

-20˚C ~ +85˚C

High Temp Thermoplastic-UL94V-0

Copper Alloy

Mating Face Contacts: Au over Ni

Terminals: Au or SnPb over Ni

1. Right-angle terminals

2. Variety of plating options

3. Central polarizing key

Material and Finish

Insulator:

Contact:

Plating:

Features

TYPES OF PLATING

CONNECTOR DIMENSIONS

(reference only)
