BP/FMX-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BP/FMX-30

BP/FMX-30: Descriptionautomotive fuses female maxi fuse; CategoryCircuit protection; File Size76KB，1 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

BP/FMX-30 Overview

automotive fuses female maxi fuse

BP/FMX-30 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Automotive Fuses
RoHS	N
Current Rating	30 A
Voltage Rating DC	32 V
Termination Style	Cartridge Box Socke
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	Maxi
Col	Pink
Dimensions	25.4 mm L x 11.93 mm W
Indicator Style	Without Indic
Case Heigh	10.92 mm
Case Length	25.4 mm
Case Width	11.93 mm
Packaging	Blister Card
Produc	Automotive Fuses
Factory Pack Quantity	5
Type	Female Maxi Time Delay Fuse
Unit Weigh	13.608 g

Preview

Download Datasheet

View All

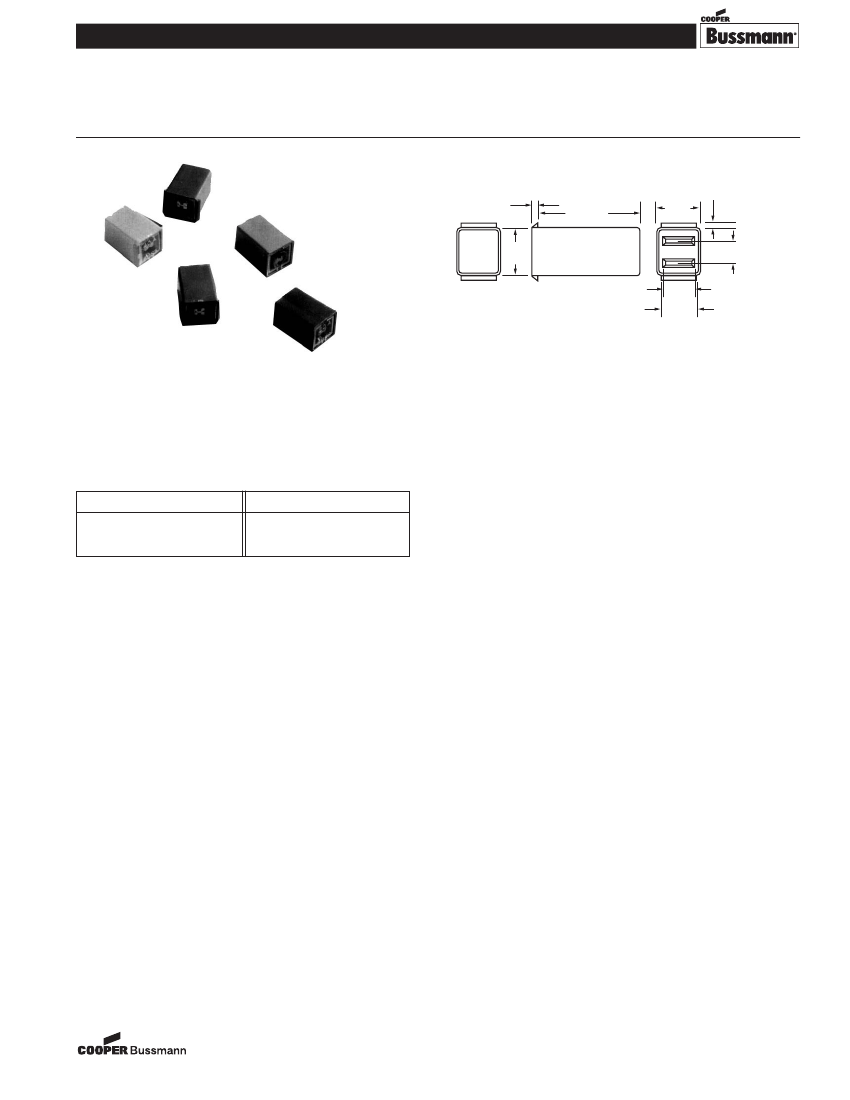

Female MAXI™ Fuse

Time Delay, 20-60 Amp

FMX

.04" (1.01)

.06"

(1.52)

1.0"

(25.4)

.43"

(10.92)

BUSS

60A

.47"

(11.93)

.22" (5.58)

.31"

(7.87)

.33"

(8.38)

Female FMX Maxi

™

– Fuse

Time Delay

The FMX is available in ampere ratings from 20 - 60A in a

standard 27 mm height. Use 5.5 mm blade centers with a

6.0 mm width and .81 mm thick blades.

Part No.

FMX-20

FMX-30

FMX-40

Amp Rating

Color

Lt. Blue

Pink

Green

Part No.

FMX-50

FMX-60

Amp Rating

Color

Red

Yellow

The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin

is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to

change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical infor-

mation contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

06-11-07

BU-SB07217

Form No. FMX

Page 1 of 1

Data Sheet: 2079

BP/FMX-30 Related Products

	BP/FMX-30	FMX-30	FMX-50	BP/FMX-50	BP/FMX-20	BP/FMX-40	FMX-30LP	FMX-25LP	FMX-40	FMX-20LP
Description	automotive fuses female maxi fuse	automotive fuses 30a cartridge fuse	automotive fuses 50a cartridge fuse	automotive fuses female maxi fuse	automotive fuses female maxi fuse	automotive fuses female maxi fuse	automotive fuses LO profile maxi fuse	automotive fuses LO profile maxi fuse	automotive fuses 40a cartridge fuse	automotive fuses LO profile maxi fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	-
Product Category	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	-
RoHS	N	N	N	N	N	N	Yes	Yes	N	-
Current Rating	30 A	30 A	50 A	50 A	20 A	40 A	30 A	25 A	40 A	-
Voltage Rating DC	32 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V	32 V	-
Termination Style	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	Cartridge Box Socke	-
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	-
Fuse Size / Grou	Maxi	Maxi	Maxi	Maxi	Maxi	Maxi	Maxi	Maxi	Maxi	-
Col	Pink	Pink	Red	Red	Light Blue	Gree	Pink	Cle	Gree	-
Dimensions	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	25.4 mm L x 11.93 mm W	-
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic	-
Case Heigh	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	-
Case Length	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	-
Case Width	11.93 mm	11.93 mm	11.93 mm	11.93 mm	11.93 mm	11.93 mm	11.93 mm	11.93 mm	11.93 mm	-
Packaging	Blister Card	Bulk	Bulk	Blister Card	Blister Card	Blister Card	Bulk	Bulk	Bulk	-
Produc	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	Automotive Fuses	-
Factory Pack Quantity	5	10	10	5	5	5	-	-	10	-
Type	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	Female Maxi Time Delay Fuse	-
Unit Weigh	13.608 g	5.897 g	40 g	11.793 g	13.608 g	13.608 g	4.536 g	6.804 g	4.536 g	-
