• Lead wire with tin-plated copper, diameter 0.6mm
HF
FREE
HALOGEN
Pb
• Protects against harmful overcurrents in primary and
secondary applications
• Small radial-leaded design minmizes board space and
eliminates need for additional mounting components
(BK/PCS holder optional if field replacement is
desirable)
• Designed to UL 248-14
Rated
Current
800mA-10A
Electrical Characteristics
1 xIn
1.5 xIn
min
max
4hr
10 min
2 xIn
max
2 min
Packaging – mm / [inches]
Agency Information
• UL Listed: File E19180 JDXY1, JDYX7
• PSE: File JET5766-31007-1001,
File JET5766-31007-1002
Specifications
• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F,
Method 201A
• Operating temperature: -40°C to +125°C
• Soldering heat resistance: 260°C, 10 sec. max.
(IEC 60068-2-20)
Ordering
• Specify product and packaging code
(i.e., SR-5F-1A-AP)

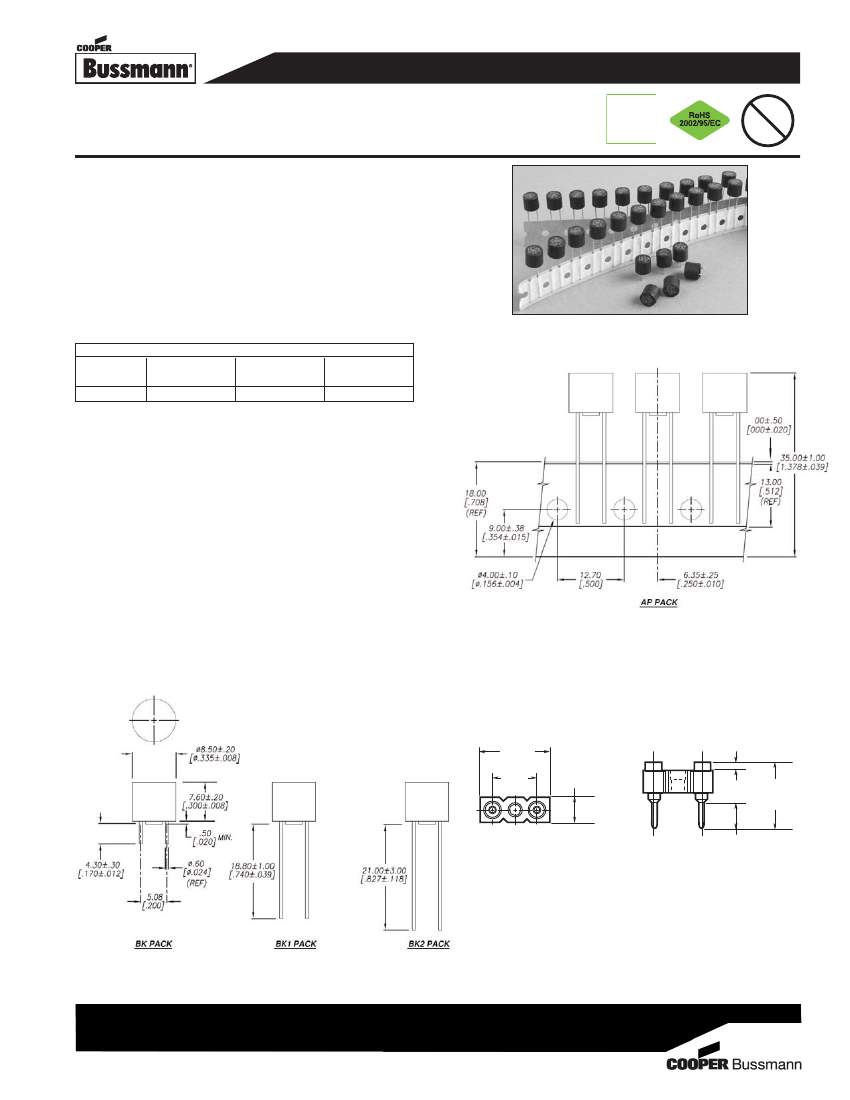

Dimensions - mm / [inches]
Mounting Socket (RoHS compliant)
• Available as option. Specify catalog number BK/PCS
(In bulk 100 per bag)
Socket (PCS)
0.03"
0.30"
(7.62mm)
(0.76mm)
0.20"
(5.08mm)
0.095"
(2.41mm)
0.29"
(7.37mm)
(3.05mm
±
0.25mm)
0.12"
±
0.01"
0709
BU-SB07219
Page 1 of 3
Data Sheet 4073
Specifications
Catalog
Number
SR-5F-800mA
SR-5F-1A
SR-5F-1.25A
SR-5F-1.6A
SR-5F-2A
SR-5F-2.5A
SR-5F-3.15A
SR-5F-4A
*SR-5F-5A
*SR-5F-6.3A
*SR-5F-7A
*SR-5F-8A
*SR-5F-10A
Voltage
Rating
(Vac)
250
250
250
250
250
250
250
250
250
125
125
125
125
Interrupting Rating
(amps) @ Rated
Voltage (50Hz)
**
50
50
50
50
50
50
50
50
50
50
50
50
50
Typical DC Cold
Resistance (W)
***
0.245
0.171
0.116
0.076
0.058
0.049
0.037
0.026
0.018
0.015
0.011
0.010
0.007
Typical Melting I
2
t
†
Maximum Voltage
(A
2
S)
†
Drop@1In (mV)
‡
1.5
400
2.6
400
4.4
330
6.9
330
9
330
15
330
23.2
330
35.4
330
55
250
75
250
107
250
120
200
145
200
Maximum Power
Dissipation @
1In(mW)
†††
320
400
413
528
660
825
1040
1320
1250
1575
1750
1600
2000
Agency Approvals
cULus
PSE
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
*Conducting path min. 0.2mm
2.
**Interrupting ratings measured at 50A, 95%-100% of PF on AC.
***Typical DC Cold Resistance measured at <10% of rated current.
†Typical Melting I
2
t measured at 10I
n
.
‡ Maximum Voltage Drop measured at 20°C ambient temperature at rated current.
†††Maximum Power Dissipation measured at 20°C ambient temperature at rated current.
0709
BU-SB07219
Page 2 of 3
Data Sheet 4073

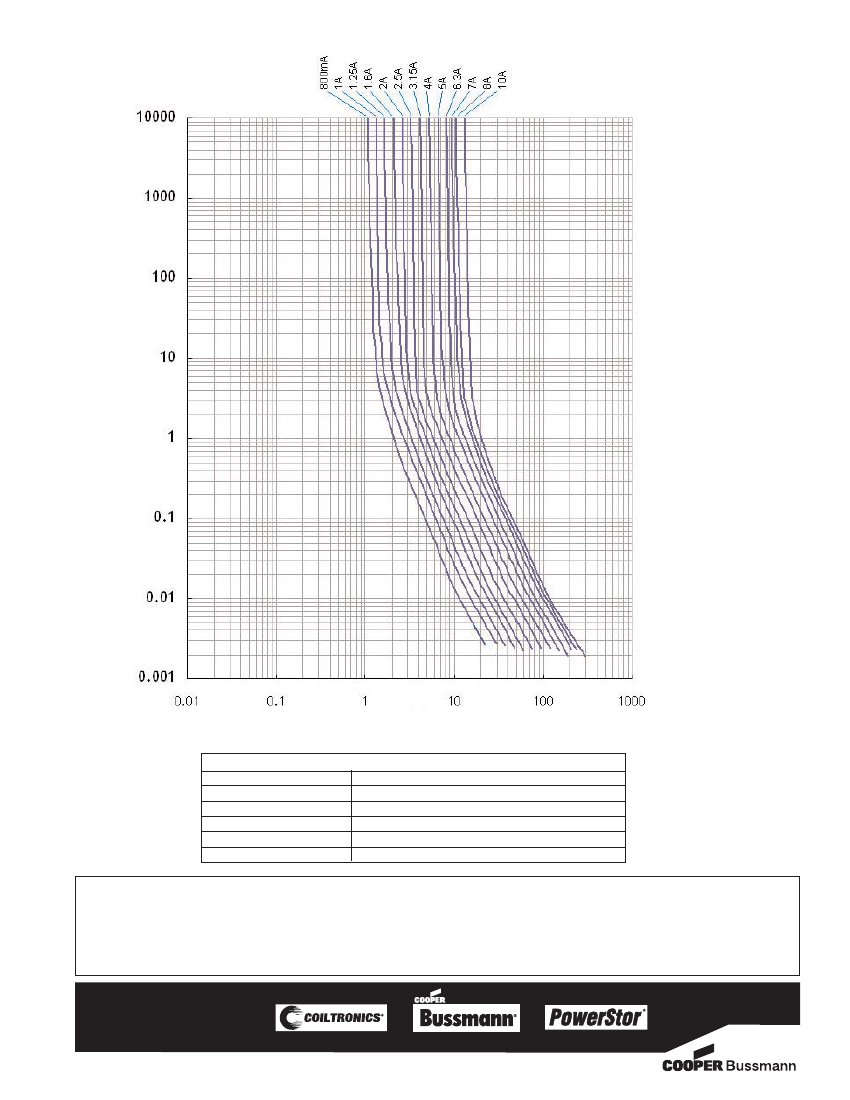

Time-Current Curve
Time in Seconds
Current in Amps
Packaging Code
Packaging Suffix
-BK
-BK1
-BK2
-AP
-AP1
Description
200 fuses in polybag, Lead L = 4.3 ± 0.3
200 fuses in polybag, Lead L = 18.8 ± 1.0
200 fuses in polybag, Lead L = 21 ± 3.0
1000 fuses Ammo Pack, Pitch = 12.7
1000 fuses Ammo Pack, Pitch = 15
