TR2/C515-500-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> TR2/C515-500-R

TR2/C515-500-R: Descriptioncartridge fuses c515 500ma TD tr2; CategoryCircuit protection; File Size245KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

TR2/C515-500-R Overview

cartridge fuses c515 500ma TD tr2

TR2/C515-500-R Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	Yes
Body Style	Cylindrical Leaded
Current Rating	500 mA
Voltage Rating AC	250 V
Mounting Style	Through Hole
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	2AG (5 mm x 15 mm)
Dimensions	15.2 mm L x 5.5 mm D
Case Diamete	5.5 mm
Case Length	15.2 mm
Indicator Style	Without Indic
Packaging	Reel
Produc	Specialty Fuses
Factory Pack Quantity	1500
Termination Style	Axial
Type	Electronic Ferrule Glass Fuse
Unit Weigh	1.361 g

Preview

Download Datasheet

View All

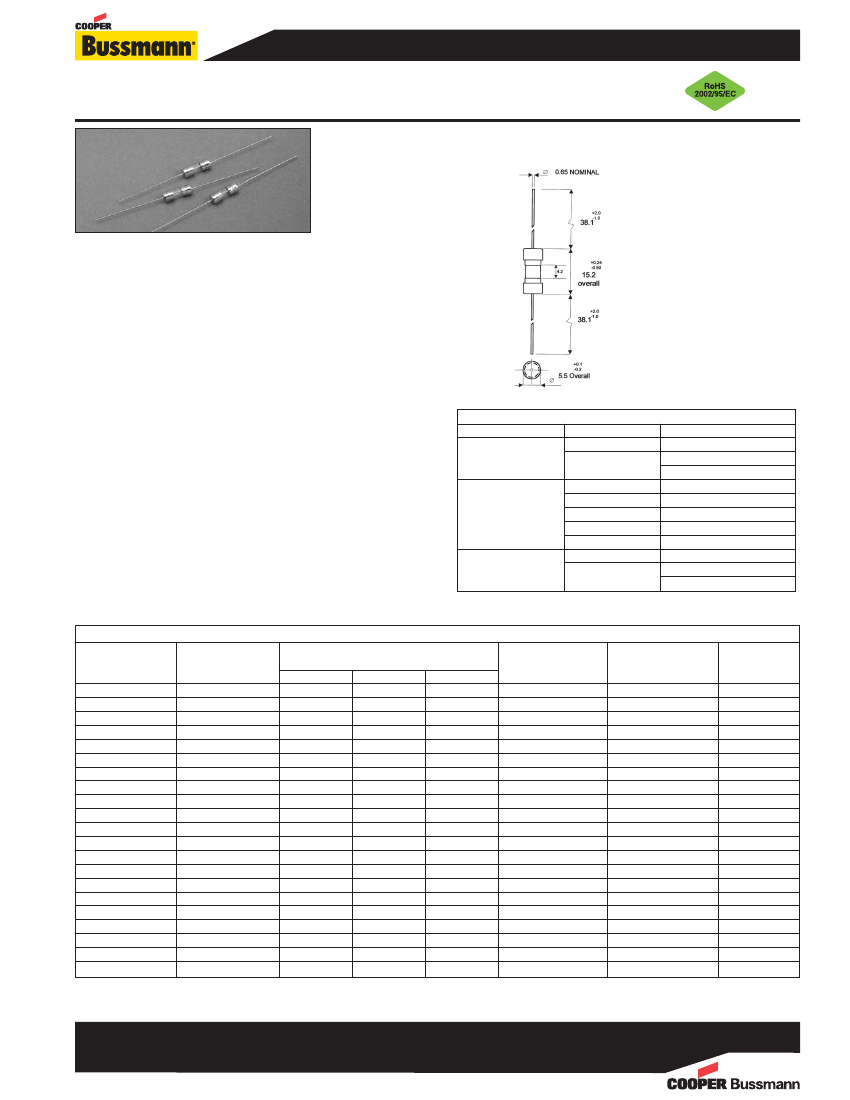

5 x 15mm Axial-Leaded, Time-Delay, Glass Tube Fuses

C515 Series

Dimensions

- mm

Drawing Not to Scale

Description

• Axial-leaded, time-delay

• 5 x 15mm physical size

• Nickel-plated brass endcap construction

• Leads are tin coated

• Optional sleeve is flexible flouropolymer

(UL Flammability rating VW-1).

• UL Listed product meets standard UL 248-14

Agency Information

• UL Listed Card: C515 125mA-250mA and 375mA-3A

(Guide JDYX, File E19180)

• UL Recognized Card: C515 350mA, and 3.5A-7A

(Guide JDYX2, File E19180)

• CSA Certification Card: C515 125mA-250mA and

375mA-3A (Class 1422-01, 53787

Ordering

Specify product code

• Insert packaging code prefix before part number.

E.g., BK (or TR2)/C515-2-R

• With TR2 packaging code, lead wire length is 20.3mm

Specify option code, if desired

• For insulation sleeve, insert “S” after part series.

E.g., BK/C515S-2-R

Voltage

Rating

Vac

250

125

Electrical Characteristics

Amp Rating

Opening Time

135%

60 minutes max.

125mA - 250mA

3 seconds min.

200%

120 seconds max.

100%

4 hours min.

470mA

30 minutes max.

350mA

600mA

90 seconds max.

2 seconds max.

500 milliseconds max.

135%

60 minutes max.

375mA - 7A

3 seconds min.

200%

120 seconds max.

Rated Current

Specifications

Product Code

C515-125-R

C515-250-R

C515-350-R

C515-375-R

C515-500-R

C515-600-R

C515-750-R

C515-800-R

C515-1-R

C515-1.25-R

C515-1.5-R

C515-1.6-R

C515-2-R

C515-2.25-R

C515-2.5-R

C515-3-R

C515-3.5-R

C515-4-R

C515-5-R

C515-6-R

C515-7-R

Interrupting

Rating (amps)

600Vac

250Vac

125Vac

10000

100

10000

100

10000

100

10000

100

10000

100

10000

100

10000

100

10000

400

Typical DC Cold

Resistance*

(Ω)

4.72

1.32

1.04

0.81

0.54

0.38

0.26

0.23

0.14

0.13

0.100

0.090

0.059

0.057

0.046

0.035

0.028

0.023

0.019

0.014

0.013

Typical

Melting I

t**

0.101

0.467

1.169

1.531

2.280

6.982

9.162

10.544

14.289

22.961

31.989

35.156

60.256

97.724

78.163

80.426

149.279

233.346

354.813

471.360

710.500

Max

Voltage

Drop (mV)***

770

430

530

470

440

350

310

260

230

220

240

200

170

180

190

150

130

150

125

100

*DC Cold Resistance (Measured at <10% of rated current)

**Typical Melting I

t (A

Sec) (Minimum I

t at 10 times rated current)

***Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)

1009

BU-SB09716

Page 1 of 2

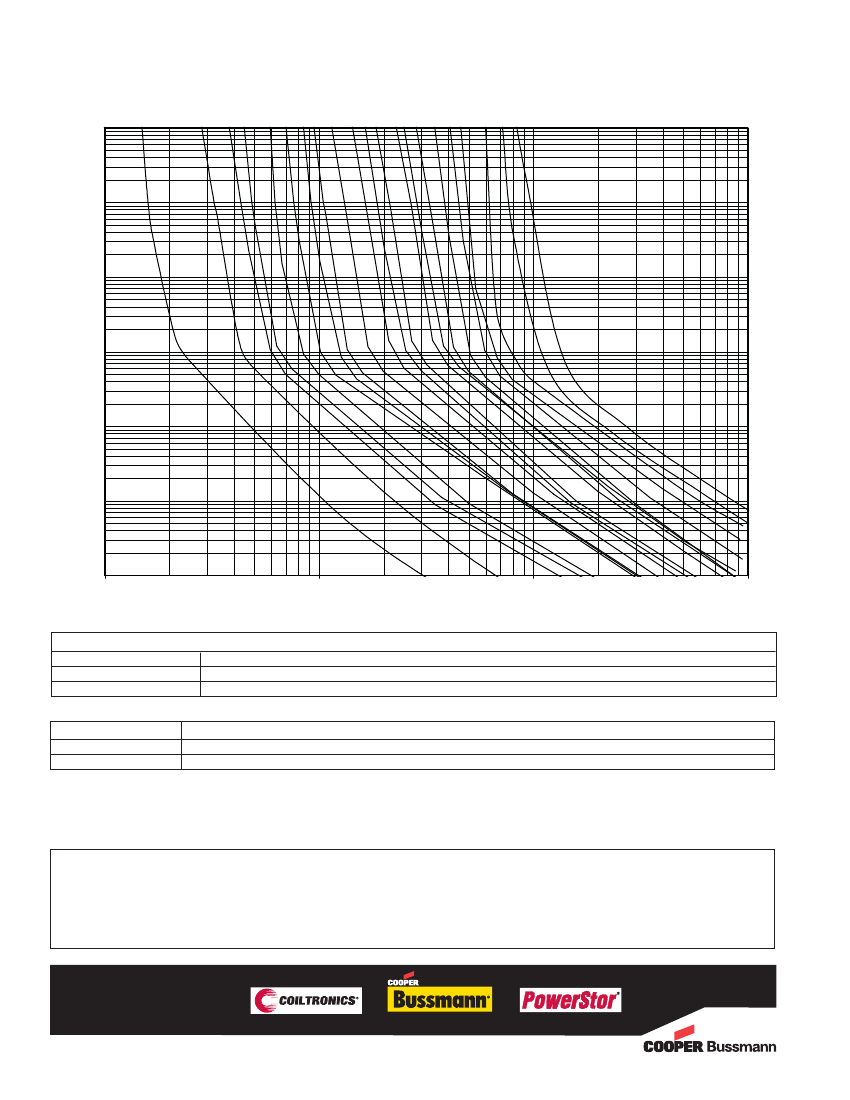

Data Sheet 2006
