Improved Performance
5x7mm
TCXO / VCTCXO
2111 Comprehensive Drive
2111 Comprehensive Drive
Aurora, Illinois 60505
Aurora, Illinois 60505
Phone: 630- 851- 4722
Phone: 630- 851- 4722
Fax: 630- 851- 5040
Fax: 630- 851- 5040
www.conwin.com
www.conwin.com
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221

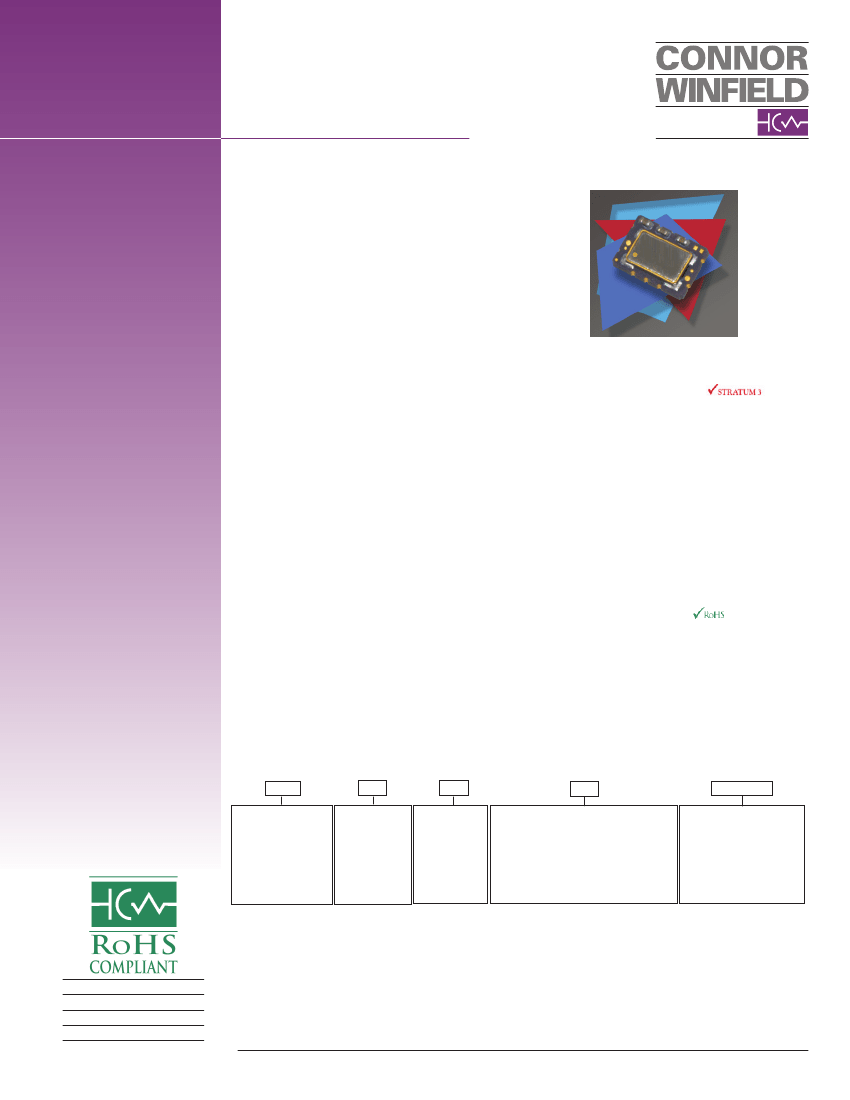

Description:
Connor-Winfield's TBxxx and TVBxxx series
are 5x7mm TCXO and VCTCXO products
with exceptional frequency stability and low
phase noise. Through the use of analog
temperature compensation, these products are
capable of holding Stratum 3 level temperature
stabilities of ±0.28 ppm over the commercial
and industrial temperature ranges. Available in
4-pad or 10-pad surface mount footprints.
These products are designed for
such applications as IEEE 1588 PTP or
Synchronous Ethernet.
Using the latest analog TCXO technology,
the TBxxx and TVBxxx series have improved
phase noise and frequency stability
performance.
TV
B5
0
10 4 12
.0
MH 42
Z
Features:
Frequency Stabilities Available:
+/-0.28 ppm (10 to 54 MHz)
+/-0.50 ppm, +/-1.00 ppm or +/-2.00 ppm
(10 to 100 MHz)
Temperature Ranges Available:
0 to 85°C, 0 to 70°C, -40 to 85°C or -20 to 70°C
Packages Available:
TB - Series: 5 x 7mm - 10 Pad
TVB - Series: 5 x 7mm - 4 Pad
3.3 Vdc Operation
Output Logic: LVCMOS or Clipped Sinewave
Fixed Frequency - TCXO
Voltage Controlled - VCTCXO
Low Jitter <0.50 ps RMS
Low Phase Noise
Tri-State Enable/Disable: (TB - Model Series Only)
Tape and Reel Packaging
RoHS Compliant / Lead Free
Applications:
•
•
•
•
•
•
IEEE 1588 Applications
Synchronous Ethernet slave clocks,
ITU-T G.8262 EEC options 1 & 2
Compliant to Stratum 3, GR-1244-CORE &
GR-253-CORE
Wireless Communications
Small Cells
Test and Measurement
Standard Frequencies Available *
* 10.0 MHz, 12.8 MHz, 19.2 MHz, 19.44 MHz, 20.0 MHz, 25.0 MHz, 38.88 MHz, 40 MHz and 50 MHz
Available frequencies from the factory for small quantity orders or quick delivery.
Additional frequencies are available.
Ordering Information
TVB
Type / Package
TCXO / VCTCXO
Series
TB = 5.0x7.0 mm
10 Pads
TVB = 5.0x7.0 mm
4 Pads
5
Temperature
Range
3 = 0 to 85 °C
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
0
Frequency
Stability
0 = ±0.28 ppm
1 = ±0.50 ppm
2 = ±1.00 ppm
3 = ±2.00 ppm
4
Features
2 = TCXO, LVCMOS, 3.3 Vdc
3 = TCXO, Clipped Sinewave, 3.3 Vdc
4 = VCTCXO, LVCMOS, 3.3 Vdc
5 = VCTCXO, Clipped Sinewave, 3.3 Vdc
- 010.0M
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of numbers after
the decimal point.
M = MHz
Example: Part Number
Bulletin
Page
Revision
Date
Tx380
1 of 6
02
25 Feb 2013
TVB504-010.0M = 5x7mm 4 pad package,
±0.28
ppm, 0 to 70°C, 3.3 Vdc, LVCMOS Output, VCTCXO
TB715-012.8M = 5x7mm 10 pad package,
±0.50
ppm, -20 to 70°C, 3.3 Vdc, Clipped Sinewave Output, VCTCXO
TB622-050.0M = 5x7mm 10 pad package,
±1.0
ppm, -40 to 85°C, 3.3 Vdc, LVCMOS Output, TCXO
TVB602-010.0M = 5x7mm 4 pad package,
±0.28
ppm, -40 to 85°C, 3.3 Vdc, LVCMOS Output, TCXO
Specifications subject to change without notice. All dimensions in inches. © Copyright 2012 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Storage Temperature
Supply Voltage (Vcc)
Input Voltage (Vc)
Parameter
Minimum
-55
-0.5
-0.5
Nominal
-
-
-
Maximum
125
6.0
Vcc + 0.5
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Parameter
Minimum
Nominal
Maximum
Units
Notes
Output Frequency (Fo)
Models TBx0x, TVBx0x
10
-
50
MHz
Models TBx1x, TVBx1x
10
-
100
MHz
Models TBx2x, TVBx2x
10
-
100
MHz
Models TBx3x, TVBx3x
10
-
100
MHz
Operating Temperature Range
(See Ordering Information for full part number)
Models TB3xx, TVB3xx
0
-
85
°C
Models TB5xx, TVB5xx
0
-
70
°C
Models TB6xx, TVB6xx
-40
-
85
°C
Models TB7xx, TVB7xx
-20
-
70
°C
Frequency Calibration @ 25 °C
-1.0
-
1.0
ppm
1
Frequency Stability (See Ordering Information for full part number) Per STRATUM 3 GR-1244-CORE
Models TBx0x, TVBx0x
-0.28
-
0.28
ppm
2
Holdover Stability
-0.32
-
0.32
ppm
3
Frequency Stability
(See Ordering Information for full part number)
Models TBx1x, TVBx1x
-0.50
-
0.50
ppm
2
Models TBx2x, TVBx2x
-1.00
-
1.00
ppm
2
Models TBx3x, TVBx3x
-2.00
-
2.00
ppm
2
Frequency vs. Load Stability
-0.20
-
0.20
ppm
±5%
Frequency vs. Voltage Stability
-0.20
-
0.20
ppm
±5%
Static Temperature Hysteresis
-
-
0.40
ppm
4
Freq. shift after reflow soldering
-1.0
-
1.0
ppm
5
Long Term Stability
-1.0
-
1.0
ppm
6
Aging
per Life (20 Years)
-3.0
-
3.0
ppm
per Day
-40
-
40
ppb
per Second
-
4.63E-13
Supply Voltage (Vcc)
3.135
3.30
3.465
Vdc
Supply Current (Icc)
LVCMOS
-
2.1
6.0
mA
Clipped Sinewave
-
1.3
2.9
mA
Jitter:
Period Jitter
-
3.0
5.0
ps RMS
Integrated Phase Jitter (12K to Fo/2) -
0.5
1.0
ps RMS
7
Typical SSB Phase Noise
For Fo
10.0 MHz
50.0 MHz
100.0 MHz
@ 10 Hz offset
-98
-70
-60
dBc/Hz
@ 100 Hz offset
-125
-100
-91
dBc/Hz
@ 1 KHz offset
-143
-122
-119
dBc/Hz
@ 10 KHz offset
-151
-145
-142
dBc/Hz
@ 100 KHz offset
-152
-150
-153
dBc/Hz
@ 1 MHz offset
-155
-152
-153
dBc/Hz
Start-Up Time
-
-
10
ms
Bulletin
Page
Revision
Date
Specifications subject to change without notice. All dimensions in inches. © Copyright 2012 The Connor-Winfield Corporation
Tx380
2 of 6
02
25 Feb 2013
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Control Voltage Input Characteristics
Parameter
Control Voltage
Frequency Pullability
Control Voltage Slope
Monotonic Linearity
Input Impedance
Modulation Bandwidth (3dB)
Minimum
0.3
±10
-
100K
10
Nominal
1.65
-
Positive Slope
-
-
-
Maximum
3.0
-
10
-
-
Units
V
ppm
%
Ohm
KHz
Notes
Enable /Disable Input Characteristics (Pad 8)
TB Series only
Parameter
Enable Input Voltage -(Vih)
Disable Input Voltage - (Vil)
Function
Low:
High or Open:
Minimum
70%Vcc
-
Nominal
-
-
Maximum
-
30%Vcc
Units
Vdc
Vdc
Notes
8
8
Output
Disabled (High Impedance)
Enabled

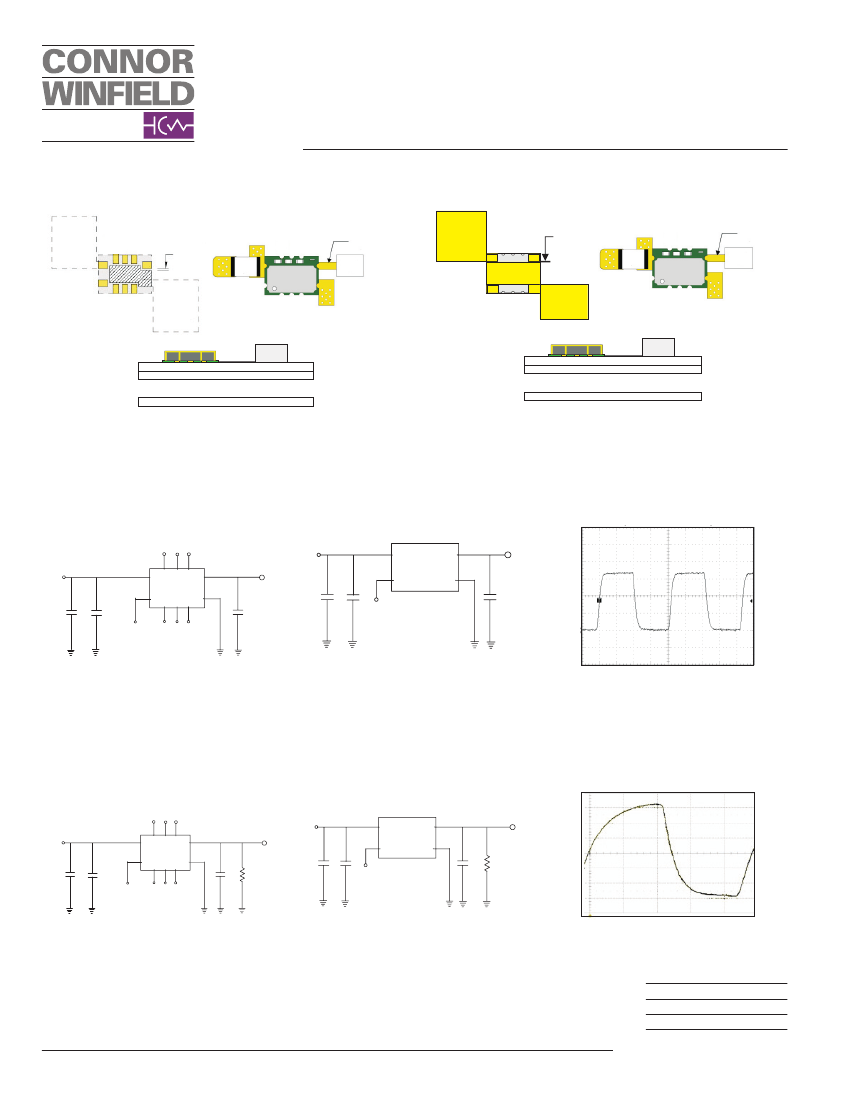

LVCMOS Output Characteristics
Parameter
Load (CL)
Voltage (High) (Voh)
(Low)
(Vol)
Duty Cycle at 50% of Vcc
Rise / Fall Time 10% to 90%
Parameter
Load (CL)
Output Load Resistance
Output Load Capacitance
Output Voltage(< 40 MHz)
Output Voltage(>40 MHz)
Minimum
-
90%Vcc
-
45
-
Minimum
-
-
1.0
0.8
Nominal
15
-
-
50
4
Nominal
10K
10
1.2
1.0
Maximum
-
-
10%Vcc
55
8
Maximum
-
-
-
-
Units
pF
Vdc
Vdc
%
ns
Units
Ohm
pF
V
V
Notes
9
Clipped Sinewave Output Characteristics
Notes
pk-pk
pk-pk
Package Characteristics
Package
Hermetically sealed ceramic package with grounded metal cover
Environmental Characteristics
Vibration:
Shock:
Soldering Process:
Vibration per Mil Std 883E Method 2007.3 Test Condition A.
Mechanical Shock per Mil Std 883E Method 2002.4 Test Condition B.
RoHS compliant lead free. See soldering profile on page 2.
Notes:
1. Initial calibration @ 25°C. ±2°C, for VCTCXO's Vc = 1.65V. Specifications at time of shipment after 48 hours of operation.
2. Frequency stability vs. change in temperature. [±(Fmax-Fmin)/(2*Fo]). For VCTCXO's - Vc -= 1.65V
3. Inclusive of frequency stability, supply voltage change (±1%), aging, for 24 hours. Per STRATUM 3 GR-1244-CORE.
4. Frequency change after reciprocal temperature ramped over the operating range. Frequency measured before and after at 25°C
5. Two consecutive solder reflows after 1 hour recovery @ 25°C.
6. Frequency drift over 1 year @ 25°C.
7. BW = 12 KHz to 20 MHz
8. Leave Pad 8 on the TB Series unconnected if enable / disable function is not required. When tri-stated, the output stage is
disabled but the oscillator and compensation circuit are still active (current consumption < 1 mA).
9. Attention: To achieve optimal frequency stability, and in some cases to meet the specification stated on this data sheet,
it is required that the circuit connected to this TCXO output must have the equivalent input capacitance that is specified
by the nominal load capacitance. Deviations from the nominal load capacitance will have a graduated effect on the stability of
approximately 20 ppb per pF load difference..
Bulletin
Page
Revision
Date
Tx380
3 of 6
02
25 Feb 2012
Specifications subject to change without notice. All dimensions in inches. © Copyright 2012 The Connor-Winfield Corporation
