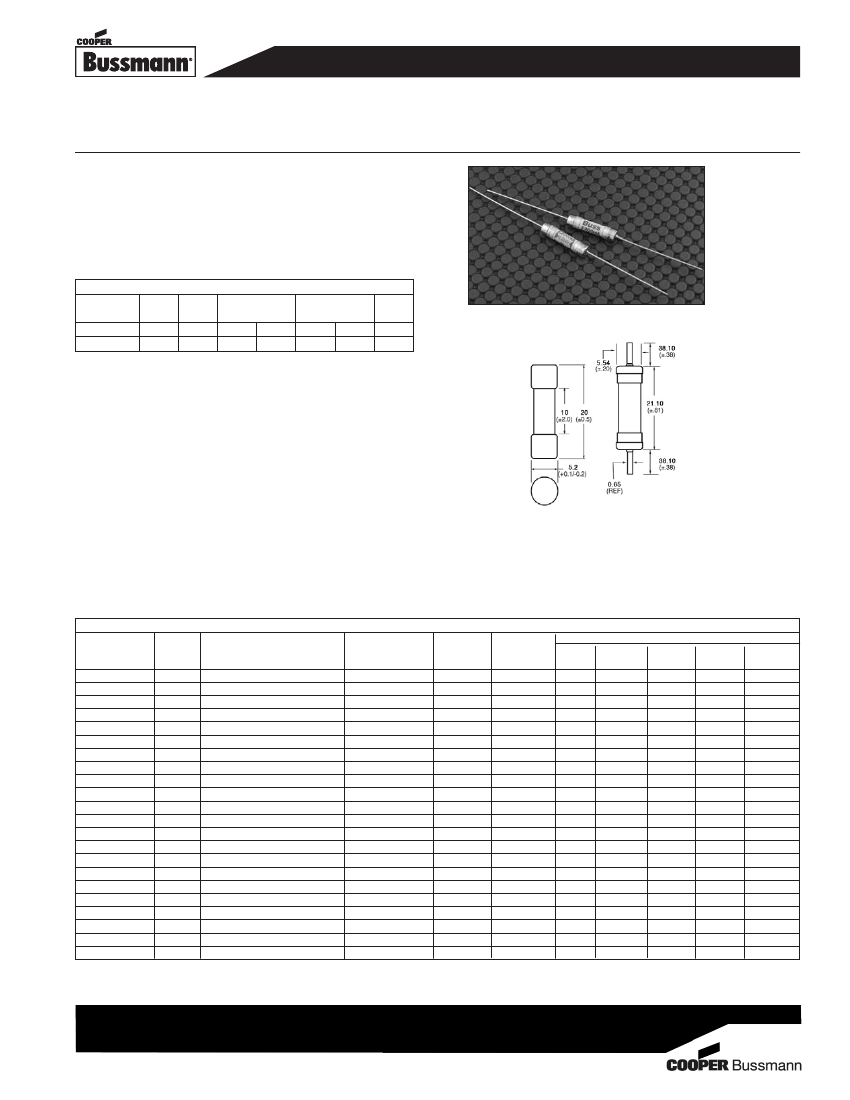

5 x 20mm Fuses

GDA Series, Fast-Acting, Ceramic Tube

Description

• Fast-acting, high breaking capacity

• 5 x 20mm physical size

• Ceramic tube, nickel-plated brass endcap construction

• Silver-plated endcap construction (50mA-400mA)

• Optional axial leads are 0.032" x 1.5" copper tinned

• Designed to IEC 60127-2

Electrical Characteristics

1.5 In 2.1 In

2.75 In

4 In

10 In

In

min

max

min

max

min

max

50mA-3.15A 60 min 30 min 10 ms 2 sec 3 ms 300 ms 20 ms

4A-10A

60 min 30 min 10 ms 3 sec 3 ms 300 ms 20 ms

Dimensions - mm

Drawing Not to Scale

Agency Information

• UL Recognized Card: Guide JDYX2, File E19180

• CSA Component Acceptance: File 53787

• Semko Approval: File 413779, File 512433

• IMQ Approval: File EB405

• CCC: File 2005010207155691

Ordering

Specify product code

• Insert packaging code prefix before part number. E.g.

BK/GDA-250mA

Specify option code if desired

• For axial leads, insert “V” between catalog series and

amp rating. E.g. BK/GDA-V-250mA

• With TR2 packaging code, lead wire length is 19.05mm

Specifications

Part Number

GDA-50mA

GDA-63mA

GDA-80mA

GDA-100mA

GDA-125mA

GDA-160mA

GDA-200mA

GDA-250mA

GDA-315mA

GDA-400mA

GDA-500mA

GDA-630mA

GDA-800mA

GDA-1A

GDA-1.25A

GDA-1.6A

GDA-2A

GDA-2.5A

GDA-3.15A

GDA-4A

GDA-5A

GDA-6.3A

Voltage Interrupting Rating (amps)

Typical DC

Typical

Rating at Rated Voltage (50Hz) Cold Resistance Melting I

2

t Voltage

Vac

(Ω)*

(amps) Drop (mV)‡

250

1500

157.5

0.0017

9000

250

1500

39.0

0.0005

3300

250

1500

27.9

0.0011

2600

250

1500

20.0

0.0018

2300

250

1500

12.3

0.0037

1900

250

1500

8.5

0.008

1600

250

1500

6.0

0.020

1350

250

1500

4.4

0.027

1300

250

1500

3.3

0.010

1400

250

1500

2.2

0.018

1200

250

1500

0.460

0.038

1050

250

1500

0.340

0.064

1200

250

1500

0.245

0.097

490

250

1500

0.231

0.146*

330

250

1500

0.176

0.313*

297

250

1500

0.113

0.748*

239

250

1500

0.073

2.0

205

250

1500

0.053

3.9

190

250

1500

0.037

8.1

160

250

1500

0.027

14

160

250

1500

0.019

25

155

250

1500

0.014

48

150

IMQ

X

Agency Approvals

SEMKO

UR

CCC

X

CSA

X

X**

X

‡ Typical Voltage Drop (Voltage drop was measured at 20ºC ambient temperature at rated current)

*I

2

t of 1A, 1.25A, 1.6A is measured at 10In DC.

**CSA Approvals on these ratings will not be marked on the fuse cap.

0209

BU-SB08725

Page 1 of 2

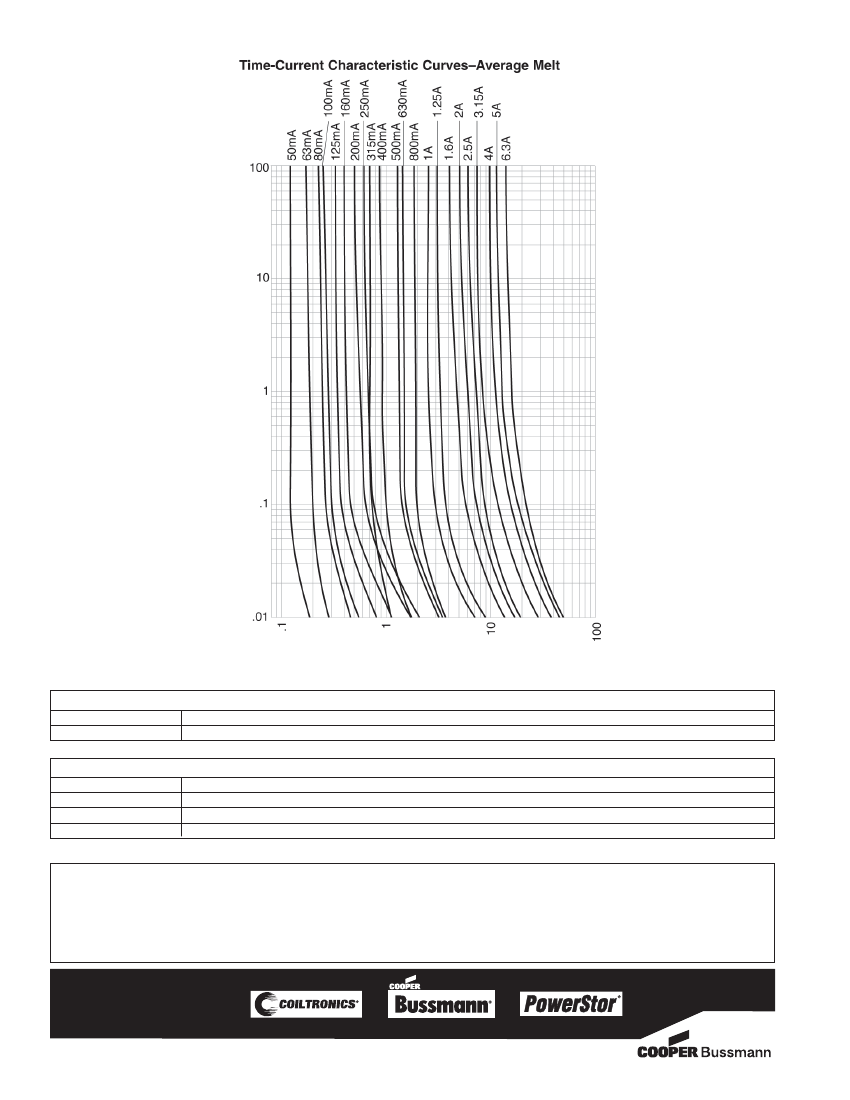

Data Sheet 2014

GDA-1.25A Related Products

	GDA-1.25A	GDA-6.3A	GDA-3.15A	GDA-1.6A	BK1/GDA-630MA
Description	cartridge fuses small dimension fuse	cartridge fuses small dimension fuse	cartridge fuses small dimension fuse	cartridge fuses small dimension fuse	cartridge fuses small dimension fuse
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses	Cartridge Fuses
RoHS	N	N	N	N	N
Body Style	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
Current Rating	1.25 A	6.3 A	3.15 A	1.6 A	630 mA
Voltage Rating AC	250 V	250 V	250 V	250 V	250 V
Mounting Style	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli	Holder / Cli
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow
Fuse Size / Grou	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm	5 mm x 20 mm
Dimensions	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D	20 mm L x 5.2 mm D
Case Diamete	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Case Length	20 mm	20 mm	20 mm	20 mm	20 mm
Indicator Style	Without Indic	Without Indic	Without Indic	Without Indic	Without Indic
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Produc	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses	Specialty Fuses
Factory Pack Quantity	5	5	5	5	1000
Termination Style	Cli	Cli	Cli	Cli	Cli
Type	Fast Acting High Breaking Capacity Fuse	Fast Acting High Breaking Capacity Fuse	Fast Acting High Breaking Capacity Fuse	Fast Acting High Breaking Capacity Fuse	Fast Acting High Breaking Capacity Fuse
Unit Weigh	4.536 g	2.722 g	2.722 g	4.536 g	453.592 mg
