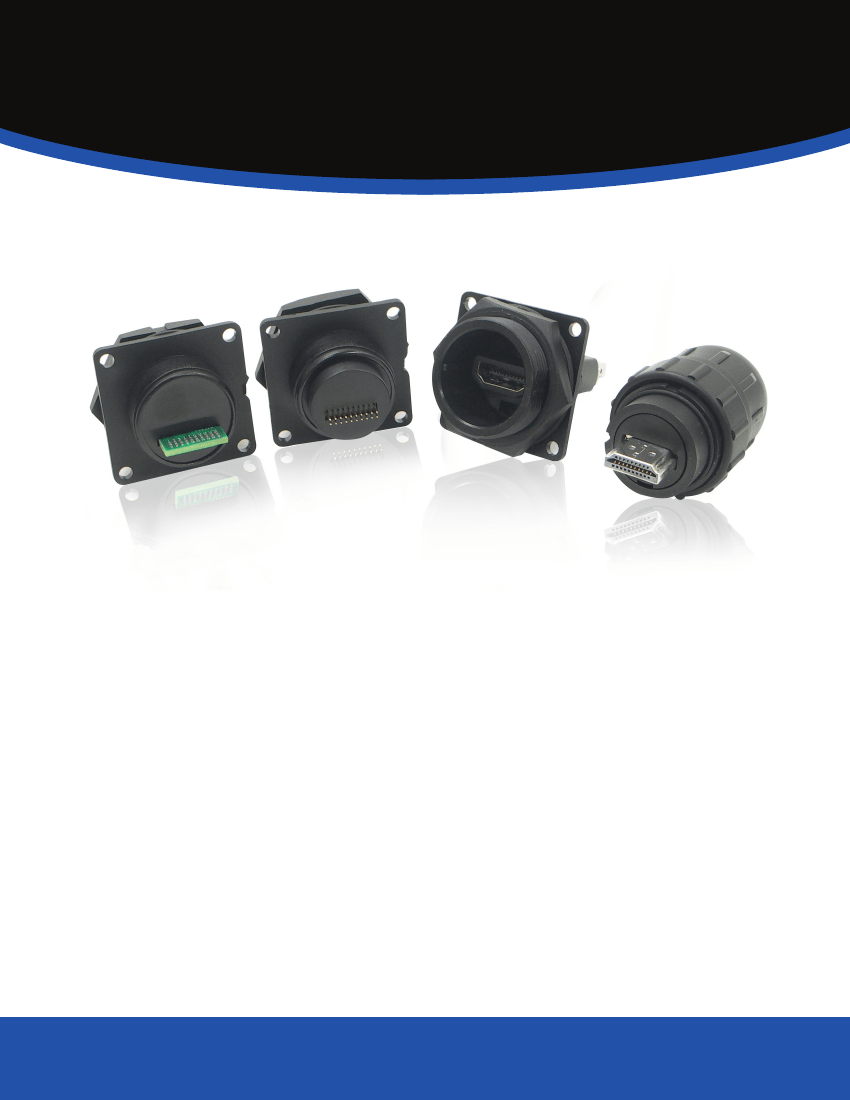

HDMI WEATHERTIGHT CONNECTORS
NPB
|
C714
FEATURES & BENEFITS
• Sealed to IP67 & IP68 NEMA 250 (6P)
(when panel connector is rear mounted
and mated to the cable)
• Feed-thru termination on the panel for
easy field installation
• Easy to assemble
• Quick connect bayonet or threaded
style interface
• RoHS Compliant - UV F1 rated housing
APPLICATIONS
• Data transmission
• Military or industrial
GPS location devices
• Instrumentation
• Medical data carts
• Data acquisition units
• General industrial applications
PLEASE VISIT WWW.CONXALL.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS.

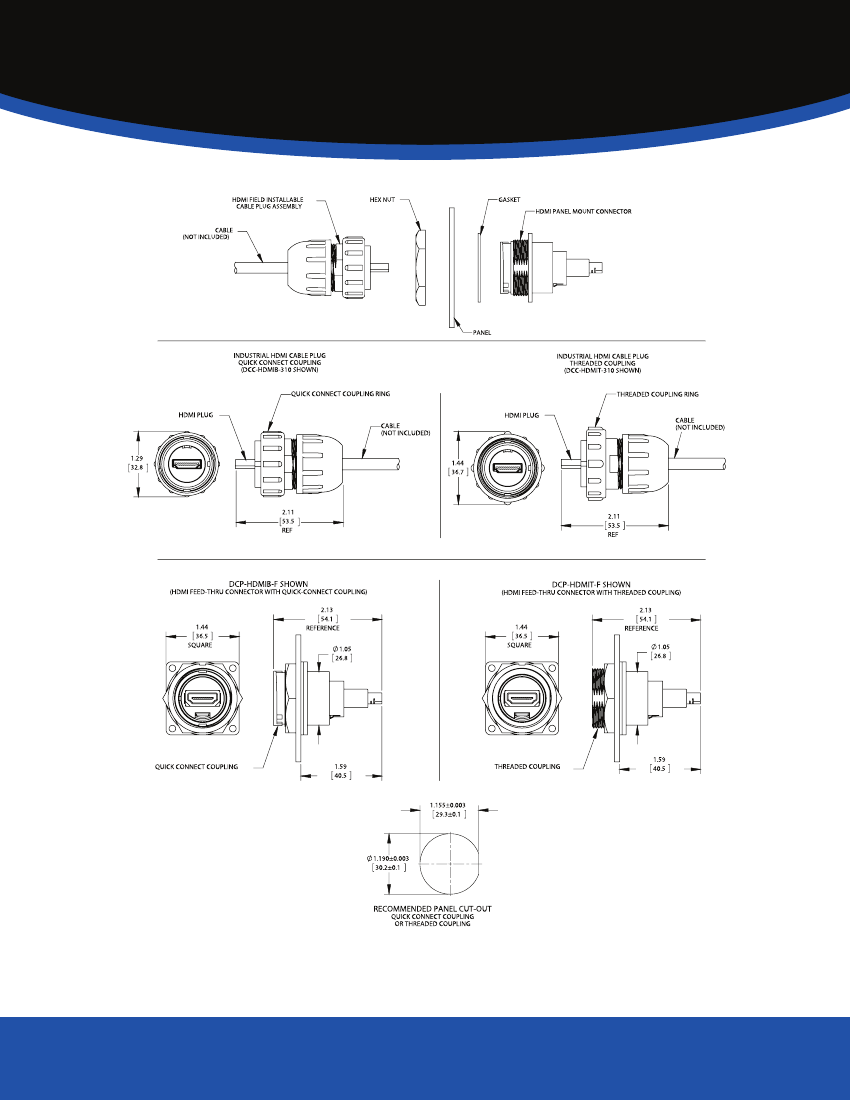

HDMI WEATHERTIGHT CONNECTORS
NPB
|
C714
SEE NOTE 2
SEE NOTE 1
SEE NOTE 1
NOTE 1: THE DIMENSION DOES NOT INCLUDE GASKET COMPRESSION.
NOTE 2: THE PANEL CONNECTOR MEETS IP67 & IP68, NEMA 250 (6P) WHEN CONNECTOR IS REAR MOUNTED USING THE HEX NUT.
UNITS ARE LISTED IN INCHES [mm]. ALL DIMENSIONS ARE REFERENCE ONLY.
NOTE: 1. THE DIMENSION DOES NOT INCLUDE GASKET COMPRESSION
PLEASE VISIT WWW.CONXALL.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS.

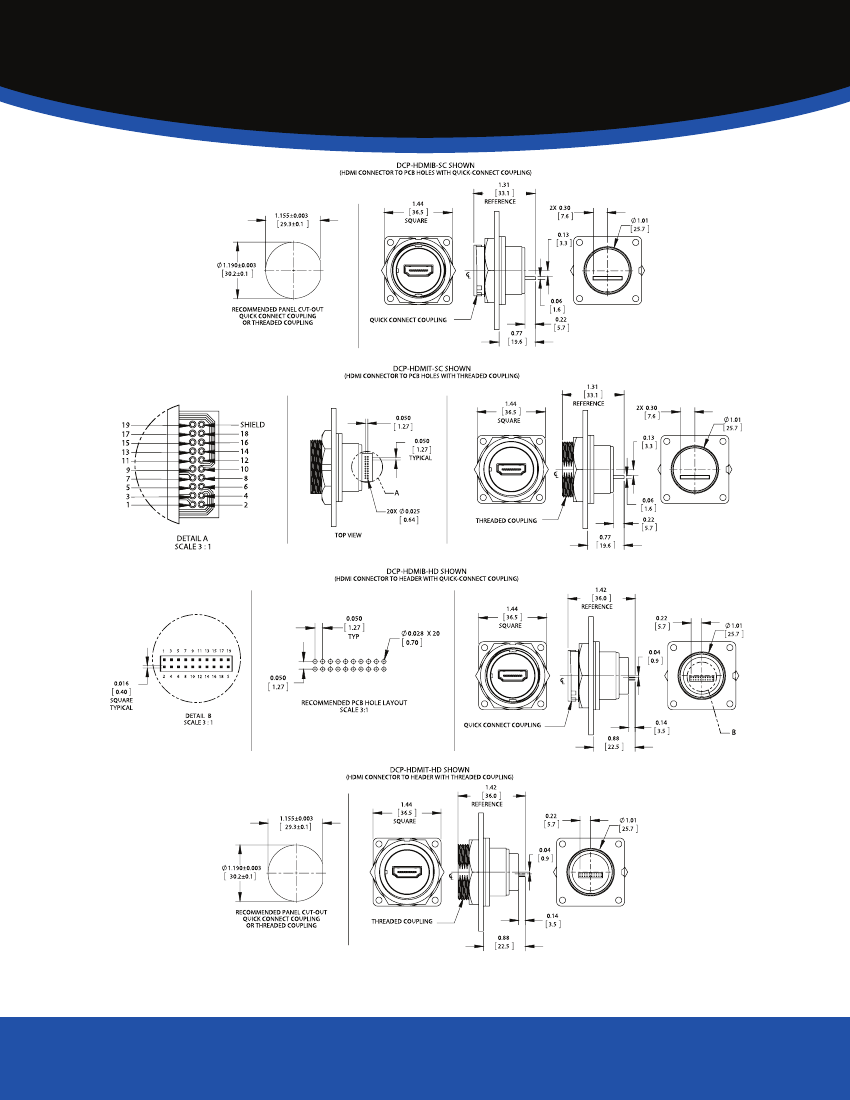

HDMI WEATHERTIGHT CONNECTORS
NPB
|
C714
SEE NOTE 1
(SEE NOTE 2)
SEE NOTE 1
(SEE NOTE 2 & 3)
SEE NOTE 1
SEE NOTE 1
NOTE 1: THE DIMENSION DOES NOT INCLUDE GASKET COMPRESSION. NOTE 2: THE PINOUT IS TYPICAL FOR THREADED OR QUICK CONNECT COUPLING.
NOTE 3: THE NUMBERS ARE FOR REFERENCE ONLY AND DO NOT APPEAR ON THE PART.
UNITS ARE LISTED IN INCHES [mm]. ALL DIMENSIONS ARE REFERENCE ONLY.
PLEASE VISIT WWW.CONXALL.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS.
HDMI WEATHERTIGHT CONNECTORS
NPB
|
C714
SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Life:
Hex Nut Torque:
Coupling Locking Style:
Backshell Style:
ELECTRICAL SPECIFICATIONS
Current Rating:
Contact Resistance:
Insulation Resistance:
Dielectric Withstanding Voltage:
Minimum 350 insertion/withdrawal cycles
10-12 in-lb max
Quick Connect (Bayonet) or Threaded
Threaded Nut-Squeezed Grommet
0.5 A
50 mΩ max
10 MΩ min (mated)
300 V AC/one minute (mated)
-20 °C to +80 °C (-4ºF to +176°F)
Mil-Std 202G Method 106G
Mil-Std 202G Method 302
Mil-Std 202G Method 201A
Mil-Std 202G Method 107G
IP67 & IP68, NEMA 250 (6P) (when rear mounted & mated)
Mil-Std 202G Method 101E
Thermoplastic
Thermoplastic
Elastomer
Thermoplastic
Elastomer
ENVIRONMENTAL SPECIFICATIONS
Temperature Rating:
Moisture Resistance:
Insulation Resistance:
Vibration:
Thermal Shock:
Weathertight:
Salt Atmosphere (Corrosion):
MATERIAL SPECIFICATIONS
Plug Nut, Coupling Ring:
Plug Housing, Insert:
Sealing Ring, O-Ring:
Panel Housing, Hex Nut:
Gasket:
HDMI Plug:
Shell:
Contacts:
Insulator:
PCB:
HDMI Feed-Thru Receptacle:
Shell:
Contacts:
Insulator:
HDMI PCB Receptacle:
Shell:
Contacts:
Insulator:
MOLDED CABLE ASSEMBLIES
OTHER
Flame Rating:
Recommended Panel Thickness:
Recommended Cable Type
Cable Type:
Outer Cable O.D. Range:
Copper Alloy, Nickel Plated
Copper Alloy, Gold Plated over Nickel
Thermoplastic
FR-4
Copper Alloy, Nickel Plated
Copper Alloy, Gold Plated
Thermoplastic
Copper Alloy, Tin Plated
Copper Alloy, Selective Gold Plated
Thermoplastic
Consult factory for molded options
UL 94V-0
1/32” - 3/16” [0.8mm to 4.8mm] - Quick Connect Coupling
1/32” - 5/32” [0.8mm to 3.9mm] - Threaded Coupling
HDMI High Speed
0.197”-0.236” [5.0mm-6.0mm]
PLEASE VISIT WWW.CONXALL.COM FOR THE MOST UP-TO-DATE PRODUCT SPECIFICATIONS.
