V85MLA1210WA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> V85MLA1210WA

V85MLA1210WA: Descriptionvaristors 85v 250a 260pf; CategoryPassive components The resistor; File Size961KB，8 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

V85MLA1210WA Overview

varistors 85v 250a 260pf

V85MLA1210WA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	CHIP, 1210, LEAD FREE
Reach Compliance Code	unknow
ECCN code	EAR99
Circuit maximum DC voltage	85 V
Circuit RMS maximum voltage	67 V
Maximum energy absorption capacity	2.5 J
JESD-609 code	e3
Manufacturer's serial number	ML
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Chip / Die
method of packing	BULK
Rated power dissipation(P)	0.15 W
Rated temperature	150 °C
Resistor type	VARISTOR
surface mount	YES
technology	METAL OXIDE FILM
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

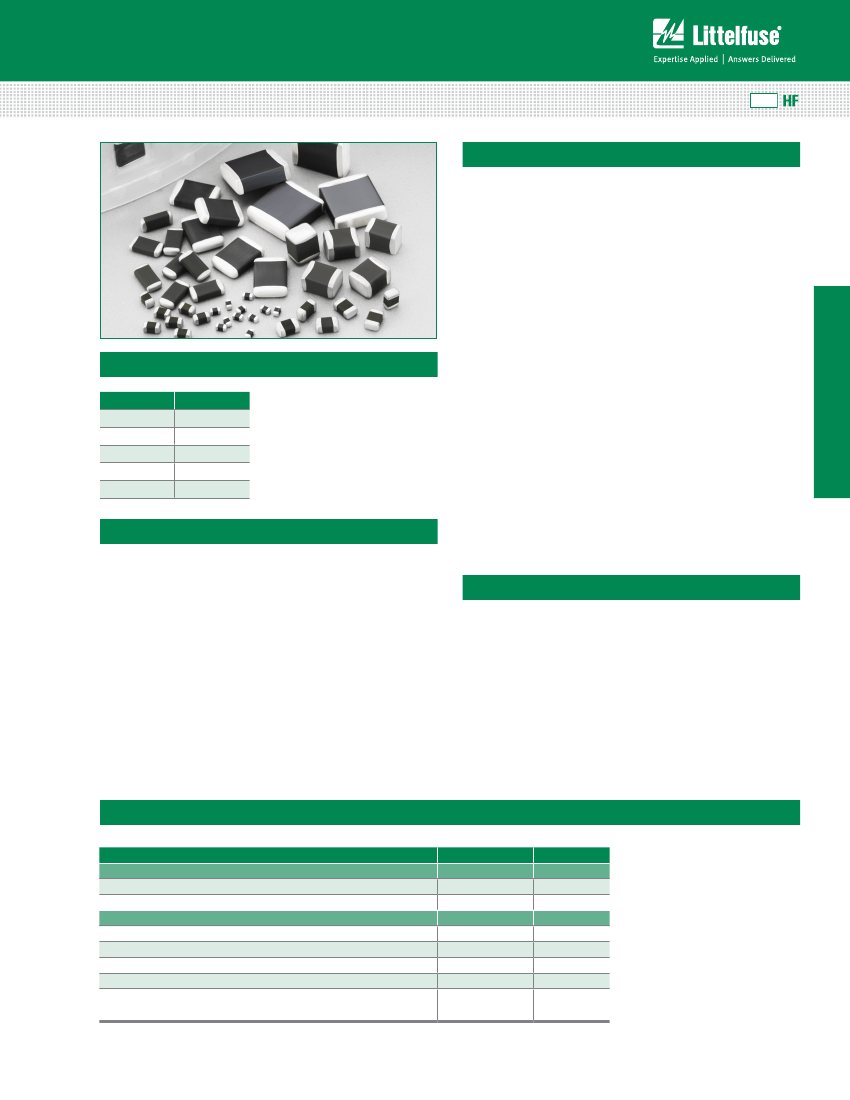

Varistor Products

Surface Mount Multilayer Varistors (MLVs) > MLA Series

MLA Varistor Series

Description

RoHS

Size Table

Metric

1005

1608

2012

3216

3225

EIA

0402

0603

0805

1206

1210

The wide operating voltage and energy range make the

MLA Series suitable for numerous applications on power

supply, control and signal lines.

The MLA Series is manufactured from semiconducting

ceramics, and is supplied in a leadless, surface mount

package. The MLA Series is compatible with modern

reflow and wave soldering procedures.

It can operate over a wider temperature range than Zener

diodes, and has a much smaller footprint than plastic-

housed components.

Littelfuse Inc. manufactures other multilayer series

products. See the MLE Series data sheet for ESD

applications, MHS Series data sheet for high-speed ESD

applications, the MLN Series for multiline protection and

the AUML Series for automotive applications.

Features

• RoHS compliant

• Leadless 0402, 0603,

0805, 1206 and

1210 chip sizes

• Multilayer ceramic

construction technology

• -55°C to +125°C

operating temp. range

• Operating voltage range

M(DC)

= 5.5V to 120V

• ated for surge

current (8 x 20µs)

• Rated for energy

(10 x 1000µs)

• nherent bi-directional

clamping

• Standard low capacitance

types available

• ESD rated to IEC

61000-4-2, Level 4: Air

Discharge 15KV and

Contact Discharge 8KV

Applications

• Suppression of inductive

switching or other

transient events such as

EFT and surge voltage at

the circuit board level

• ESD protection for IEC

61000-4-2 (Level 4),

MIL

-STD-883c method

3015.7

, and other industry

specifications (see also

the MLE or MLN Series)

• Provides on-board

transient voltage

protection for ICS

and transistors

• Used to help achieve

electromagnetic

compliance of

end products

• Replace larger surface

mount TVS Zeners in

many applications

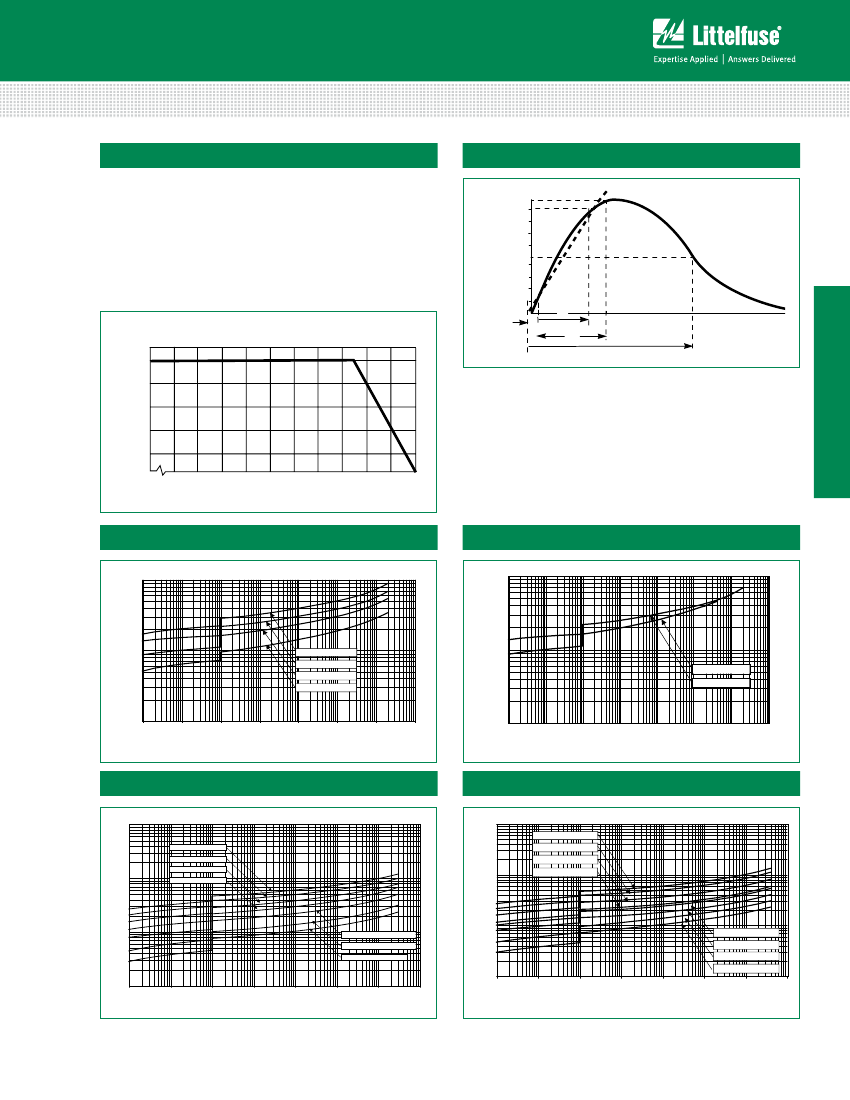

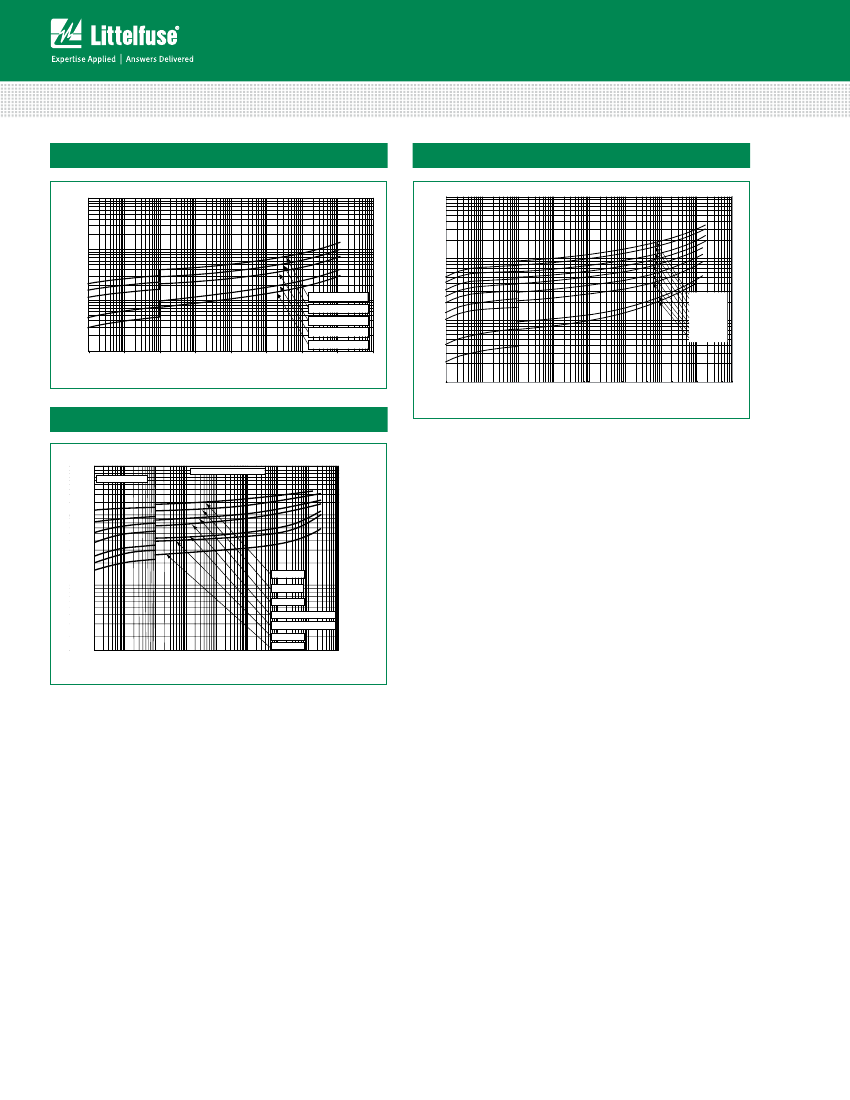

Absolute Maximum Ratings

For ratings of individual members of a series, see device ratings and specifications table

Continuous

Steady State Applied Voltage:

DC Voltage Range (V

M(DC)

)

AC Voltage Range (V

M(AC)RMS

)

Transient:

Non-Repetitive Surge Current, 8/20µs Waveform, (I

)

Non-Repetitive Surge Energy, 10/1000µs Waveform, (W

)

Operating Ambient Temperature Range (T

)

Storage Temperature Range (T

STG

)

Temperature Coefficient (αV) of Clamping Voltage (V

) at

Specified Test Current

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/ML.html or MLA.html for current information.

ML Series

3.5 to 120

2.5 to 107

4 to 500

0.02 to 2.5

-55 to +125

-55 to +150

<0.01

Units

ºC

%/º C

Revised: December 16, 2013

MLA Varistor Series

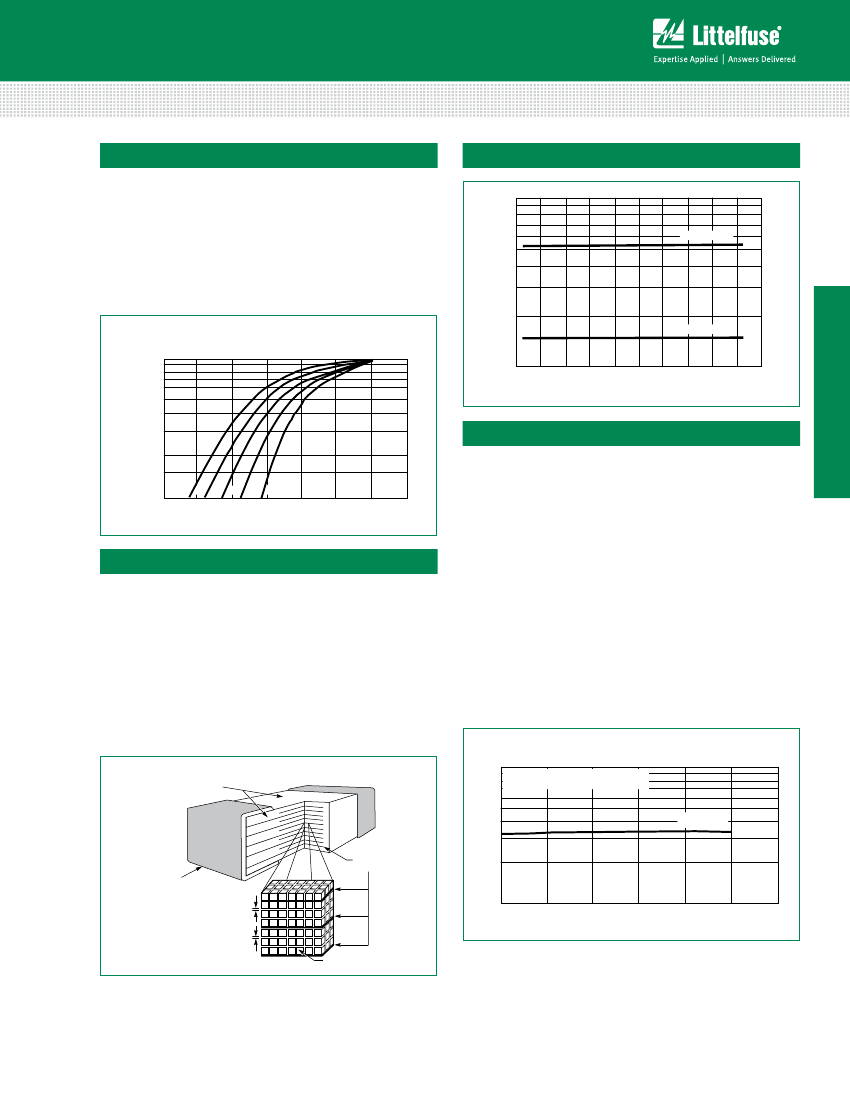

MLA Series

The MLA Series (also known as "ML" series) family of

transient voltage surge suppression devices is based on

the Littelfuse Multilayer fabrication technology. These

components are designed to suppress a variety of

transient events, including those specified in IEC 61000-4-2

or other standards used for Electromagnetic Compliance

(EMC). The MLA Series is typically applied to protect

integrated circuits and other components at the circuit

board level.
