30-5198ABW: Descriptionmodular connectors / ethernet connectors white 1 port box; CategoryThe connector; File Size84KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

30-5198ABW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30-5198ABW	-	-	View	Buy Now

30-5198ABW Overview

modular connectors / ethernet connectors white 1 port box

30-5198ABW Parametric

Parameter Name	Attribute value
Manufacture	Emerson Connectivity Solutions
Product Category	Modular Connectors / Ethernet Connectors
RoHS	N
Performance Category	Cat 5e
USOC Codes	RJ45
Number of Ports	1
Shielding	Unshielded
Gende	Female
Termination Style	SMD
Contact Plating	Coppe
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Col	White
Contact Material	Phosphor Bronze
Factory Pack Quantity	10

Preview

Download Datasheet

View All

5

4

3

2

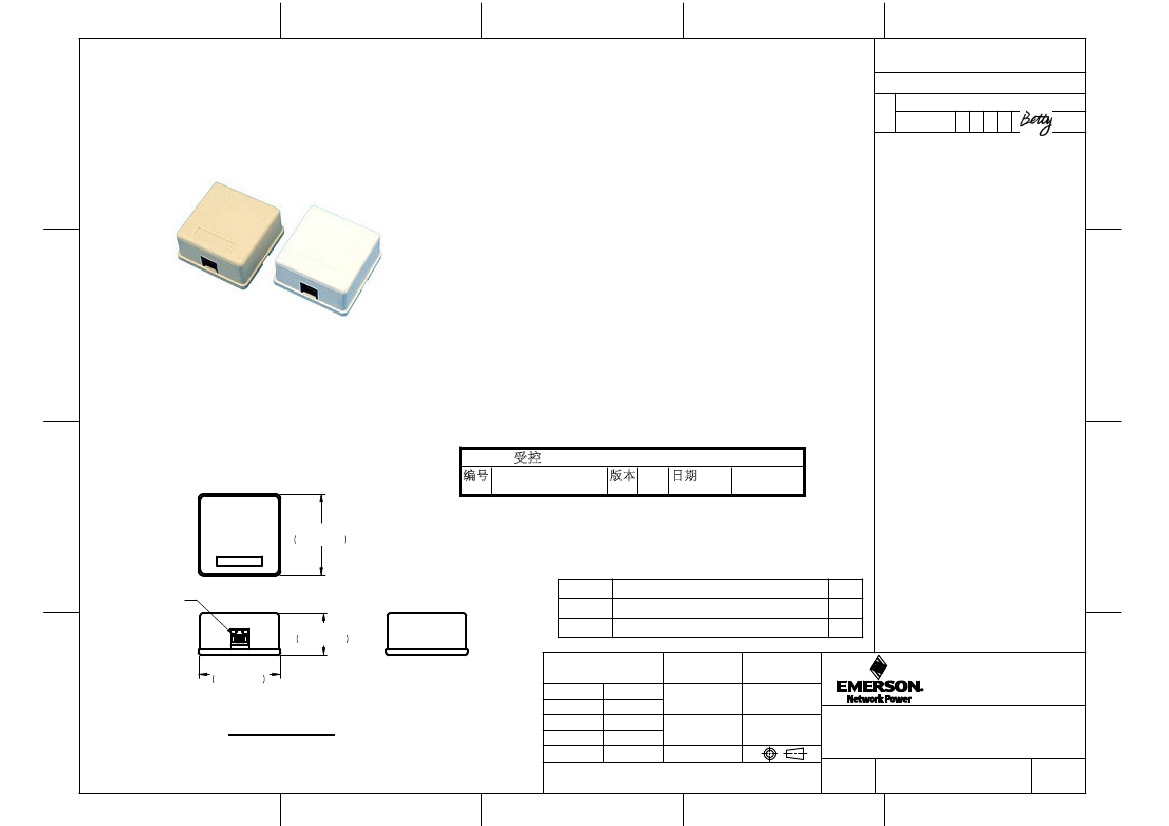

DRAWING NO.

1

30-5198ABI-CUST(SEE TABLE I)

REVISIONS

Description:

See Table I

CAT5E,Surface Mount Boxes

PC Board Design,RJ45/110IDC,

EIA 568A &568b Termination

Crimp Tool:

Impedance:

N/A

01

OFFICIAL RELEASE

08-17-09

Y

U

Y

U

T

H

D

Part No:

Application:

2009.09.0

8 09:25:46

+08'00'

D

Frequency Range: N/A

Material:

C

Wire

Housing

24-26AWG,Solid wire

ABS,Color See Table I

Phosphor Bronze,Copper Plated

C

RoHS Compliance: Yes

Technical Detail:

N/A

CONTROLLED DOCUMENT

P/N

30-5198ABW-CUST

Rev

01

Rel'd Date

SEP 14,09

B

68.6

2.700 in

B

TABLE I

P/N

Description

CAT5E PCB SMB,1 PORT,IV

Color

Ivory

White

RJ45

35.6

1.400 in

68.6

2.700 in

30-5198ABI

30-5198ABW CAT5E PCB SMB,1 PORT,WHITE

CUSTOMER COPY

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

BETTY.YU

DECIMALS

X

mm

CHECKED BY

DATE

08-17-09

DATE

08-17-09

SHEET

1 OF 1

TITLE

A

Connectivity

Solutions

CAT5E PCB SMB,I PORT,IV

(SEE TABLE I)

DRAWING NO.

A

DIM OUTLINE

X.X

X.XX

ANGLES

+

0.5

-

+

0.3

-

+

0.1

-

+

0.5

v

-

BETTY.YU

THOMAS

U/M

mm

APPROVED BY DATE

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

30-5198ABI-CUST

(SEE TABLE I)

SIZE

A

5

4

3

2

1
