2-435802-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 2-435802-5

2-435802-5: DescriptionPIANO DIP SWITCH-8SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT; CategoryMechanical and electronic products switch; File Size109KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-435802-5 Overview

PIANO DIP SWITCH-8SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT

2-435802-5 Parametric

Parameter Name	Attribute value
Objectid	1856290506
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
body width	9.65 mm
body height	7.37 mm
Body length or diameter	22.35 mm
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	8
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PIANO DIP SWITCH
Termination type	SOLDER

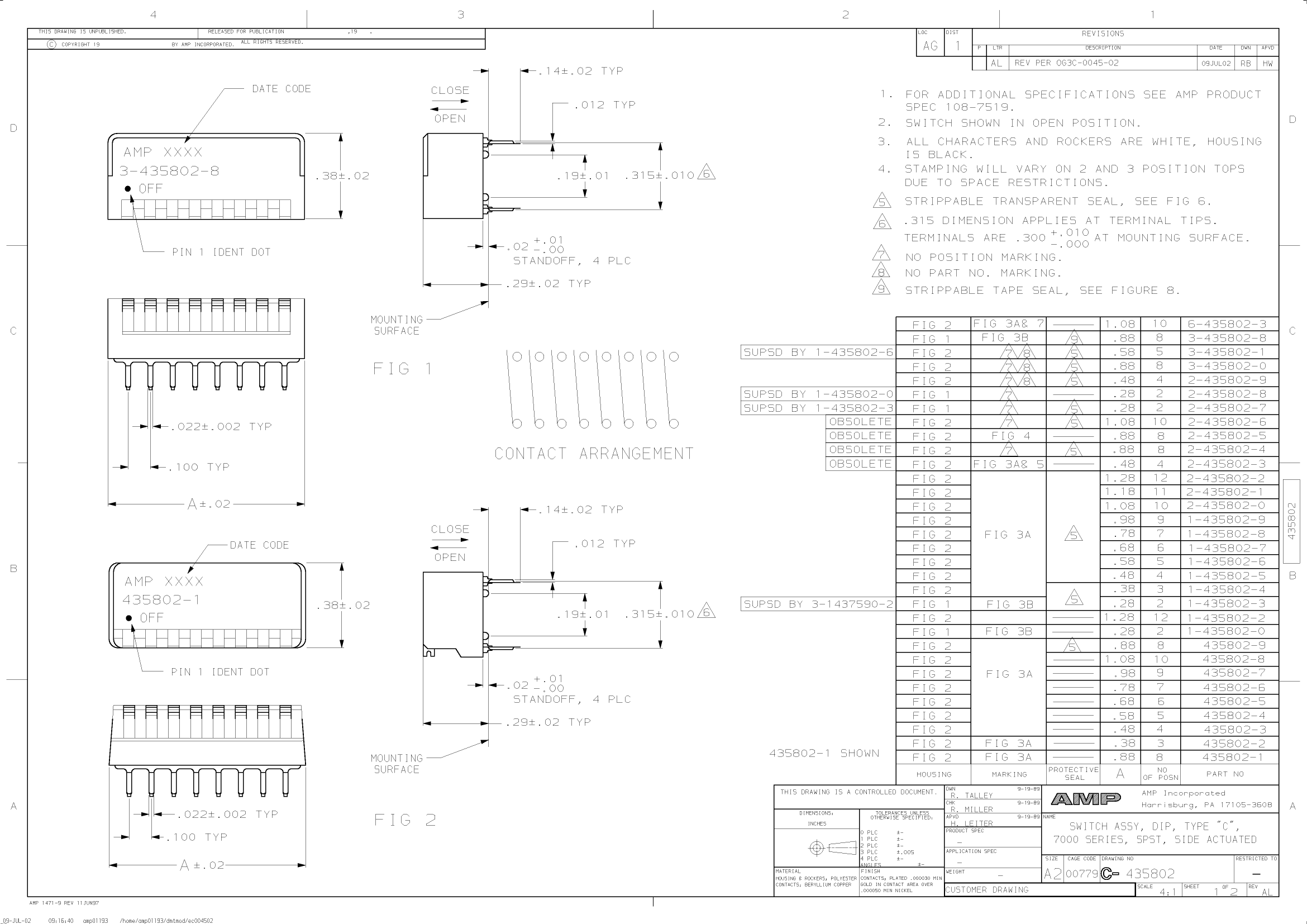

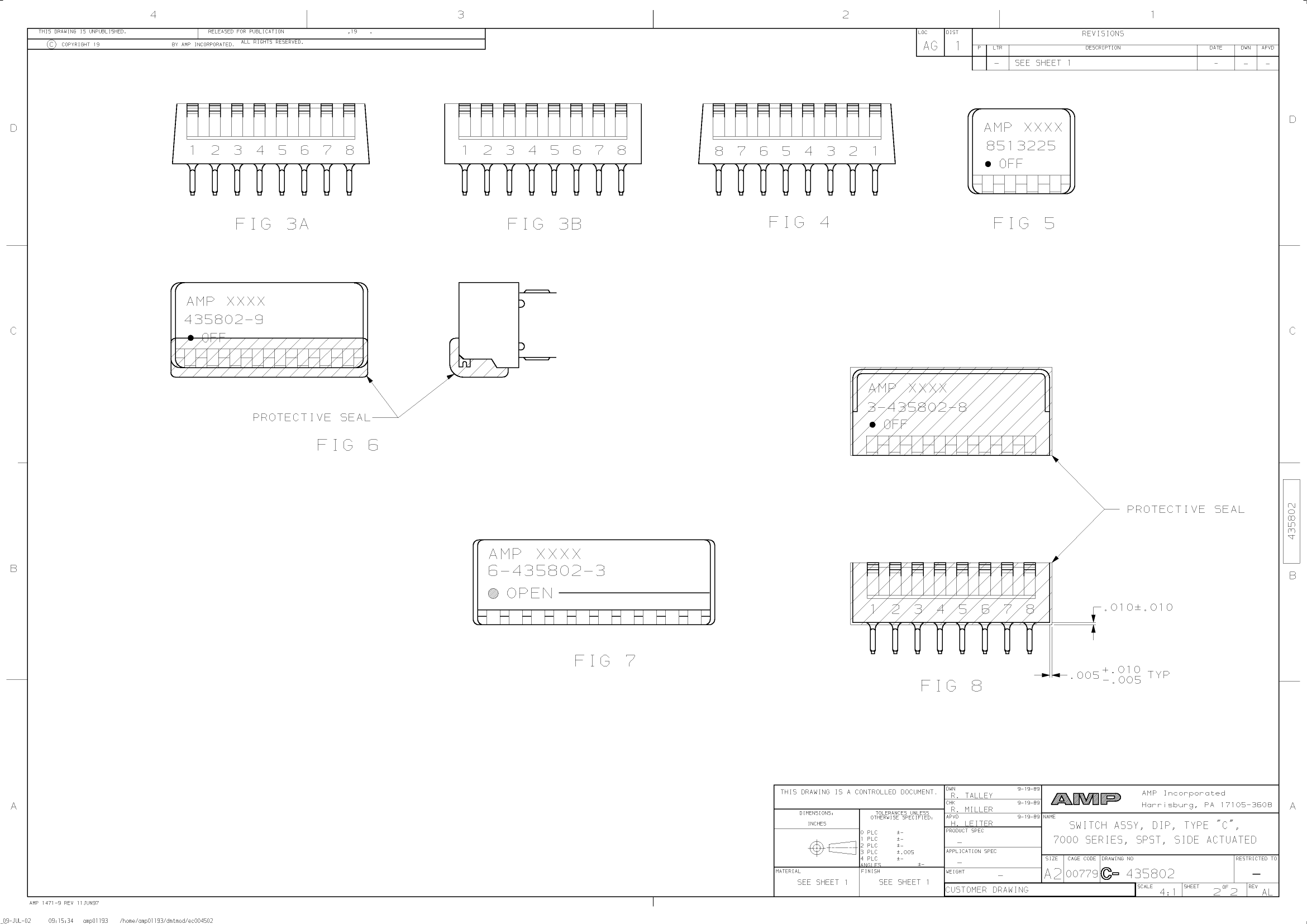

Preview

Download Datasheet

View All

2-435802-5 Related Products

	2-435802-5	PRL0602NF-18	2-435802-3	2-435802-6	2-435802-4	3-435802-1	3-435802-0	2-435802-8	435802-7	2-435802-7
Description	PIANO DIP SWITCH-8SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	AC-DC Active PFC SWITCHING POWER SUPPLY	DIP Switch, PIANO DIP SWITCH-4SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	DIP Switch, PIANO DIP SWITCH-10SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	DIP Switch, PIANO DIP SWITCH-8SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	PIANO DIP SWITCH-5SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	PIANO DIP SWITCH-8SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	DIP Switch, PIANO DIP SWITCH-2SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT	PIANO SWITCH,RIGHT ANGLE,SPST,ON-OFF,9,PC TAIL TERMINAL,18	PIANO DIP SWITCH-2SWITCHES, SPST, MOMENTARY,THROUGH HOLE-STRAIGHT
Objectid	1856290506	-	-	1856290507	1856290505	1856290524	-	1856290509	302792615	1856290508
Reach Compliance Code	unknown	-	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	9.65 mm	-	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	7.11 mm	7.366 mm	7.11 mm
body height	7.37 mm	-	7.37 mm	7.37 mm	7.37 mm	7.37 mm	7.37 mm	7.37 mm	9.652 mm	7.37 mm
Body length or diameter	22.35 mm	-	12.19 mm	27.43 mm	22.35 mm	14.73 mm	22.35 mm	9.65 mm	24.892 mm	9.65 mm
Installation features	THROUGH HOLE-STRAIGHT	-	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT
Number of switching segments	8	-	4	10	8	5	8	2	9	2
surface mount	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	-	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	VERTICAL	MOMENTARY
switch function	SPST	-	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PIANO DIP SWITCH	-	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
