SERIES BMA, SUBMINIATURE BLIND MATE CONNECTORS
DESCRIPTION
HUBER+SUHNER BMA blind mate connectors open up
special dimensions in microwave applications up to 18
GHz. HUBER+SUHNER offers a range of connectors for
fixed as well as “floating” configurations with any axial
or radial misalignment taken out by the outer contact of
the jacks.
The BMA series presents an outstanding range of prod-
ucts featuring high reliability and ease of assembly.
CONTENTS
PAGE
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Interface Dimensions . . . . . . . . . . . . . . . . . . . . . 165
Interface Dimensions in mm /
inches
. . . . . . . . . 165
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . 166
BMA Connector Applications . . . . . . . . . . . . . . 168
Cable Connectors . . . . . . . . . . . . . . . . . . . . . . . . 171
Receptacles with Solder-in Hermetic Seal . . . . . . . 174
Receptacles with Solder End . . . . . . . . . . . . . . . . 175
PCB Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . 176

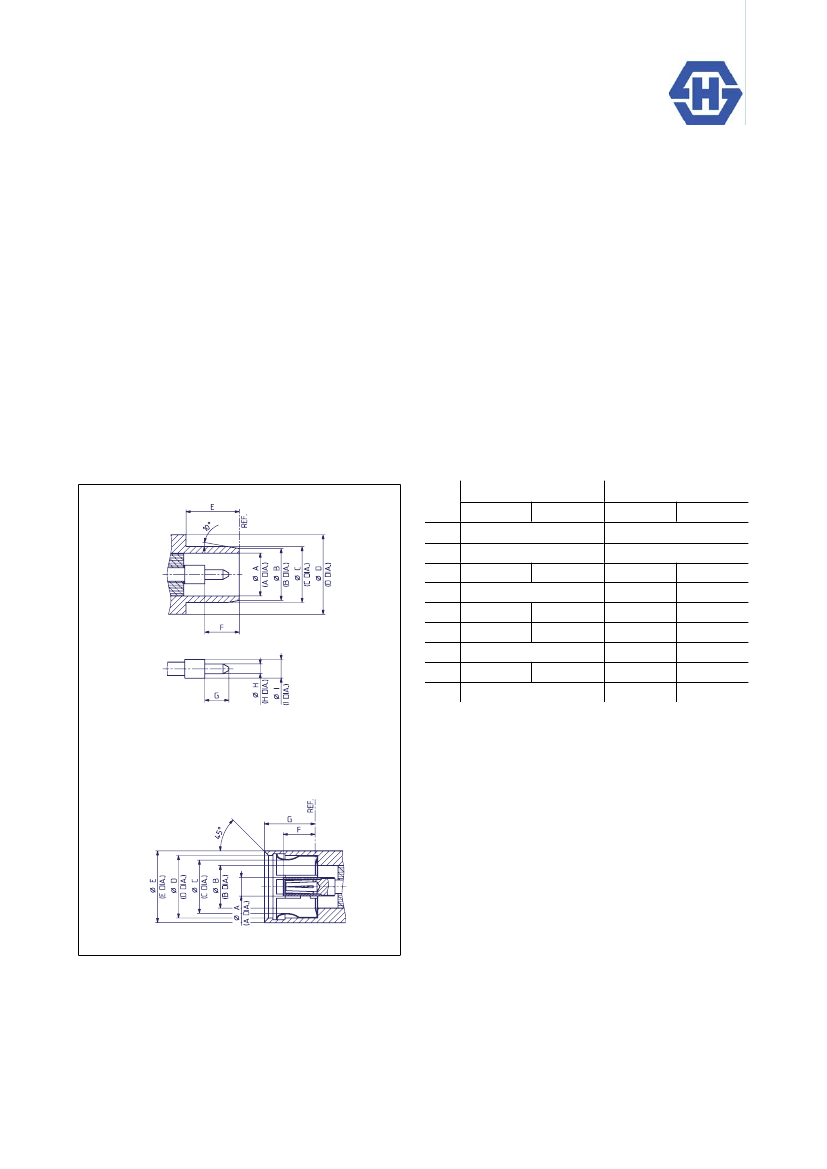

INTERFACE DIMENSIONS
INTERFACE DIMENSIONS (MM /
INCHES)
Plug
Jack
max.
min.
max.
Plug (male)
A
B
C
D
E
F
G
H
I
min.
4.88 /
.192 nom.
5.31/.209
5.35/.211
4.09 /
.161 nom.
----
5.71/.225
7.37/.290
3.05/.120
----
5.08/.200
----
----
3.23/.127
5.03/.198
7.62 /
.300 nom.
5.03/.198
3.25/.128
----
----
2.29 /
.090 nom.
0.90/.035
0.94/.037
1.78 /
.070 nom.
Interface dimensions conformable to
the Standards:
Jack (female)
USA:
MIL-STD-348A/321
COMPATIBILITY
The HUBER+SUHNER range of BMA connectors is fully
compatible with the OSP connector series.
IP rating (interface, mated) IP60
HUBER+SUHNER BMA
165
BMA
4.09 /
.161 nom
1.78 /
.070 nom.
TECHNICAL DATA
ELECTRICAL DATA
Cable type
Impedance
Frequency range
Dielectric withstanding voltage
(at sea level)
Insulation resistance
Contact resistance
- centre contact
- outer contact
VSWR (typical values)
- DC ... 18 GHz
RF-leakage interface only (fully mated)
RF-testing voltage (at sea level)
Admissible power (at sea level and
room temperature)
1) measured at interface with reference planes being in true alignment
REQUIREMENTS
.086” Semi-Rigid
50
DC ... 18 GHz
1.5 kV rms, 50 Hz
1.0 kV rms, 50 Hz
5
¡
10
3
M
2m
2m
(mated connector pair)
1.02 + 0.005 f (GHz)
90 dB - f (GHz)
1
1.0 kV rms, 5 MHz
670 V rms, 5 MHz
300 W at 3 GHz
(mated connector pair)
1.05 + 0.005 f (GHz)
.141” Semi-Rigid
MECHANICAL DATA
Engagement force
Disengagement force
Contact captivation
Cable retention force
1)
Durability (matings)
REQUIREMENTS
13.5 N
2N
27 N /
6.1 lbs
see pages 28 – 34
1000
1) Value considers maximum load of the cables without irreversible variations of specifications.
ENVIRONMENTAL DATA
Temperature range
Thermal shock
Moisture resistance
Corrosion
Vibration
Shock
TEST CONDITIONS
– 65 C ... + 125 C / –
85 F ... + 257 F
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 106
Saltspray test acc. to MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 204, Condition D
MIL-STD-202, Method 213, Condition I
166
HUBER+SUHNER
BMA
MATERIAL DATA
CONNECTOR PARTS
Bodies
Pin contacts
Spring basket
Springs (floating connectors)
Insulators
Gaskets
MATERIAL
copper-beryllium alloy
stainless steel
copper-beryllium alloy
copper-beryllium alloy
stainless steel
PTFE or PFA
EPDM, 40 shore A
PLATING
gold
gold
gold
Some connectors may have a specification that differs from the above mentioned data.
The products are designed and guaranteed to pass the above mentioned test procedures. Any
additional or different requirement arising from specific applications or environmental conditions
which is not covered by these test procedures is subject to request.
