headers & wire housings WR-mpc4 4.20mm hdr 10p dual right angle
CategoryThe connector
File Size453KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

64901029522 Online Shopping

Suppliers Part Number Price MOQ In stock
64901029522 - - View Buy Now

64901029522 Overview

headers & wire housings WR-mpc4 4.20mm hdr 10p dual right angle

64901029522 Parametric

Parameter NameAttribute value
ManufactureWurth Electronics
Product CategoryHeaders & Wire Housings
RoHSYes
TypeShrouded
Pitch4.2 mm
Number of Positions10
Number of Rows2
Contact GendePin (Male)
Contact PlatingTi
Housing MaterialNyl
Termination StyleThrough Hole
Mounting Style-
Mounting AngleRigh
ApplicatiWire-to-Board
Contact MaterialCopper Alloy
Current Rating7 A
Flammability RatingUL 94 V-0
Insulation Resistance1000 MOhms
Operating Temperature Range- 40 C to + 105 C
PackagingTray
Voltage Rating600 V
1
2
3
4
5

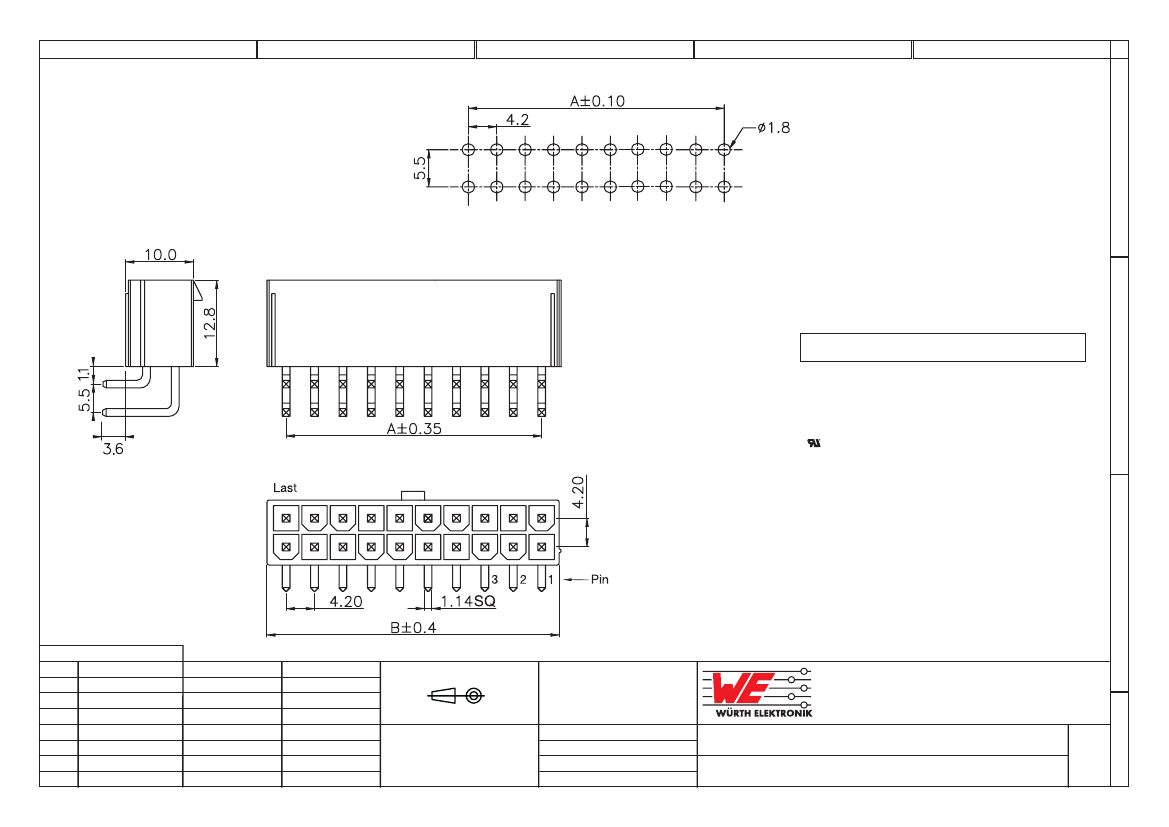

TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: NYLON 66
FLAMABILITY RATING: UL94-V0
COLOR: WHITE
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 4.20MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 6 TO 9A
NB CIRCUITS
AMPERES
2-3
9
4-6
8
7-10
7
12-24
6
A
PCB LAYOUT - COMPONENT VIEW
WORKING VOLTAGE: 600V AC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN
CONTACT RESISTANCE: 10 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
WAVE PROCESS ONLY
PACKAGING
TRAY
DIMENSION
A = 4.20 x (NB. PIN / 2 - 1)
B = 4.20 x (NB. PIN / 2) + 1.20
B
C
RoHS Compliant
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: RJ
H
REV
13-FEB-14
DATE
CORRECTIONS
FILE
QL
BY
UNIT: MM
SCALE:
SHEET: 1/2
DRAW: DXS
WERI PART NO: 6490 xx 29522
DESCRIPTION: 4.20MM MALE DUAL ROW RIGHT ANGLE HEADER
SIZE
A4
D

64901029522 Related Products

64901029522 64900229522 64900429522 64900829522 64900629522
Description headers & wire housings WR-mpc4 4.20mm hdr 10p dual right angle headers & wire housings WR-mpc4 4.20mm hdr 2P dual right angle headers & wire housings WR-mpc4 4.20mm hdr 4P dual right angle headers & wire housings WR-mpc4 4.20mm hdr 8P dual right angle headers & wire housings WR-mpc4 4.20mm hdr 6P dual right angled
Manufacture Wurth Electronics Wurth Electronics Wurth Electronics Wurth Electronics Wurth Electronics
Product Category Headers & Wire Housings Headers & Wire Housings Headers & Wire Housings Headers & Wire Housings Headers & Wire Housings
RoHS Yes Yes Yes Yes Yes
Type Shrouded Shrouded Shrouded Shrouded Shrouded
Pitch 4.2 mm 4.2 mm 4.2 mm 4.2 mm 4.2 mm
Number of Positions 10 2 4 8 6
Number of Rows 2 2 2 2 2
Contact Gende Pin (Male) Pin (Male) Pin (Male) Pin (Male) Pin (Male)
Contact Plating Ti Ti Ti Ti Ti
Housing Material Nyl Nyl Nyl Nyl Nyl
Termination Style Through Hole Through Hole Through Hole Through Hole Through Hole
Mounting Angle Righ Righ Righ Righ Righ
Applicati Wire-to-Board Wire-to-Board Wire-to-Board Wire-to-Board Wire-to-Board
Contact Material Copper Alloy Nickel Copper Alloy Copper Alloy Copper Alloy
Current Rating 7 A 9 A 8 A 7 A 8 A
Flammability Rating UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Insulation Resistance 1000 MOhms 1000 MOhms 1000 MOhms 100 MOhms 1000 MOhms
Operating Temperature Range - 40 C to + 105 C - 40 C to + 105 C - 40 C to + 105 C - 40 C to + 105 C - 40 C to + 105 C
Packaging Tray Tray Tray Tray Tray
Voltage Rating 600 V 600 V 600 V 600 V 600 V
