66200621122: Descriptionheaders & wire housings WR-mpc3 3.00mm hdr 6P dual vertical; CategoryThe connector; File Size633KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

66200621122 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	66200621122	-	-	View	Buy Now

66200621122 Overview

headers & wire housings WR-mpc3 3.00mm hdr 6P dual vertical

66200621122 Parametric

Parameter Name	Attribute value
Manufacture	Wurth Electronics
Product Category	Headers & Wire Housings
RoHS	Yes
Type	Shrouded
Pitch	3 mm
Number of Positions	6
Number of Rows	2
Contact Gende	Pin (Male)
Contact Plating	Ti
Housing Material	Nyl
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Vertical
Applicati	Wire-to-Board
Contact Material	Copper Alloy
Current Rating	5 A
Flammability Rating	UL 94 V-0
Insulation Resistance	1000 MOhms
Operating Temperature Range	- 25 C to + 105 C
Packaging	Tray
Voltage Rating	250 V

Preview

Download Datasheet

View All

1

2

3

4

5

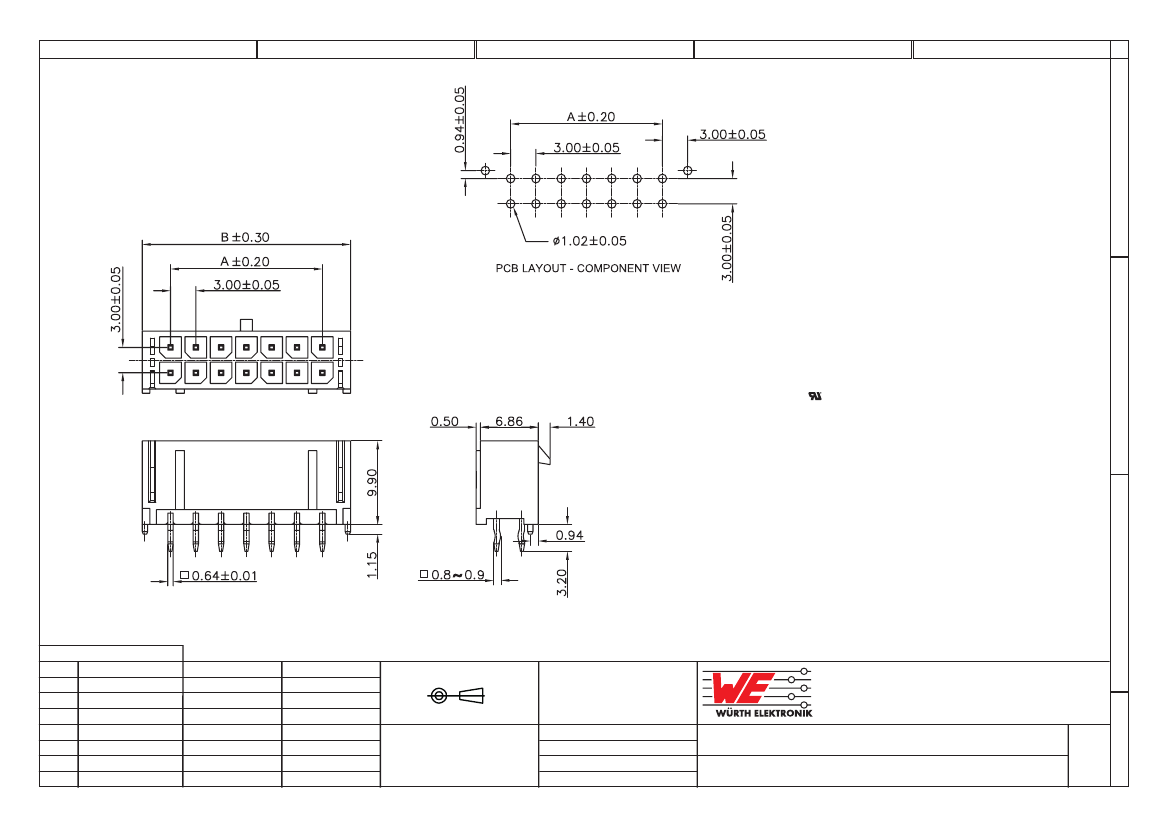

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: LCP

FLAMABILITY RATING: UL94-V0

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 3.00MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 5A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN

CONTACT RESISTANCE: 10 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING

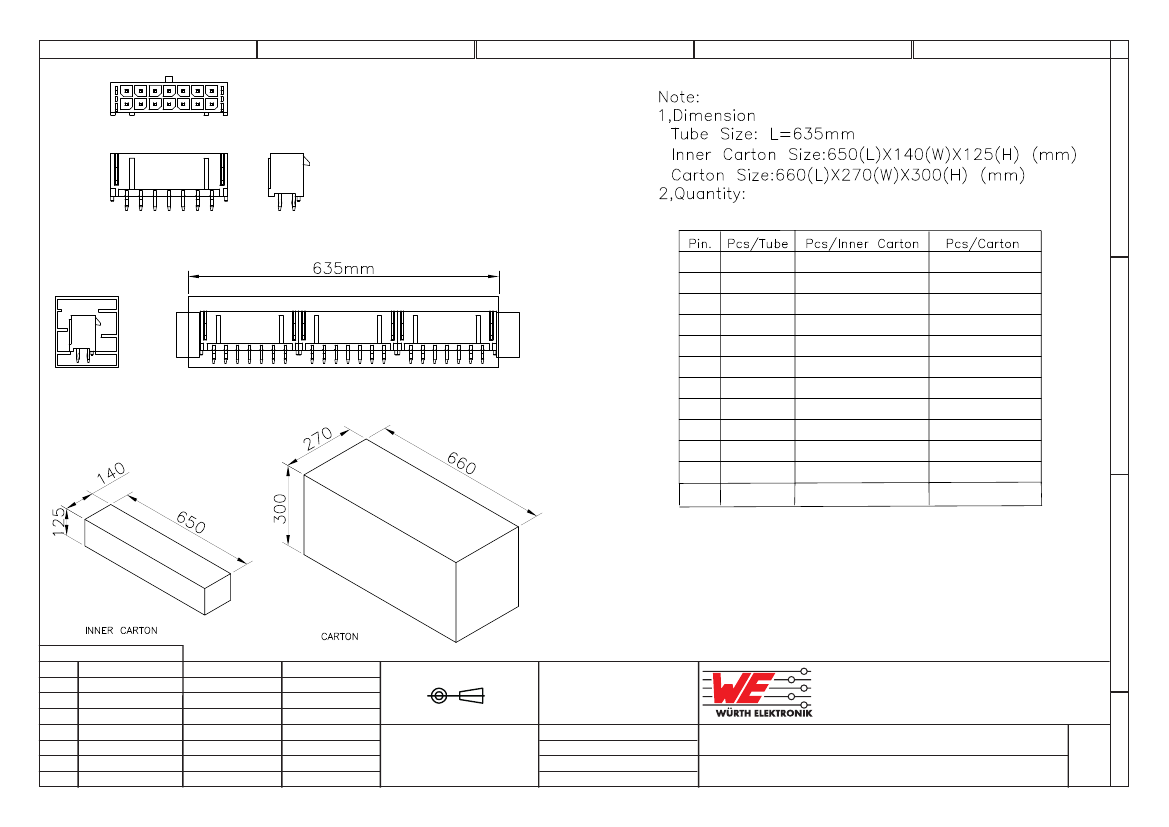

PACKAGING

TRAY

DIMENSION

A = 3.00 x (NB. PIN / 2 - 1)

B = 3.00 x (NB PIN / 2 + 1) + 0.70

A

B

~

C

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

J

I

H

REV

17-FEB-14

29-JUL-13

06-JUL-12

DATE

SOLDERING

DWG & CARAC

PLASTIC

FILE

QL

GG

BY

APPROVAL: RJ

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: PEARL

WERI PART NO: 662 0xx 211 22

DESCRIPTION: 3.00MM MALE DUAL ROW VERTICAL HEADER

SIZE

A4

D
