SBLB25L30CTHE3_B/P datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> SBLB25L30CTHE3_B/P

SBLB25L30CTHE3_B/P: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size159KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SBLB25L30CTHE3_B/P Overview

Rectifier Diode,

SBLB25L30CTHE3_B/P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	D2PAK-3/2
Reach Compliance Code	unknow
Factory Lead Time	10 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.49 V
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	180 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	12.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	0.9 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

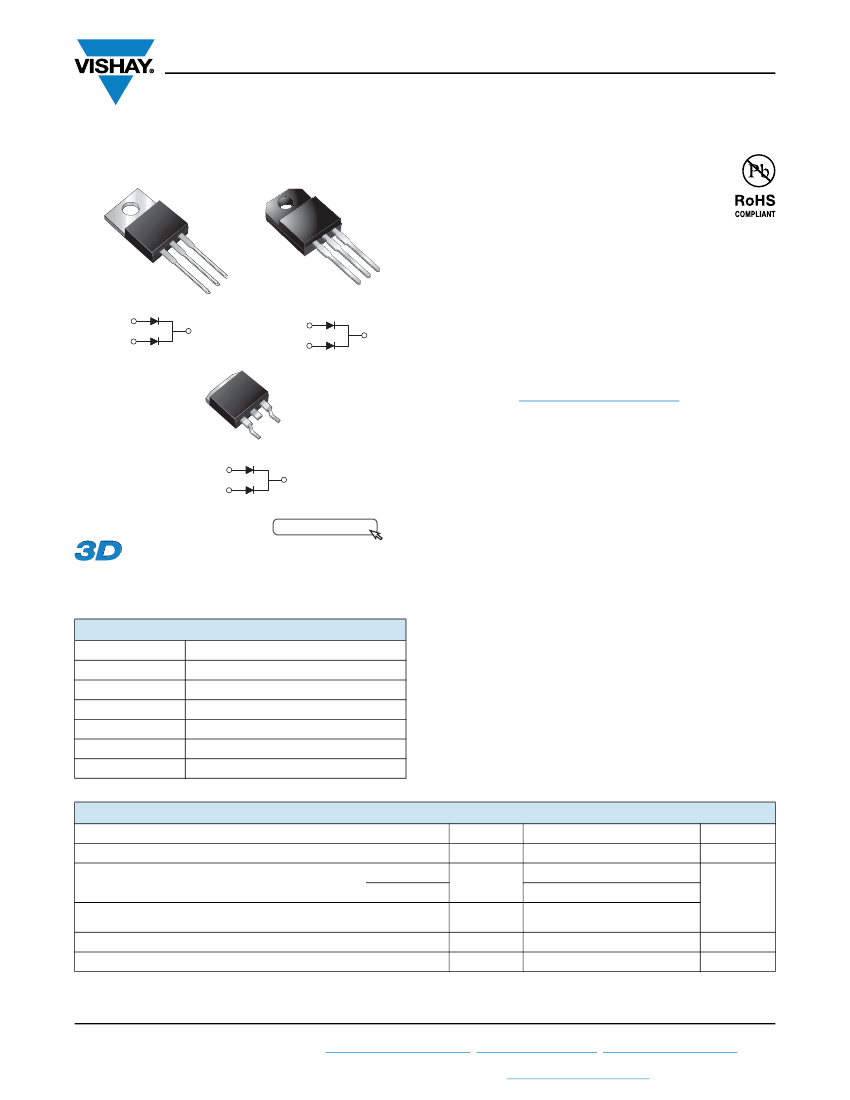

SBL25L30CT, SBLF25L30CT, SBLB25L30CT

www.vishay.com

Vishay General Semiconductor

Dual Low V

Common Cathode Schottky Rectifier

FEATURES

TO-220AB

ITO-220AB

• Power pack

• Low power loss, high efficiency

• Very low forward voltage drop

• High forward surge capability

• High frequency operation

SBL25L30CT

PIN 1

PIN 3

PIN 2

CASE

SBLF25L30CT

PIN 1

PIN 3

PIN 2

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 245 °C (for D

PAK (TO-263AB) package)

• Solder bath temperature 275 °C maximum, 10 s, per

JESD 22-B106 (for TO-220AB and ITO-220AB package)

• AEC-Q101 qualified



(for ITO-220AB and D

PAK (TO-263AB) package)

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

PAK (TO-263AB)

SBLB25L30CT

PIN 1

PIN 2

HEATSINK

TYPICAL APPLICATIONS

For use in low voltage, high frequency inverters, switching

mode power supplies, freewheeling diodes, OR-ing diodes,

DC/DC converters, and polarity protection application.

MECHANICAL DATA

DESIGN SUPPORT TOOLS

Models

Available

click logo to get started

Case:

TO-220AB, ITO-220AB, D

PAK (TO-263AB)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3_X - RoHS-compliant, AEC-Q101 qualified

(“_X” denotes revision code, e.g. A, B, ...)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

as marked

Mounting Torque:

10 in-lbs maximum

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Circuit configuration

2 x 12.5 A

30 V

180 A

0.39 V

150 °C

TO-220AB, ITO-220AB, D

PAK (TO-263AB)

Common cathode

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum average forward rectified current



at T

= 95 °C

total device

per diode

SYMBOL

RRM

F(AV)

FSM

, T

STG

SBL25L30CT

12.5

180

-55 to +150

1500

°C

UNIT

Peak forward surge current 8.3 ms single half sine-wave superimposed

on rated load

Operating junction and storage temperature range

Isolation voltage (ITO-220AB only) from terminal to heatsink, t = 1 min

Revision: 19-Sep-2018

Document Number: 88731

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

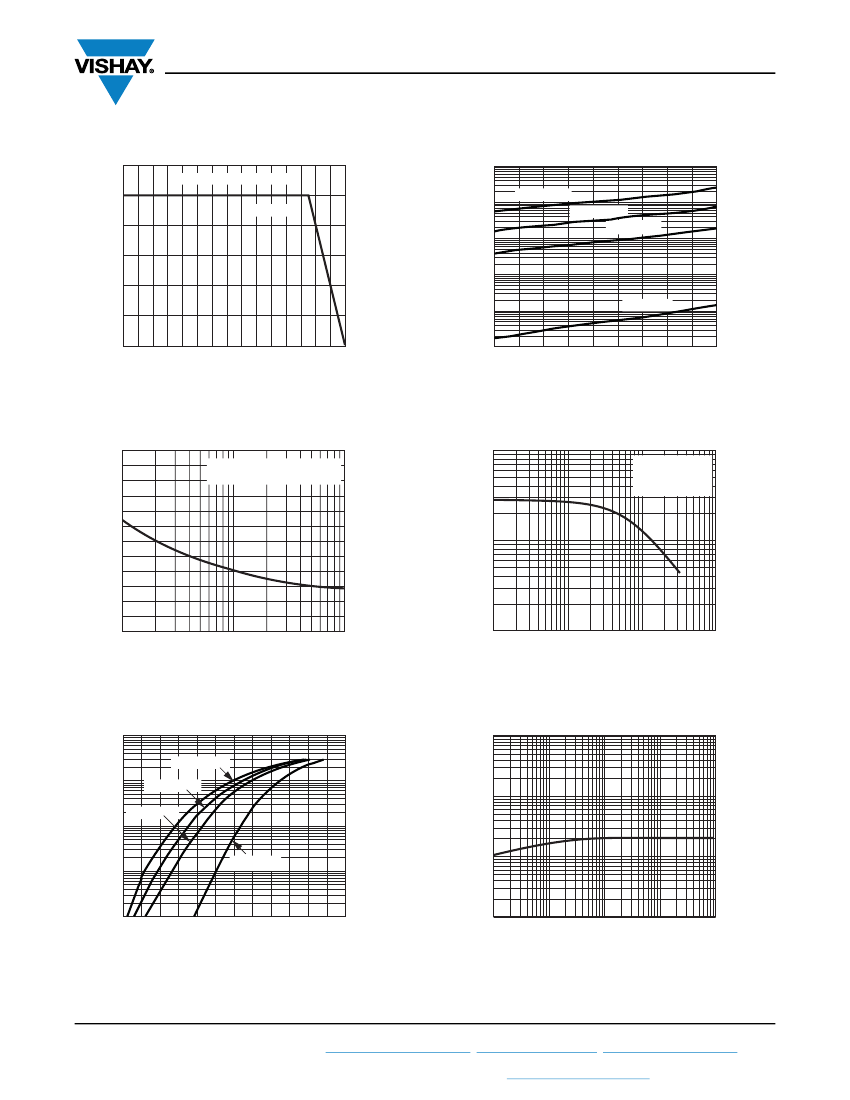

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

SBLB25L30CTHE3_B/P Related Products

	SBLB25L30CTHE3_B/P	SBLB25L30CTHE3_B/I	SBLF25L30CTHE3_A/P
Description	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,
Is it Rohs certified?	conform to	conform to	conform to
package instruction	D2PAK-3/2	R-PSSO-G2	ITO-220AB, 3 PIN
Reach Compliance Code	unknow	unknow	unknow
Factory Lead Time	10 weeks	10 weeks	10 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.49 V	0.49 V	0.49 V
JEDEC-95 code	TO-263AB	TO-263AB	TO-220AB
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSFM-T3
Maximum non-repetitive peak forward current	180 A	180 A	180 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	2	2	3
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	12.5 A	12.5 A	12.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Guideline	AEC-Q101	AEC-Q101	AEC-Q101
Maximum repetitive peak reverse voltage	30 V	30 V	30 V
Maximum reverse current	0.9 µA	0.9 µA	0.9 µA
surface mount	YES	YES	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1
