LFPPXO021707BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFPPXO021707BULK

Preview

LFPPXO021707BULK: DescriptionCRYSTAL OSCILLATOR, CLOCK, 100MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFPPXO021707BULK Overview

CRYSTAL OSCILLATOR, CLOCK, 100MHz, CMOS OUTPUT

LFPPXO021707BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	J-LEADED, SMD, 4 PIN
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e3
Installation features	SURFACE MOUNT
Nominal operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	25 pF
physical size	14.5mm x 8.8mm x 4.8mm
longest rise time	4 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Matte Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

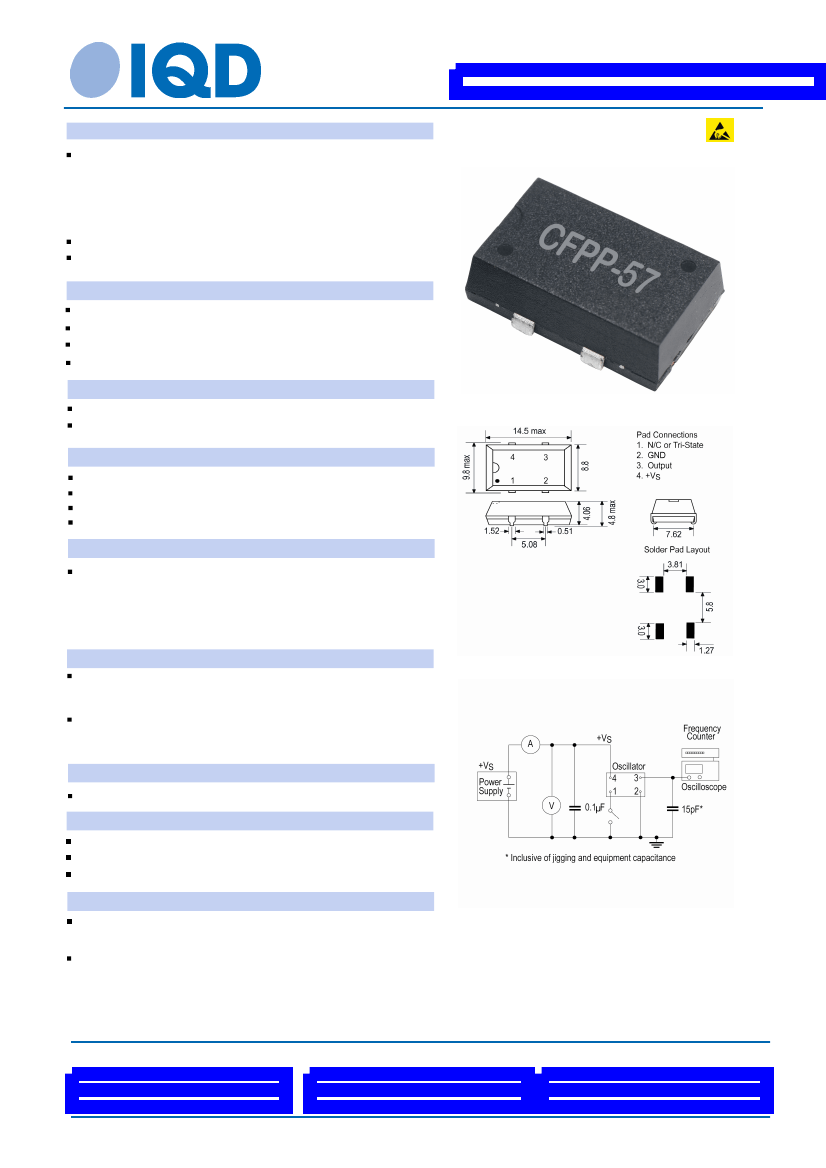

Fast Make Oscillator Specification

Part No. + Packaging:

LFPPXO021707Bulk

Description

PLL based, one time only factory programmable (for a fast lead

time) crystal oscillator in a plastic encapsulated ‘J’ leaded SMD

package.

This model is not approved for on-board avionics applications;

in such instances our ‘CFPP-57 AVIATION’ version should be

specified.

Model

CFPP-57

Model Issue number

9

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

100.0MHz

±100.00ppm

-40.00 to 85.00°C

±5ppm max in 1st year

Supply Voltage

Current Draw

Output Details

5.0V ±0.5V

45.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

25pF

4.0ns max

40/60%

Tri-state Operation:

Logic ‘1’ to pad 1 enables oscillator output

Logic ‘0’ to pad 1 disables oscillator output; when disabled the

oscillator output goes to the higher impedance state

No connection to pad 1 enables oscillator output

Noise Parameters

Test Circuit

Jitter pk-pk (typical):

1 to 33MHz: 100ps

>33MHz: 75ps

Jitter pk-pk (max):

1 to 33MHz: 250ps

>33MHz: 175ps

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

1

Pack Style: Bulk

Pack Size: 1

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
