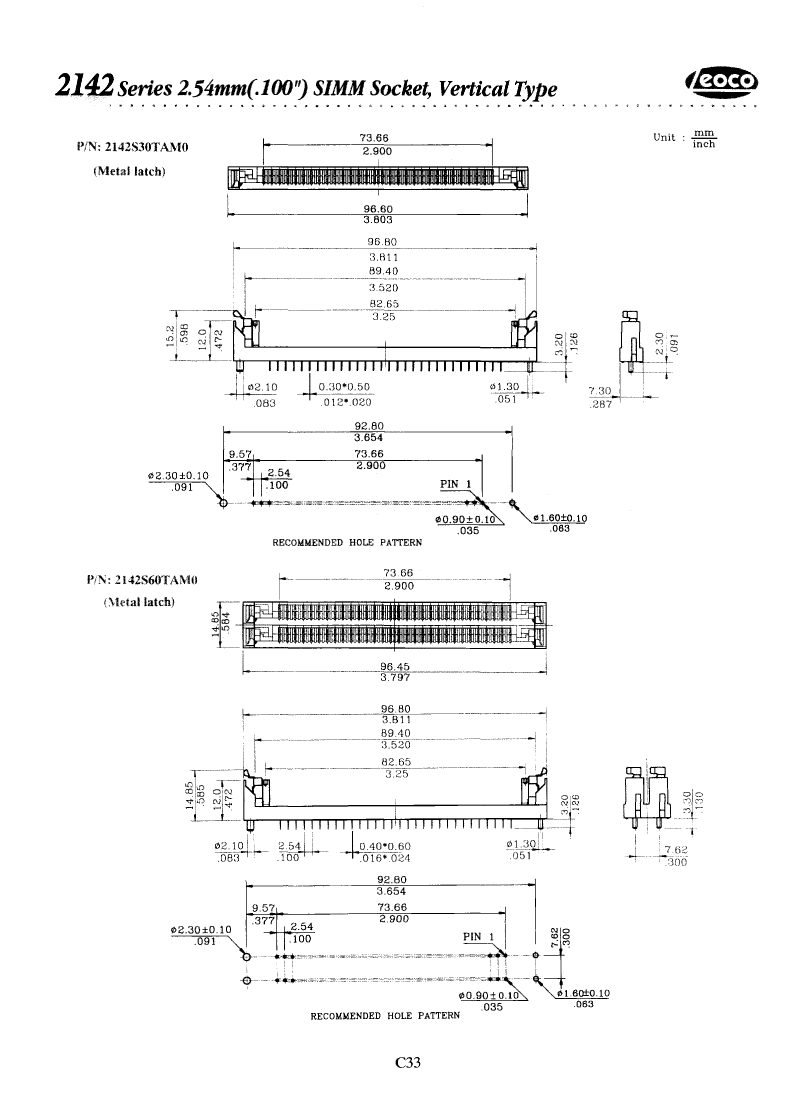

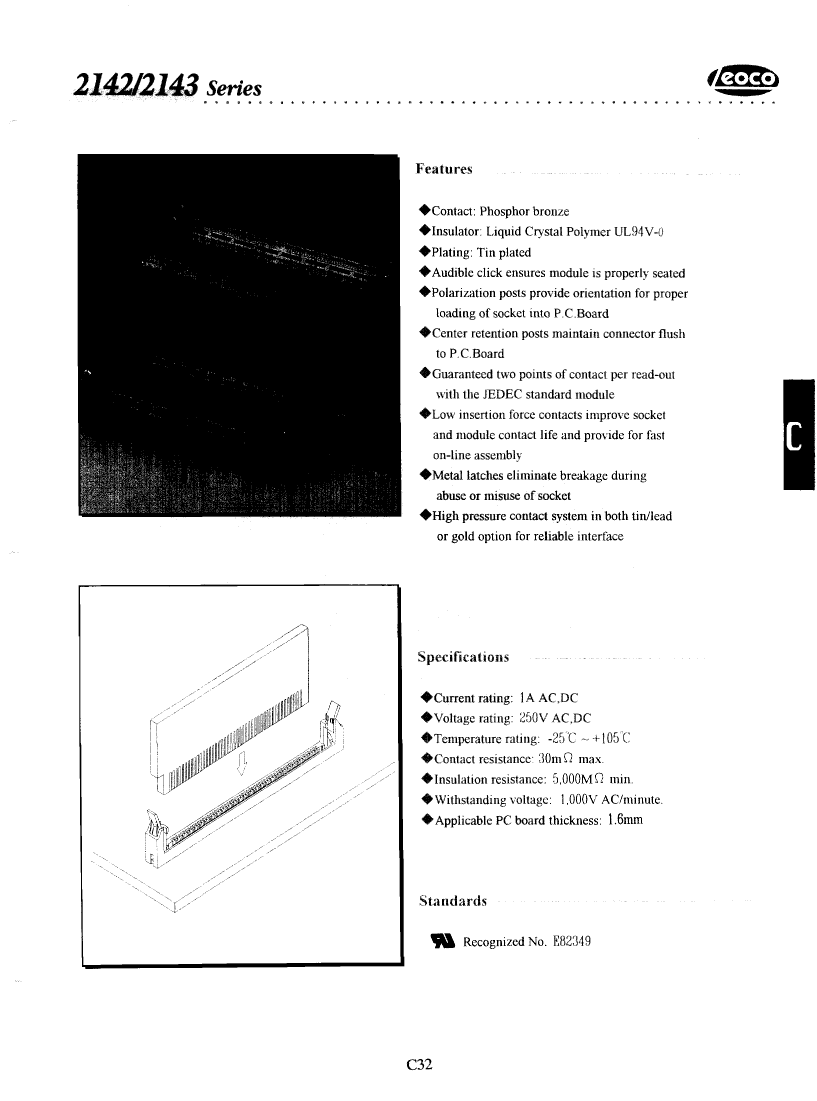

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Socket
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| Board mount options | POLARIZATION POST |
| body width | 0.287 inch |
| subject depth | 0.507 inch |
| body length | 3.811 inch |
| Body/casing type | SOCKET |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | LIF N |
| Insulation resistance | 5000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Manufacturer's serial number | 2142 |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | LIF N |
| Base Number Matches | 1 |

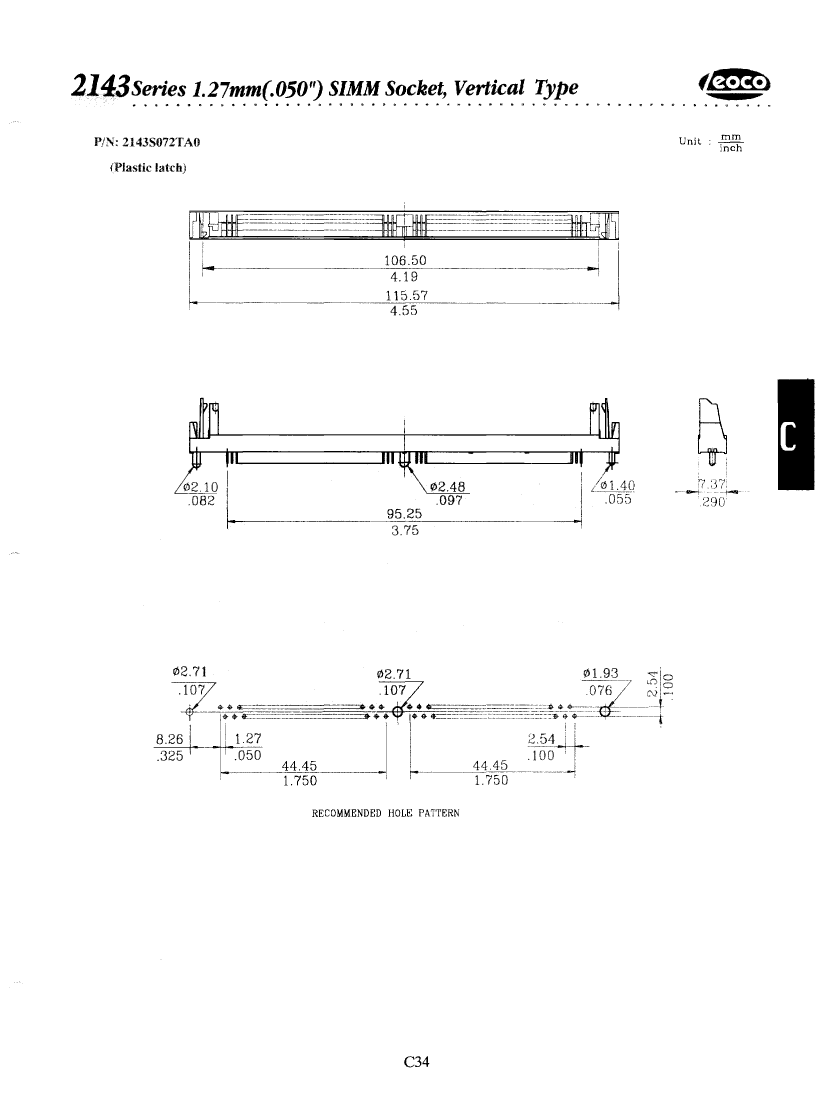

| 2142S30TAM0 | 2142S60TAM0 | 2143S072TA0 | |
|---|---|---|---|
| Description | Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Socket | Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket | Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Latch, Socket |
| Reach Compliance Code | unknow | unknow | unknow |
| Other features | POLARIZED | POLARIZED | POLARIZED, STAGGERED CONFIGURATION |
| Body/casing type | SOCKET | SOCKET | SOCKET |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 2142 | 2142 | 2143 |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 2 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 30 | 60 | 72 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 |
| ECCN code | EAR99 | - | EAR99 |
| Board mount options | POLARIZATION POST | - | POLARIZATION POST |
| body width | 0.287 inch | - | 0.29 inch |
| body length | 3.811 inch | - | 4.55 inch |
| Contact to complete cooperation | SN | - | SN |
| Contact completed and terminated | TIN OVER NICKEL | - | TIN OVER NICKEL |
| Contact material | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ | - | 30 mΩ |
| Contact style | BELLOWED TYPE | - | BELLOWED TYPE |
| Dielectric withstand voltage | 1000VAC V | - | 1000VAC V |
| maximum insertion force | LIF N | - | LIF N |
| Insulation resistance | 5000000000 Ω | - | 5000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | - | LIQUID CRYSTAL POLYMER (LCP) |
| Plug contact pitch | 0.1 inch | - | 0.05 inch |
| Installation option 1 | LATCH | - | LATCH |
| Installation option 2 | LOCKING | - | LOCKING |
| Number of connectors | ONE | - | ONE |
| PCB row number | 1 | - | 2 |
| Maximum operating temperature | 105 °C | - | 105 °C |
| Minimum operating temperature | -25 °C | - | -25 °C |
| PCB contact pattern | RECTANGULAR | - | STAGGERED |
| Rated current (signal) | 1 A | - | 1 A |
| Guideline | UL | - | UL |
| reliability | COMMERCIAL | - | COMMERCIAL |
| Evacuation force-minimum value | LIF N | - | LIF N |
