240-240-002L999 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 240-240-002L999

240-240-002L999: DescriptionFiber Optic SMA Connector, 50/125um, Multi Mode, Simplex,; CategoryThe connector The connector; File Size51KB，2 Pages; ManufacturerDiamond SA

Download Datasheet Parametric Compare View All

240-240-002L999 Overview

Fiber Optic SMA Connector, 50/125um, Multi Mode, Simplex,

240-240-002L999 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DUAL END CONNECTOR, LENGTH IN METERS UP TO 999
Connection Type	SIMPLEX
Connector type	FIBER OPTIC SMA CONNECTOR
Coupling type	THREADED
DIN compliance	NO
Fiber size	50/125um
IEC compliance	NO
Insertion loss	0.6 dB
MIL compliance	NO
model	MULTI
Options	WITH CABLE ASSEMBLY
Base Number Matches	1

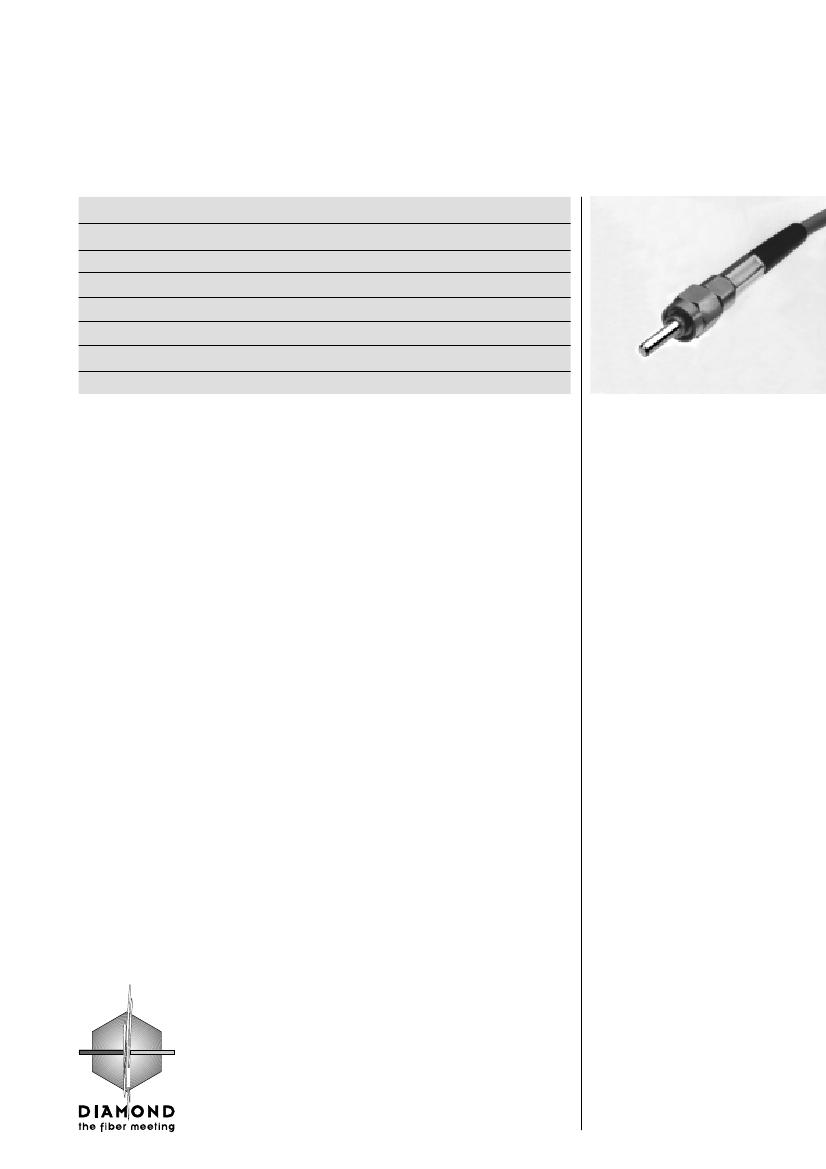

Preview

Download Datasheet

View All

DIAMOND

Fiber Optic Components

Insertion loss

(IL)*

Return loss

(RL)

Repeatability

Service life

Operating temperature

Storage temperature

Strain relief (cable)

typ

IL:

0.6 dB

12 dB

0.2 dB over service life

FSMA

∅

2.5

MULTIMODE

CONNECTOR

HFS-13/AG

min 1000 matings

-40 to +85° C.

-40 to +90° C.

200 N (signal interruption at 10 N)

* Measurement conditions: per IEC 874-1, Method 7-EMD (CECC 86 000, Method 7),

50/125

µm

graded index fiber,

λ=

850 nm, T= 23° C.

APPLICATIONS:

COMPATIBILITY:

DESIGN/MATERIALS:

Telecommunications, LAN, MAN, WAN, Test &

Measurement, Industry, Medical

With SMA connectors with

∅

2.5 mm ferrules

Fiber alignment: Via patented crimping

process

Polish:

Concave

Ferrule:

∅

2.5 mm tungsten carbide

with copper-nickel alloy

insert, spring loaded (10 N),

anti-rotation keyed, with air

pressure relief surface

Mating adapter: Tungsten carbide sleeve in

Inox housing

External parts:

Inox, 1/4"-36 UNS SMA

threading

Cable retention: Coupled to ferrule on cable

ODs

≤

3.5 mm, signal

interruption at 10 N

- Unterminated connector

- Terminated patch cable, patchcord or pigtail

See ordering information on reverse

See section on tools and equipment

AVAILABLE AS:

TERMINATION TOOLS

AND EQUIPMENT:

DIAMOND SA

CH-6616 LOSONE

Via dei Patrizi 5

Tel. ++41-91/785 45 45

Fax ++41-91/785 45 00

e-mail: diamond@diamond-fo.com

Specifications subject to change

without notice

002-037-205P006028
