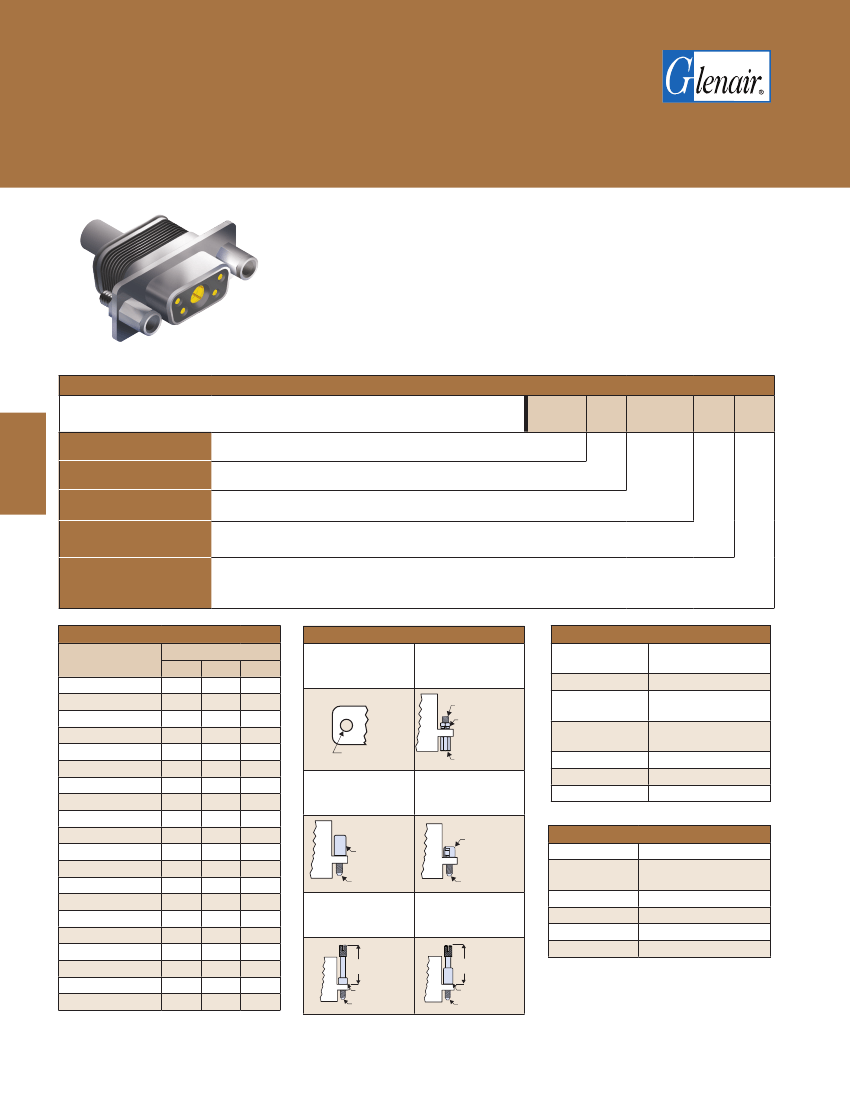

SERIES 28
HiPer-D
®
Combo Connectors
280-089S combo cable socket connectors with standard
mounting flange, integral banding platform and crimp termination
Combo HiPer-D
®
Combo-D connectors, with integral banding platform, feature
size #20 signal contacts and size #8 power or coax contacts.
Size #8 contacts are
ordered separately.
The HiPer-D
®
features a rugged machined aluminum shell
and wire grommet for environmental protection. Size #20 contacts are packaged
with connector. Terminate contacts with crimp tools purchased separately. Glass-
reinforced thermoset epoxy insulators, copper alloy retention clips. Fluorosilicone
rear grommet meets IP67 immersion requirement. 1000 VAC, 7.5 Amps (#20), up to
40 Amps with size #8 power contacts.
How To Order
Sample Part Number
280-089
280-089
S
= Socket
A
= Less contact
S
1-5W1
ME
P
C
Basic Part Number
Contact
Shell Size-
Contact Arrangement
Shell Finish
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel
Z1
= Passivated Stainless Steel
N
= No Hardware
L
= Low Profile Hex Head Captive Jackscrew
S
= Hex Head Captive Screwlock
MT
= Nickel-PTFE
ZM
= Nickel Over Stainless
P
= Female Jackpost
K
= Slot Head Extended Jackscrew
T
= Slot Head Extended Captive Screwlock
Mating Hardware
Contact Arrangements
Shell Size-
Contact Arr.
1-2W2
1-5W1
2-3W3
2-7W2
2-11W1
3-5W5
3-9W4
3-13W3
3-17W2
3-21W1
4-8W8
4-13W6
4-17W5
4-21WA4
4-25W3
4-27W2
5-24W7
5-36W4
5-43W2
5-47W1
Contact Size and Qty
#22
#20
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
#8
2
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
Mating Hardware
N
Thru-Hole
No Hardware
P
Female Jackpost
#4-40 UNC-2A
NUT AND
LOCKWASHER
Specifications
Current Rating
Test Voltage
Insulation
Resistance
Operating
Temperature
Ingress Protection
Shock
#20 7.5 AMPS, #8 40
AMPS
1000 VAC RMS
5000 megohms
minimum
-65° C. to +200° C.
IP 67
300 g.
.115/.125
(2.92/3.18)
#4-40 UNC-2B
S
Captive Screwlock,
Hex Head
L
Captive Jackscrew,
Hex Head
RETAINER
Vibration, Random 43.92 g.
Materials and Finishes
Shell
Contacts
Insulators
Aluminum alloy
Copper alloy, 50
microinches gold
Thermoset epoxy
RETAINER
#4-40 UNC-2A
#4-40 UNC-2A
K
Slot-Head Extended
Jackscrew
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
T
Slot-Head Extended
Captive Screwlock
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
Retention Clips
Copper alloy
Grommet, O-ring Fluorosilicone rubber
Hardware
300 series stainless steel
C-20
Rev. 09.04.20
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D • Rev. 08.04.15
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Combo Connectors
280-089S combo cable socket connectors with standard
mounting flange, integral banding platform and crimp termination

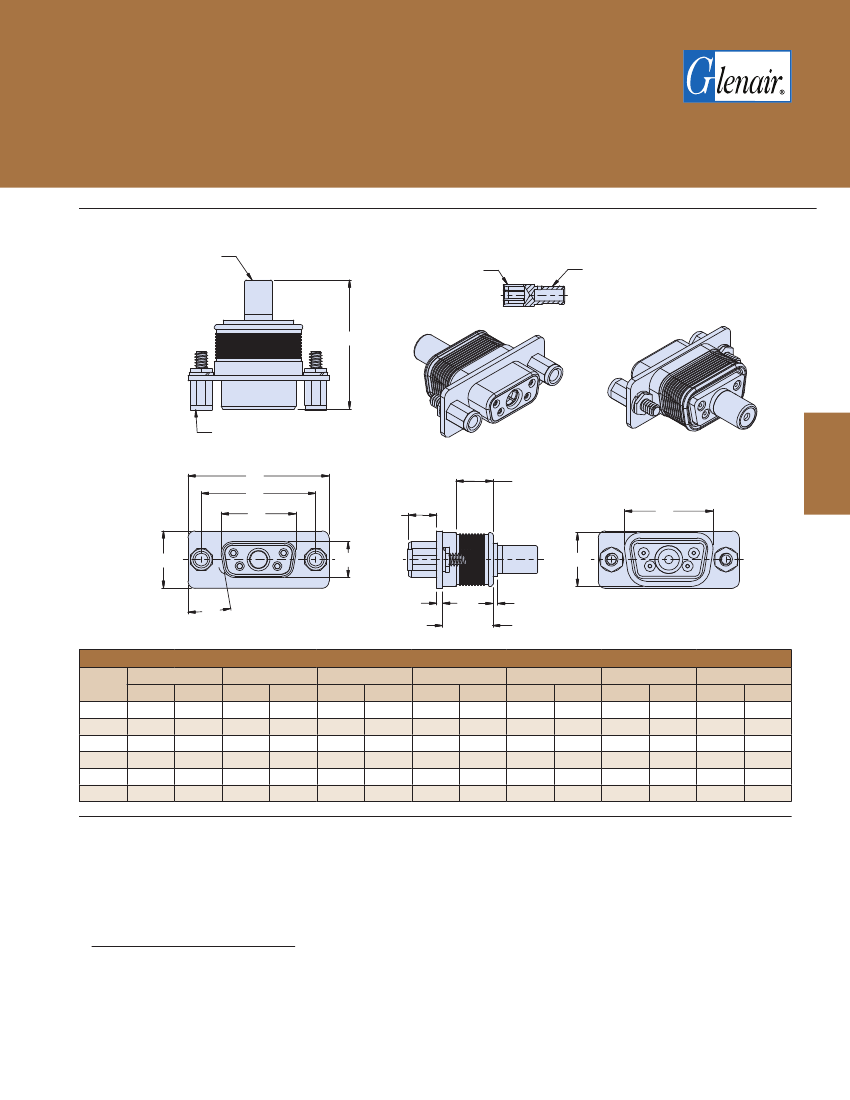

280-089S DIMENSIONS
Grommet Follower
For 8 Gauge Contacts
(Supplied Loose)
8 Gauge Socket
See Note 4
12 Gauge
Crimp Barrel
1.11 (28.19)
"P" Hardware Displayed
Female Jackpost
"A"
"C"
"D"
.243±.005
(6.17±.13)
"E"
.049 (1.24)
.038 (.97)
.435 (11.05)
"J"
.320 (8.13) To Accommodate
Micro Or Nano Bandit
"H"
C
"B"
10°
Typ
Dimensions
Shell
Size
1
2
3
4
5
6
“A” ±.015
In.
1.213
1.541
2.088
2.729
2.635
2.729
mm.
30.81
39.14
53.04
69.32
66.93
69.32
“B” ±.015
In.
0.494
0.494
0.494
0.494
0.605
0.668
mm.
12.55
12.55
12.55
12.55
15.37
16.97
“C” ±.005
In.
0.984
1.312
1.852
2.5
2.406
2.5
mm.
24.99
33.32
47.04
63.50
61.11
63.50
“D” ±.005
In.
0.643
0.971
1.511
2.159
2.064
2.189
mm.
16.33
24.66
38.38
54.84
52.43
55.60
“E” ±005
In.
0.311
0.311
0.311
0.311
0.423
0.486
mm.
7.90
7.90
7.90
7.90
10.74
12.34
In.
0.760
1.089
1.629
2.277
2.182
2.307
“H”
mm.
19.30
27.66
41.38
57.84
55.42
58.60
In.
0.462
0.462
0.462
0.462
0.474
0.626
“J”
mm.
11.73
11.73
11.73
11.73
12.04
15.90
NOTES
1. See
About Series 28 HiPer-D
®
Shell Plating Options
for additional shell material and finish options. Glenair offers the industry’s widest
selection of plating options with no minimum order quantities or setup charges.
2. For panel cutouts, refer to
Panel Cutouts and Printed Circuit Board Footprints.
3. Connectors are supplied with size #20 crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D
®
Contacts and Tools
section for contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
4.
Size 8 contacts are ordered separately.
Refer to
HiPer-D
®
Contacts and Tools
section for contact ordering information, specifications,
crimp tool information, and insertion/extraction tools.
5. Combo HiPer-D
®
connectors meet the applicable requirements of MIL-DTL-24308 and are intermateable with standard non-
environmental D Subminiature connectors with corresponding contact arrangements and type.
Size 8 contacts from other
manufacturers cannot be installed in HiPer-D
®
connectors.
6. Additional electrical, mechanical and environmental specifications are listed in
HiPer-D
®
Product Specification.
