MSH563BAG75.000MHZ

Description
Oscillator, 8MHz Min, 75MHz Max, 75MHz Nom,
CategoryPassive components    oscillator
File Size126KB,2 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Download Datasheet Parametric View All

MSH563BAG75.000MHZ Overview

Oscillator, 8MHz Min, 75MHz Max, 75MHz Nom,

MSH563BAG75.000MHZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid102502649
package instructionGWDIP4/8,.6
Reach Compliance Codeunknown
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals4
Maximum operating frequency75 MHz
Minimum operating frequency8 MHz
Nominal operating frequency75 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Package body materialMETAL
Encapsulate equivalent codeGWDIP4/8,.6
power supply5 V
Certification statusNot Qualified
Maximum slew rate50 mA
Nominal supply voltage5 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
PRELIMINARY

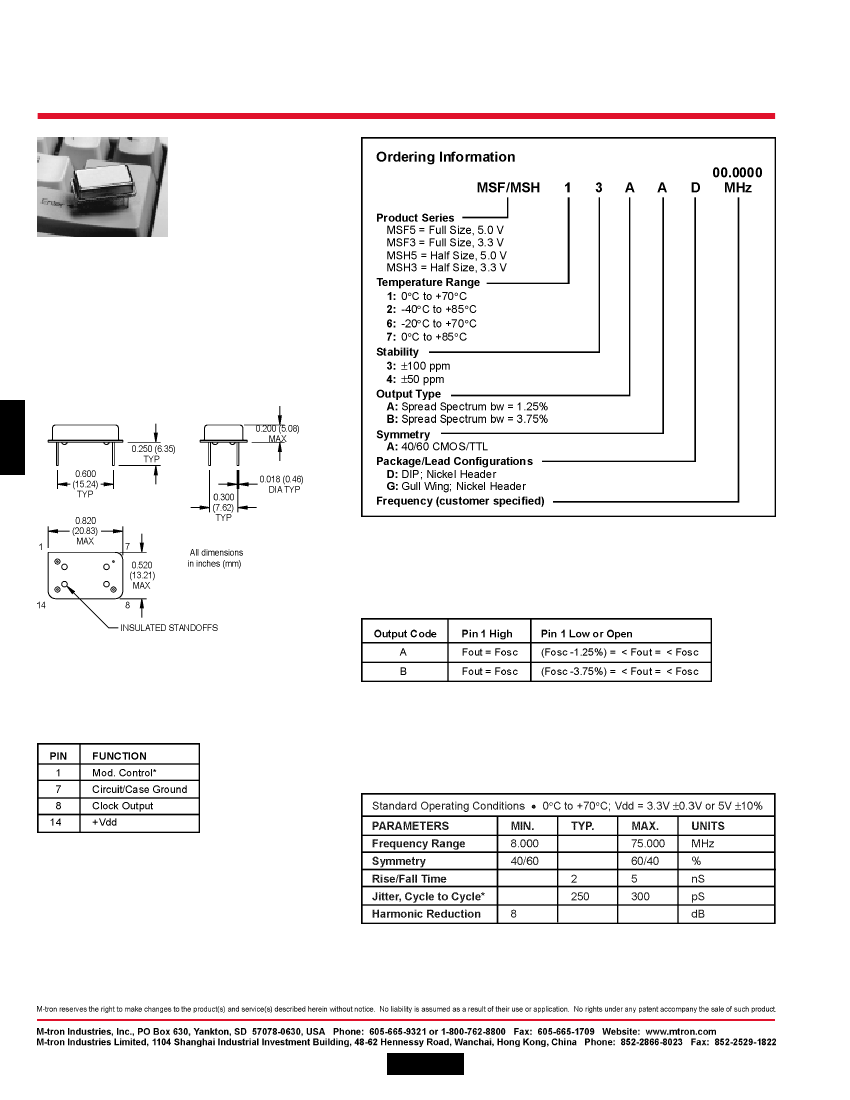

MSF/MSH Series Spread Spectrum Oscillators . . . . . . . . . . . . . .
ACMOS and TTL Compatible
High Frequency Oscillators
“MSF PACKAGE”

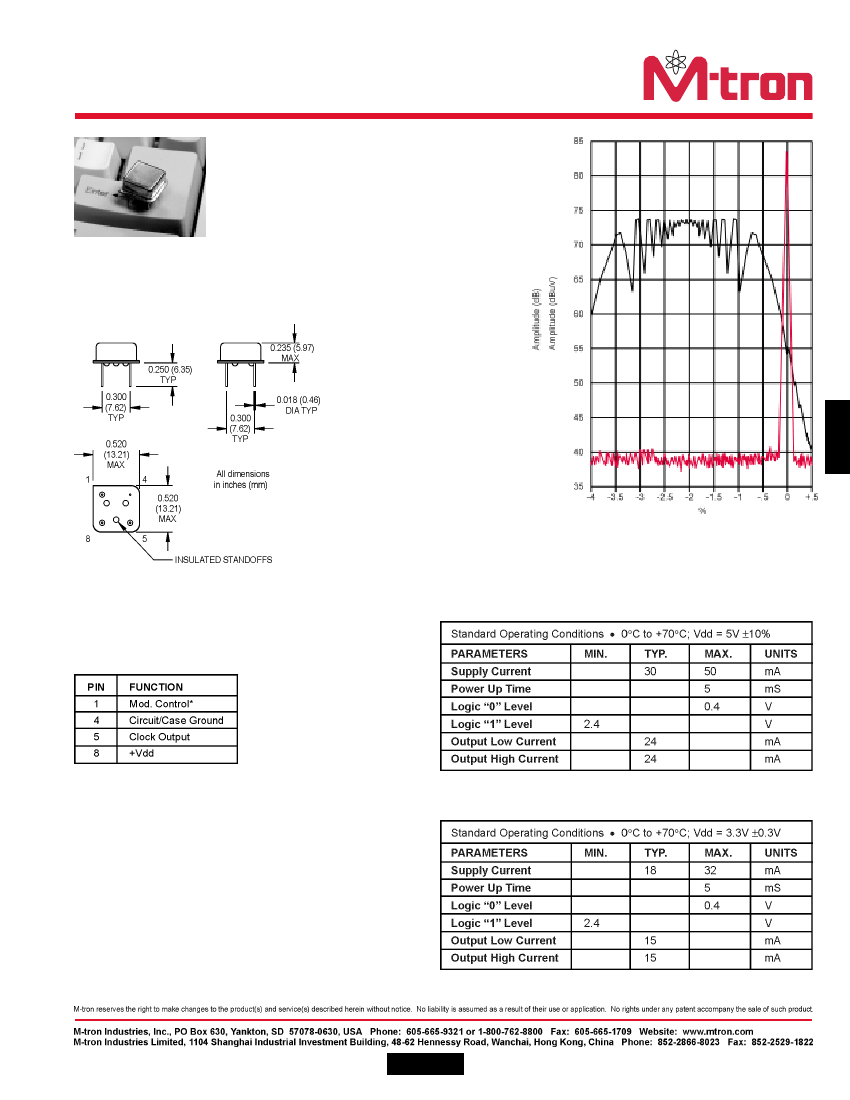

Spreading Modulation Range
See page 135 for gull wing configuration.
Pin Connections
AC Electrical Specifications
*Pin 1 Logic
Pin 1 low or open: modulated output
Pin 1 high: unmodulated output
* Not recommended for jitter sensitive applications.
See page 136 for suggested soldering conditions.
58
