BHD-40-RA-GD30-SLC-PF-SPL datasheet, PDF

Datasheet> All Categories > The connector> The connector> BHD-40-RA-GD30-SLC-PF-SPL

BHD-40-RA-GD30-SLC-PF-SPL: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-40-RA-GD30-SLC-PF-SPL Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-40-RA-GD30-SLC-PF-SPL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166981074
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.358 inch
subject depth	0.538 inch
body length	2.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact material:

Finish:

Insulator material:

Brass

Gold flash plated over nickel.

Nylon 6T

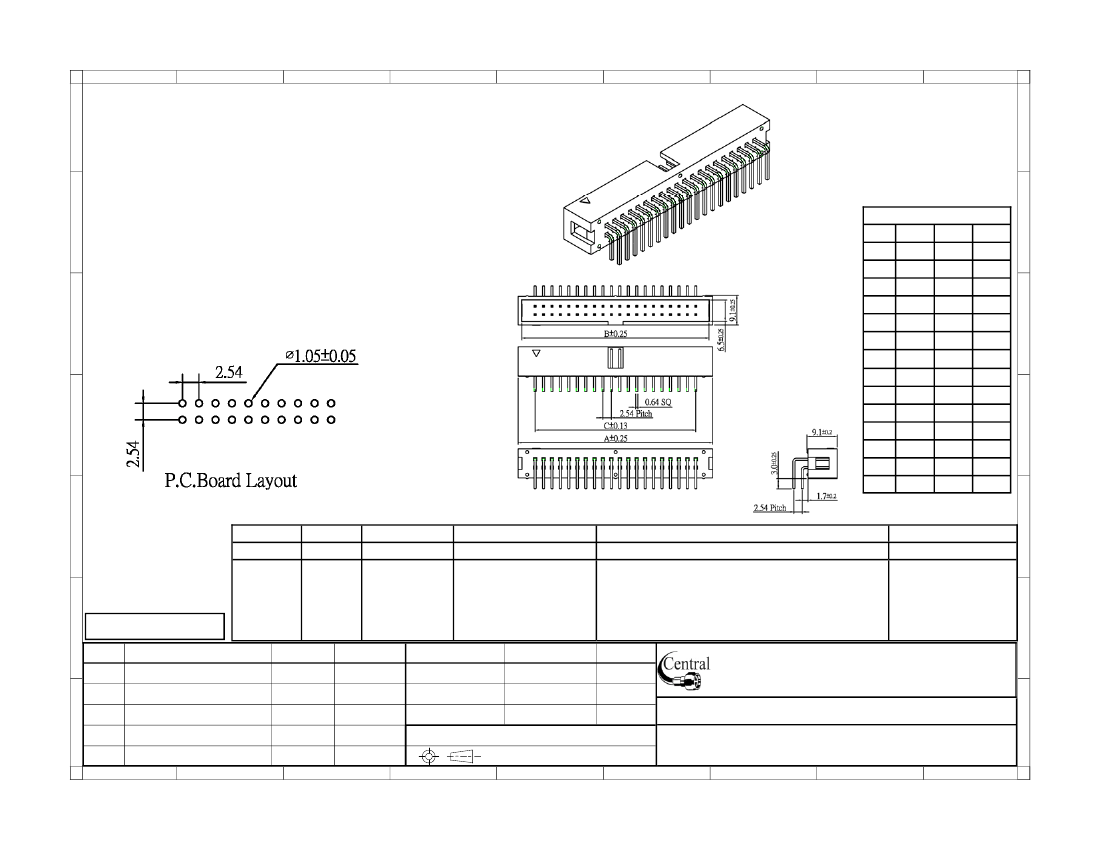

Dimensions

Pos. A

6 15.24 12.94

8 17.78 15.48

10 20.32 18.02

14 25.40 23.10

16 27.94 25.64

20 33.02 30.72

24 38.10 35.80

26 40.64 38.34

30 45.72 43.42

34 50.80 48.50

40 58.32 56.12

50 71.12 68.82

60 83.82 81.52

64 88.90 86.60

Series

Positions

Mounting

Plating

BHD

Box header See chart ST=Straight

TN=Tin

RA=Right angle GDXX=Gold

SGXX=Selective gold

XX=[Flash if Blank], 15µ”,

RoHS compliant

30µ”, 50µ” gold

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

5.08

7.62

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

Latches

[blank]=None

SLC=Short side latch holder

SL=Short latch (3.9mm) LLC=Long side latch holder

LL=Long latch (7.68mm) NLC=Empty side latch holder

NL=Empty latch holder

Date

08/06/07

08/06/07 Part No.:

Options

[blank]=None

PF=Press Fit

SM=Surface mount

SPL=Special pin length

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-XX-RA-XX-XX-XX

0.00 ± 0.20 Angles ± 3°

UNIT: mm

Description: 2.54 Pitch Box Header Right Angle
