PCD50M93S00O datasheet, PDF - EEWORLD Datasheet

PCD50M93S00O: DescriptionD Type Connector, 50 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size453KB，5 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

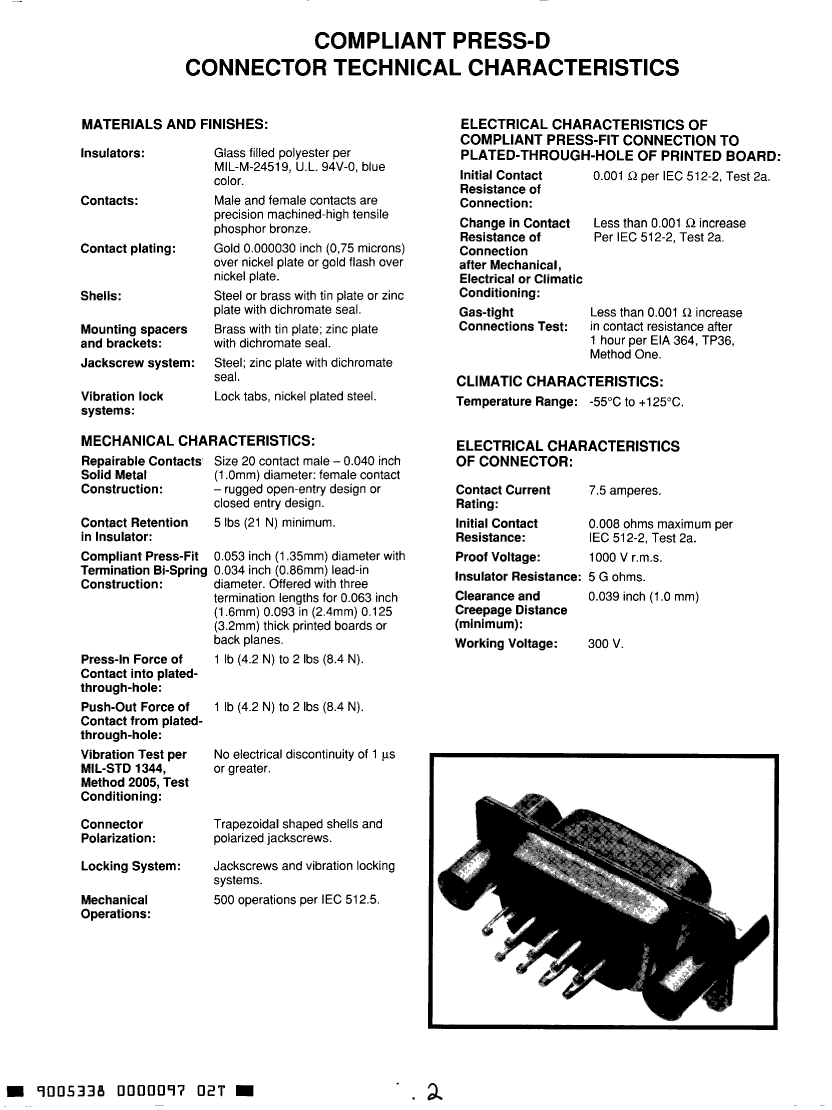

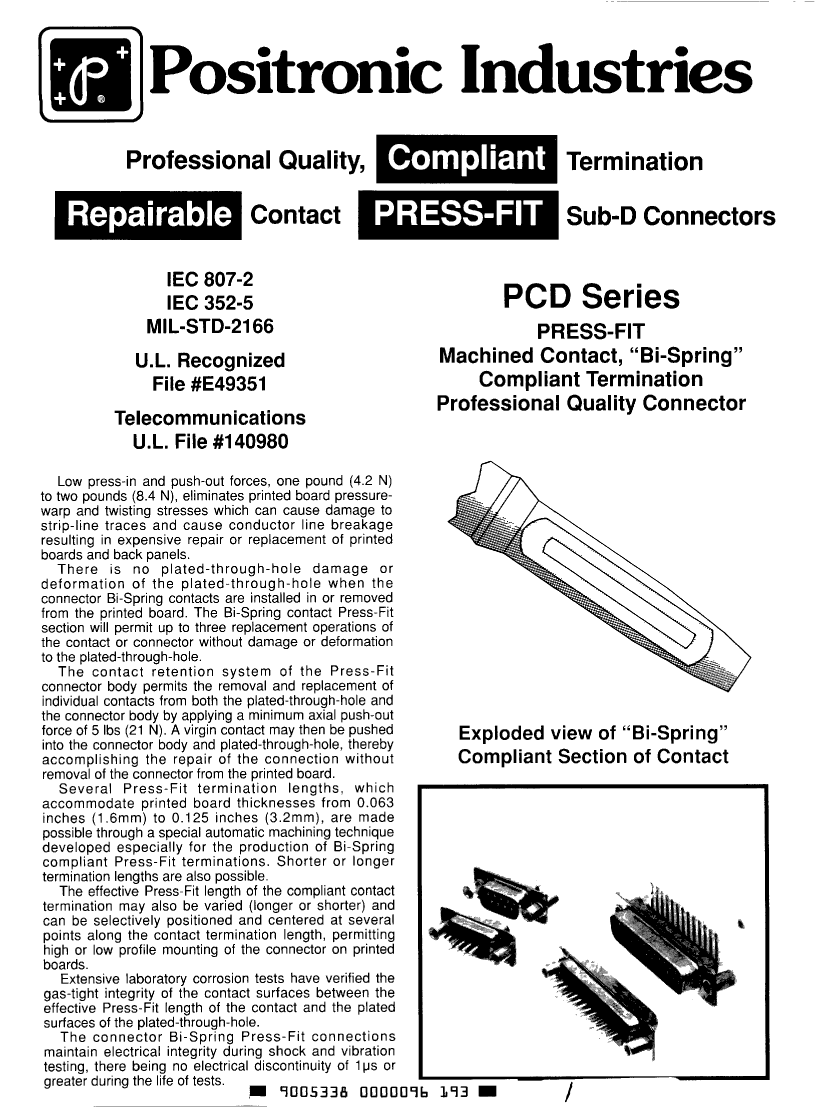

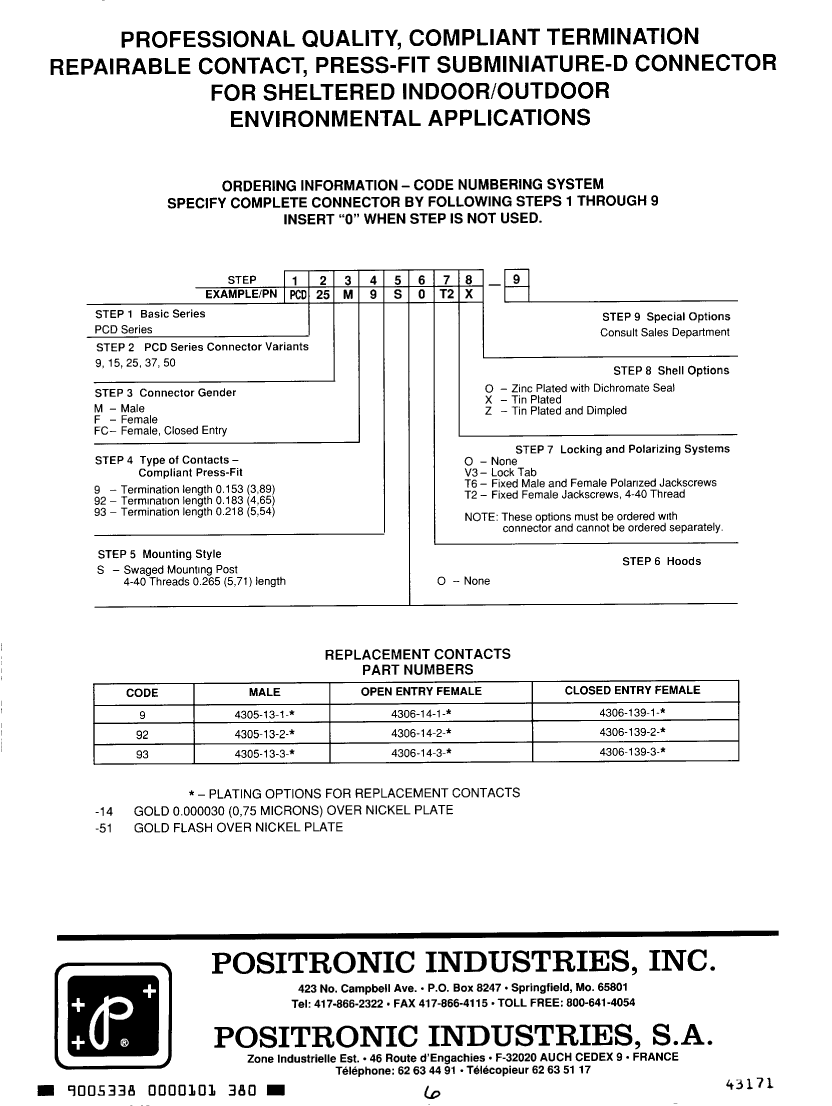

PCD50M93S00O Overview

D Type Connector, 50 Contact(s), Male, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	300045132
Reach Compliance Code	unknown
ECCN code	EAR99

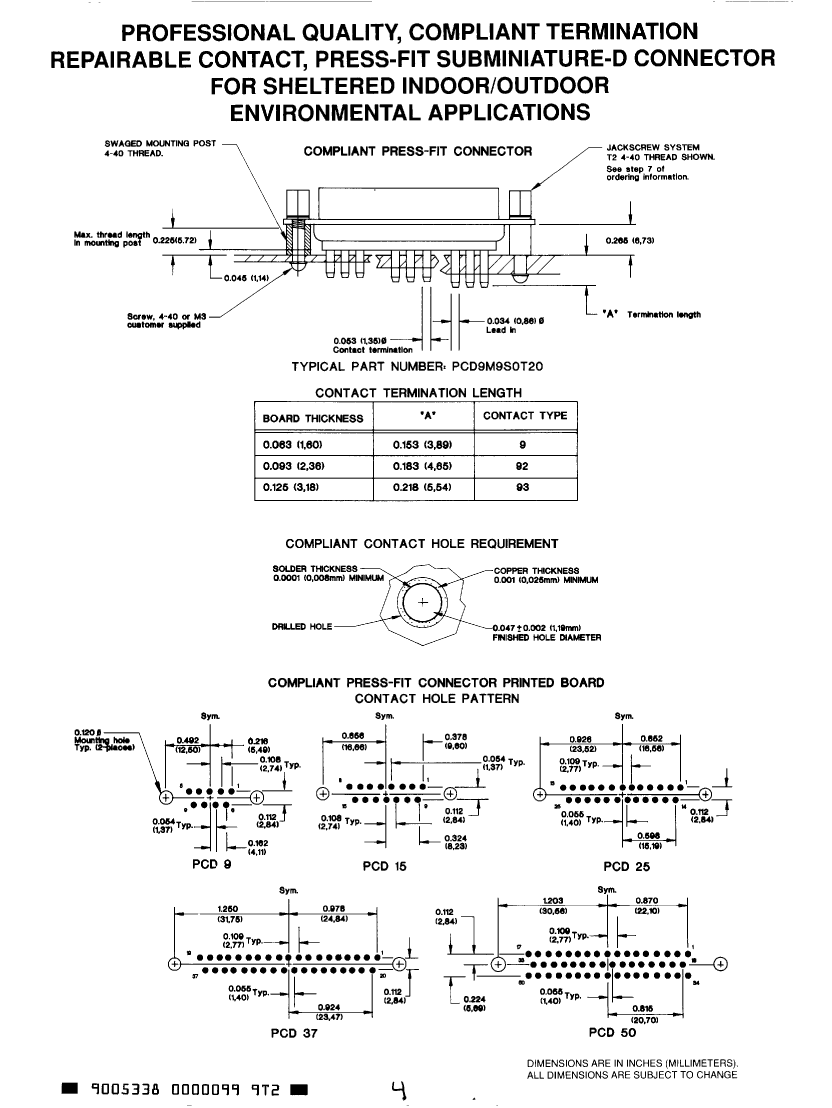

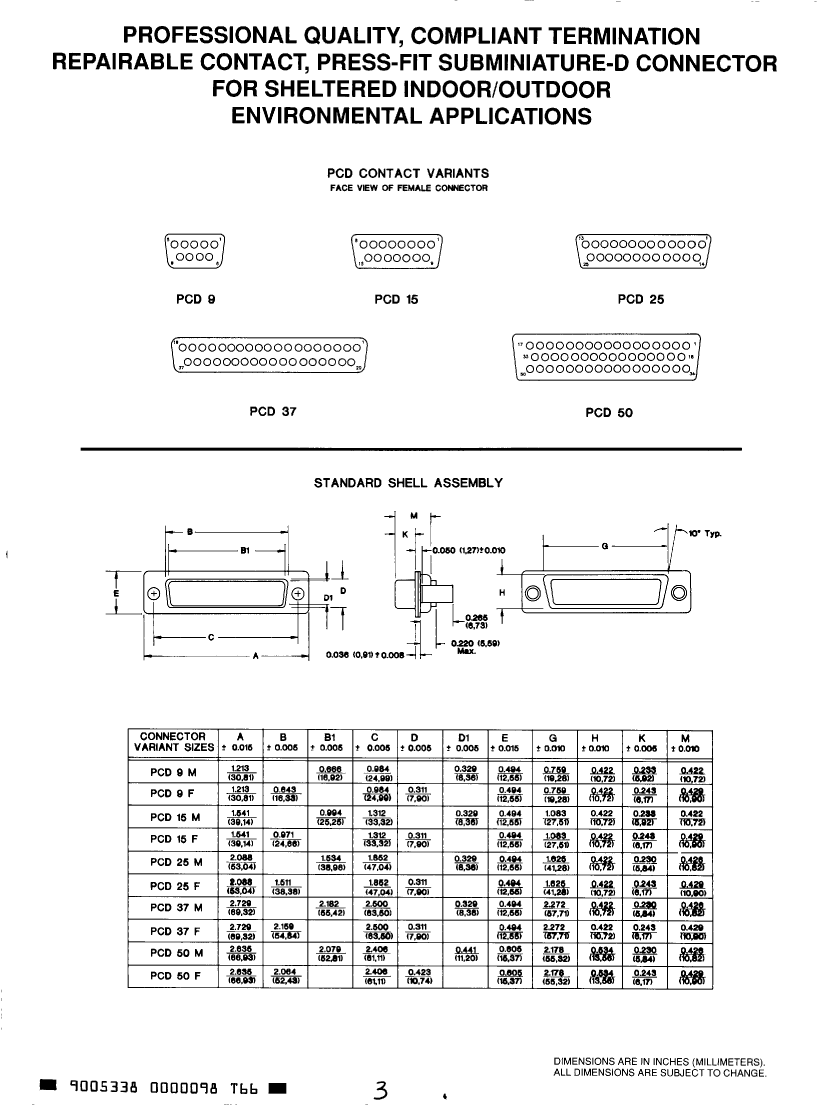

body width	0.605 inch
subject depth	0.265 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	PCD
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.218 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	8.896 N
