PCS129MT820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCS129MT820

PCS129MT820: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size1MB，13 Pages; ManufacturerViking Tech Corp

Download Datasheet Parametric View All

PCS129MT820 Overview

General Purpose Inductor,

PCS129MT820 Parametric

Parameter Name	Attribute value
Objectid	7194940033
Reach Compliance Code	unknown
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	7.1
uppercase and lowercase codes	4747
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.11 Ω
Nominal inductance(L)	82 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	10 mm
Package length	12 mm
Package form	SMT
Package width	12 mm
method of packing	TR, 13 Inch
Maximum rated current	2.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	PACKAGING AVAILABLE IN 7 INCH ALSO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Data Sheet

Customer:

Product:

Sizes.:

Issued Date:

Edition:

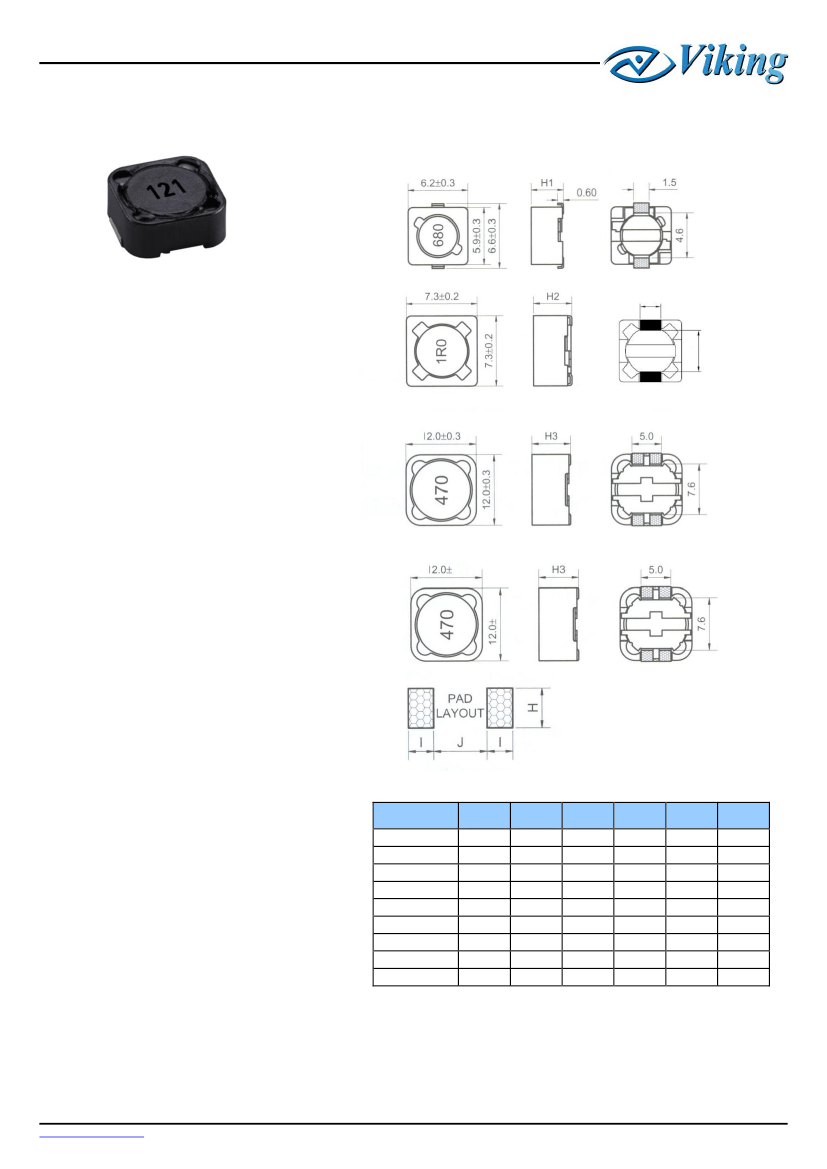

Shielded SMD Power Inductor – PCS Series

62B/64B/73/74/124/125/127/129

14-Sep-17

REV.B9

VIKING TECH CORPORATION

光頡科技股½有限公司

No.70, Guangfu N. Rd., Hukou

Township, Hsinchu County

303, Taiwan (R.O.C)

TEL:886-3-5972931

FAX:886-3-5972935•886-3-5973494

E-mail:sales@viking.com.tw

VIKING TECH CORPORATION KAOHSIUNG BRANCH

光頡科技股½有限公司高雄分公司

No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung,

806, Taiwan

VIKING ELECTRONICS (WUXI) CO., LTD.

光頡電子(無錫)有限公司

No.22 Xixia Road, Machinery & Industry Park,

National Hi-Tech Industrial Development Zone

of Wuxi, Wuxi, Jiangsu Province, China

Zip Code:214028

TEL:86-510-85203339

FAX:86-510-85203667•86-510-85203977

E-mail:china@viking.com.tw

TEL:886-7-8217999

FAX:886-7-8228229

E-mail:sales@viking.com.tw

Produced by

(QC)

14-Sep-17

Checked

(QC)

14-Sep-17

Approved by

(QC)

14-Sep-17

Prepared by

(Sales)

14-Sep-17

Accepted by

(Customer)

Kris Chen

Ben Chang
