R4013-25 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> R4013-25

Preview

R4013-25: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric View All

R4013-25 Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Receptacle

R4013-25 Parametric

Parameter Name	Attribute value
Objectid	304751128
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	R401
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	6u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.138 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

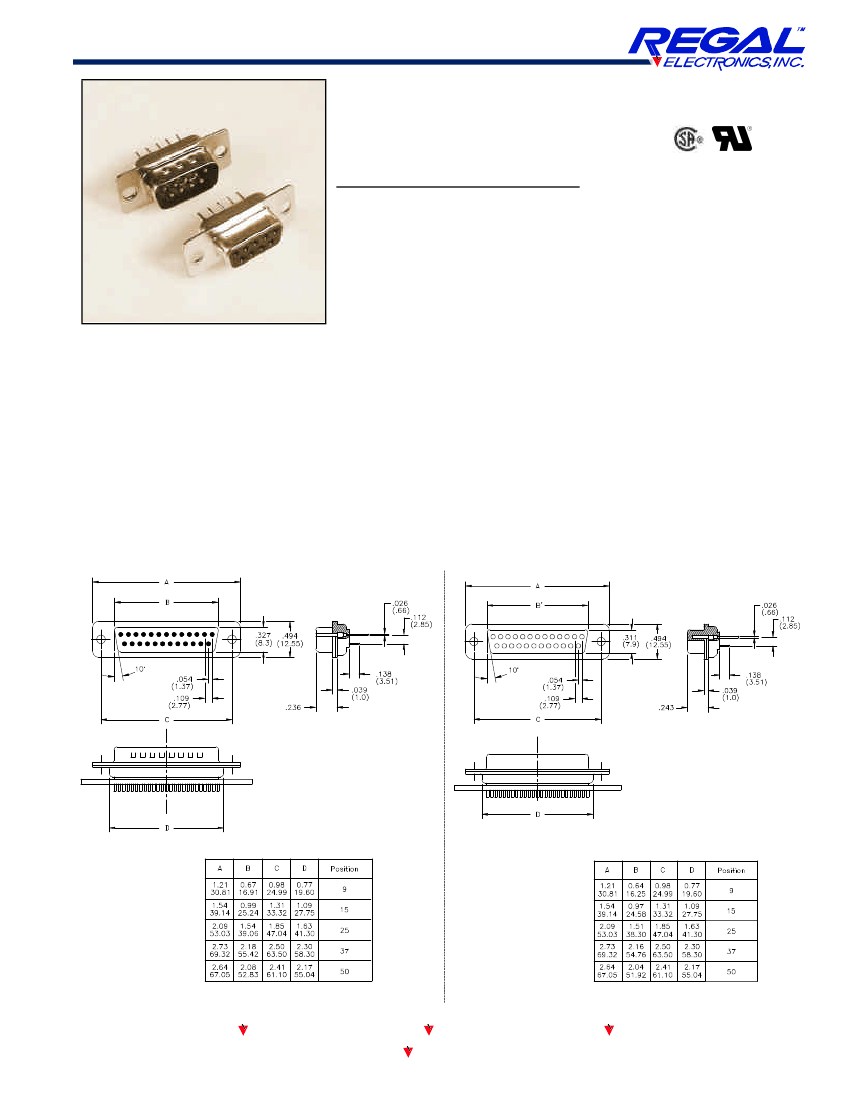

D-Subminiature PCB Vertical Mount

R4013-[*]

Male

R4014-[*]

Female

*Number of contacts;

Options are:

9, 15, 25, 37, 50

RoHS Compliant

FEATURES:

• Bright tin shell for excellent EMC / grounding

• Five shell sizes

• Indentations for optimum mating retention

& grounding

• Mates with all industry standard D-Subminiature

connectors

• Pre-loaded precision formed contacts

ELECTRICAL:

• Current rating: 300V DC 3 AMP Maximum

• Contact resistance: 15 Milliohms Maximum

• Insulation resistance: 1000 Megohms Minimum

• Dielectric withstanding voltage: 1000 VAC

MATERIAL:

• Shell : Steel, tin plated

• Insulator: UL94V-0 / PBT glass filled

• Color: black

• Contact material: Pin = Brass,

Socket = Phosphor bronze

• Plating: 6µ” gold over nickel underplate

• Temperature: -55°C to +105°C

R4013

Male

R4014

Female

080506

120 San Lucar Court

Sunnyvale, CA 94086

Phone 800/882-8086 Fax 800/345-2831

Visit www.regalusa.com

E-mail hal@regalusa.com
