89801-026LF datasheet, PDF - EEWORLD Datasheet

89801-026LF: Descriptionheaders & wire housings qke conn dil pcb; CategoryThe connector; File Size606KB，2 Pages; ManufacturerFCI [First Components International]; Environmental Compliance

Download Datasheet Parametric Compare View All

89801-026LF Overview

headers & wire housings qke conn dil pcb

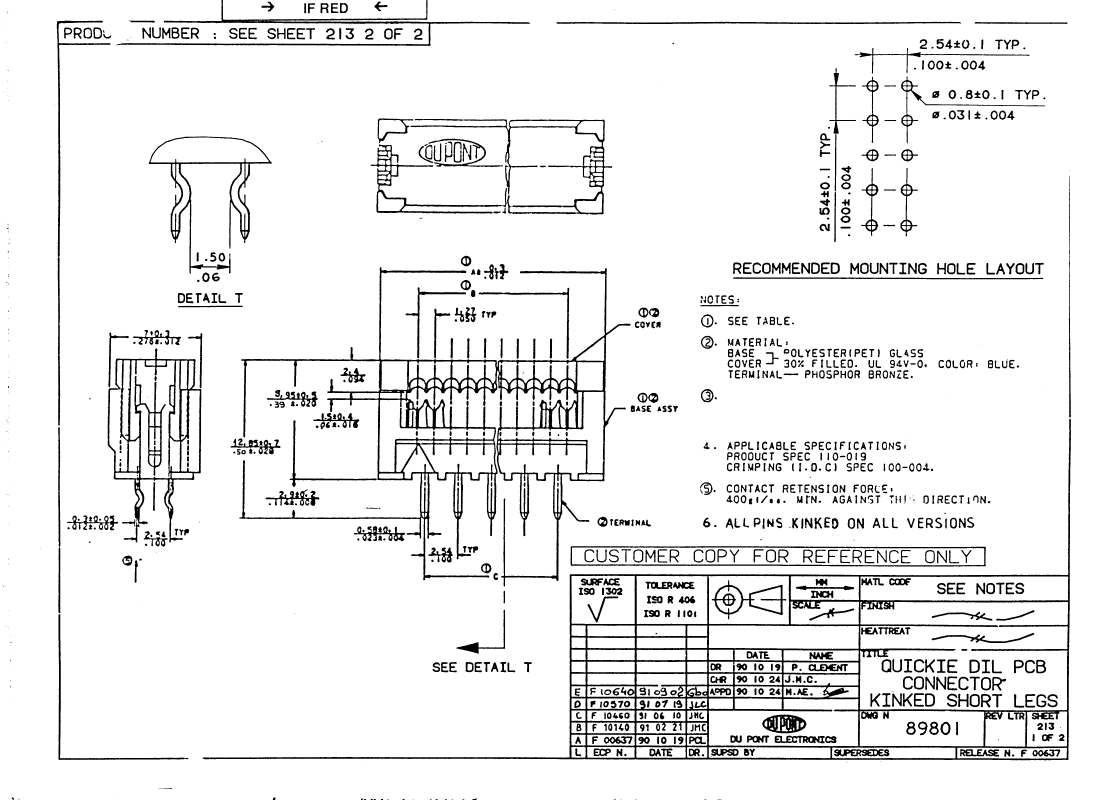

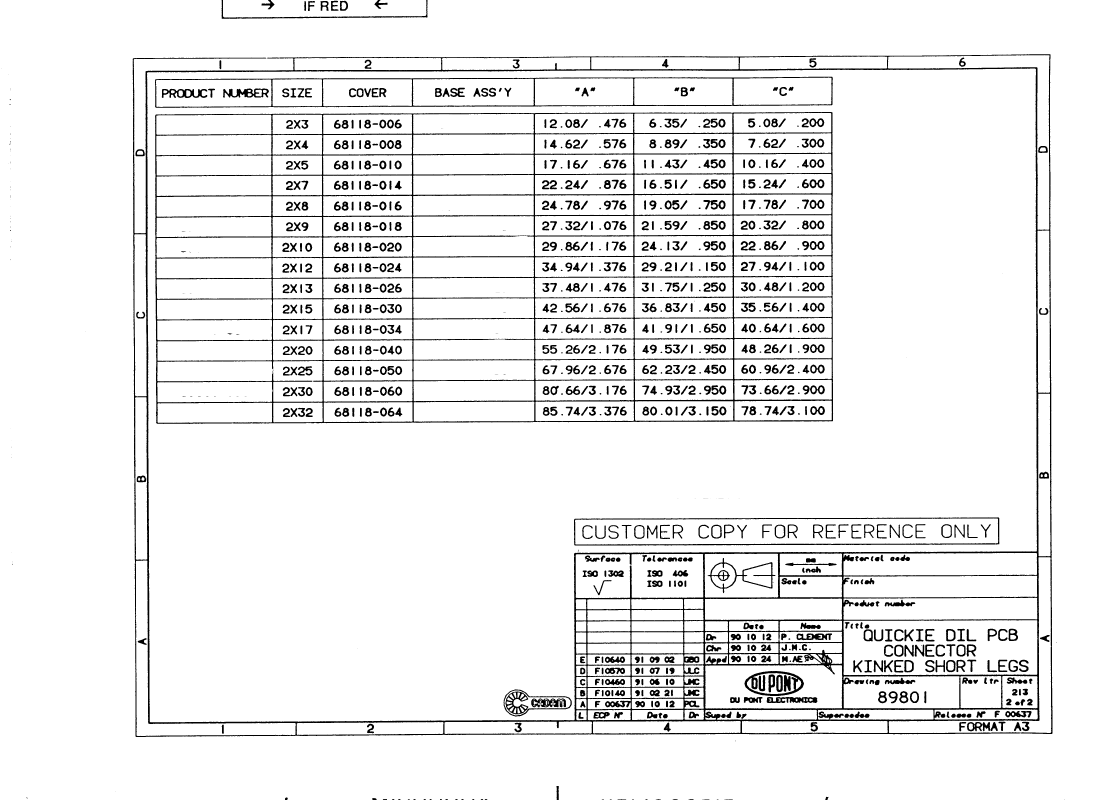

TERMINAL FINISH: 1.27um/50u" Ni UNDER PLATING.

FOR 89801-***: ALL OVER SnPb PLATING, SnPb 93/7, 3.81um/150u" MIN.

FOR 89801-***LF: ALL OVER 3.81um/150u" PURE MATTE Sn PLATING.

F

N05-0366

05.12.26

DT

F

PDM: Rev:E

Rev:F

STATUS:

Released

STATUS:

Printed: Dec 08, 2005

Printed: Apr 12, 2011

.

	89801-026LF	89801-016LF
Description	headers & wire housings qke conn dil pcb	headers & wire housings qke conn dil pcb
Manufacture	FCI	FCI
Product Category	Headers & Wire Housings	Headers & Wire Housings
RoHS	Yes	Yes
Type	Receptacle	Receptacle
Pitch	2.54 mm	2.54 mm
Number of Positions	26	16
Number of Rows	1	1
Contact Gende	Socket (Female)	Socket (Female)
Housing Material	Polyeste	Polyeste
Termination Style	Through Hole	Through Hole
Mounting Angle	Vertical	Vertical
Contact Material	Phosphor Bronze	Phosphor Bronze
Packaging	Tube	Tray
Factory Pack Quantity	15	23
