2110855-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2110855-2

2110855-2: Descriptionheaders & wire housings P-ins rng trm 12-10 120 PC kit; CategoryThe connector; File Size297KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

2110855-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2110855-2	-	-	View	Buy Now

2110855-2 Overview

headers & wire housings P-ins rng trm 12-10 120 PC kit

2110855-2 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Headers & Wire Housings
RoHS	Yes
Pitch	2.54 mm
Termination Style	Through Hole
Mounting Style	-
Mounting Angle	Right, Straigh
Factory Pack Quantity	1

Preview

Download Datasheet

View All

General Information

Kit Part Number:

Description:

Application:

Family:

TE Brand:

Solution:

Product Type:

Number of Pieces:

RoHS:

Specifications

Circuit Size(s):

Connector Type:

Current Rating:

Mounting Style:

Orientation:

Pitch:

Tool Included:

Voltage Rating:

Wire Gauge (AWG):

Product Highlights

2, 3, 4, 6, 8, 10

Feed Through

Through Hole

Straight, Right Angle

2.54mm (.100")

250V

2110855-2

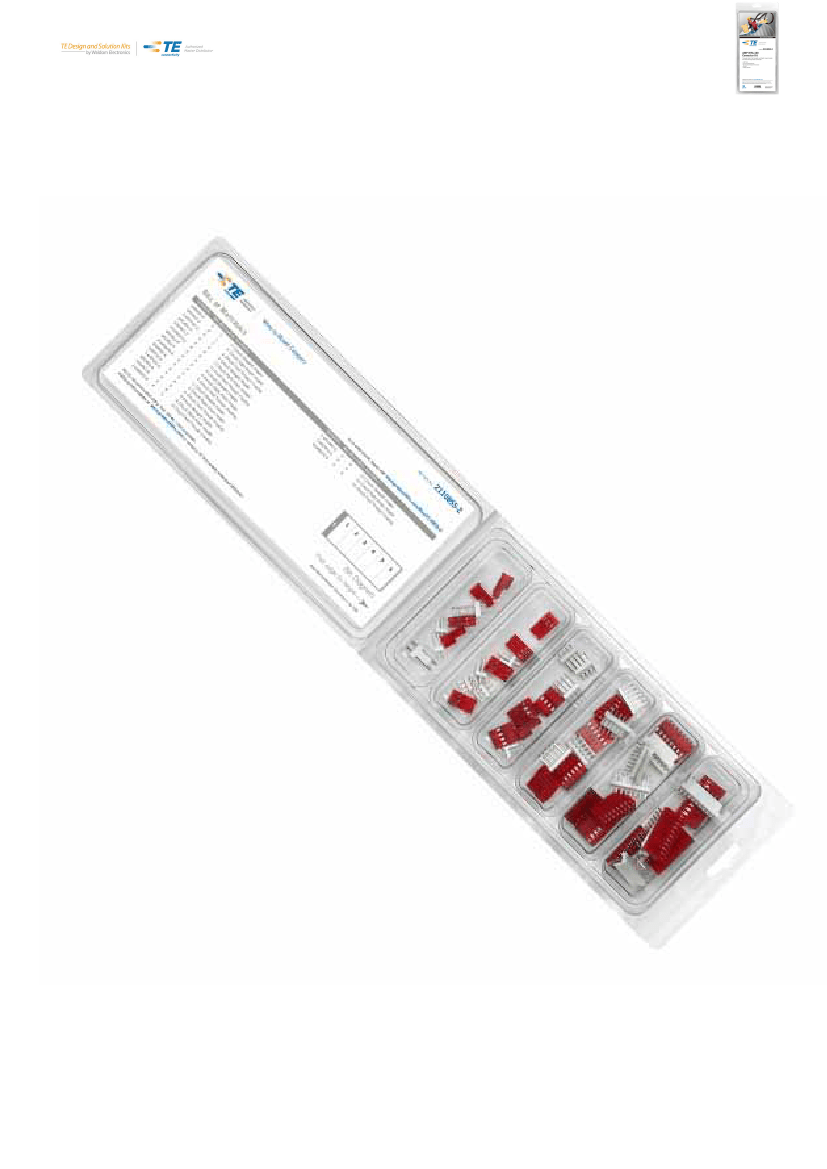

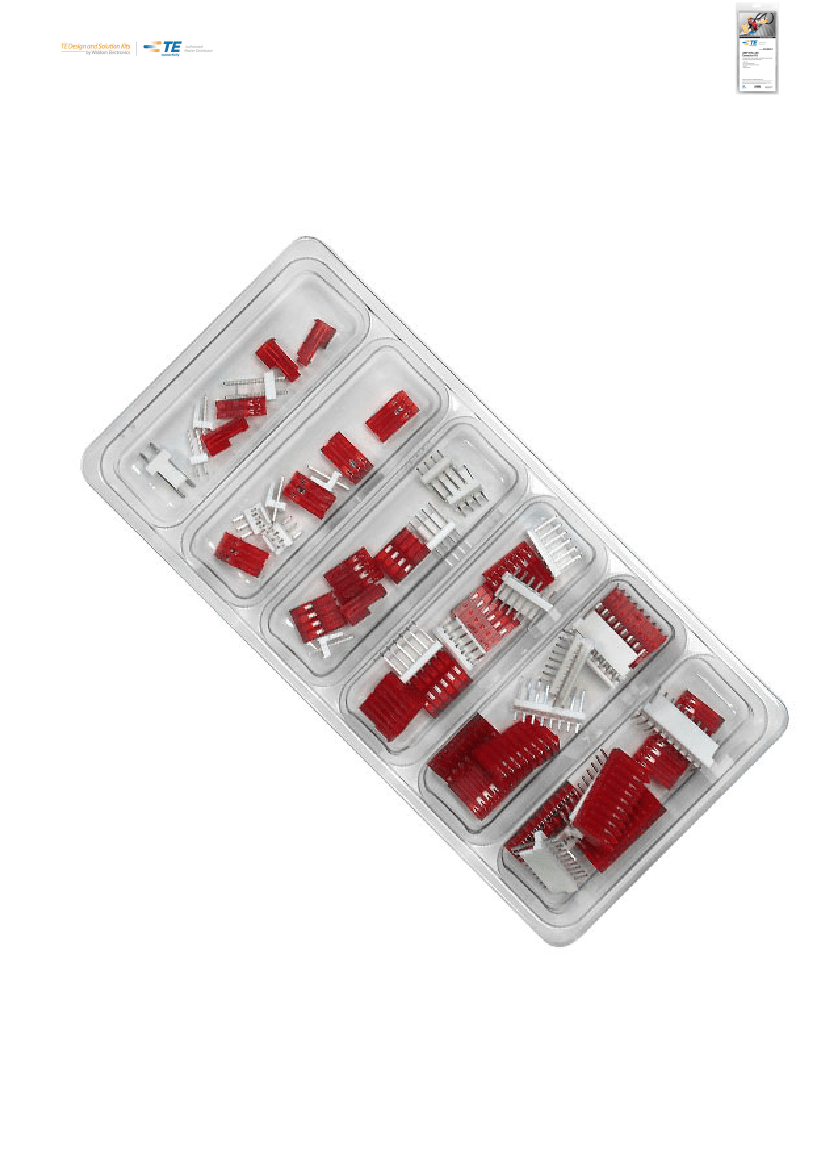

Through Hole Flat Straight and Right Angle Header and Feed Through IDC Connector Kit

Appliance Industries, Coin Changers, Fitness Equipment, Garage Door Openers, Gasoline Pumps, Vending

MTA-100

AMP Products

Off the Board

Wire-to-Board Connectors

Yes

The MTA-100 IDC connector system is a wire-to-board and wire-to-wire system with contacts in a single row on .100 [2.54mm] centerline. The

design features wire feed-through capability for daisy-chain applications.

Features and Benefits

• Connectors and headers for positions 2-28, shrouded headers 2-14

• Terminates 28-22 AWG discrete wire or notched ribbon cable

• Molded ribs on housing prevent reverse mating

• Color coded housing for wire gauge

• Insulation Displacement Contacts (IDC) eliminates need to strip wires

• Connectors and headers, except shrouded headers, are end-to-end stackable

• Contacts are lubricated for fretting corrosion protection

• 250V, 5A contact rating

• Tin, 15 & 30 gold plating options

• Audible latch for wire-to-wire (posted) housings

Applications

• Garage Door Openers

• Gasoline Pumps

• Household Appliances

• Coin Changers

• Vending Machines

• Fitness Equipment

Page 1 - Retrieved on Dec 05, 2011
