H112-0020-055-ZR datasheet, PDF

Datasheet> All Categories > The connector> The connector> H112-0020-055-ZR

H112-0020-055-ZR: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size272KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

H112-0020-055-ZR Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

H112-0020-055-ZR Parametric

Parameter Name	Attribute value
Objectid	304395789
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.1 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	H1
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

(NO. OF POSITIONS/2) x 2.54

(NO. OF CONTACTS/2-1) x 2.54

DIMENSION

NUMBER

0020

0023

0024

0001

1180

0025

0026

11.40

17.09

13.54

11.60

11.80

19.49

16.49

5.94

7.36

8.00

5.90

6.10

13.20

10.92

2.92

2.54

3.00

3.16

3.75

2.54

HOW TO ORDER:

IR REFLOW

COMPATIBLE

260°C

ELECTRICAL:

CONTACT MATERIAL:

1 - COPPER ALLOY

CURRENT: 1

AMP

CONTACT RESISTANCE:

30 Milliohms Max.

INSULATOR RESISTANCE:

1000 Megaohms Min

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

NUMBER OF

CONTACTS:

01 thru 98

A0=100

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

RoHS

4 - 15u" Au

COMPLIANT

5 - 30u" Au

MATERIAL

NUMBER OF ROWS:

2 - DOUBLE ROW

INSULATOR OPTIONS: PBT & 30% Glass Fiber UL94V-0

NYLON 6T UL94V-0 ( 260 C Rated - 10 Sec) - Add R to Part Number

CONTACT: Copper Alloy

PLATING: Gold and/or Matte Tin over 50 Microinches Nickel

Rev

Issued

A Added 0025 dimension

C Revised For Reflow Compatible

SCALE

MAT'L

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Revised For RoHS Compliance

FINISH

ANGLE +/-

Apv.

S.E.

A.M.

WHS

Date

10/1/97

11/4/04

5/19/06

SMP TECHNOLOGY, INC.

7/14/05

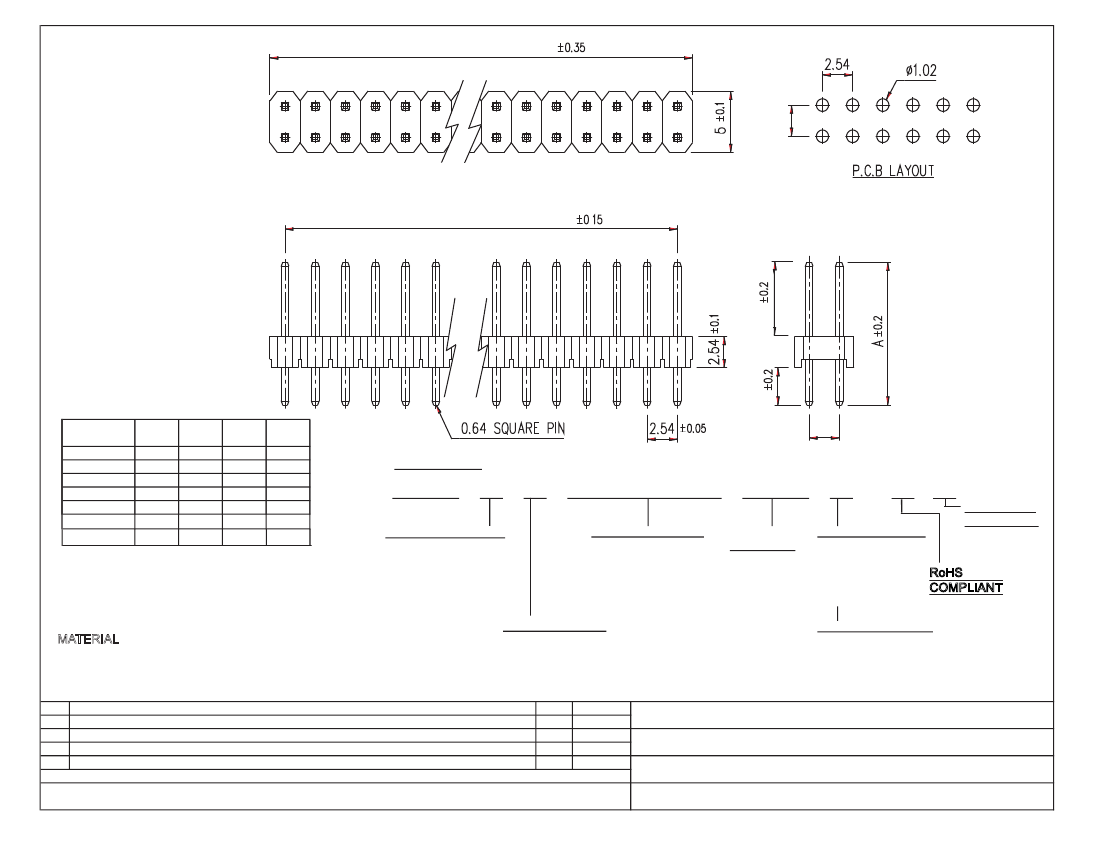

PIN HEADER, 2.54mm PITCH, STRAIGHT

SERIES: H 1 1 2 - X X X X - X X X - Z R

Pg: 1

UNIT: mm
