3-Line Filters
for Converters and Power Electronics
Power line filters for three-phase systems
Rated voltage 480/275 and
520/300 V~, 50/60 Hz
Rated current 8 to 200 A
Construction
s
Three-line filter
s
Metal case
s
Book size
B84143-B*-R110
B84143-B*-R112
Features
s
s
s
s
s
s
s
Very high insertion loss
Low leakage current
Optimized footprint saves space
Litz wires on the load side reduce mounting time
Low weight
Degree of protection: IP 20
1)
Design based on
EN 133 200, UL 1283, CSA 22.2 No.8 1986
s
Optimized for long motor cables
and operation under full load
s
UL and CSA approval pending
Applications
s
Frequency converters for motor drives, e.g.
– elevators
– pumps
– traction systems
– conveyor systems
– HVAC systems (heating, ventilation and air conditioning)
s
Wind farms
s
Power supplies
Terminals
s
Line: Safe-to-touch terminal blocks
s
Load: Litz wires
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current,
rated temperature, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
1) In accordance with IEC 60529:1989; EN 60529:1991; DIN VDE 0470-1
246
03/01
3-Line Filters
for Converters and Power Electronics
Technical data
Rated voltage
V
R
Rated current
I
R
Test voltage
V
P
Overload capability
Leakage current
I
leak
Climatic category
480/275 V~, 50/60 Hz (type -R110)
520/300 V~, 50/60 Hz (type -R112)
B84143-B*-R110
B84143-B*-R112
Referred to 40
°
C ambient temperature
1770 V–, 2 s (line/line)
2700 V–, 2 s (lines/case)
1,5 ·
I
R
for 3 min per hour or
2,5 ·
I
R
for 30 s per hour
at 480 V~, 50 Hz
25/100/21 (– 25
°
C/+ 100
°
C/21 days damp heat test)
in accordance with EN 60068-1
Characteristics and ordering codes
I
R
Terminal cross section
load side:
line side:
terminal blocks litz wires
mm
2
mm
2
8
16
25
36
50
66
90
120
150
200
4
4
6
6
16
25
25
50
50
95
1,5
2,5
4
6
10
16
25
35
35
70
I
leak
typ
1)
mA
R
typ
m
Ω
26
13
10
6,5
4,3
2,7
2,0
1,4
0,9
0,5
Approx.
weight
kg
1,5
1,5
2,7
3,2
3,7
4,3
7,7
8,3
9,7
13,5
B84143-B8-R110
B84143-B16-R110
B84143-B25-R11*
B84143-B36-R11*
B84143-B50-R11*
B84143-B66-R11*
B84143-B90-R11*
B84143-B120-R11*
B84143-B150-R11*
B84143-B200-R11*
Ordering code
A
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
Compilation of ordering code
Replace the asterisk * by the code number for the required version:
0 = 480 / 275 V
2 = 520 / 300 V
1) At rated operation
248
03/01
3-Line Filters
for Converters and Power Electronics

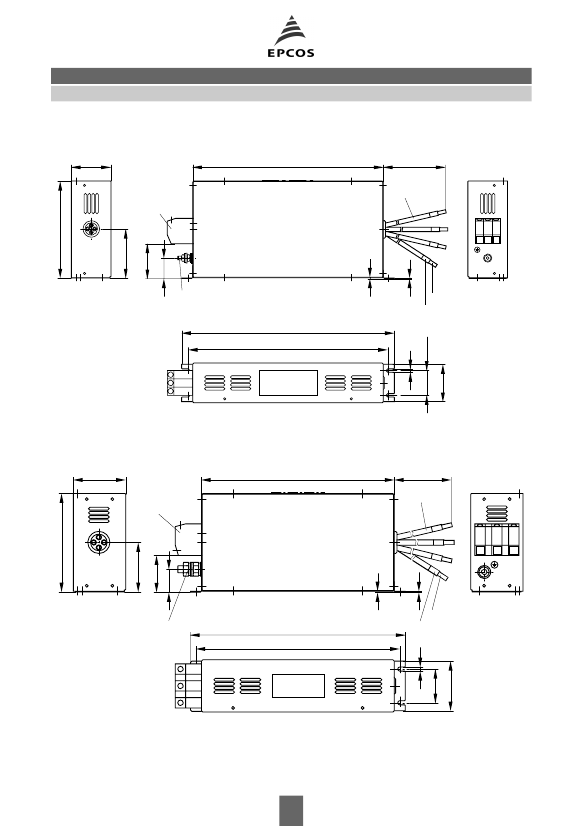

Dimensional drawings
B84143-B8-R110, B84143-B16-R110
50
200
300±10
Litz wire
Litze
B84143-B*-R110
B84143-B*-R112
Terminal
Anschluss-
blocks
4 mm
klemmen
4 mm
2
31
15
L3’
L2’
L1’
PE
Wire end ferrule
Aderendhülse
Litz wire markings
Litzenbezeichnung
80
40
0,5
PE
M6 x 25
230
215±0,5
6,5
L1
L2
L3
1
Marking
LINE LOAD
25±0,3
46
SSB1291-1
B84143-B25-R11*, B84143-B36-R11*
60
250
400±10
Terminal
Anschluss-
blocks 6
6 mm
2
klemmen
mm
2
Litz wire
Litze
L3’
L2’
L1’
150
75
60
30
0,5
PE
1
Wire end ferrule
Aderendhülse
Litz wire markings
Litzenbezeichnung
PE
M6 x 25
280
265±0,5
L1
L2
L3
6,5
Marking
LINE LOAD
35±0,3
56
SSB1292-9
249
03/01
