746W-15/08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 746W-15/08

746W-15/08: DescriptionAC power entry modules snap-IN mnt .250 QD; CategoryThe connector The connector; File Size335KB，1 Pages; ManufacturerQualtek Electronics Corporation; Websitehttp://www.qualtekusa.com/; Environmental Compliance

Download Datasheet Parametric View All

746W-15/08 Overview

AC power entry modules snap-IN mnt .250 QD

746W-15/08 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

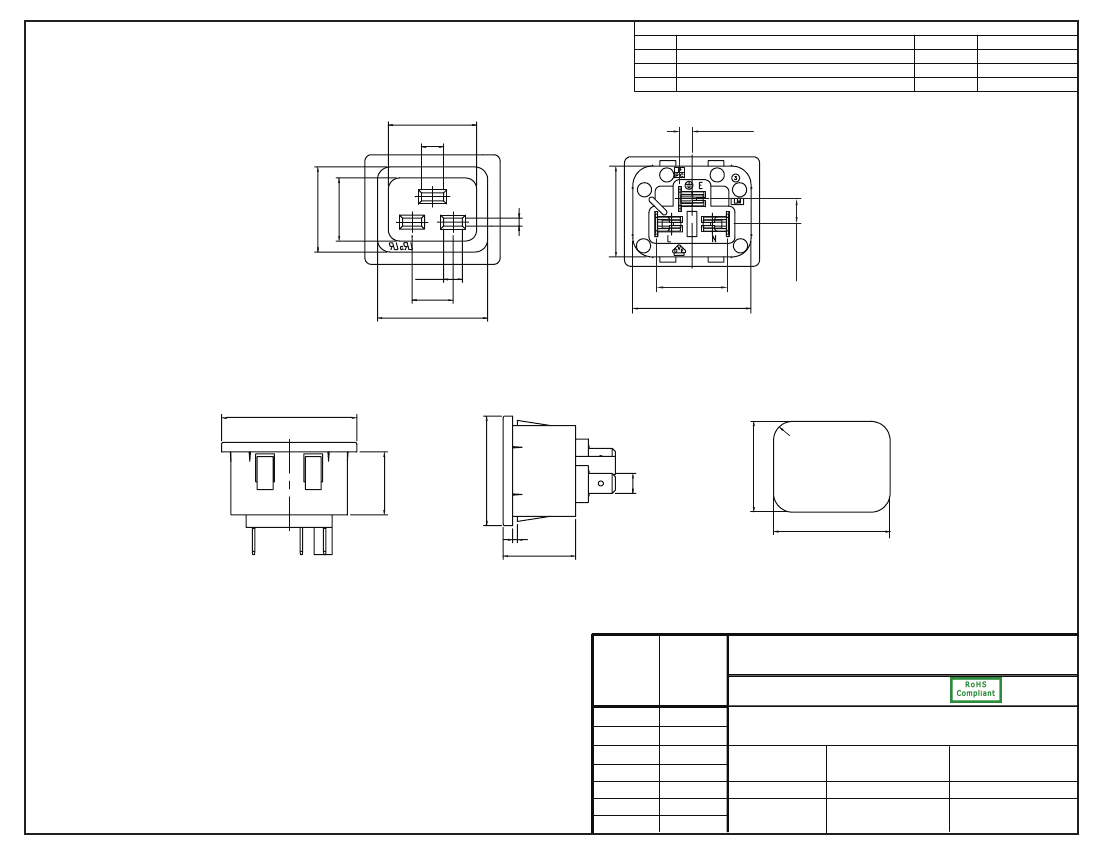

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK

ELECTRONICS AND NOT TO BE REPRODUCED FOR

OR COMMUNICATED TO A THIRD PARTY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN OFFICER

OF QUALTEK ELECTRONICS.

REVISION

REV.

DESCRIPTION

RoHS Compliancy

Dimensional Changes

Added Dimensions

DATE

06-01-06

07-25-07

03-11-13

APPROVED

28 ±

0.5

7±

4.75 ± 0.5

746W

0.5

2.5 ±

0.5

(3X)

27 ±

20.8 ±

20A125V/250VAC

16A250V~

6 ±

0.5

13 ± 0.2

35 ±

0.5

23.5

37.3

42.9

0.25

1.5 ±

0.3

6.3

1.5

29.5 ±

8.0 ± 0.5

38 ±

0.25

PANEL CUTOUT

NOTES:

RATING:

UL, cUL: 20A 125V/250V AC

VDE: 16A 250V AC

APPROVALS: UL, cUL, VDE

PANEL THICKNESS: 1.5mm

IEC 60320 C19

RoHS COMPLIANT

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.50

1.20

1.50

1.70

CONTROLLED

Qualtek Electronics Corp.

Part Number:

Description:

PPC DIVISION

746W-15/08

AC RECEPTACLE

UNIT: mm

REV. D

Approved / Date

JJH / 04-02-05

Drawn / Date

B.ZHANG

04-02-05

Checked / Date

04-02-05
