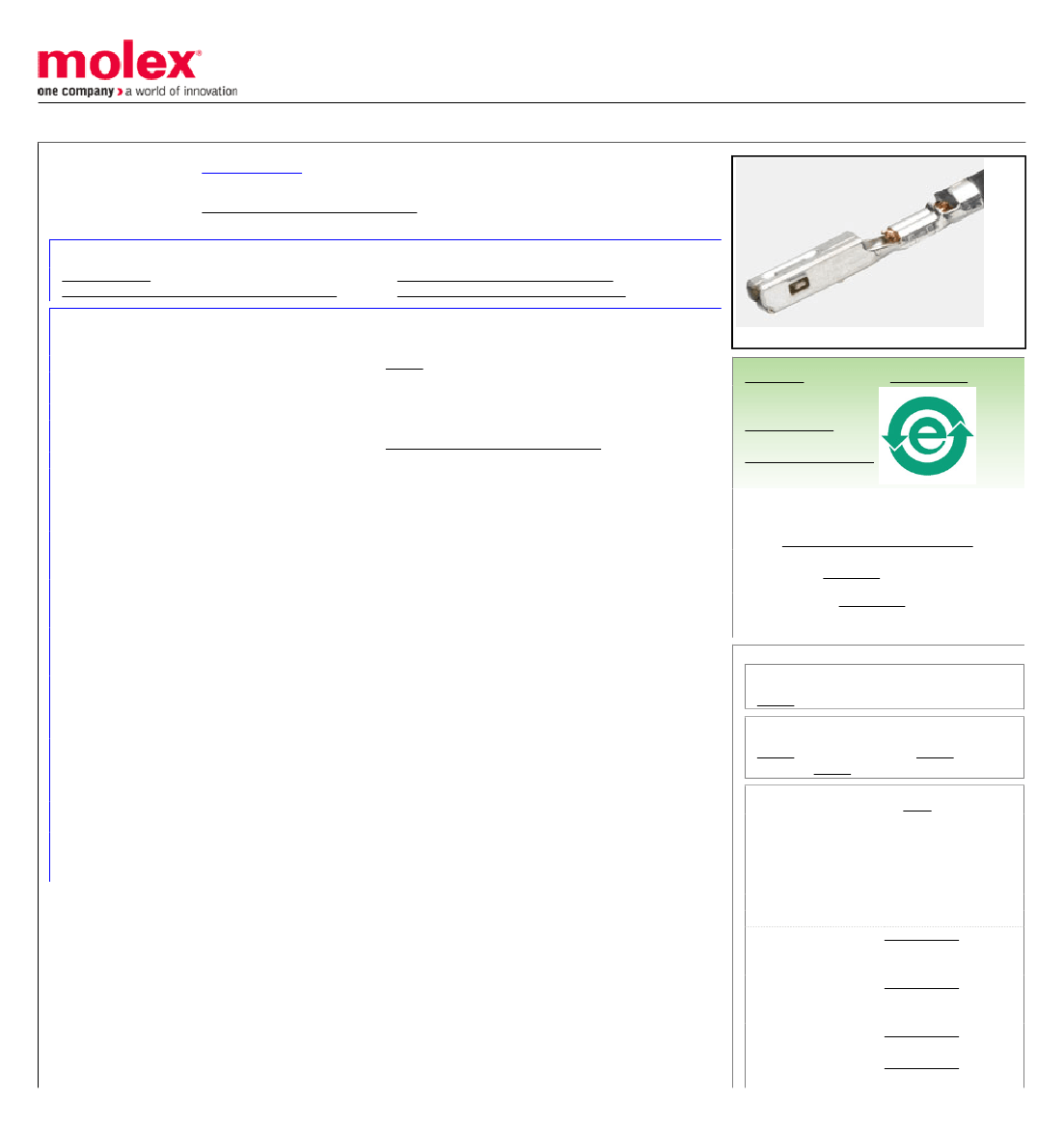

This document was generated on 06/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
33001-3004
Active
MX150™ Sealed Connector System
MX150™ Female Terminal Sealed, Gold Plating, 16, 18 and 20 AWG, Left Reel Payoff,
Documents:
Drawing (PDF)
Application Specification AS-33012-002 (PDF)
Test Summary TS-33001-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Terminals
33001
Power
Left Reel Payoff, Small Polarization Rib
Yes
Yes
MX150™ Sealed Connector System
MX150™
822350084178
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Comments
Crimp Quality Equipment
MolexKits
Overview
Product Name
UPC
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
High Performance Alloy (HPA)
Gold
Unplated
0.435/g
Reel
0.762µm
2.540µm
Crimp or Compression
2.60mm max.
18, 20
0.75 - 1.00
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
33001Series
Use With
33472 Dual Row Housing. 33476 Hybrid
Housing. 33471 Single Row Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
FineAdjust™
0639000800
Applicator for MX150
Receptacle
FineAdjust™
0639000900
Applicator for MX150
Receptacle
Hand Crimp Tool,
0638116000
18-22AWG
Hand Crimp Tool,
0638116100
Metric 1.00 and 1.50
Electrical
Current - Maximum per Contact
Voltage - Maximum
22A
250V
Material Info
Reference - Drawing Numbers
Application Specification
Sales Drawing
Test Summary
AS-33012-002
SD-33012-002
TS-33001-002
