Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C22F

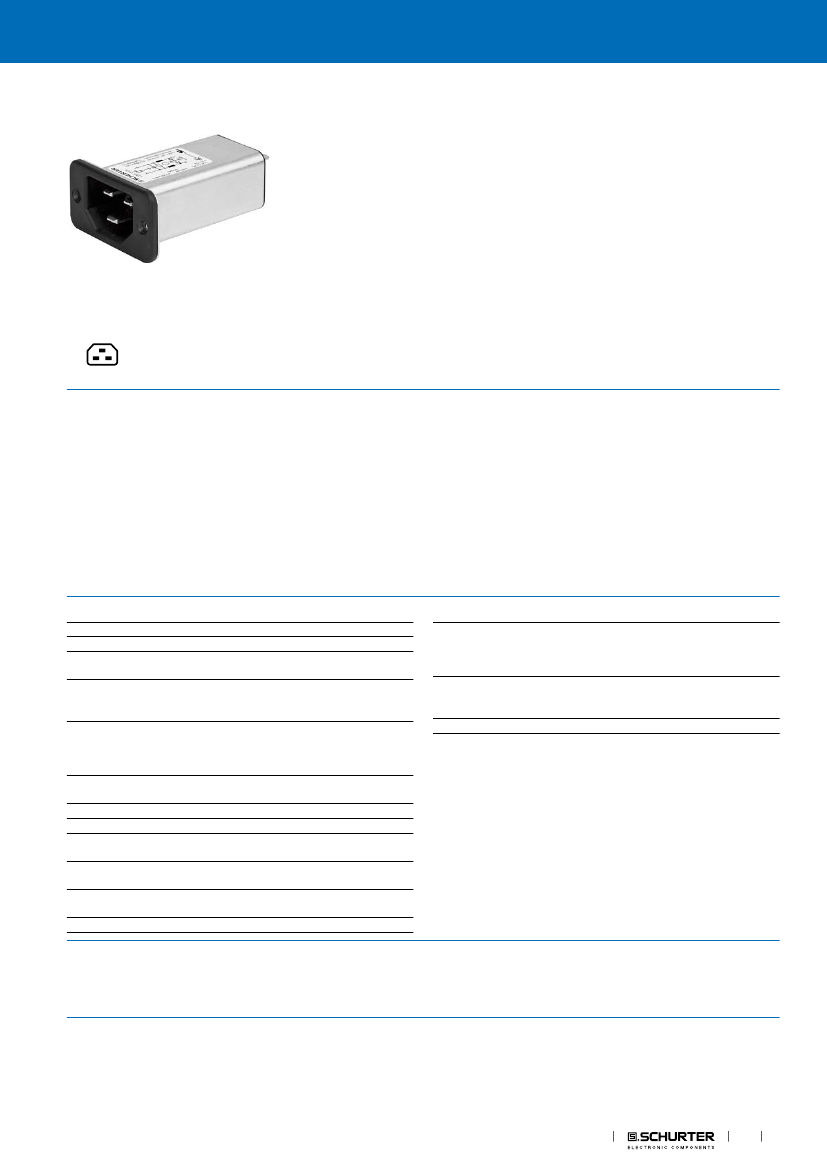

IEC Appliance Inlet C22 for hot Conditions, with Filter for high Temperatures, front side Mounting
C22
See below:
155° C
Approvals and Compliances
Description
Characteristics
- Panel mount :
Screw-on from front side
- 2 Functions :
Appliance Inlet Protection class I , Line filter in standard and medical
version
- Solder, quick connect or wires (stranded)
- Compact design with optimal shielding
Suitable for high ambient temperatures up to 75°C
- Version with class X1 and X2 (standard version) capacitors
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Unique Selling Proposition
-
-
-
-
Other versions on request
References
Weblinks
For higher temperatures
Attractive flat front design
Highly resistant since fully potted
Various filter variants
- flexible wire with various lenghts
Alternative: version without line filter
1681
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
16 A @ Ta 75 °C / 250 VAC; 50 Hz
20 A @ Ta 65 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N (Cy2)
> 2.7 kVDC between L/N-PE (Cy2)
Test voltage (2 sec)
> 2.5 kV between L-N (CX2)
> 4 kV between L-N (CX1)
> 5 kV between L/N-PE (Cy2)
voltage (1.2/50
μs)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder, quick connect or wires (stran-
ded)
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C22 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for hot con-
ditions) pin-temperature 155 °C, 16 A,
Protection Class I
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 1'400'000 h acc. to MIL-HB-217 F
Line Filter
Impulse Withstand Voltage
MTBF
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
C22F
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: C22F
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 104884
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C22F

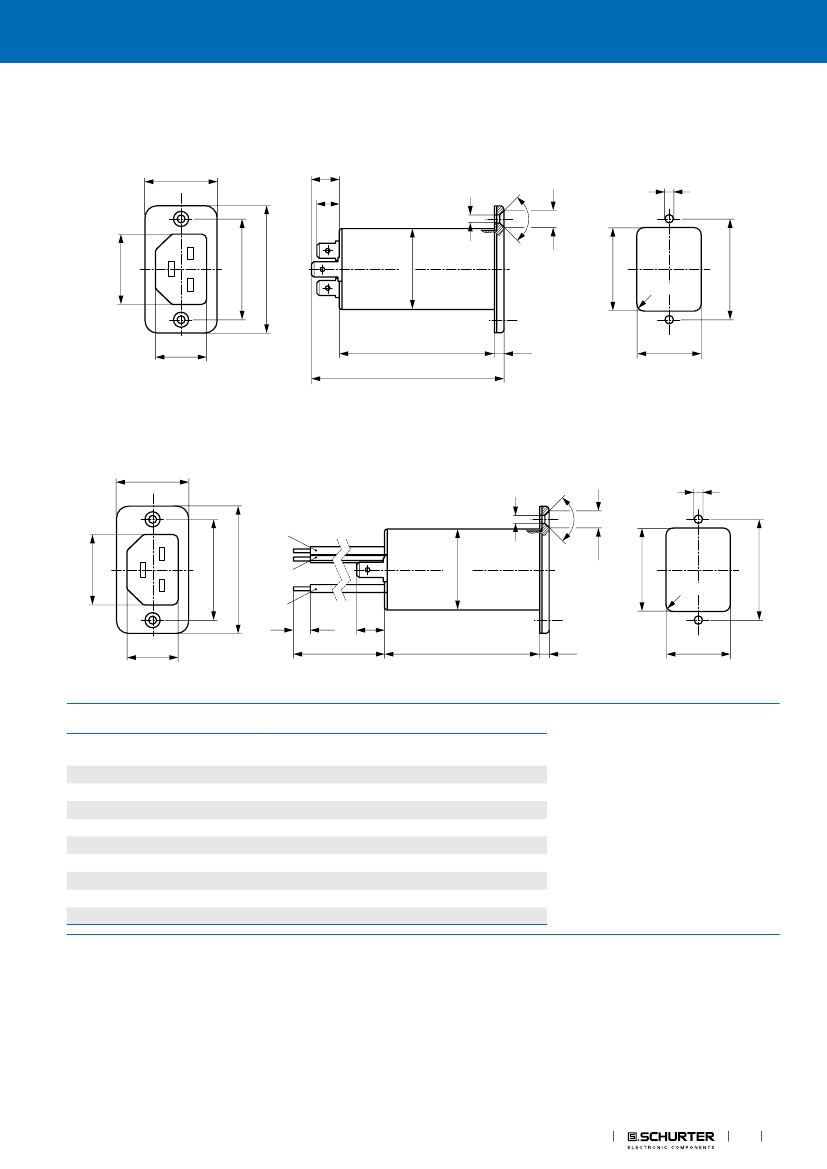

Dimensions [mm]
Screw-on mounting with quick connect terminals
11.6
ø 3.3
9.4
30
3.5/M3
90°
6.3
33.9 x 25.9
29.2
±0.20
34.8
+0.20
0
max. R3
21.2
±0.20
64.65
80.1
3.85
26.8
+0.20
0
Screw-on mounting with wire leads
30
ø 3.3
3.5/M3
90°
+0.20
x
0
ø 6.3
N
29.2
±0.20
25.9
+0.20
0
42
53
PE
L
B
21.2
±0.20
A
11.6
64.65
3.85
34.8
+0.20
0
42
±0.15
max. R3
26.8
+0.20
0
42
53
Technical Data of Filter-Components
Rated Current
[A]
16
16
20
20
16
20
20
16
20
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
Medical Version (M80)
Inductances L [mH]
2 x 0.6
2 x 0.6
2 x 0.3
2 x 0.3
2 x 0.6
2 x 0.3
2 x 0.3
2 x 0.6
2 x 0.3
Capacitance
CX [nF]
100
330
100
330
100
100
330
100
100
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
-
-
-
0.47
0.47
R [MΩ]
1
1
1
1
1
1
1
1
1
33.9
EMC Products
3
42
±0.15
C22F

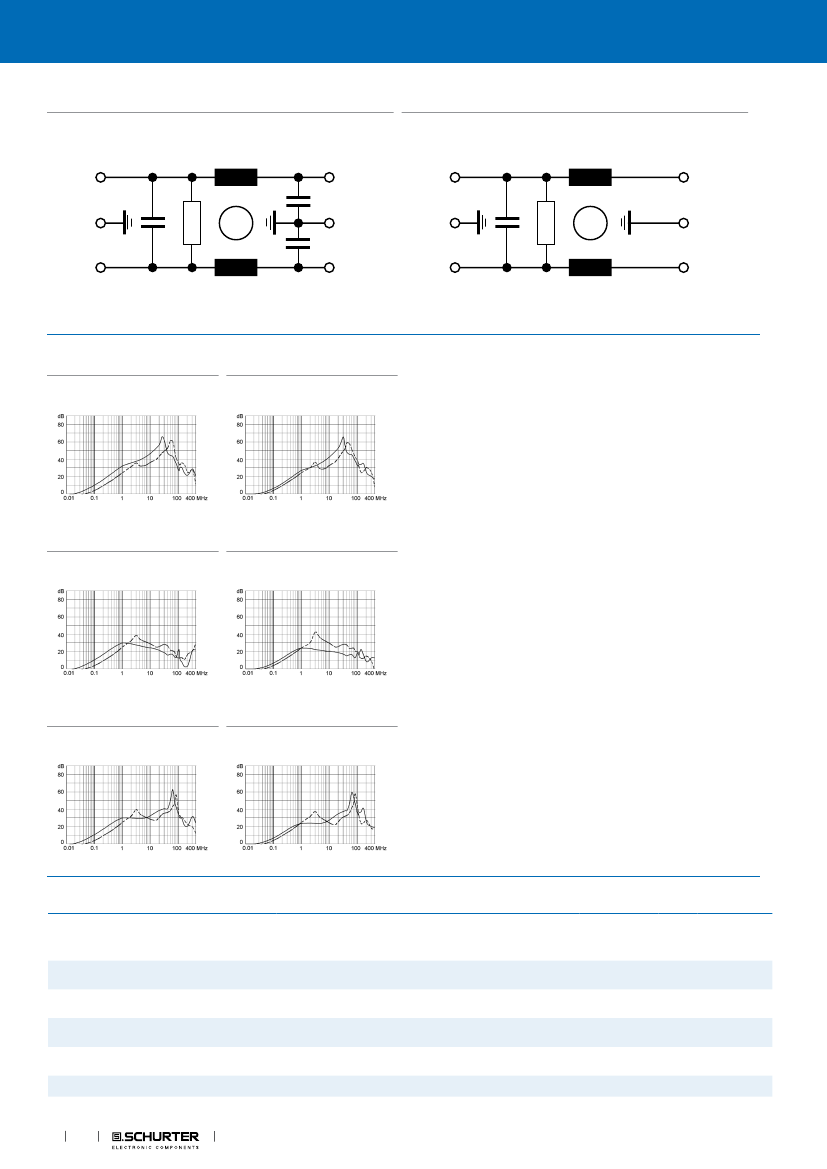

Diagrams
Standard or medical version (M80)
Medical version (M5)
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
L
L1
L’
R
L2
Cy
Cy
L
L1
L’
R
L2
1)
PE
Cx
PE’
2)
N’
1)
PE
Cx
PE’
2)
N’
N
1) Line
2) Load
N
1) Line
2) Load
Attenuation Loss
Standard version
- - - - 50Ω differential mode _____ 50Ω common mode
16 A
20 A
Medical version (M5)
16 A
20 A
Medical version (M80)
16 A
20 A
All Variants
Rated Current
IEC
Rated Current Filter-Type
UL
Panel mounting
Mounting side
Terminal
Capacitor
V-Lock
Order Number
16
16
16
16
16
16
20
16
20
20
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Screw
Screw
Screw
Screw
Screw
Front Side
Front Side
Front Side
Front Side
Front Side
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminal
X2 330nF
X2 100nF
X2 100nF
X1 100nF
X2 330nF
C22F.1107
C22F.0101
C22F.1101
C22F.0103
C22F.0007
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
C22F
Mounting side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Front Side
Terminal
Solder terminal
Solder terminal
Solder terminal
Quick connect terminals 6.3 x 0.8
mm
Quick connect terminals 6.3 x 0.8
mm
Solder terminal
Solder terminal
Solder terminal
Solder terminal
Capacitor
X2 100nF
X2 100nF
X1 100nF
X2 100nF
X2 100nF
X2 330nF
X2 100nF
X2 100nF
X2 100nF
V-Lock
Order Number
C22F.0001
C22F.1001
C22F.0003
C22F.0102
C22F.1102
C22F.0008
C22F.0002
C22F.1002
C22F.1005
Rated Current
IEC
16
16
16
16
16
16
16
16
16
Rated Current Filter-Type
UL
20
16
20
20
16
20
20
16
16
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
Panel mounting
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

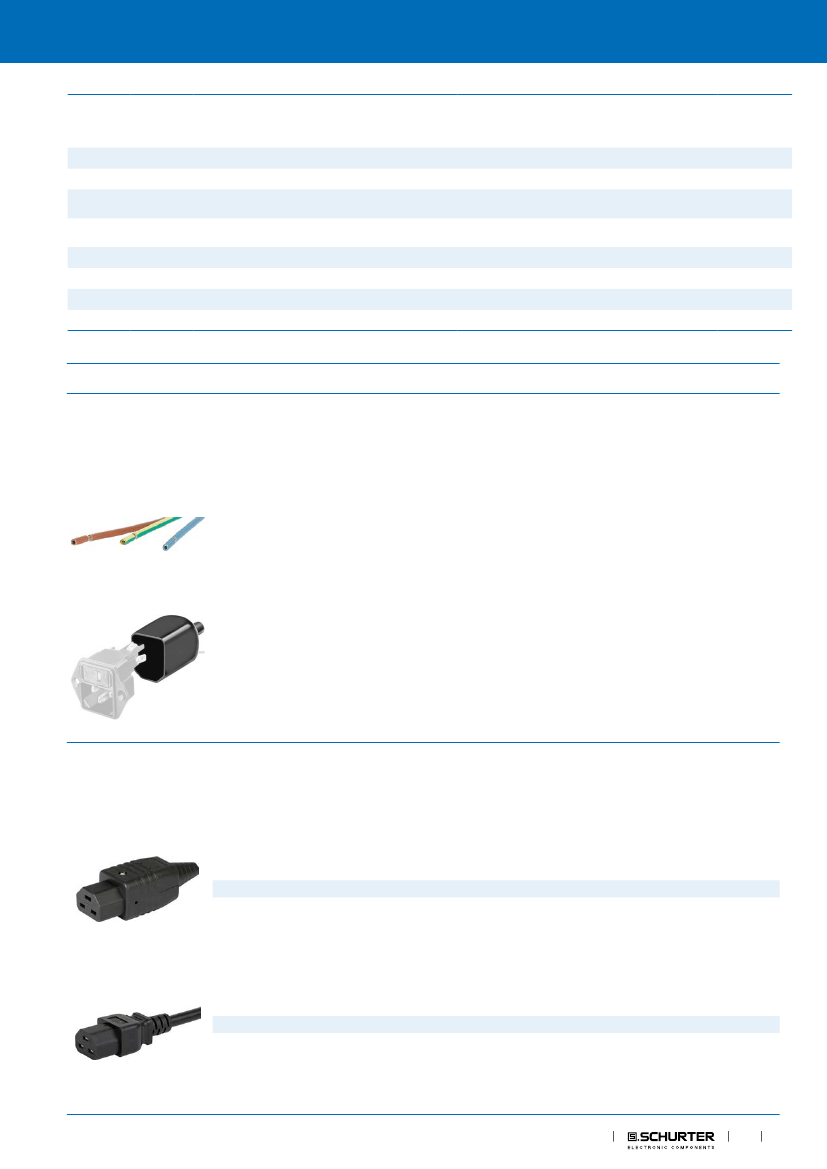

Packaging unit
Accessories
20 Pcs
Description
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Connector Overview complete
1658, Mounting: Power Cord, Cable Connector: IEC C21
Connector further types to C22F
1658.0000
Power Supply Cord Overview complete
Cord Sets 16 A, Europlug, 2.5 m, Connector IEC C21, H05VV-F3G1.5, black
Cord Sets 16 A, North America, 2.5 m, Connector IEC C21, SJT 3x14 AWG, black
Power Supply Cord further types to C22F
6051.5001
6051.5002
05.06.2018
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
