High Power uses rugged and environmentally sealed (IP68) shells to protect APP
®
Powerpole
®
contacts and housings. Customer
configured SPEC Pak
™
High Power Connectors are capable of up to
260
amps and may be used anywhere a rugged and/or waterproof high
power, signal and ground interconnect solution is required.
The SPEC Pak
™
High Power shell accepts 75 to 180 amp Powerpole
®
contacts and up to 8 auxiliary contacts. The wide range of Powerpole
®
housing colors and contact sizes, coupled with the available Powerpole
®
insert holders, offers the user a wide array of design options. Wire sizes
which can accommodate a range from 24 to 3/0 AWG (0.25 to 85.0 mm²). SPEC Pak™ High Power is highly configurable with thousands of design
options in a single interconnect.

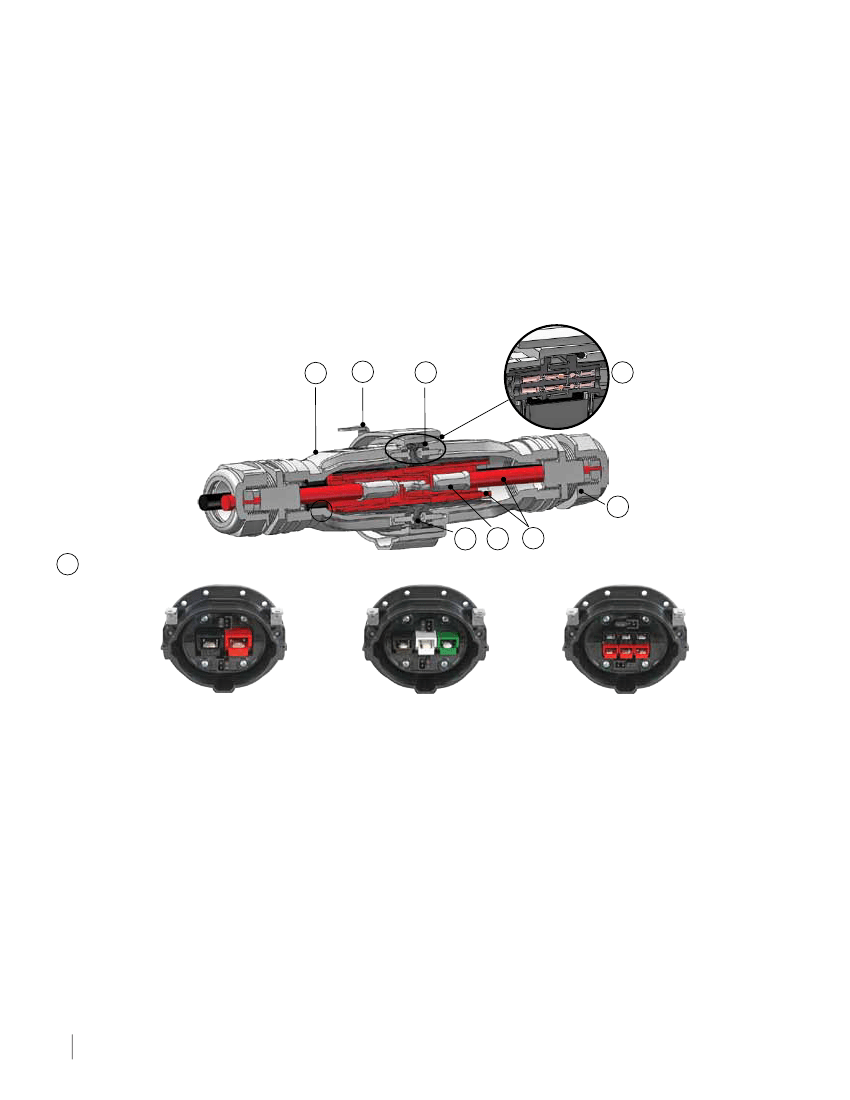

1
2
3
4
5
8
5
5 Powerpole
®
Insert Arrangement
6
7
H02
H03
H06
6 - Power Contacts
(up to 260 amps with 3/0 AWG)
7- Color Coded Powerpole
®
Housings Match Wire Colors
8 - Industry Standard Sealing (IP68) Components
• PG Gland Compatible - Size 36 and 42
• Multi-hole Glands For Use With Discrete Wires
• Single Hole Glands For Use With Jacketed Cable
1 - Chemical & UV Resistant Ruggedized Shells
• Wire to wire configurations
• Wire to Panel configurations
2 - Stainless Steel Latches
(securing plug to receptacle)
3 - IP68 Interfacial Sealing O-Ring
4 - Auxiliary Contacts
(up to 8)
5 - Powerpole® Insert Holders
(user configurable)
• H02 Arrangement - up to two PP180 & 8 auxiliaries
• H03 Arrangement - up to three PP120 & 8 auxiliaries
• H06 Arrangement - up to six PP75 & 8 auxiliaries
-2-
www.andersonpower.com

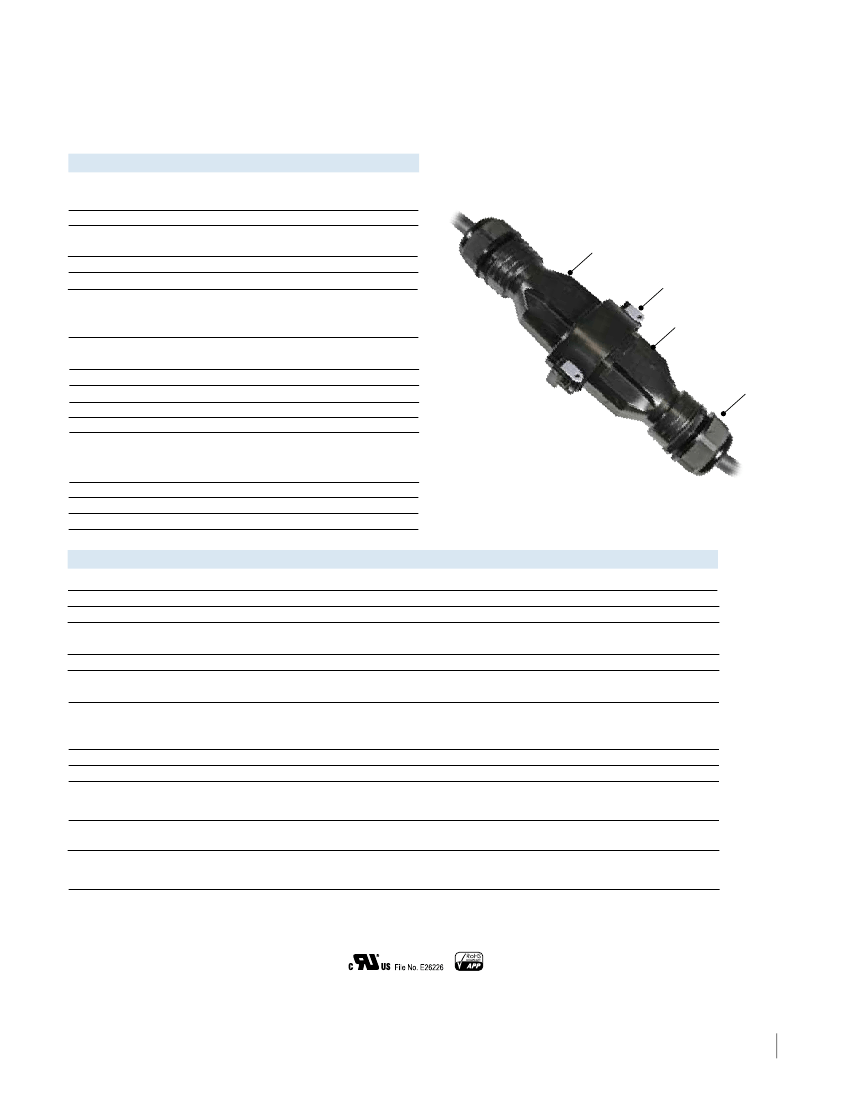

Specifications
High Power SPEC Pak
™
Shell / Components
Electrical
UL Voltage Rating (AC/DC)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C )
(°F )
Flammability Rating of SPEC Pak
™
Shells
UV Rating (equivalent)
Mechanical
600
3000
-40 to 105 *
-40 to 221
UL94 V-0
UL746C F1
Inline Receptacle
Latch
Plug
Shell/Latch Mating Cycles
Average Connect/Disconnect (lbf)
(N)
IP Rating
UL50 Sec. 36 Sealing Requirement
Crush Test per EIA-364-40B
Drop Test per UL50E
Material
1,500 Min.
28
125
IP68
Pass
Pass
Pass
PG Gland
SPEC Pak
™
- Receptacle, Plug & Holders
Latch
Latch Retainer
Holder Mount Hardware
PBT
Stainless Steel
Stainless Steel
Nickel Plated Steel
Mated Pair
High Power Plug To
Inline Receptacle
Powerpole
®
Contacts
UL Current Rating (Amperes) **
CSA (30C Rise) (Amperes) **
Voltage Rating (AC/DC)
Contact Barrel Wire Size (AWG)
(mm²)
Average Contact Resistance (milliohm)
Contact Retention Force (lbf)
(N)
Operating Temperature (°C)
(°F)
Flammability Rating
Contact Materials
Contact Plating
Mechanical
PP180
260
140
600
3/0 to 6
85 to 13.3
0.10
170
756
-20 to 105 *
-4 to 221
UL94 V-0
Copper
Silver
10,000
20
PP120
190
100
600
1/0 to 6
53.5 to 13.3
0.14
100
445
-20 to 105 *
-4 to 221
UL94 V-0
Copper
Silver
10,000
8
PP75
70
40
600
6 to 12
13.3 to 3.3
0.20
50
222
-20 to 105 *
-4 to 221
UL94 V-0
Copper
Silver
10,000
5 (Low Detent)
7 (High Detent)
Polycarbonate
PowerMod
®
5
5
600
12 to 24
4.0
3.00
8
36
-20 to 105 *
-4 to 221
UL94 V-0
Copper Alloy
Gold over Nickel
10,000
10 oz. (3N) Average
Mating Cycles - no load
Average Connect/Disconnect (lbf)
Material
Powerpole
®
Housing Material
Polycarbonate
Polycarbonate
PBT
NOTE:
-40° to 120° C (-40° to 248° F) can be achieved by using APP Chemical Resistant Powerpole
®
housing. Contact factory for more information.
Based on Panel Mount Receptacle to Plug configuration.
*
**
1. Agency approvals - TUV Pending / Patents &
Patents
Pending
www.andersonpower.com
-3-

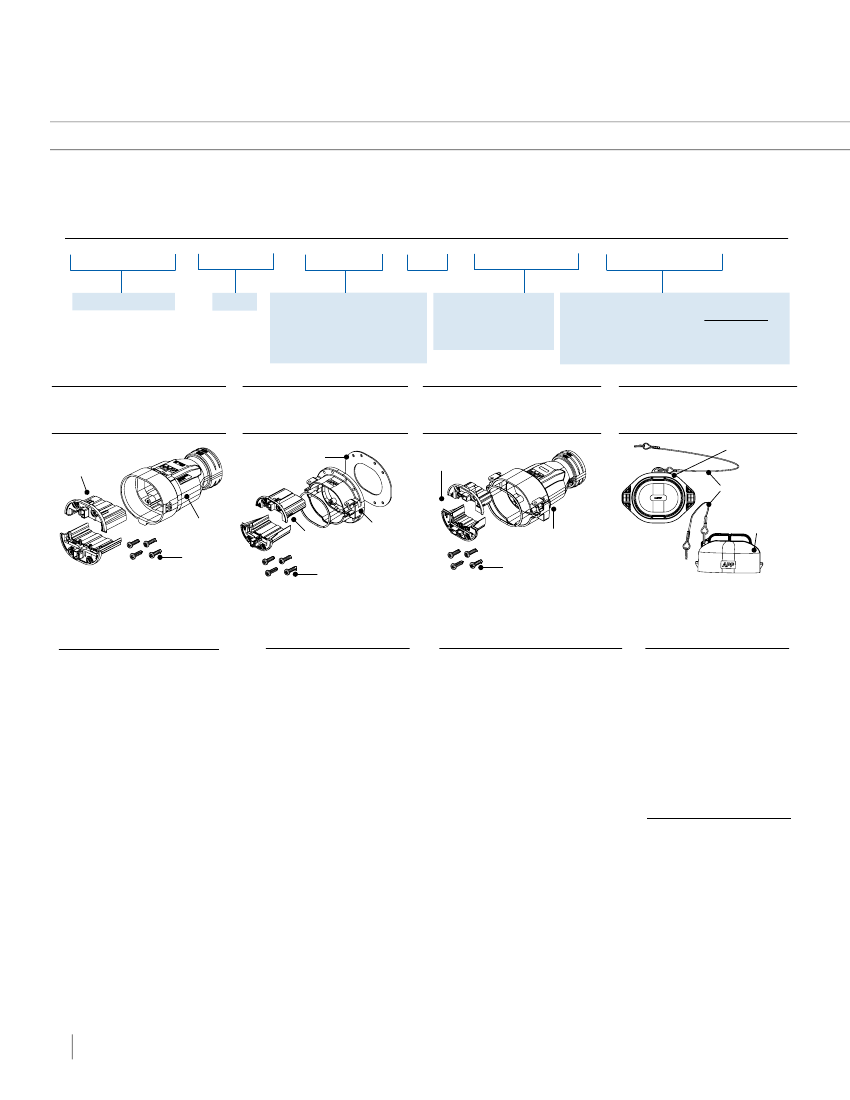

Part Number Configurator
PART NUMBER PLAN
SPEC Pak
™
Series
(1 Fixed Character)
Shell Color
(1 Character)
Shell Style
(1 Character)
Dash
Shell Size
(mm) (3 Characters)
Insert Arrangement
(3 Characters)
S
S = SPEC Pak
™
Series
K
K = Black
2
-
095
095 = 095mm Panel Mount
Receptacle Shell
A95 = 095mm Shell, PG 36
B95 = 095mm Shell, PG 42
H02
Detailed Information
Is Available On:
H02 = PP180, 2 Pole .................... Page 7
H03 = PP120 Housing, 3 Pole ...... Page 8
H06 = PP75, 6 Pole ...................... Page 9
1 = Inline Receptacle
2 = Panel Mount Receptacle
6 = Straight Plug
9 = Environmental Receptacle Cover
9P = Environmental Plug Cover
PLUG
KIT
Powerpole
®
Holder Set
PANEL MOUNT
RECEPTACLE KIT
Panel Mount
Receptacle
Gasket
INLINE
RECEPTACLE KIT
Powerpole
®
Holder Set
COVER
KIT
IP68 Sealing
Plug Cover
Lanyard
Plug Shell
Holder
Retaining
Screws
Powerpole
®
Holder Set
Panel Mount
Receptacle
Shell With Latches
Inline Receptacle
Shell With Latches
Holder Retaining Screws
IP68 Sealing
Receptacle Cover
Holder Retaining Screws
Ordering Information
Part
Number & Description
SK6-A95H02
Ordering Information
Part
Number & Description
SK2-095H02
Ordering Information
Part
Number & Description
SK1-A95H02
Ordering Information
Part
Number & Description
SK9-095
- Plug Kit, PG 36 compatible shell with
2 pole PP180 holder
- Plug Kit, PG 36 compatible shell with
3 pole PP120 holder
- Plug Kit, PG 36 compatible shell with
6 pole PP75 holder
- Plug Kit, PG 42 compatible shell with
2 pole PP180 holder
- Plug Kit, PG 42 compatible shell with
3 pole PP120 holder
- Plug Kit, PG 42 compatible shell with
6 pole PP75 holder
- Panel Mount Receptacle Kit with
2 pole PP180 holder
- Panel Mount Receptacle Kit with
3 pole PP120 holder
- Panel Mount Receptacle Kit with
6 pole PP75 holder
- Inline Receptacle Kit, PG 36
compatible shell with, 2 pole PP180 holder
- Inline Receptacle Kit, PG 36
compatible shell with, 3 pole PP120 holder
- Inline Receptacle Kit, PG 36
compatible shell with, 6 pole PP75 holder
- Inline Receptacle Kit, PG 42
compatible shell with, 2 pole PP180 holder
- Inline Receptacle Kit, PG 42
compatible shell with, 3 pole PP120 holder
- Inline Receptacle Kit, PG 42
compatible shell with, 6 pole PP75 holder
- Receptacle Cover Kit with lanyard
- Plug Cover Kit with lanyard
SK6-A95H03
SK2-095H03
SK1-A95H03
SK9P-095
SK6-A95H06
SK2-095H06
SK1-A95H06
Component
Replacement Parts
Part
Number & Description
H1120P41
SK1-B95H02
SK6-B95H02
- #8 x 5/8 screw - Bulk Packaged
SK1-B95H03
SK6-B95H03
SK1-B95H06
SK6-B95H06
NOTE:
- Panel Mount Receptacle mounting hardware (8 each #10 or M5 screw) not included
- Recommended torque for mounting hardware is 15 to 20 in-lbf (1.7 to 2.2 N-m)
-4-
www.andersonpower.com
PART NUMBER PLAN
Wire Protection
See page 6
(4 Characters)
Housing
Arrangement
Dash
Contact
Dash
For more information see pages 7 thru 9
(1 Character)
(2 Characters)
APP Content
(3 Characters)
PS
00 = None
PS = Plastic Short
PM = Plastic Multi-hole
00
00 = None
00 - 99 = Various Gland Type
0 = Custom Configuration
A = AC Single Phase
B = AC 3 Phase, 3 Wire
E = AC 3 Phase, 4 wire
F = AC 3 phase, 5 wire
G = DC 2 Circuit, 6 wire
R = DC 1 Circuit, 2 Wire
Z = All Black
-
0
Contact
Code
00
11
12
13
14
15
16
20
21
22
23
24
25
26
27
28
29
80
81
82
83
84
85
86
87
88
89
90
91
92
93
00
-
A01
Custom
Configuration
Available in Insert
Arrangement
H06
H06
H06
H06
H06
H06
H03
H03
H03
H03
H03
H03
H03
H03
H03
H03
H02
H02
H02
H02
H02
H02
H02
H02
H02
H02
H02
H02
H02
H02
Insert Arrangement
-
H03
H06
H06
H06
H06
H02, H03
H02, H03
Wire Size
Contact
AWG
(mm²)
Custom Configuration - Use Next Section
5900
#6
13.3
5952
#8
8.4
5915
#10 to 12 5.3 to 3.3
5900 with Auxiliary #6
13.3
5952 with Auxiliary #8
8.4
5915 with Auxiliary #10 to 12 5.3 to 3.3
1323G2
1/0
1323G1
#1
1319
#2
1319G4
#4
1319G6
#6
1323G2 with Auxiliary 1/0
1323G1 with Auxiliary #1
1319 with Auxiliary #2
1319G4 with Auxiliary #4
1319G6 with Auxiliary #6
1328G2
3/0
1328G1
2/0
1382
1/0
1347
#1
1383
#2
1384
#4
1348
#6
1328G2 with Auxiliary 3/0
1328G1 with Auxiliary 2/0
1382 with Auxiliary 1/0
1347 with Auxiliary #1
1383 with Auxiliary #2
1384 with Auxiliary #4
1348 with Auxiliary #6
53.5
42.4
33.6
21.2
13.3
53.5
42.4
33.6
21.2
13.3
85.0
67.4
53.5
42.4
33.6
21.2
13.3
85.0
67.4
53.5
42.4
33.6
21.2
13.3
Part Numbering Notes:
1) To order SPEC Pak
™
Shell Kits only (no internal Powerpole
®
housings or contacts), use part numbering on page 4 only.
Plug Shell Kit
Example: SK6-A95H02 or SK6-B95H02.
Powerpole
®
housings, contacts and wire protection may be ordered separately, see pages 6 thru 9 for
information.
2) To order customer configured SPEC Pak
™
connectors (including internal Powerpole
®
housings and contacts) use Part Number Plan across
the top of pages 4 and 5.
Customer Configured SPEC Pak
™
Plug Connector Example: SK6-A95H03PS04-A22.
3) To order a custom configuration which is not listed on page 7 thru 9, use APP custom part number configurator on the APP
®
website,
www.andersonpower.com or contact factory.
NOTE: 1. Custom configurations may not be UL Recognized.
2. Contact code designation #14 to 16, #25 to 29 and #87 to 93 use 4 each of part number PM1612S30 (Pins) & 4 each of part number PM16S12S32 (Sockets) as signal.
I have been paying attention to touch screen related technologies recently, but I have little experience in this field. I just remember that Cypress has been promoting capacitive touch screens. Have y...
[color=rgb(62, 62, 62)]When using MOS tubes to design switching power supplies or motor drive circuits, most people will consider the on-resistance, maximum voltage, maximum current, etc. of MOS, and ...
[font=宋体]《[/font][font=Times New Roman]ERP[/font][font=宋体]Enterprise Resource Planning》[/font][font=Times New Roman] [/font][url=http://www.ziddu.com/download/3426813/erpqyzyjh.rar.html][font=宋体][colo...
[i=s] This post was last edited by Xinhangxian Paotang on 2017-4-18 14:08 [/i] [align=center][color=#000][size=15px][b][size=5]Altera SOPC FrameBuffer System Design Tutorial [/size][/b][/size][/color]...
I use the Keil uVision3 software, and I found that the word corresponding to the cursor is offset. I wonder if anyone has this problem? How to solve it?...
[color=#000][backcolor=rgb(255, 255, 255)][font=微软雅黑][size=14px][转]Foreword: The power supply is not a simple small box, it is equivalent to the heart of the active device, continuously providing ener...
The intelligent driving community has its own rhythm. Some are busy pushing new versions and focusing on R&D, others are busy with publicity and promotion, and still others are immersed in mass pro...[Details]
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
1. Equipment Overview
Shell-and-tube heat exchangers are a common heat exchange device used in chemical evaporation and heating equipment. Currently, the tubesheets of shell-and-tube heat exch...[Details]
New energy vehicles are increasingly popular with consumers due to policies and energy conservation. Once you've purchased your vehicle, maintenance is essential. However, due to the different powe...[Details]
Since its invention in the mid-1940s, the microwave oven has evolved from a humble beginning to commercial use, entering homes in the 1960s and rapidly gaining popularity. Its basic functionality a...[Details]
The digital TV set-top box consists of a tuner, QAM demodulator, TS demultiplexer, MPEG-2 decoder, PAUNTSC video encoder, embedded CPU system and peripheral interfaces, CA module, and uplink data m...[Details]
Electric vehicles are powered by electricity, and charging is a device that supplements the vehicle's energy source. It is common to need to recharge the vehicle when driving. But can you charge th...[Details]
On August 22, the Wall Street Journal reported on the 21st local time that the new US government does not plan to acquire equity in semiconductor wafer foundry giant TSMC and Micron, one of the thr...[Details]
With growing environmental awareness, the continuous improvement of three-electric technology and the increasing deployment of infrastructure such as charging stations, the electrification of new e...[Details]
Puttshack's Trackaball uses the Nordic nRF54L15 system-on-chip (SoC) to monitor sensors and enable Bluetooth low energy connectivity, while the nPM2100 power management integrated circuit (PMIC) ...[Details]
introduction
With the development and widespread use of integrated circuits in power electronics design, electronic products are trending towards smaller sizes, more components, and greater fu...[Details]
On August 20, it was reported that the specifications of Intel's upcoming Panther Lake mobile processor appeared on the Intel GFX CI website, which mainly focuses on Intel's open source Linux drive...[Details]
As the core of electric vehicles, batteries are concerned with vehicle use and maintenance. The operation of vehicles is guaranteed by the electricity generated by batteries. For batteries, battery...[Details]
Recently, UBTECH announced its patent for "robot self-battery replacement structure, device and method".
The Qichacha patent abstract shows that the robot's self-battery replacement stru...[Details]
Arm helps automakers bring new models to market at least a year earlier.
Zena CSS accelerates software and silicon development, enabling faster and more efficient delivery of AI cap...[Details]
MCU
京公网安备 11010802033920号
EEWORLD
