54200414-B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 54200414-B

Preview

54200414-B: Descriptionautomotive connectors 4W male housing LT gray 2.8mm trm SZ; CategoryThe connector; File Size81KB，1 Pages; ManufacturerDelphi Connection Systems; Environmental Compliance

Download Datasheet Parametric View All

54200414-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54200414-B	-	-	View	Buy Now

54200414-B Overview

automotive connectors 4W male housing LT gray 2.8mm trm SZ

54200414-B Parametric

Parameter Name	Attribute value
Manufacture	Delphi Connection Systems
Product Category	Automotive Connectors
RoHS	Yes
Produc	Connectors
Number of Positions	4
Gende	Male
Mounting Style	Wire
Wire Gauge Range	20-12
Applicati	Wire to Wire
Associated Terminals	h
Col	Light Gray
Description/Functi	4 Male, Connector, APEX 2.8 mm, Light Grey, Sealed
Drawing	h
Family	APEX
Housing Material	Polyamide (PA)
Index Type	B
Material	Ultramid A3EG7 Nylon 6/6 GF35
Mating Part Numbe	54200410
Mounting Method	Wire
Number of Rows	1
Operating Temperature Range	- 40 C to + 125 C
Pitch	5.25 mm
Three D Model	h
Type	Connec

Preview

Download Datasheet

View All

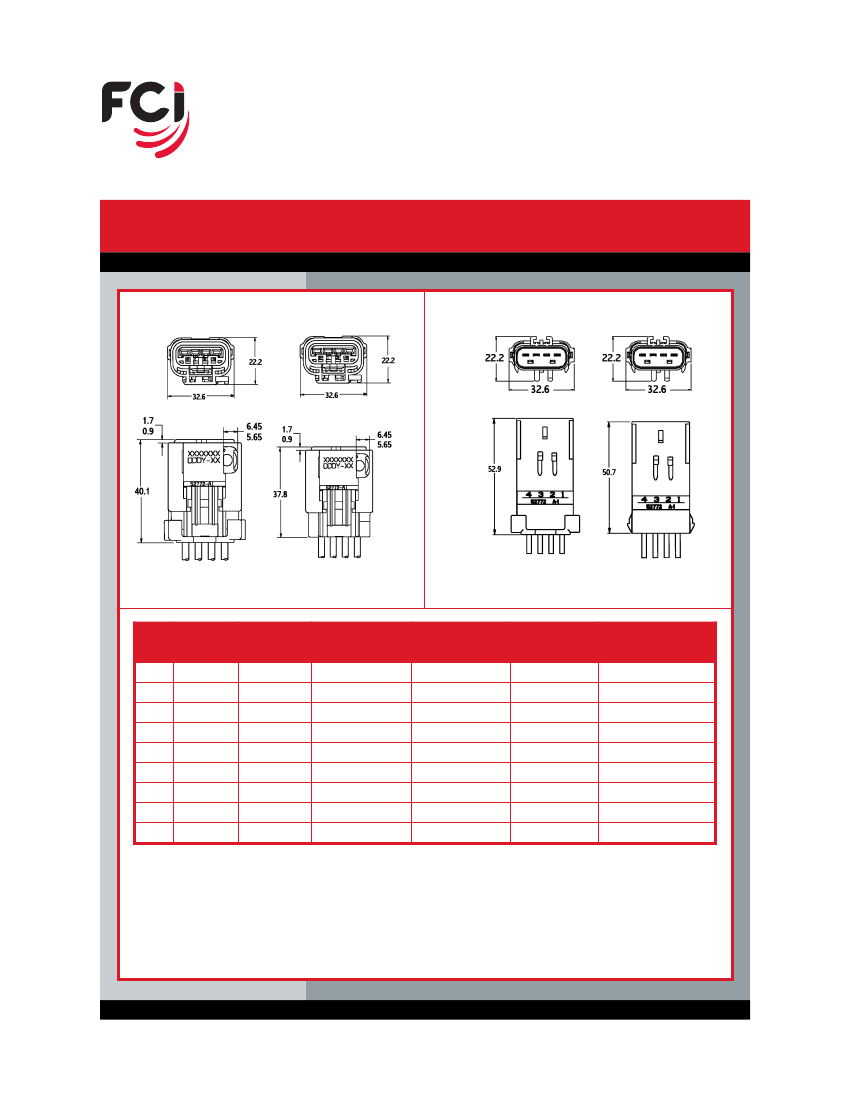

APEX 2.8

™

Connection Systems

FCI 4-Way APEX 2.8 mm Connection System

FEMALE

MALE

Sealed Assembly

Unsealed Assembly

Sealed Assembly

TEMPERATURE

RATING OF

MATERIAL

–40°C to +125°C

SEAL W/O HOLES

Unsealed Assembly

WIRE INSULATION

RANGE PER CAVITY

(mm)

1.70 – 2.77

1.50 – 4.09

1.70 – 2.77

1.50 – 4.09

1.70 – 2.77

1.50 – 4.09

USED AS CAP

INDEX

TYPE

A

B

C

D

B

A

HOUSING

COLOR

BLK

LT GREY

DK GREY

NATURAL

LT GREY

BLACK

SEALED/

UNSEALED

SEALED

UNSEALED

SEALED

UNSEALED

SEALED

UNSEALED

SEALED

FEMALE ASSEMBLY

PART NUMBER

54200409

54200400

54200410

54200411

54200403

54200412

54200404

54000450*

—

MALE ASSEMBLY

PART NUMBER

54200413

54200405

54200414

54200415

54200407

54200416

54200408

—

54200427*

* Plug for same index (A) mating part.

Note: Female part numbers with the N suffix are without CPA latch.

3.35mm wire diameter sealing is available in select configurations. Consult sales drawing.

Additional configurations available. Please consult sales drawing.
