2. It is particular effective with unstable grounding.
3. High frequency EMI prevention of computers ,
printers , VCRs , TVs and portable telephone.
4. The FBM□-A□□ series can be used in high
current circuits due to its low DC resistance.
It can match power line to a maximum of 10A DC.
ORDERING CODE
(1) PRODUCT TYPE CODE
FBM : Ferrite Bead Multilayer
口:
RoHS Code
(2) DESIGN CODE
Type : 11,10,09,15,HA,L11,L10
(3) SIZE CODE
See Following Table
(4) IMPEDANCE VALUE CODE
Example : 121=120Ω , 280=28Ω
(5) A口口 MEANS HIGH CURRENT RATING
Example：A10 means 1000mA
A08 means 800mA
(6) R : SPECIAL DCR CODE
(7) TAPING

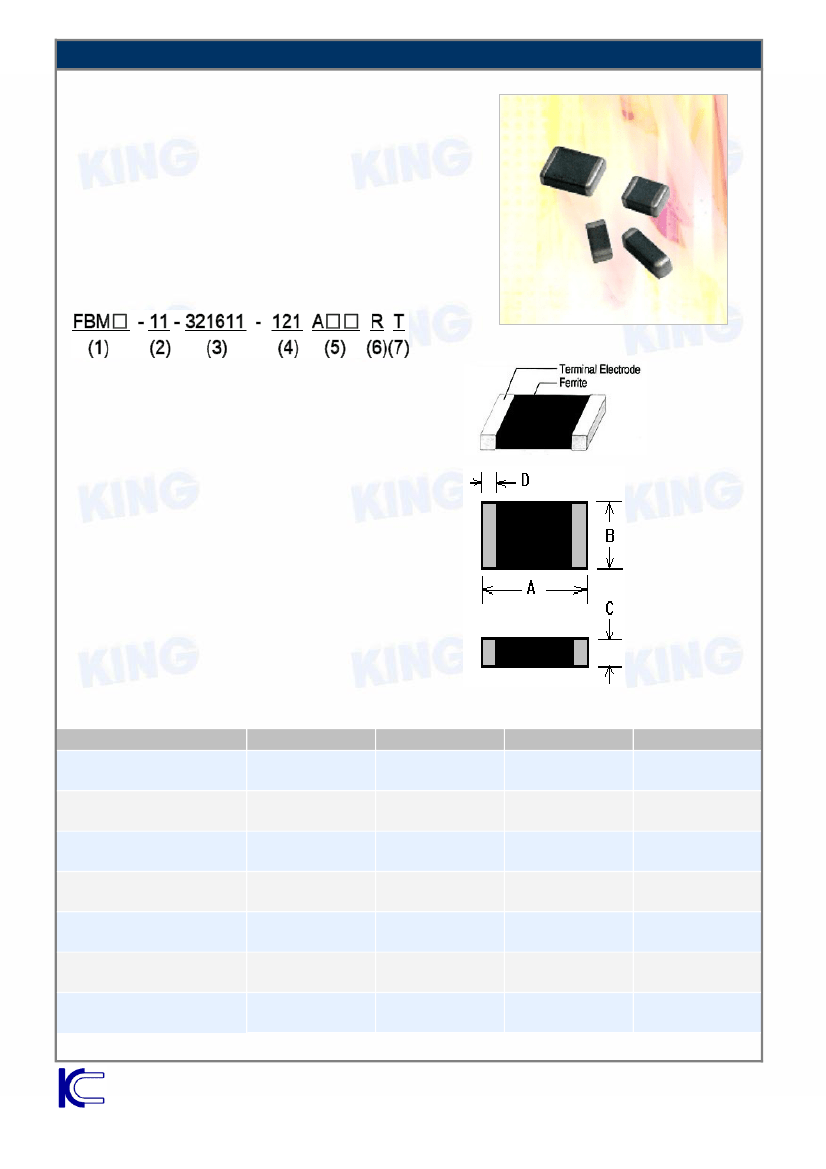

SHAPE & DIMENSIONS
SIZE CODE
FBM□-11-100505
(0402)
FBM□-11-160808
(0603)
FBM□-11-201209
(0805)
FBM□-11-321611
(1206)
FBM□-11-322513
(1210)
FBM□-11-451616
(1806)
FBM□-_ _-453215
(1812)
A
1.00±0.10
(0.040±0.004)
1.60±0.20
(0.063±0.008)
2.00±0.20
(0.079±0.008)
3.20±0.20
(0.126±0.008)
3.20±0.20
(0.126±0.008)
4.50±0.20
(0.177±0.008)
4.50±0.20
(0.177±0.008)
B
0.50±0.10
(0.020±0.004)
0.80±0.20
(0.031±0.008)
1.20±0.20
(0.047±0.008)
1.60±0.20
(0.063±0.008)
2.50±0.20
(0.098±0.008)
1.60±0.20
(0.063±0.008)
3.20±0.20
(0.126±0.008)
C
0.50±0.10
(0.020±0.004)
0.80±0.20
(0.031±0.008)
0.90±0.20
(0.035±0.008)
1.10±0.20
(0.043±0.008)
1.30±0.20
(0.051±0.008)
1.60±0.20
(0.063±0.008)
1.50±0.20
(0.059±0.008)
UNIT:mm (inch)
D
0.25±0.10
(0.010±0.004)
0.30±0.20
(0.012±0.008)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1
FBM-BA.A01
MULTILAYER CHIP BEADS
→
FBM□-11-321611：High Current Standard Type

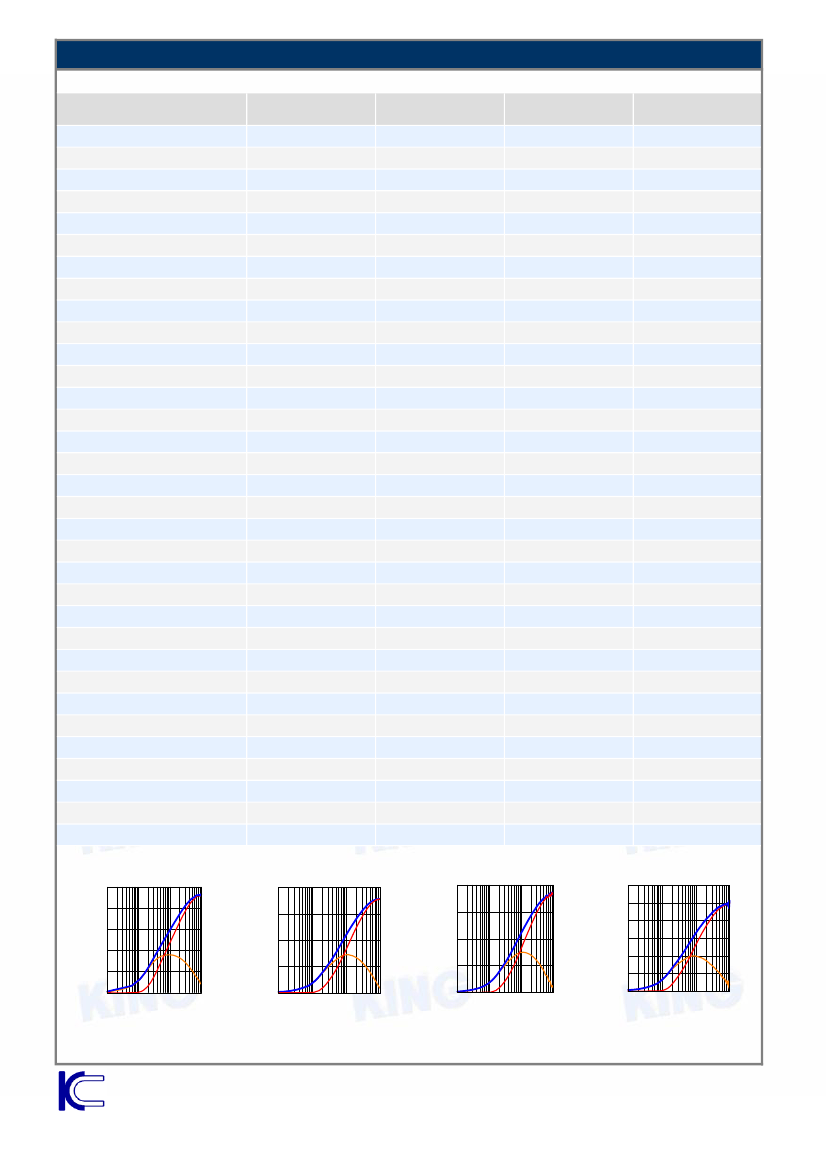

ELECTRICAL CHARACTERISTICS
ORDERING CODE
FBM□-11-321611-260A60T
FBM□-11-321611-300A30T
FBM□-11-321611-300A60T
FBM□-11-321611-310A30T
FBM□-11-321611-310A40T
FBM□-11-321611-320A40T
FBM□-11-321611-330A60T
FBM□-11-321611-480A60T
FBM□-11-321611-500A30T
FBM□-11-321611-500A40T
FBM□-11-321611-500A60T
FBM□-11-321611-600A30T
FBM□-11-321611-600A60T
FBM□-11-321611-700A30T
FBM□-11-321611-800A40T
FBM□-11-321611-900A30T
FBM□-11-321611-101A30T
FBM□-11-321611-101A60T
FBM□-11-321611-121A30T
FBM□-11-321611-121A50T
FBM□-11-321611-121A60T
FBM□-11-321611-151A09T
FBM□-11-321611-201A15T
FBM□-11-321611-221A30T
FBM□-11-321611-301A10T
FBM□-11-321611-301A20T
FBM□-11-321611-301A25T
FBM□-11-321611-391A20T
FBM□-11-321611-501A20T
FBM□-11-321611-501A30T
FBM□-11-321611-601A20T
FBM□-11-321611-601A30T
FBM□-11-321611-102A10T
Impedance
(Ω)
26±25%
30±25%
30±25%
31±25%
31±25%
32±25%
33±25%
48±25%
50±25%
50±25%
50±25%
60±25%
60±25%
70±25%
80±25%
90±25%
100±25%
100±25%
120±25%
120±25%
120±25%
150±25%
200±25%
220±25%
300±25%
300±25%
300±25%
390±25%
500±25%
500±25%
600±25%
600±25%
1000±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.010
0.040
0.010
0.040
0.035
0.035
0.010
0.010
0.040
0.035
0.010
0.040
0.010
0.040
0.035
0.040
0.040
0.010
0.040
0.020
0.010
0.200
0.150
0.040
0.200
0.100
0.050
0.100
0.100
0.040
0.100
0.040
0.200
Rated Current
(mA)max
6000
3000
6000
3000
4000
4000
6000
6000
3000
4000
6000
3000
6000
3000
4000
3000
3000
6000
3000
5000
6000
900
1500
3000
1000
2000
2500
2000
2000
3000
2000
3000
1000

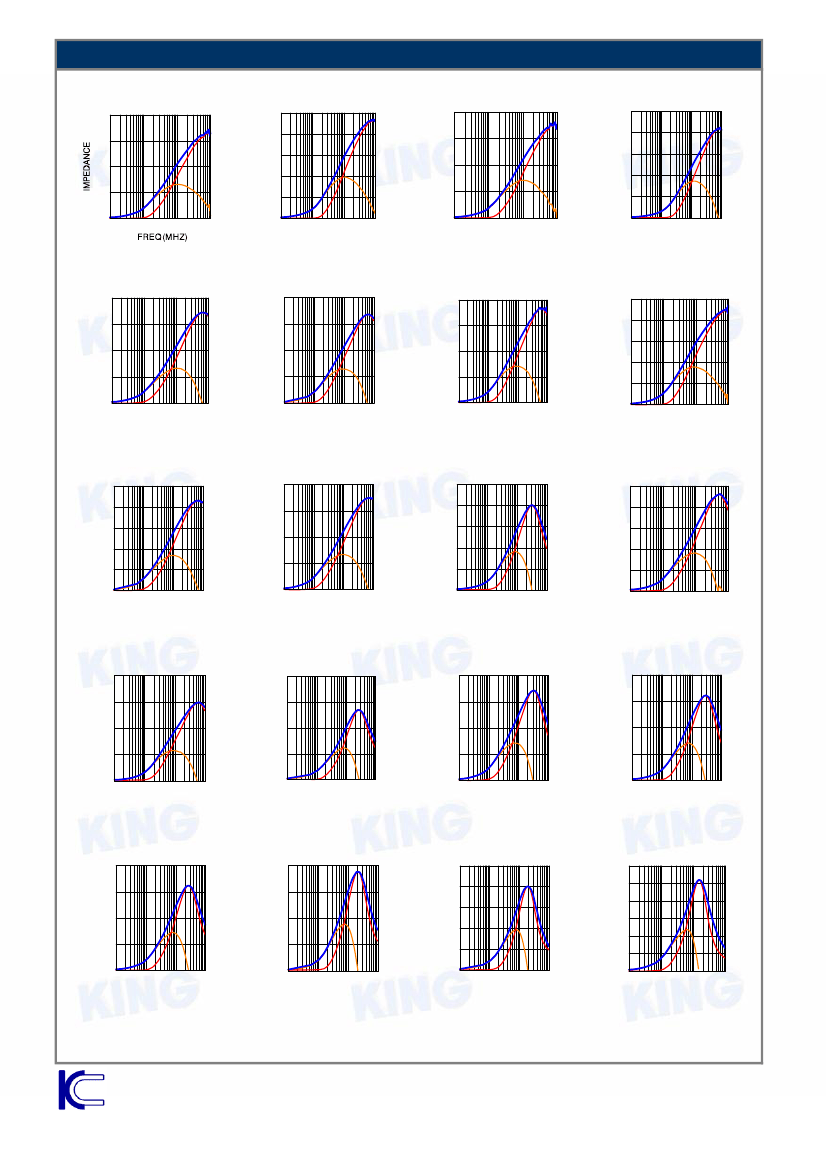

FBM -11-321611-310A30T
60
50
IMPEDANCE
FBM -11-321611-260A60T
50
40
IMPEDANCE
30
20
10
0
1
XL
Z
FBM -11-321611-300A30T
60
45
Z
30
15
0
1
R
FBM -11-321611-300A60T
60
IMPEDANCE
IMPEDANCE
45
30
15
R
Z
R
40
Z
30
20
10
0
1
XL
10
100
FREQ(MHZ)
1000
R
XL
XL
1000
10
100
FREQ(MHZ)
1000
10
100
FREQ(MHZ)
0
1
10
100
FREQ(MHZ)
1000
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
FBM-BA.A01
MULTILAYER CHIP BEADS
→
FBM□-11-321611：High Current Standard Type

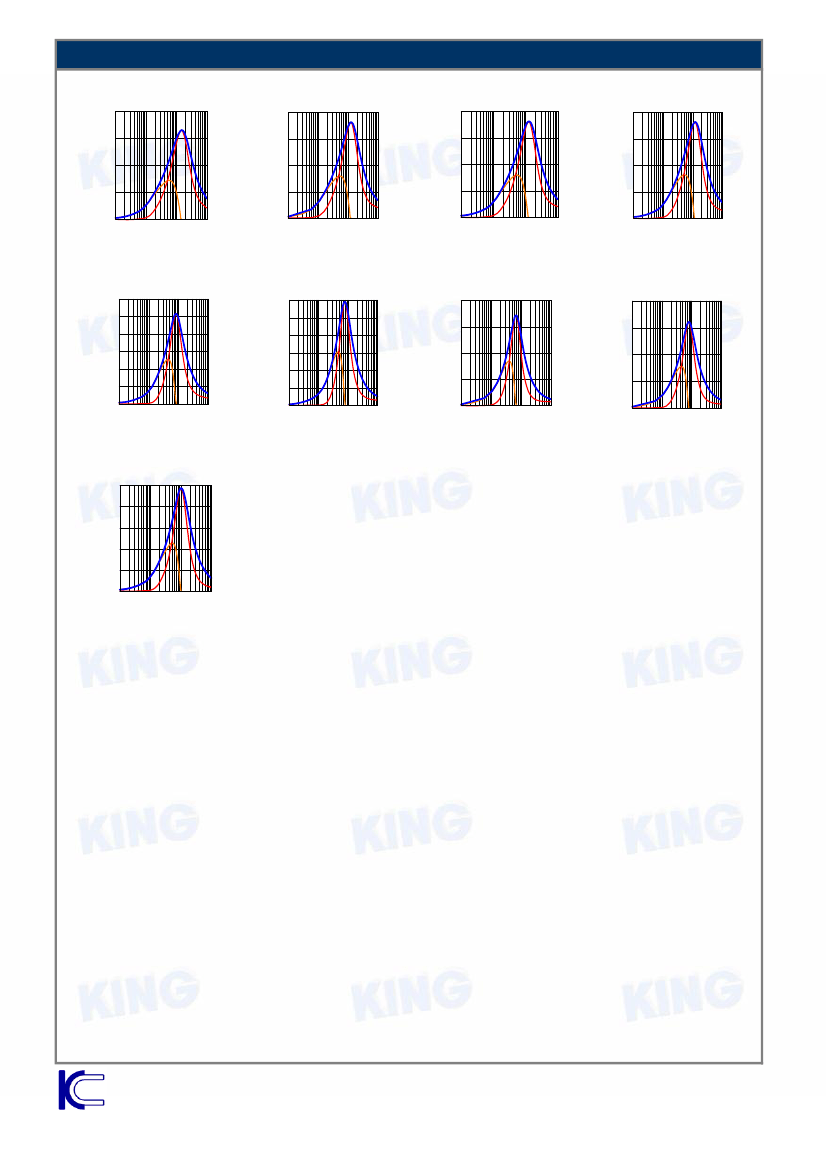

FBM -11-321611-310A40T
60
45
30
15
0
1
FBM -11-321611-320A40T
50
IMPEDANCE
FBM -11-321611-330A60T
60
45
Z
30
15
XL
0
1
R
FBM -11-321611-480A60T
100
80
IMPEDANCE
60
40
20
XL
10
100 1000
FREQ(MHZ)
Z
R
40
IMPEDANCE
Z
R
Z
30
20
10
XL
R
XL
10
100
1000
0
1
10
100
FREQ(MHZ)
1000
10
100
FREQ(MHz)
1000
0
1
FBM -11-321611-500A30T
100
75
Z
50
25
XL
0
1
10
100
FREQ(MHZ)
1000
R
FBM -11-321611-500A40T
100
75
50
25
XL
0
1
10
100 1000
FREQ(MHZ)
FBM -11-321611-500A60T
100
FBM -11-321611-600A30T
100
80
IMPEDANCE
IMPEDANCE
IMPEDANCE
IMPEDANCE
Z
75
Z
50
25
XL
0
1
10
100 1000
FREQ(MHZ)
R
R
60
40
20
0
1
Z
R
XL
10
100
FREQ(MHZ)
1000
FBM -11-321611-600A60T
100
80
IMPEDANCE
60
40
20
XL
0
1
10
100 1000
FREQ(MHZ)
Z
FBM -11-321611-700A30T
120
90
Z
60
30
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-321611-800A40T
150
120
IMPEDANCE
FBM -11-321611-900A30T
150
120
IMPEDANCE
IMPEDANCE
R
90
60
30
Z
Z
90
60
30
XL
10
100
FREQ(MHZ)
1000
R
R
XL
0
1
10
100 1000
FREQ(MHZ)
0
1
FBM -11-321611-101A30T
200
150
Z
R
100
50
XL
0
1
FBM -11-321611-101A60T
200
150
Z
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-321611-121A30T
200
150
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
FBM -11-321611-121A50T
200
150
Z
R
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
IMPEDANCE
IMPEDANCE
IMPEDANCE
Z
R
10
100 1000
FREQ(MHZ)
IMPEDANCE
FBM -11-321611-121A60T
200
150
Z
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-321611-151A09T
200
150
Z
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-321611-201A15T
250
200
IMPEDANCE
Z
150
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
FBM -11-321611-221A30T
300
250
IMPEDANCE
IMPEDANCE
IMPEDANCE
R
200
150
100
50
0
1
Z
R
XL
10
100
FREQ(MHZ)
1000
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
3
FBM-BA.A01
MULTILAYER CHIP BEADS
→
FBM□-11-321611：High Current Standard Type
FBM -11-321611-301A10T
400
300
Z
200
100
XL
0
1
10
100
FREQ(MHZ)
1000
R
FBM -11-321611-301A20T
400
FBM -11-321611-301A25T
400
300
200
100
XL
0
1
10
100
FREQ(MHZ)
1000
FBM -11-321611-391A20T
400
300
Z
200
100
XL
0
1
10
100 1000
FREQ(MHZ)
R
IMPEDANCE
IMPEDANCE
IMPEDANCE
Z
200
100
0
1
XL
R
R
10
100 1000
FREQ(MHZ)
FBM -11-321611-501A20T
600
500
IMPEDANCE
FBM -11-321611-501A30T
600
500
IMPEDANCE
IMPEDANCE
FBM -11-321611-601A20T
800
600
400
200
0
1
XL
10
100 1000
FREQ(MHZ)
Z
R
IMPEDANCE
300
Z
FBM -11-321611-601A30T
800
600
400
200
XL
0
1
10
100 1000
FREQ(MHZ)
Z
R
400
300
200
100
Z
R
400
300
200
100
Z
R
XL
0
1
10
100 1000
FREQ(MHZ)
0
XL
1
10
100 1000
FREQ(MHZ)
FBM -11-321611-102A10T
1000
Z
800
IMPEDANCE
600
400
200
XL
0
1
10
100 1000
FREQ(MHZ)
R
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
