310-41-132-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 310-41-132-41-001000

310-41-132-41-001000: DescriptionIC & component sockets 32p single IN line skt std solder tail; CategoryThe connector The connector; File Size713KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

310-41-132-41-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	310-41-132-41-001000	-	-	View	Buy Now

310-41-132-41-001000 Overview

IC & component sockets 32p single IN line skt std solder tail

310-41-132-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

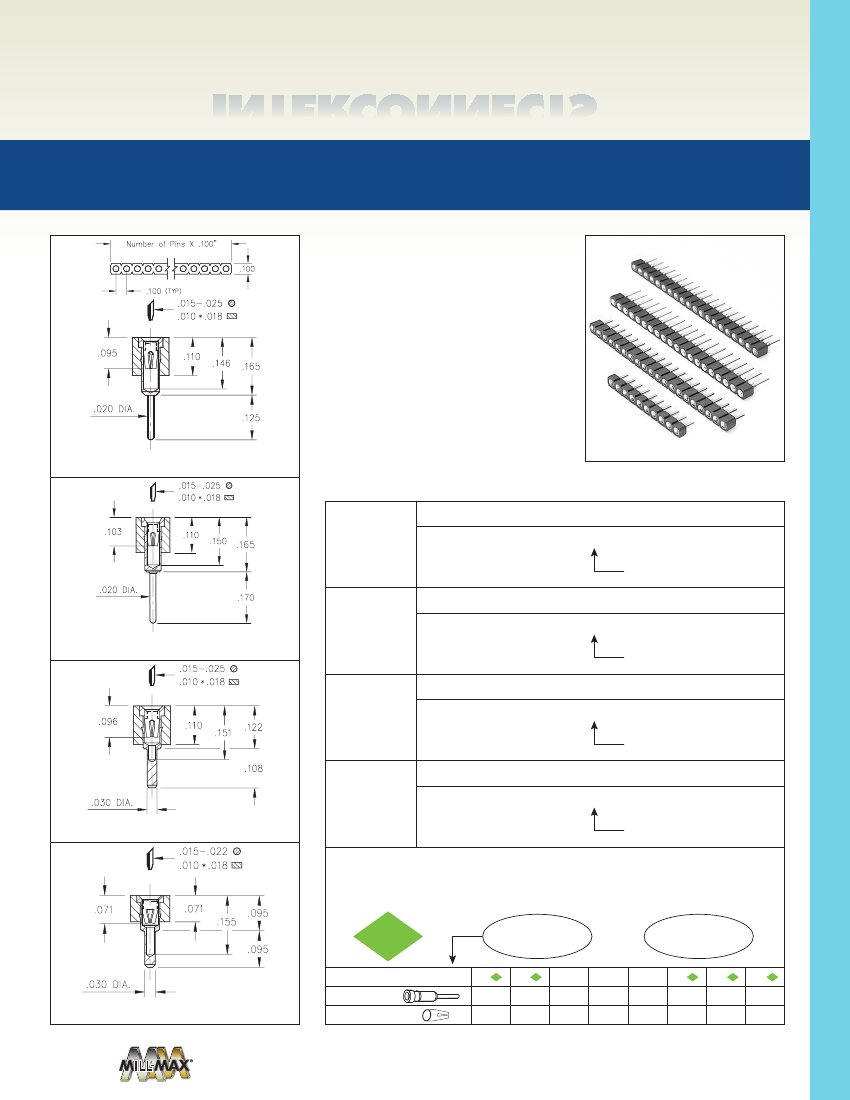

INTERCONNECTS

SERIES 310, 311, 315 • .100” GRID SOLDER TAIL •

SINGLE ROW STRIPS

•

SIP sockets accept .015 - .025” diameter pins

and standard IC leads

•

Various solder tails available: standard length,

long for multi-layer boards, very low and ultra

low profile. See Mill-Max #1001, #0134, #0501

or #1534 pins. See pages 161, 162 and 165

for details

•

Hi-Rel, 4-finger BeCu #12 and #30 contact are

rated at 3 amps. See pages 252 and 253 for

details

•

Insulators are high temperature thermoplastic,

FIG. 1

suitable for all soldering operations

ORDERING INFORMATION

Series 310...001

Standard Solder Tail

310-XX-1_ _-41-001000

Specify number of pins

01-64

FIG. 1

Series 311...001

Long Solder Tail

311-XX-1_ _-41-001000

FIG. 2

Series 315...001

Specify number of pins

01-64

Very Low Profile

315-XX-1_ _-41-001000

FIG. 3

Series 315...003

Specify number of pins

01-64

Ultra Low Profile

315-XX-1_ _-41-003000

FIG. 4

FIG. 3

Specify number of pins

01-64

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

μ”

FIG. 4

Sleeve

(Pin)

Contact

(Clip)

μ”

200

μ”

Sn/Pb 200

μ”

Sn/Pb 200

μ”

Sn/Pb

200

μ”

Sn 200

μ”

Sn 200

μ”

100

μ”

Sn/Pb

μ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

41 & 91 Platings Non-Standard

μ”

Au 100

μ”

PAGE 65 | INTERCONNECTS
