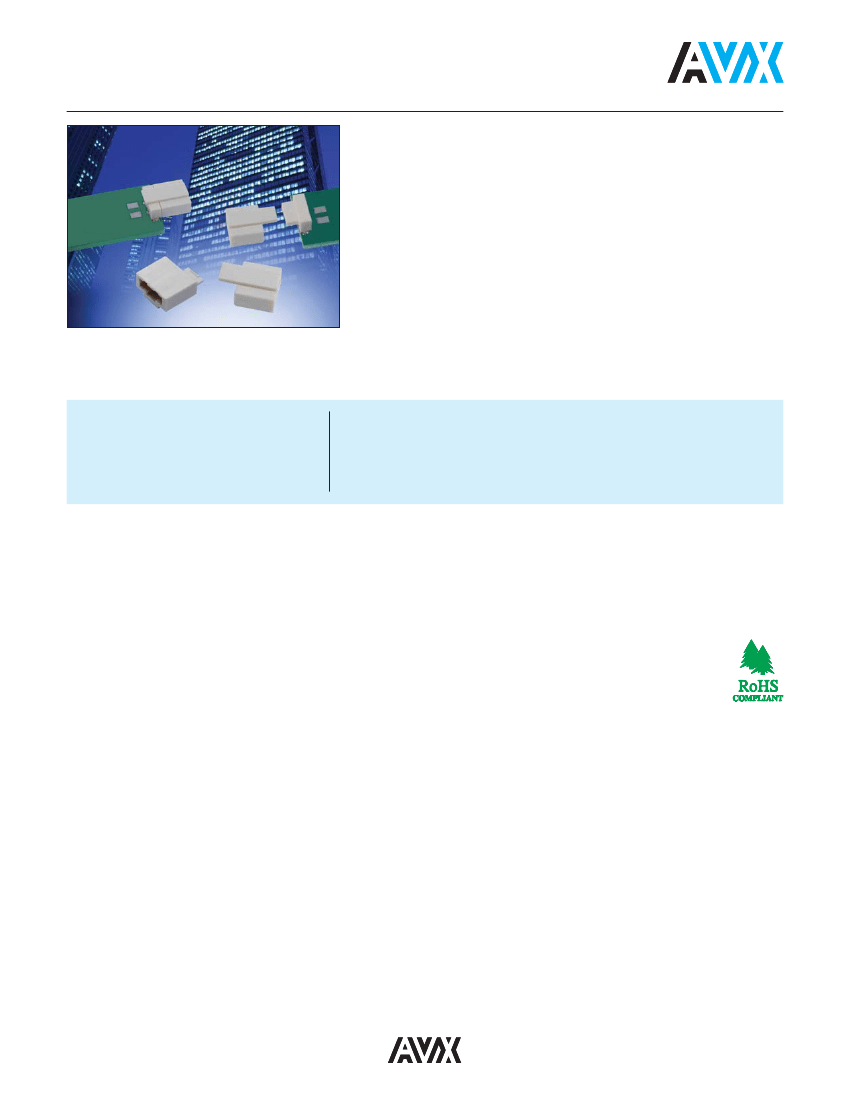

SSL – Shorting Socket
Series 58-9159
The 9159 series of Board-to-Board interconnect system allows two
PCB's to be mated end-to-end creating strips of LED lighting. Designed
specifically for the unique Solid State Lighting (SSL) market requiring
coplanar (horizontal-to-horizontal) PCB mating with a 5 Amp current
rating in the smallest package available. The 2 position shorting socket
was designed to plug onto the last PCB in the lighting strip to short the
two contacts together, closing the electrical loop. Just as the cabled plug
brings power and signals onto the light strip, the shorting socket
completes the circuit while maintaining a single board design.
APPLICATIONS
• Coplanar PCB mating in SSL products
• LED linear lighting strips
• Application Notes: refer to 201-01-123
•
•
•
•
FEATURES AND BENEFITS
Mates to the standard plug connector: does not require a new connector
Integral latching mechanism: Provides positive attachment to the plug
Gold plated BeCu spring contacts: reliability for harsh environments
Available in white: supports SSL market preferences
ELECTRICAL
• Current Rating: 5 Amps / Contact
• Voltage Rating: 125 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC

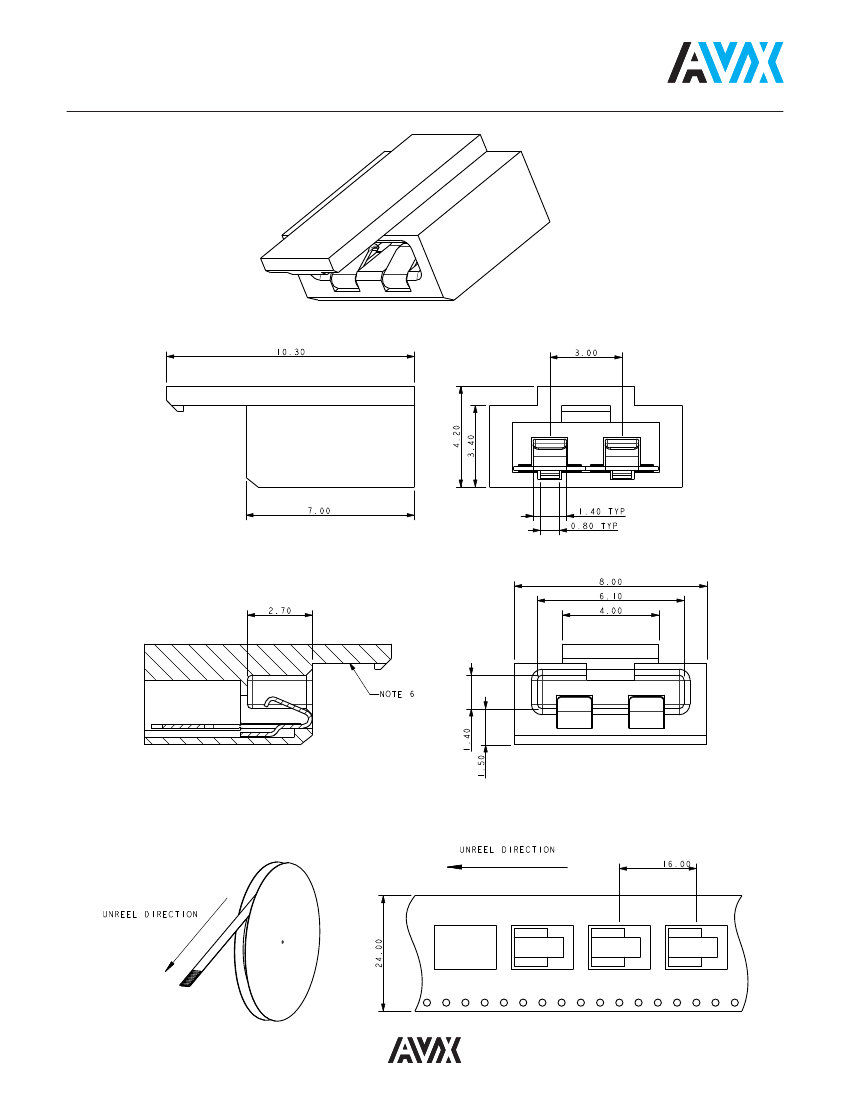

MECHANICAL
•
•
•
•
Insulator Material: Nylon: VL94VO
Contact Material: BeCu / Phos Bronze
Plating: Gold / Tin over Nickel
Durability: 10 Cycles
HOW TO ORDER
58 9159 002 000 006
Certification: UL File #E90723
1
