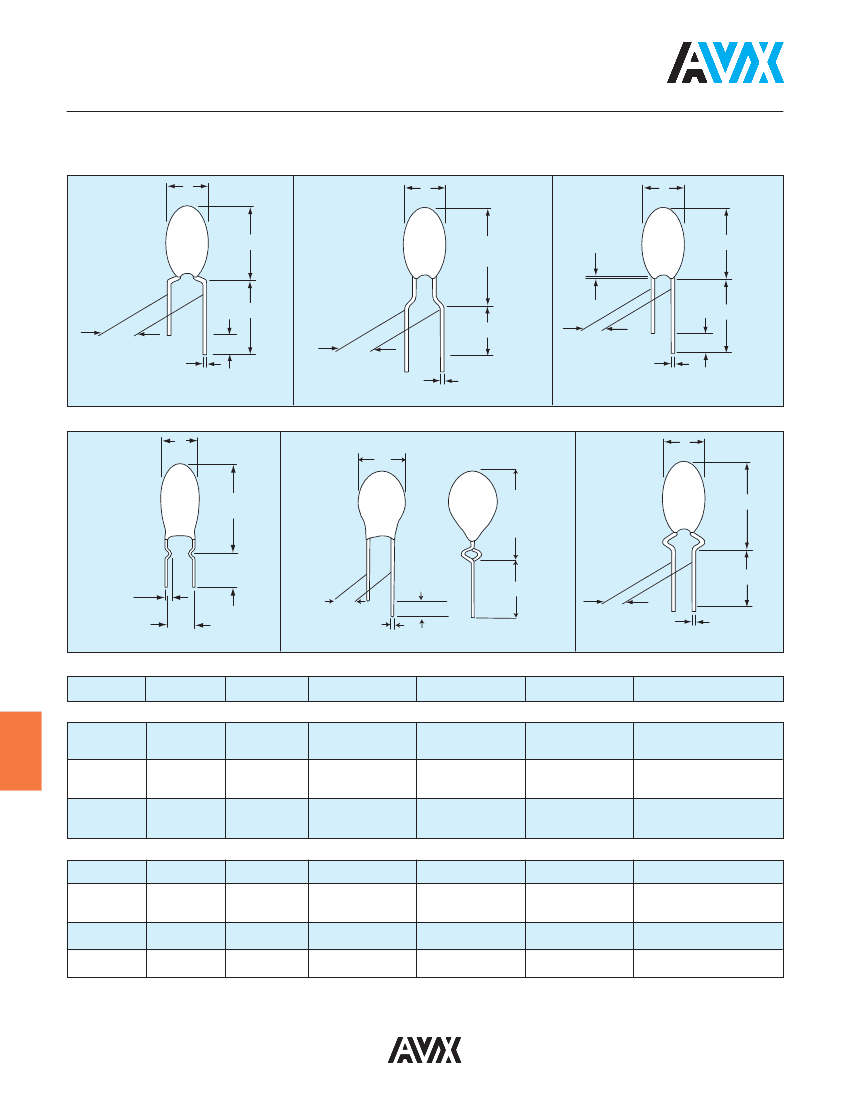

Dipped Radial Capacitors
Wire Form Outline
SOLID TANTALUM RESIN DIPPED TAP/TEP
Preferred Wire Forms
Figure 1
D
Figure 2
D
Figure 3
2.0(0.08)
max
+
D
H
+
H
1
+ 4 (0.16)
max
H
1
L
S
S
d
Wire Form C
2.0 (0.079)
min
d
Wire Form B
Wire Form S
d
L
S
L
2 (0.079)
min
Non-Preferred Wire Forms
(Not recommended for new designs)
Figure 4
D
Figure 5
Figure 6
D
D
H + 3.8 (0.15)
max
+
L
1.10
+0.25
-0.10
+0.010
)
(0.4
-0.004
S
Wire Form F
Wire Form D
H
1
max
+0.118
(3.0)
0.079 (2)
min
H
L
S
d
L
S
d
Wire Form G
DIMENSIONS
Wire Form
Figure
Case Size
L (see note 1)
S
d
millimeters (inches)
Packaging
Suffixes Available*
CCS
CRW
CRS
BRW
BRS
SCS
SRW
SRS
Bulk
Tape/Reel
Tape/Ammo
Tape/Reel
Tape/Ammo
Bulk
Tape/Reel
Tape/Ammo
Preferred Wire Forms
C
Figure 1
A - R*
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
5.00±1.00
(0.200±0.040)
5.00±1.00
(0.200±0.040)
2.50±0.50
(0.100±0.020)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
B
S
Figure 2
Figure 3
A - J*
A - J*
Non-Preferred Wire Forms
(Not recommended for new designs)
F
D
G
H
Figure 4
Figure 5
Figure 6
Similar to
Figure 1
A-R
A - H*
A-J
A-R
3.90±0.75
(0.155±0.030)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
5.00±0.50
(0.200±0.020)
2.50±0.75
(0.100±0.020)
3.18±0.50
(0.125±0.020)
6.35±1.00
(0.250±0.040)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
FCS
DCS
DTW
DTS
GSB
HSB
Bulk
Bulk
Tape/Reel
Tape/Ammo
Bulk
Bulk
Notes: (1) Lead lengths can be supplied to tolerances other than those above and should be specified in the ordering information.
(2) For D, H, and H
1
dimensions, refer to individual product on following pages.
*
For case size availability in tape and reel, please refer to pages 199-200.
192

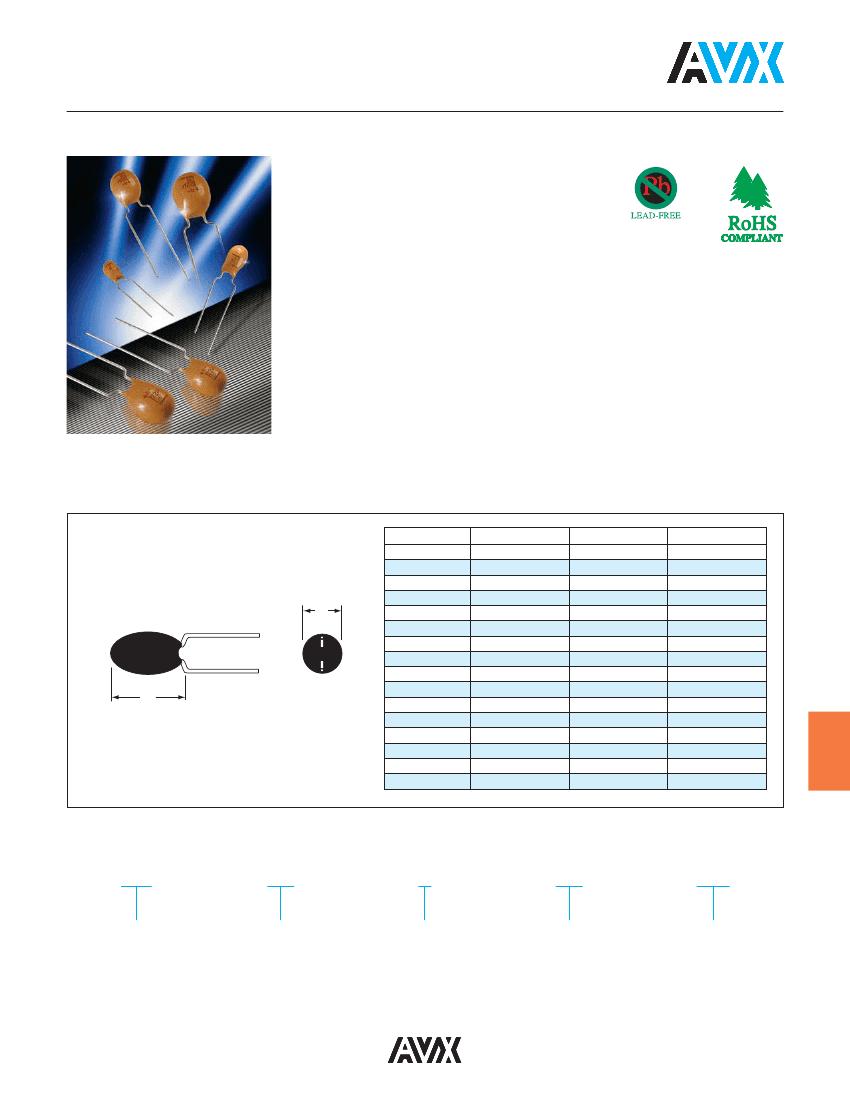

Dipped Radial Capacitors
TAP Series
SOLID TANTALUM RESIN DIPPED CAPACITORS
TAP is a professional grade device manufactured
with a flame retardant coating and featuring low
leakage current and impedance, very small
physical sizes and exceptional temperature
stability. It is designed and conditioned to
operate to +125°C (see page 228 for voltage
derating above 85°C) and is available loose or
taped and reeled for auto insertion. The 15 case
sizes with wide capacitance and working voltage
ranges means the TAP can accommodate
almost any application.
LEAD-FREE COMPATIBLE
COMPONENT
MAXIMUM CASE DIMENSIONS:
millimeters (inches)
Wire
Case
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
C, F, G, H
H
8.50 (0.330)
9.00 (0.350)
10.0 (0.390)
10.5 (0.410)
10.5 (0.410)
11.5 (0.450)
11.5 (0.450)
12.0 (0.470)
13.0 (0.510)
14.0 (0.550)
14.0 (0.550)
14.5 (0.570)
16.0 (0.630)
17.0 (0.670)
18.5 (0.730)
B, S, D
*H
1
7.00 (0.280)
7.50 (0.300)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
10.5 (0.410)
11.5 (0.450)
12.5 (0.490)
12.5 (0.490)
13.0 (0.510)
D
+
H
D
4.50 (0.180)
4.50 (0.180)
5.00 (0.200)
5.00 (0.200)
5.50 (0.220)
6.00 (0.240)
6.50 (0.260)
7.00 (0.280)
8.00 (0.310)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
HOW TO ORDER
TAP
Type
475
M
035
SCS
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
Capacitance Tolerance
K = ±10%
M = ±20%
(For J = ±5% tolerance,
please consult factory)
Rated DC Voltage
Suffix indicating wire form
and packaging
(see page 192)
193
Dipped Radial Capacitors
TAP Series
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Environmental Classification:
Dissipation Factor:
All technical data relate to an ambient temperature of +25°C
0.10 μF to 330 μF
±20%; ±10% (±5% consult your AVX representative for details)
6.3 10 16 20 25 35 50
4 6.3 10 13 16 23 33
8 13 20 26 33 46 65
5
9
12 16 21 28 40
-55°C to +125°C
55/125/56 (IEC 68-2)
0.04 for C
R
0.1-1.5μF
0.06 for C
R
2.2-6.8μF
0.08 for C
R
10-68μF
0.10 for C
R
100-330μF
1% per 1000 hrs. at 85°C with 0.1Ω/V series impedance, 60% confidence level.
CECC 30201 - 032
+85°C:
+125°C:
+85°C:
+125°C:
Reliability:
Qualification:
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
0.10
104
0.15
154
0.22
224
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
A
A
A
B
C
D
E
F
G
H
K
M
P
A
A
A
B
C
D
E
F
F
J
L
N
N
R
A
A
A
B
C
D
E
F
H
J
K
N
N
A
A
A
B
C
D
E
F
H
J
M
N
6.3V
10V
16V
Rated voltage DC (V
R
)
20V
25V
35V
A
A
A
A
A
A
A
A
B
C
E
F
F
H
K
M
N
50V
A
A
A
A
A
B
C
D
E
F
G
H
J
K
L
A
A
A
B
C
D
E
F
G
H
K
N
P
R
Values outside this standard range may be available on request.
AVX reserves the right to supply capacitors to a higher voltage rating, in the same case size, than that ordered.
MARKING
Polarity, capacitance, rated DC voltage, and an "A" (AVX
logo) are laser marked on the capacitor body which is made
of flame retardant gold epoxy resin with a limiting oxygen
index in excess of 30 (ASTM-D-2863).
•
•
•
•
Polarity
Capacitance
Voltage
AVX logo
• Tolerance code:
±20% = Standard (no marking)
±10% = “K” on reverse side of unit
±5% = “J” on reverse side of unit
+A
10μ
16
194
Dipped Radial Capacitors
TAP Series
RATINGS AND PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
μF
DCL
(μA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
AVX
Part No.
Case Capacitance
Size
μF
DCL
(μA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
TAP 335(*)006
TAP 475(*)006
TAP 685(*)006
TAP 106(*)006
TAP 156(*)006
TAP 226(*)006
TAP 336(*)006
TAP 476(*)006
TAP 686(*)006
TAP 107(*)006
TAP 157(*)006
TAP 227(*)006
TAP 337(*)006
TAP 225(*)010
TAP 335(*)010
TAP 475(*)010
TAP 685(*)010
TAP 106(*)010
TAP 156(*)010
TAP 226(*)010
TAP 336(*)010
TAP 476(*)010
TAP 686(*)010
TAP 107(*)010
TAP 157(*)010
TAP 227(*)010
TAP 337(*)010
TAP 155(*)016
TAP 225(*)016
TAP 335(*)016
TAP 475(*)016
TAP 685(*)016
TAP 106(*)016
TAP 156(*)016
TAP 226(*)016
TAP 336(*)016
TAP 476(*)016
TAP 686(*)016
TAP 107(*)016
TAP 157(*)016
TAP 227(*)016
TAP 105(*)020
TAP 155(*)020
TAP 225(*)020
TAP 335(*)020
TAP 475(*)020
TAP 685(*)020
TAP 106(*)020
TAP 156(*)020
TAP 226(*)020
TAP 336(*)020
TAP 476(*)020
TAP 686(*)020
TAP 107(*)020
