050-010-133: DescriptionBoard Euro Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,; CategoryThe connector The connector; File Size342KB，1 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

050-010-133 Overview

Board Euro Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator,

050-010-133 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PANCON CONNECTORS
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LAT-CON
Board mount options	HOLE .099-.111
body width	0.327 inch
subject depth	0.669 inch
body length	1.256 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

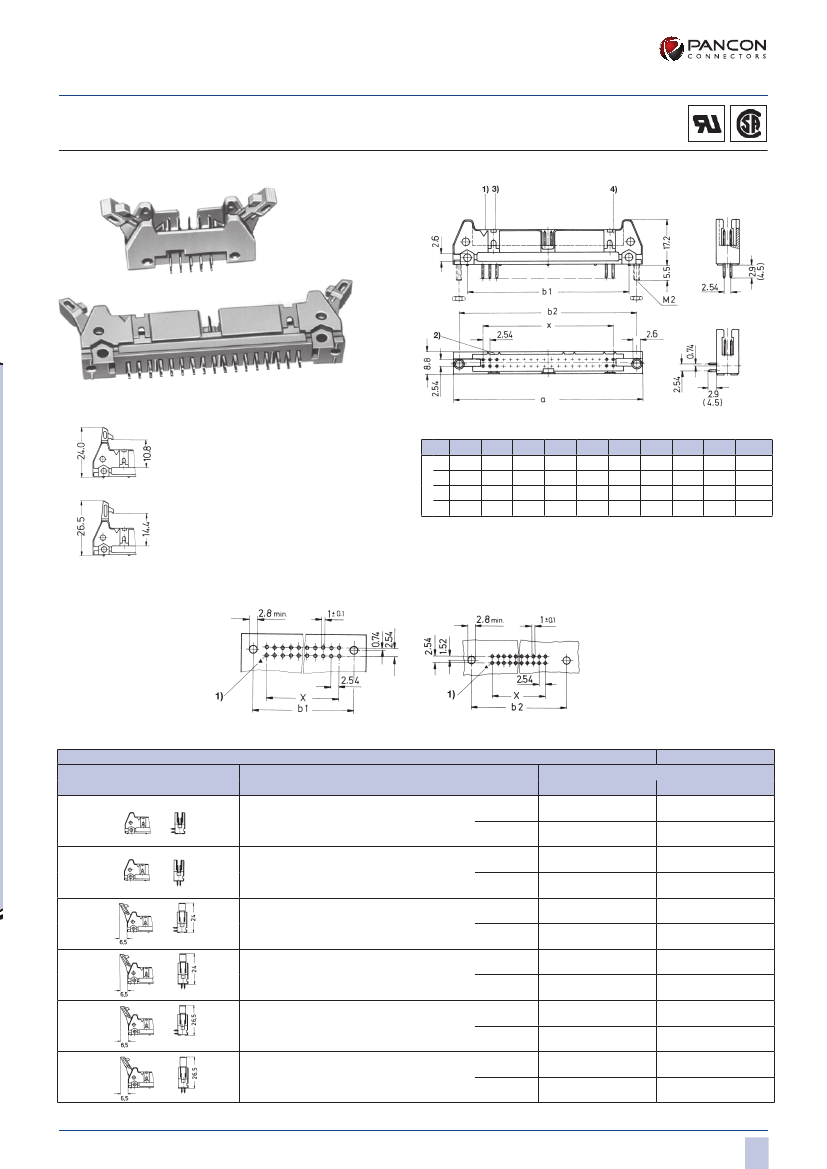

LAT-CON

®

Serie 050

10 bis 64-pol. Stiftleisten

– nach DIN EN 60 603-13, MIL-C-83 503,

BS9525 F0023, HE10-01

Hinweise siehe Seite ??

Notes see page ??

Series 050

10 to 64 contact headers

– acc. to EN 60 603-13, MIL-C-83 503,

BS9525 F0023, HE10-01

Tauchlöten /

Dip solder

A

Kurzer Verriegelungshebel für LAT-CON Federleisten mit und

ohne Zugenlastung

Short locking lever for LAT-CON sockets with and without strain

relief.

Polzahl /

No. of contacts

/

Nb. de contacts

/

n. poli

10

a

(mm)

32,3

b1

21,8

b2

27,9

x

10,16

14

37,4

26,9

33,0

15,24

16

39,9

29,4

35,5

17,78

20

45,0

34,5

40,6

22,86

26

52,6

42,1

48,2

30,48

34

62,8

52,3

58,4

40,64

40

70,4

59,9

66,0

48,26

50

83,1

72,6

78,7

60,96

60

95,8

85,3

91,4

73,66

64

101,00

90,4

96,5

78,74

B

Langer Verriegelungshebel für Verriegelung mit MIL-C-83 503

Federleisten mit und ohne Zugenlastung

Long locking lever for MIL-C-83 503 sockets with and without

strain relief.

Lochbild /

Printed circuit layout

Tauchlöten abgewinkelt /

Dip solder angeled

Tauchlöten gerade / Einpreßtechnik gerade

Bestell-Nummern /

Part numbers

Polzahl /

No. of contacts

10, 14, 16, 20, 26, 34, 40, 50, 60, 64

Anschlußarten /

Termination

4,5 mm

Tauchlöten abgewinkelt /

Dip solder angled

2,9 mm

4,5 mm

Tauchlöten gerade /

Dip solder straight

2,9 mm

4,5 mm

Tauchlöten abgewinkelt /

Dip solder angled

2,9 mm

4,5 mm

Tauchlöten gerade /

Dip solder straight

2,9 mm

4,5 mm

Tauchlöten abgewinkelt /

Dip solder angled

2,9 mm

4,5 mm

Tauchlöten gerade /

Dip solder straight

2,9 mm

Hinweise siehe Seite ??

Notes see page ??

Anforderungsstufe /

Performance level

2 (Au/Ni)

050-0-032

050-0-033

050-0-132

050-0-133

050-0-032A

050-0-033A

050--132A

050-0-133A

050-0-032B

050-0-033B

050-0-132B

050-0-133B

3 (Au/Ni)

050-0-052

050-0-053

050-0-152

050-0-153

050-0-052A

050-0-053A

050-0-152A

050-0-153A

050-0-052B

050-0-053B

050-0-152B

050-0-153B

Ausführungsart /

Style

3
