61300621021: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size597KB，3 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

61300621021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	61300621021	-	-	View	Buy Now

61300621021 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug, ROHS COMPLIANT

61300621021 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	463793
Samacsys Pin Count	6
Samacsys Part Category	Connector
Samacsys Package Category	Header, Unshrouded - Right Angle PTH Pin
Samacsys Footprint Name	61300621021---
Samacsys Released Date	2018-01-18 14:09:35
Is Samacsys	N
body width	0.2 inch
subject depth	0.259 inch
body length	0.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PA6T

FLAMABILITY RATING: UL94-V0

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

QUALITY CLASS: 3 AS PER CECC 75 301-802

PITCH: 2.54MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING PROCESS

PACKAGING

BAG

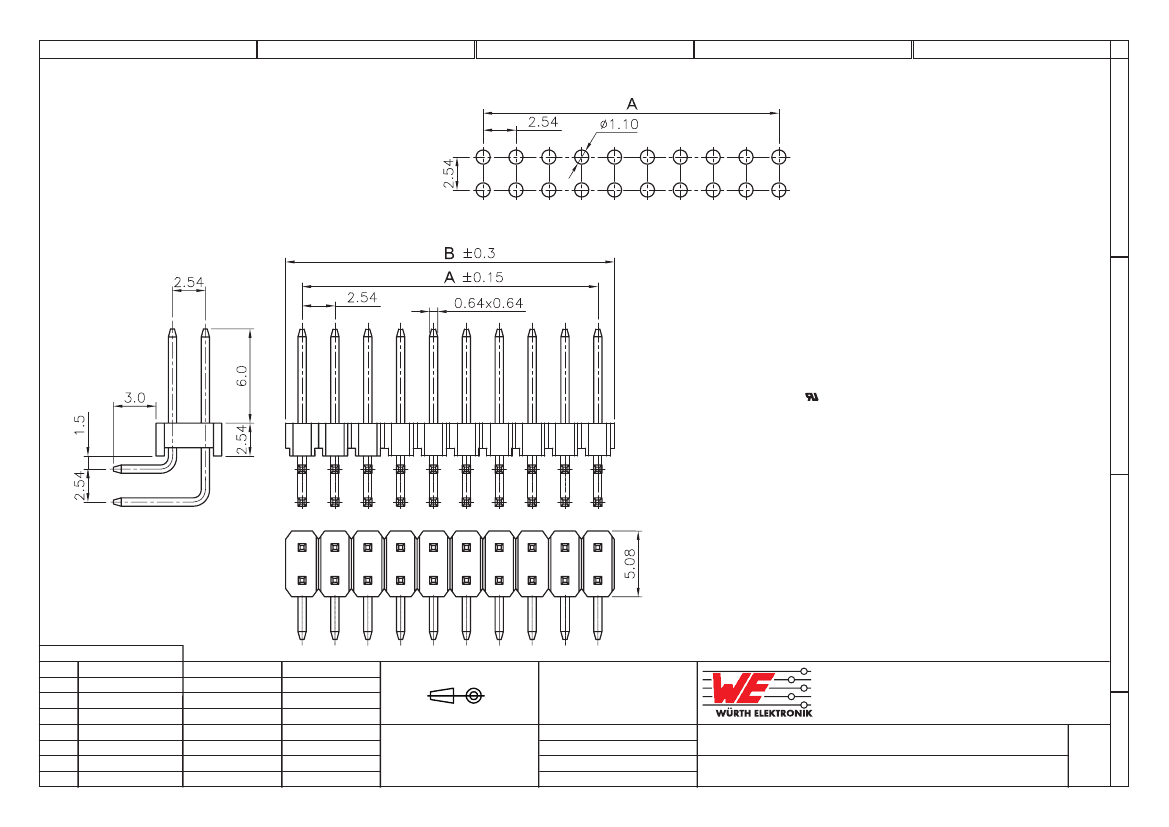

DIMENSION

A = 2.54 x (NB PINS/2 -1)

B = 2.54 x (NB PINS/2)

A

PCB LAYOUT - COMPONENT VIEW

B

C

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

J

I

H

REV

08-JUL-15

16-JUN-15

08-APR-13

DATE

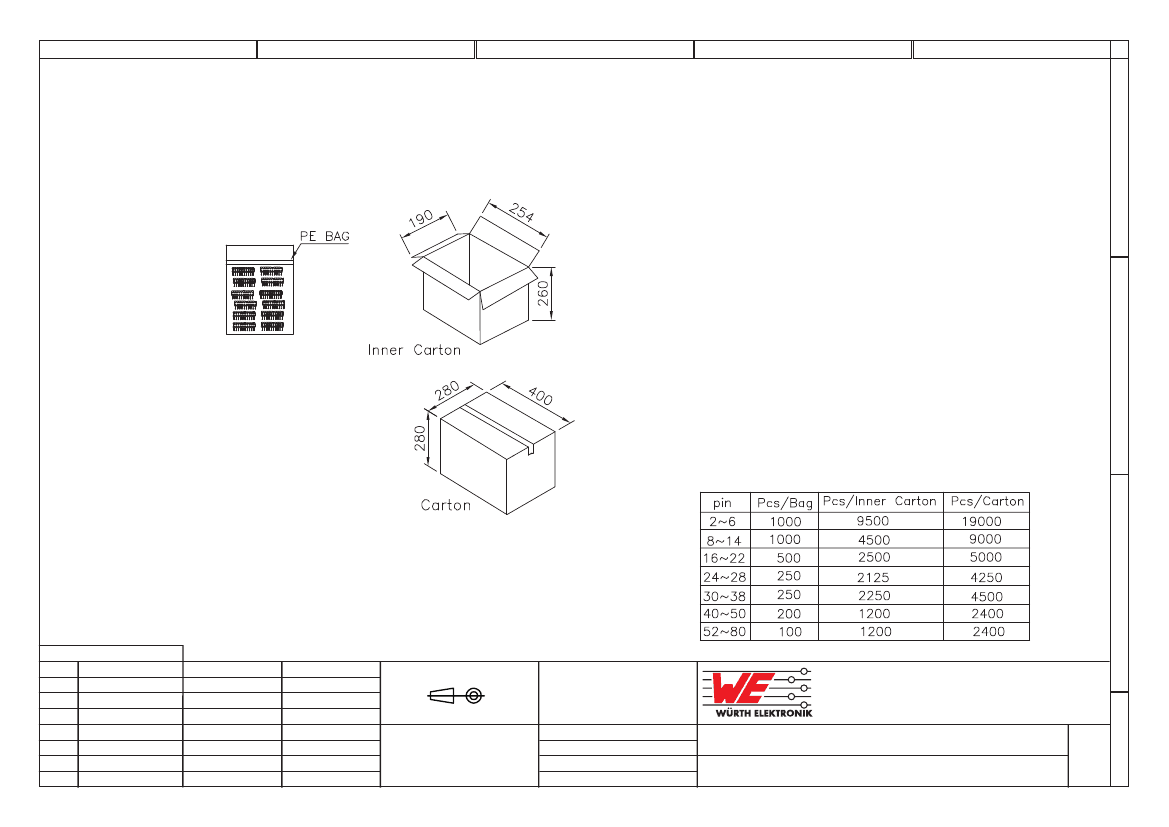

PACKAGING

PCN PA6T

DIMENSION

FILE

AK

AR

BY

APPROVAL: GMo

UNIT: MM

SCALE:

SHEET: 1/3

DRAW: PEARL

WERI PART NO: 613 0xx 210 21

DESCRIPTION: 2.54MM ANGLED DUAL PIN HEADER

SIZE

A4

D
