Bulletin PD-2.256 rev. B 05/02
183NQ...(R) SERIES
SCHOTTKY RECTIFIER
180 Amp
D-67
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
range
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 180Apk, T
J
=125°C
range
Description/ Features
Units
A
V
A
V
°C
The 183NQ high current Schottky rectifier module series has
been optimized for low reverse leakage at high temperature.
The proprietary barrier technology allows for reliable opera-
tion up to 175° C junction temperature. Typical applications
are in switching power supplies, converters, free-wheeling
diodes, and reverse battery protection.
175° C T
J
operation
Unique high power, Half-Pak module
Replaces three parallel DO-5's
Easier to mount and lower profile than DO-5's
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
183NQ...
180
80 to 100
22,000
0.75
- 55 to 175
183NQ100
Lug Terminal Anode
Base Cathode
183NQ100R
Lug Terminal Cathode
Base Anode

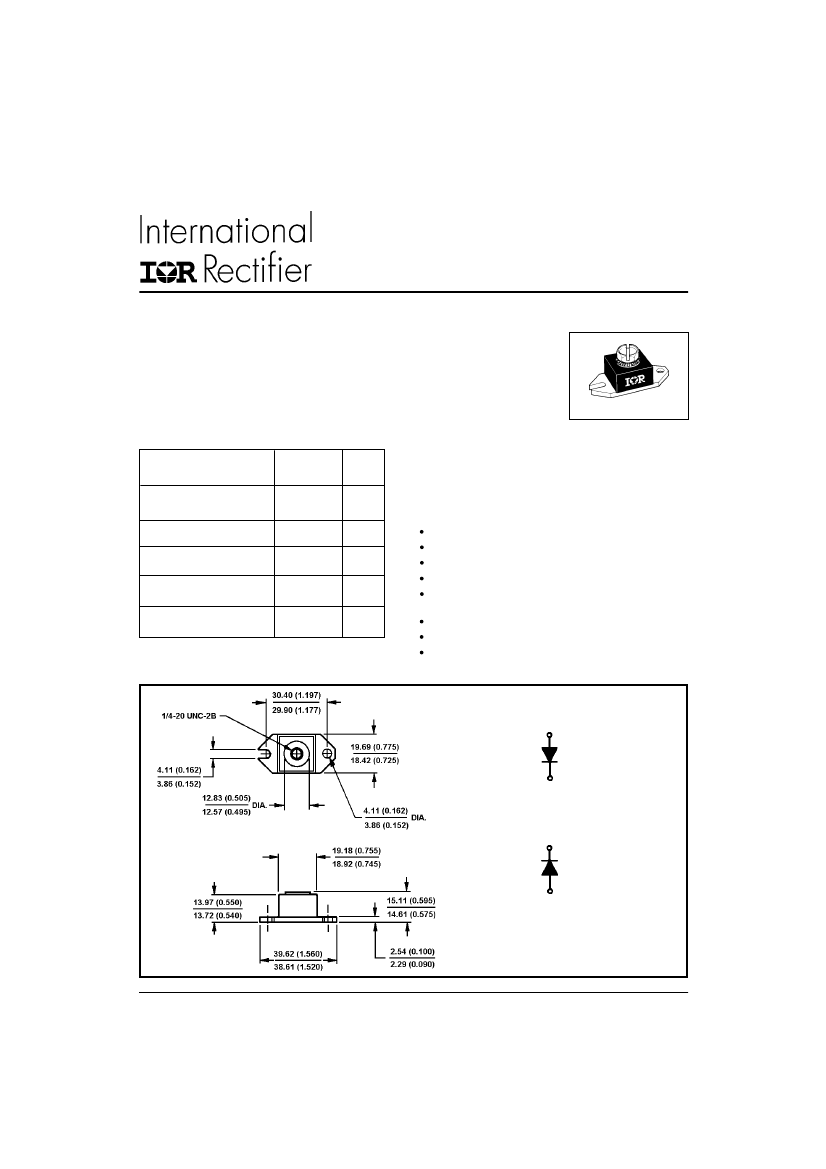

Outline D-67 HALF PAK Module
Dimensions in millimeters and (inches)
www.irf.com
1
183NQ...(R) Series
Bulletin PD-2.256 rev. B 05/02
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
183NQ080
80
183NQ090
90
183NQ100
100
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
* See Fig. 5
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current * See Fig. 7
Non-Repetitive Avalanche Energy
Repetitive Avalanche Current
183NQ Units
180
22,000
1550
15
1
A
Conditions
50% duty cycle @ T
C
= 116° C, rectangular wave form
Following any rated
load condition and
10ms Sine or 6ms Rect. pulse with rated V
RRM
applied
5µs Sine or 3µs Rect. pulse
T
J
= 25 °C, I
AS
= 1 Amps, L = 30 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
A
mJ
A
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
* See Fig. 1
(1)
183NQ Units
0.95
1.14
0.75
0.89
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 180A
@ 360A
@ 180A
@ 360A
T
J
= 25 °C
T
J
= 125 °C
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current (1)
* See Fig. 2
Max. Junction Capacitance
Typical Series Inductance
4.5
60
4150
6.0
10000
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25 °C
From top of terminal hole to mounting plane
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle < 2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
183NQ Units
-55 to 175
-55 to 175
0.30
0.15
°C
°C
°C/W
°C/W
DC operation
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case
R
thCS
Typical Thermal Resistance, Case to
Heatsink
wt
T
Approximate Weight
Mounting Torque
Terminal Torque
Case Style
Min.
Max.
Min.
Max.
* See Fig. 4
Mounting surface , smooth and greased
25.6 (0.9) g (oz.)
40 (35)
58 (50)
58 (50)
86 (75)
HALF PAK Module
Kg-cm
(Ibf-in)
Non-lubricated threads
2
www.irf.com
183NQ... Series
Bulletin PD-2.256 rev. B 05/02
10
00
10
00
T =1 5 C
7°
J
10
0
R v rs C rre t - I (m )
ee e u n
A
R
1
0
1
.1
.0
1
.0 1
0
0
1 0C
5°
1 5C
2°
1 0C
0°
7°
5C
5°
0C
2°
5C
In ta ta e u F rw rdC rre t - I (A
s n nos o a
u n
)
F
10
0
2
0
4
0
6
0
8
0
10
0
R v rs V lta e- V (V
ee e o g
R )
T =1 5 C
7°
J
T =1 5 C
2°
J
J n tio C p c n e- C (p )
u c n a a ita c
F
T
T= 2°
5C
J
1
0

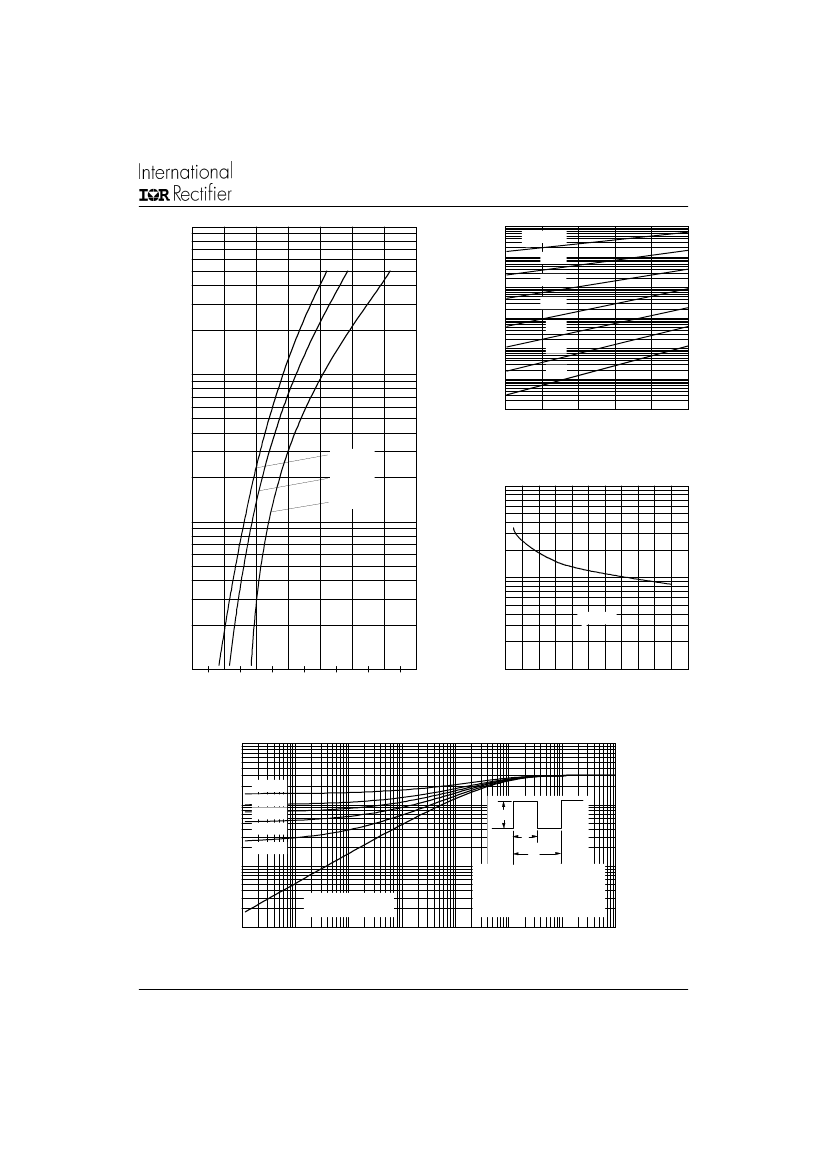

Fig. 2 - Typical Values of Reverse Current
Vs. Reverse Voltage
100
00
10
00
T =2 °
5C
J
1
0
.2
.4
.6
.8
1
1
.2
1
.4
10
0
0 1 2 3 4 5 6 7 8 9 0 1
0 0 0 0 0 0 0 0 01 01 0
R v rs V lta e- V (V
ee e o g
R )
F rw rdV lta eD p- V (V
o a
o g ro
)
F
M
Fig. 1 - Maximum Forward Voltage Drop Characteristics
1
T e a Im e a c - Zth C (° /W
h rm l p d n e
C )
J
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage
D=0 0
.5
.1
D=0 3
.3
D=0 5
.2
D=0 7
.1
D=0 8
.0
.0
1
S g P ls
in le u e
(T e a R s ta c )
h rm l e is n e
.0 1
0
.0 0 1
00
.0 0
01
.0 1
0
.0
1
.1
P
M
D
t
1
t2
N te :
o s
1 D tyfa to D= t1/ t2
. u
c r
2 P a T =P xZ
. ek
+T
J D
M th C C
J
1
1
0
10
0
t , R c n u r P ls D ra n(S c n s
e ta g la u e u tio
eod)
1
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
www.irf.com
3
183NQ...(R) Series
Bulletin PD-2.256 rev. B 05/02
10
8
A w b C s T m e tu e- ( C
llo a le a e e p ra r
° )
10
7
10
6
10
5
10
4
10
3
10
2
10
1
0
D
C
13 Q
8N
R J (D ) =0 0 C
.3 ° /W
th C C
20
0
D=0 8
.0
1 5 D=0 7
7
.1
D=0 5
.2
1 0 D=0 3
5
.3
D=0 0
.5
15
2
10
0
7
5
5
0
2
5
0
0
4
0
8
0
10 10 20 20 20
2
6
0
4
8
R SL it
M im
D
C
4
0
8
0
10 10 20 20 20
2
6
0
4
8
A e g P w r L s - (W tts
v ra e o e o s
a )
A e g F rw rdC rre t - IF V (A
v ra e o a
u n
(A ) )
A e g F rw rdC rre t - I
v ra e o a
u n
(A
)
F V
(A )
Fig. 5 - Maximum Allowable Case Temperature
Vs. Average Forward Current
100000
FSM
Fig. 6 - Forward Power Loss Characteristics
At Any Rated Load Condition
And With Rated V
RRM
Applied
Following Surge
Non-Repetitive Surge Current - I
(A)
10000
1000
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Maximum Non-Repetitive Surge Current
L
H IG H -SPE ED
SW IT C H
FRE E-W H EEL
D IO D E
40H FL40S02
V d = 25 V olt
D UT
IRFP460
Rg = 2 5 oh m
+
C UR RE N T
M O N ITO R
Fig. 8 - Unclamped Inductive Test Circuit
4
www.irf.com
183NQ... Series
Bulletin PD-2.256 rev. B 05/02
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 05/02
www.irf.com
5
