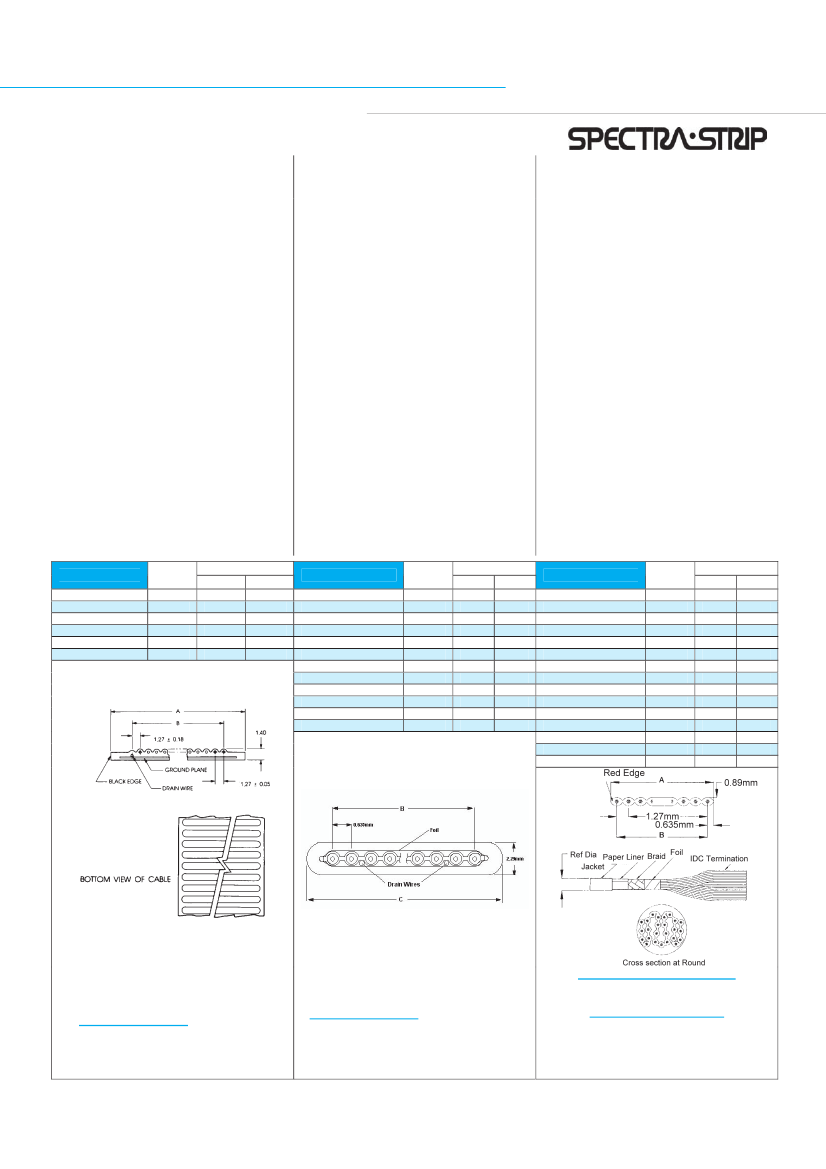

Specialised Flat Ribbon Cable
Qwik Strip
®
133-2803
Ground Plane Ribbon Cable
Materials
Pitch
Reel Length
Conductor
Ground Plane
Laminate
Temperature
– 1.27mm
– 100 ft
– 28AWG (7/36 strand)
tinned Copper
– Copper Mesh
– Gray PVC 94V-0
– 105˚C
Shielded 151 Series
Jacketed Ribbon Cable
Materials
Pitch
Reel Length
Conductor
Insulation
Shield
Drain Wire
Jacket
Temperature
– 0.635mm
– 100 ft
– 30AWG (solid)
tinned Copper
– Gray PVC
– Aluminum/Poly
– 30AWG (solid)
tinned Copper
– Black PVC
– -20~105˚C
Round ‘n’ Flat
TM
159
Ribbon Cable in Round Jacket
Materials
Pitch
Reel Length
Conductor
– 1.27mm
– 100 ft
– 28AWG (7/36 strand)
tinned Copper
Insulation
– PVC
Shield 1
– Aluminum/Poly
Shield 2
– Tinned Copper Braid
Liner between Jacket and Braid
– Paper
Jacket
– Black PVC
Temperature
– -20~105˚C
Electrical
Current
– 1A
Voltage
– 300V
Impedance
– 65Ω
1
Capacitance
– 29pf/ft
1
Propagation delay – 1.65ns/ft
Crosstalk (10’ sample, 5ns rise time)
NE
– 1.2%
FE
– 3.5%
1
Electrical
Current
– 0.8A
Voltage
– 150V
Impedance
– 55Ω
1
Capacitance
– 30pf/ft @ 1MHz
1
Inductance
– 12µh/ft @ 1MHz
1
Propagation delay – 1.55ns/ft
Unbalanced Crosstalk (10ft, 5ns rise time)
NE
– 0.8%
FE
– 1.8%
Measured ground-signal-ground with Shield
grounded
1
Electrical
Current
Voltage
Impedance
Capacitance
Inductance
Propagation delay
1
Measured from Conductor to Ground
– 0.75A
– 300V
– 75Ω
1
– 24pf/ft @ 1MHz
1
– 15µh/ft @ 1MHz
1
– 1.6ns/ft
Features
Easy cable preparation
Cost saving termination labour
Cosistant peel back
Controlled crosstalk and EMI/RFI
UL and CSA certified
Measured ground-signal-ground with Shield
grounded
Features
Round cable that mass terminates
Highly flexible
Helps meet FCC requirements
UL and CSA certified
Part Numbers:
843-159-2801-009
843-159-2801-010
843-159-2801-015
843-159-2801-016
843-159-2801-020
843-159-2801-024
843-159-2801-025
843-159-2801-026
843-159-2801-034
843-159-2801-036
843-159-2801-037
843-159-2801-040
843-159-2801-050
843-159-2801-060
843-159-2801-064
No. of
Cond.
9
10
15
16
20
24
25
26
34
36
37
40
50
60
64
Dimensions
A
B
11.43
10.16
12.70
11.43
19.05
17.78
20.32
19.05
25.40
24.13
30.48
29.21
31.75
30.48
33.02
31.75
43.18
41.91
45.72
44.45
47.00
45.72
50.80
49.53
63.50
62.23
76.20
74.93
81.28
80.01
Features
Rugged flexible protection
Excellent electrical performance
Part Number:
843-133-2803-020
843-133-2803-026
843-133-2803-034
843-133-2803-040
843-133-2803-050
843-133-2803-060
No. of
Cond.
20
26
34
40
50
60
Dimensions
A
B
31.75
24.13
39.37
31.75
49.53
41.91
57.15
49.53
69.85
62.23
82.55
74.93
Part Number:
151-3033-010
151-3033-016
151-3033-020
151-3033-026
151-3033-034
151-3033-040
151-3033-050
151-3033-060
151-3033-064
151-3033-068
151-3033-080
151-3033-100
No. of
Cond.
10
16
20
26
34
40
50
60
64
68
80
100
Dimensions
C
5.72
8.00
9.53
11.81
12.07
14.35
15.88
18.16
20.96
23.24
24.77
27.05
31.12
33.40
37.47
39.75
40.01
44.83
42.51
47.37
50.17
52.45
62.87
65.15
For
0.635mm 30 AWG Ground Plane
Ribbon Cable
Use
Spectra-GP
®
Part Number System: 133-3014-0XX
Available in: 10; 16; 20; 26; 34; 40; 50; 60; 64; 80
and 100 positions.
(Electrical characteristics vary from this specification
sheet)
For
1.27mm 28 AWG Jacketed and
Shielded Ribbon Cable
Use
Series 151
Part Number System: 843-151-2811-XXX
Available in: 9; 10; 14; 15; 16; 20; 24; 25; 26; 34; 37;
40; 50; 60 and 64 positions.
(Electrical characteristics vary from this specification
sheet)
Alternate Round ‘n’ Flat Cable
No Braid, Foil only 843-159-2801-1XX
No Braid, No Foil 843-159-2801-2XX
For 0.635mm pitch 30AWG
Braid and Foil 159-3003-0XX
No Braid, Foil only 159-3003-1XX
No Braid, No Foil 159-3003-2XX
Available in: 10; 16; 20; 26; 34; 40; 50; 60; 64; 68
and 80 positions
T-5
