3-175341-0 datasheet, PDF - EEWORLD Datasheet

3-175341-0: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.031 PITCH,WHITE; CategoryThe connector The connector; File Size220KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

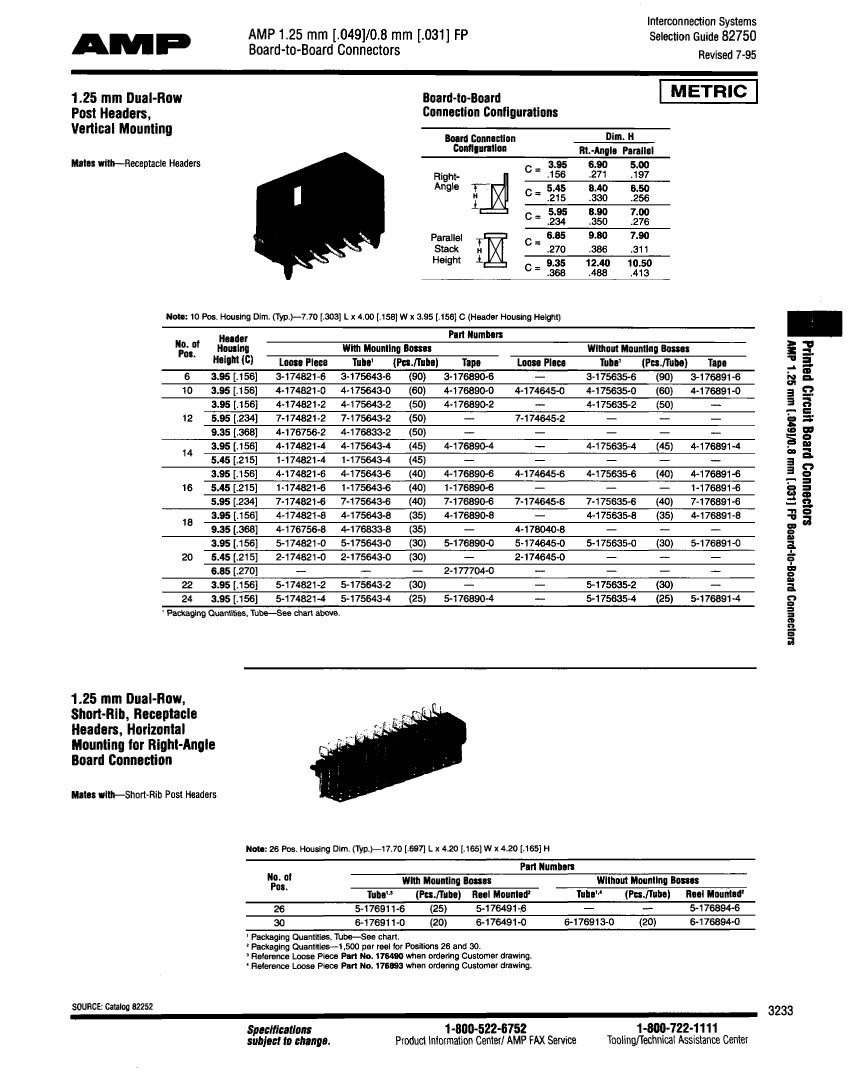

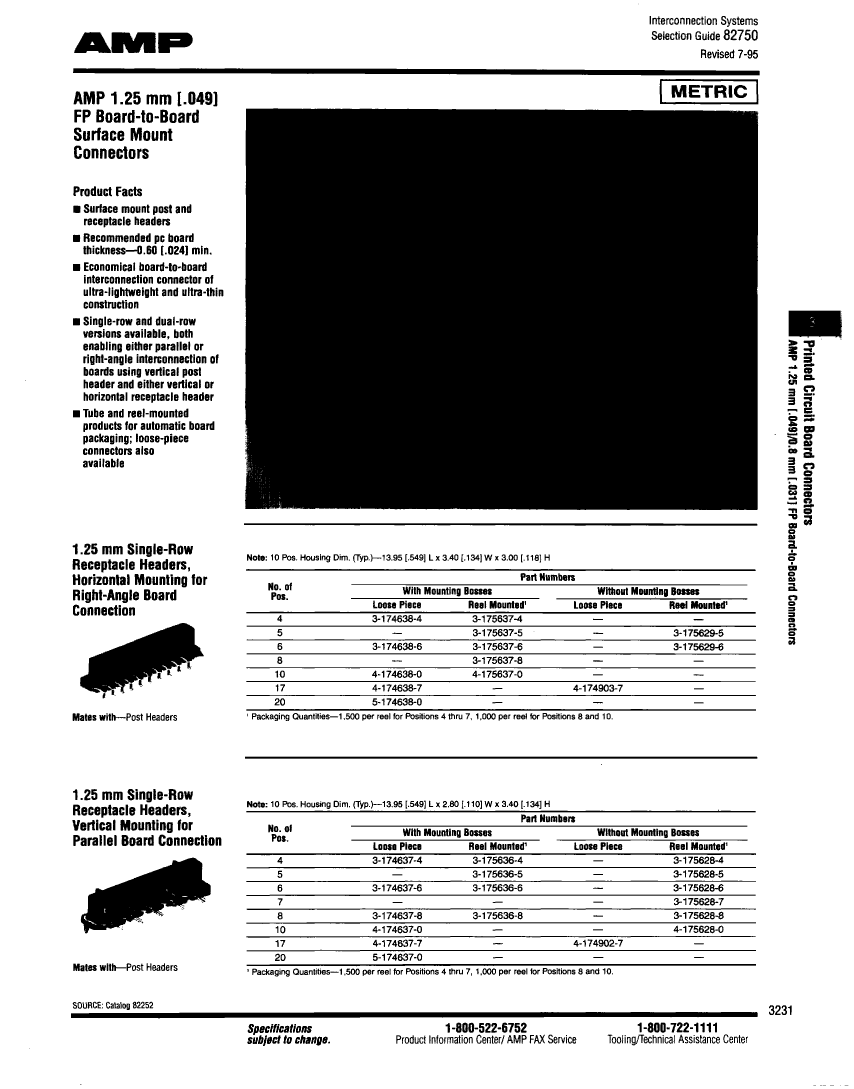

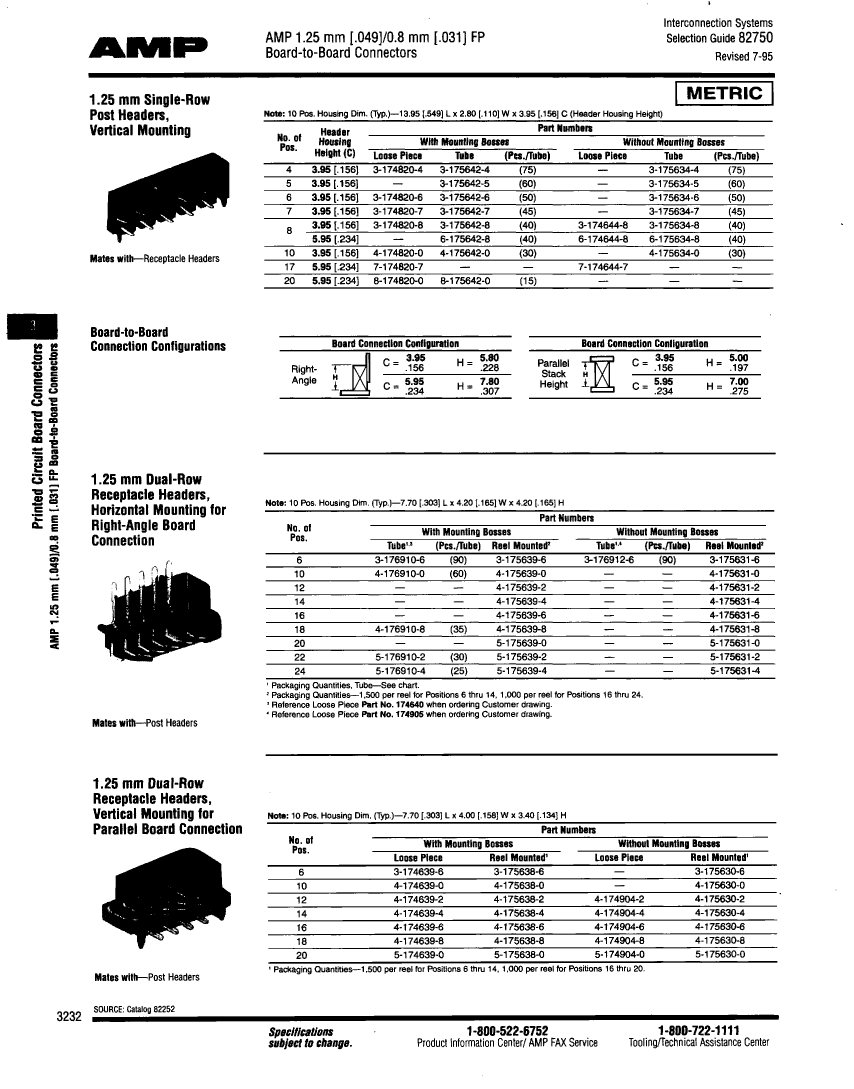

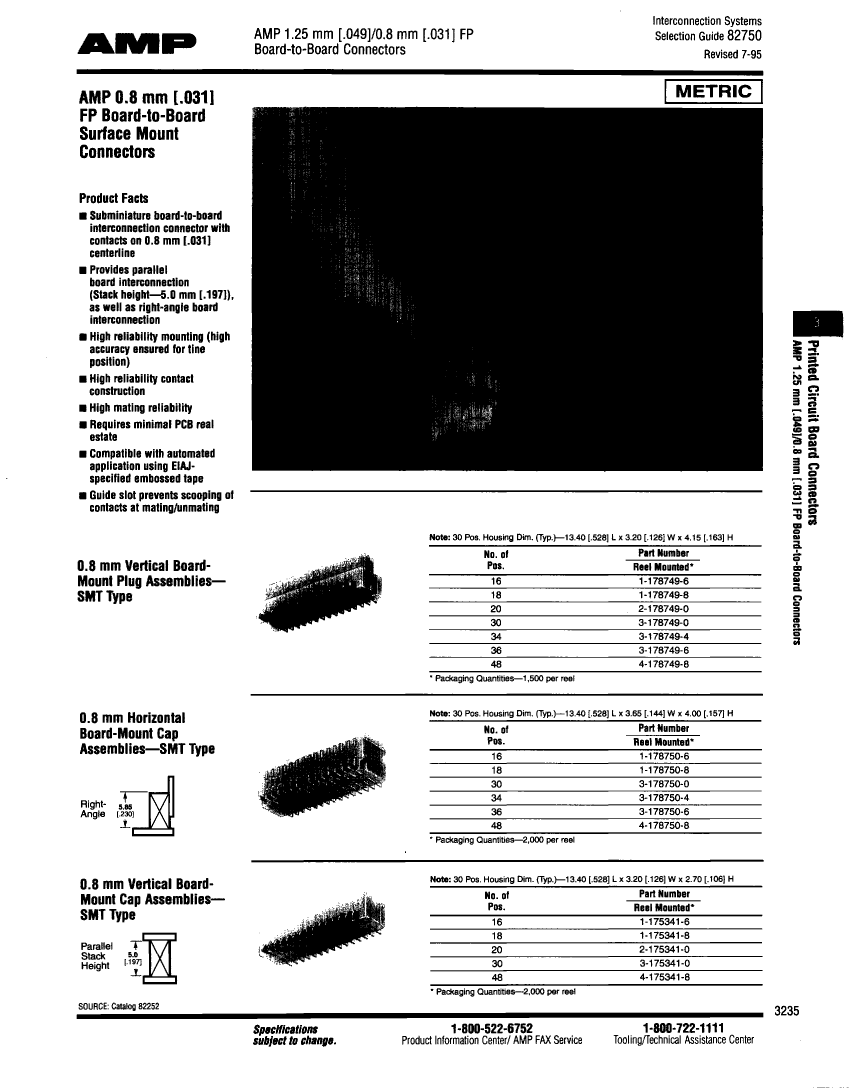

3-175341-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.031 PITCH,WHITE

Parameter Name	Attribute value
Objectid	300417153
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	PCB STACKING CNNCTR
body width	0.126 inch
subject depth	0.106 inch
body length	0.528 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYCARBONATE
Plug contact pitch	0.031 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Rated current (signal)	0.5 A
Terminal pitch	0.7874 mm
Total number of contacts	30

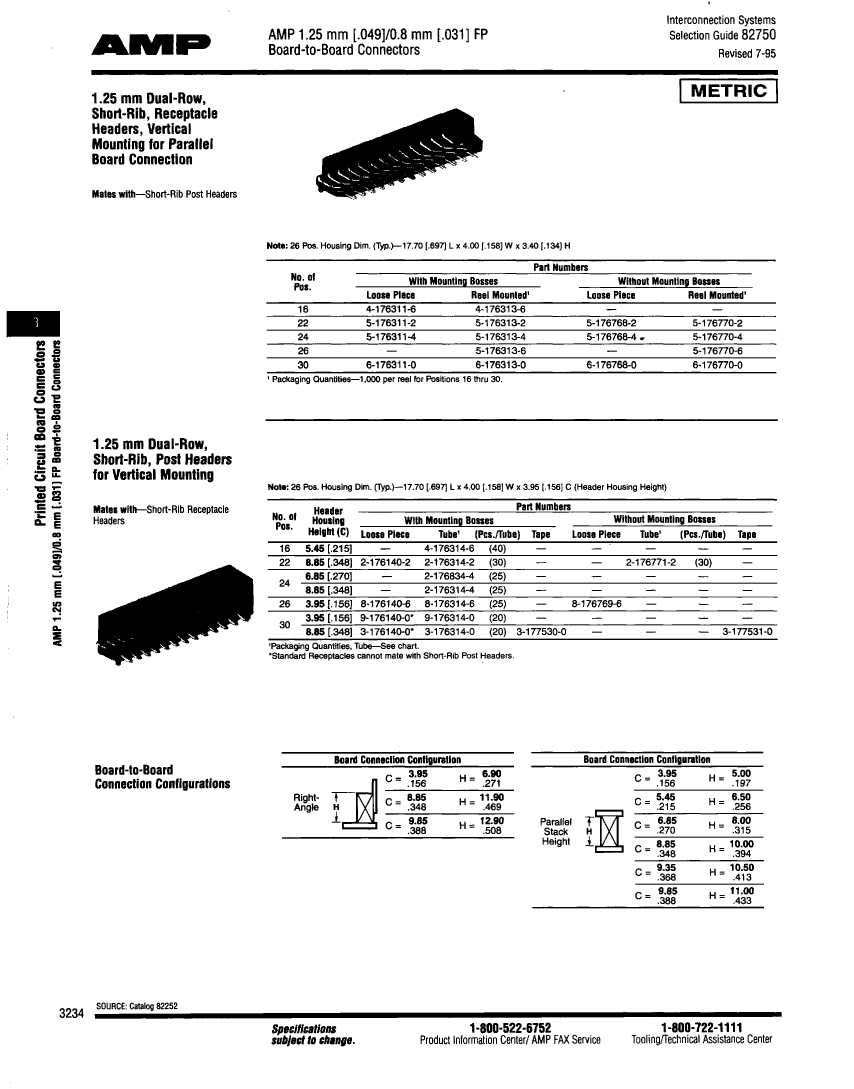

	3-175341-0	1-175341-6	1-175341-8	LM20145_15	3-177531-0	2-175341-0
Description	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.031 PITCH,WHITE	16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, SURFACE MOUNT	18 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, SURFACE MOUNT	5A PowerWise Adjustable Frequency Synchronous Buck Regulator	CONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT	CONNECTOR, 20 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, SURFACE MOUNT
Objectid	300417153	1417575432	1417575440	-	-	1417575448
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown
Other features	PCB STACKING CNNCTR	AMP	AMP	-	AMP	AMP
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	-	MALE	FEMALE
Number of rows loaded	2	2	2	-	2	2
Terminal pitch	0.7874 mm	0.8 mm	0.8 mm	-	1.25 mm	0.8 mm
Total number of contacts	30	16	18	-	30	20
DIN compliance	-	NO	NO	-	NO	NO
Filter function	-	NO	NO	-	NO	NO
IEC compliance	-	NO	NO	-	NO	NO
MIL compliance	-	NO	NO	-	NO	NO
Plug information	-	1-178749-6	1-178749-8	-	MULTIPLE MATING PARTS AVAILABLE	2-178749-0
Mixed contacts	-	NO	NO	-	NO	NO
Installation type	-	BOARD	BOARD	-	BOARD	BOARD
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
