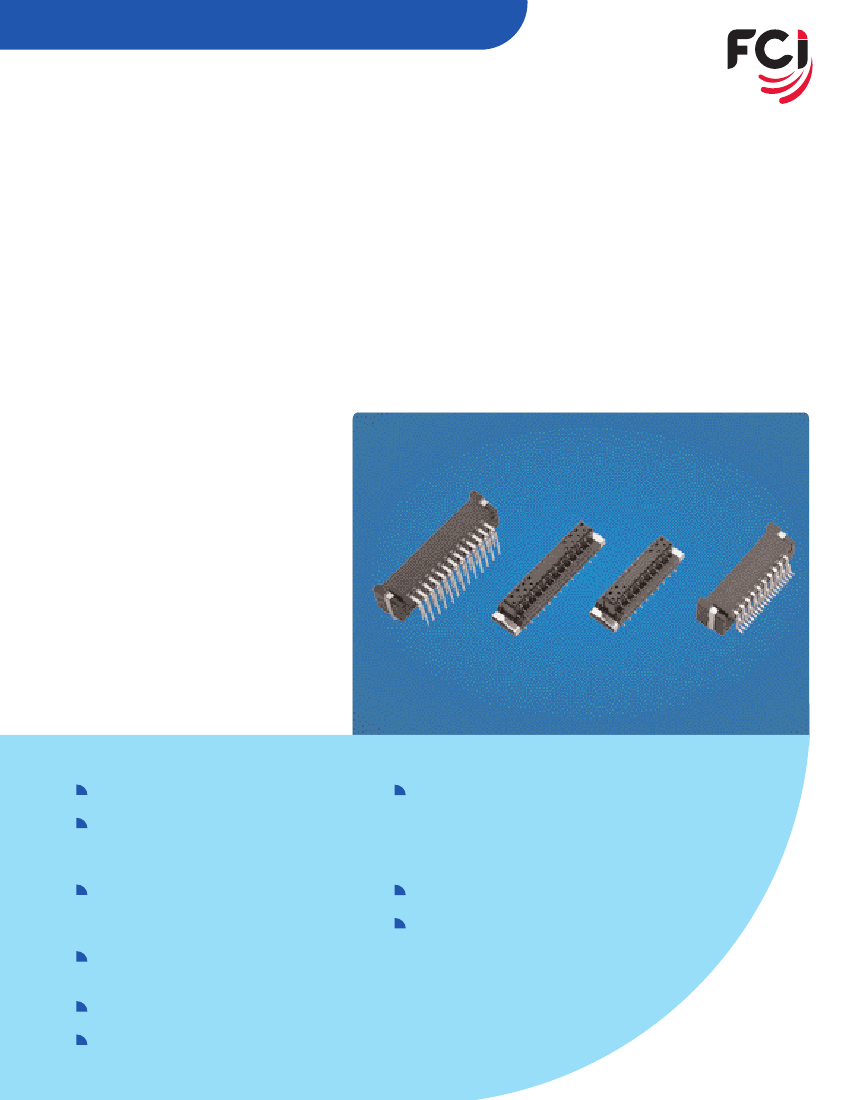

BOARD TO BOARD CONNECTORS
BTFW SERIES
DESCRIPTION
The BTFW Series is a floating board-to-board
connector system consisting of plugs and
receptacles with two rows of staggered contacts
on 1.00 mm (0.039 in.) centerlines. This
connector system is designed for applications
that require high density and high reliability
interconnects with higher pin counts and surface
mount termination. such as audio video
(AV) and navigation systems in automobiles.
The BTFW Series includes: vertical surface
mount plugs; right angle SMT and through hole
receptacles. The contacts have a wide floating
allowance of ± 0.80 mm (0.031 in.) in the pitch
direction and ± 0.50 mm (0.020 in.) in the width
direction. The rigid entry guide design features a
wide guide distance for mating of ± 2.00 mm
(0.079 in.) in the pitch direction and ± 0.80 mm
(0.031 in.) in the width direction.
FEATURES & BENEFITS
1.00 mm (0.039 in.) staggered contact design
saves valuable board space
Wide floating allowance absorbs mating shift
between plug and receptacle, permitting self-
alignment of the mating connectors; and provides
highly reliable mechanical performance
Rigid entry guide design withstands rough handling
such as angled insertion, preventing contact
deformation; and provides vibration shock
absorption
Wide guide distance for mating assures easy
handling and correct mating of the plug and
receptacle, and allows blind mating
Mounting plates on both sides of the plug and
receptacle assure PCB retention
Flat top surfaces of SMT housings allow pickup
with vacuum nozzle and eliminate the need for
pickup covers that must be removed after soldering
TARGET MARKETS / APPLICATIONS
Consumer
• PDP displayer & TV
• LCD displayer & TV
• Set top boxes
• DVD players/recorders
• D-VHS players
Data
• Entertainment PC
Other
• POS terminals
• Barcode scanners
• Other handheld equipment
BTFW SERIES
MATERIALS
Housing: Glass filled thermoplastic (UL 94 V-0)
• Color: Black
SMT plug
• Contact: Phosphor bronze
• Contact plating: Tin alloy
SMT and DIP receptacle
• Contact: Brass
• Contact plating: Tin alloy
Mounting plate
• Contact: Brass
• Contact plating: Tin alloy
MECHANICAL PERFORMANCE
Mating force: 2.5 N per contact max.
Unmating force: 0.2 N per contact max.
Contact wipe: 1.6 mm (0.063 in.)
Durability: 20 mating cycles
ENVIRONMENTAL PROPERTIES
Operating Temperature range
• -55°C to +85°C
SPECIFICATIONS
ELECTRICAL PERFORMANCE
Contact resistance: 70 m max. initial
Insulation resistance: 100 M min.
Dielectric withstanding voltage: 500 V AC rms, 60 Hz
Current rating: 1 A
Product Specification: SC-BTFW 01
PACKAGING
Embossed tape-and-reel for SMT connectors
Trays for DIP connectors
PART NUMBERS
BTFW_ _P-3SSTE1LF
Vertical (Straight) SMT Plug
•
•
•
•
•
•
__
P
3
S
ST
E1
=
=
=
=
=
=
10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 contacts
Plug
Two rows of staggered contacts
Vertical (straight)
Surface mount (SMT)
Embossed tape-and-reel packaging
• LF
= Lead free/Rohs compliant
BTFW_ _R-3RSTE1LF
Right Angle SMT Receptacle
•
•
•
•
•
•
__
R
3
R
ST
E1
=
=
=
=
=
=
10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 contacts
Receptacle
Two rows of staggered contacts
Right angle
Surface mount (SMT)
Embossed tape-and-reel packaging
• LF
= Lead free/Rohs compliant
BTFW_ _R-3 R D7LF Right Angle DIP Receptacle
•
•
•
•
•
•
•
__
R
3
R
D7
Tray
LF
= 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 contacts
= Receptacle
= Two rows of staggered contacts
= Right angle
= DIP
packaging
= Lead free/Rohs compliant
FCI - Americas : 1 (800) 237 2374 - Europe : 33 1 39 49 21 83 - Asia/Pacific : 65 6549 6666
www.fciconnect.com
950532-001
CDC-BTFW-08/06-E
