50003-02081-003 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 50003-02081-003

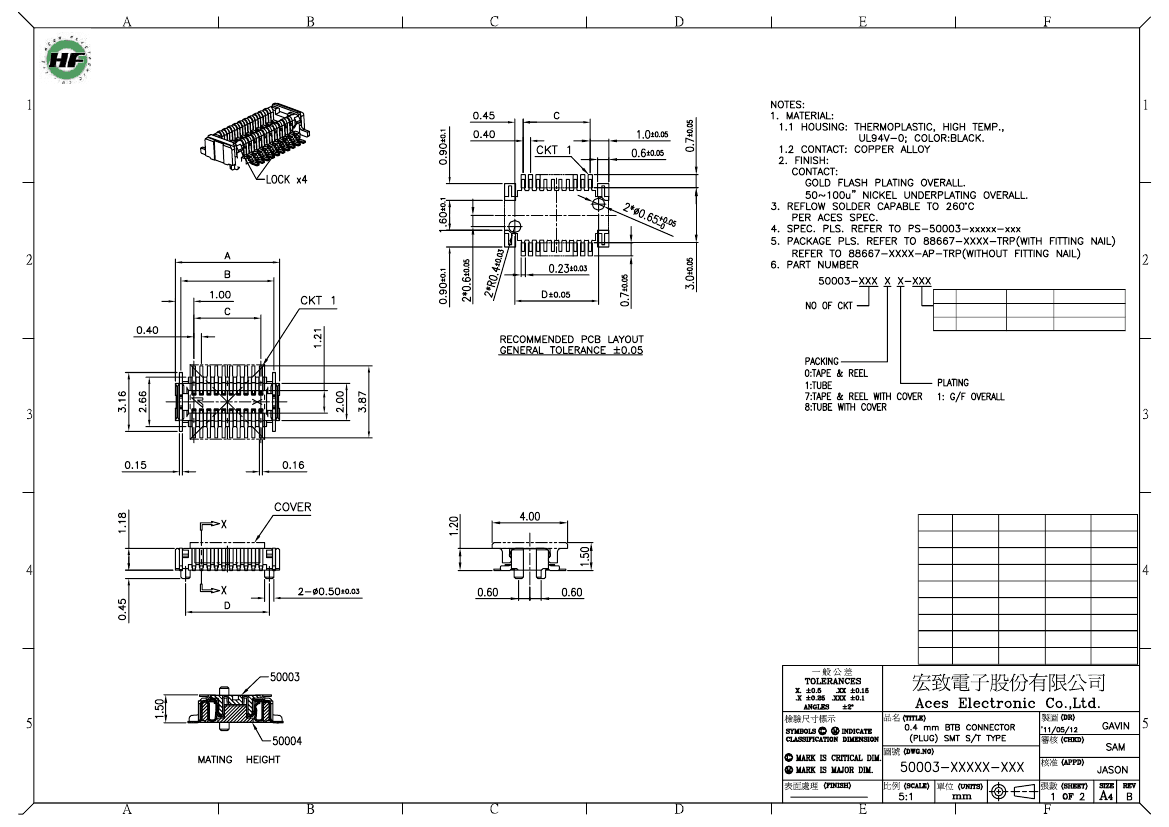

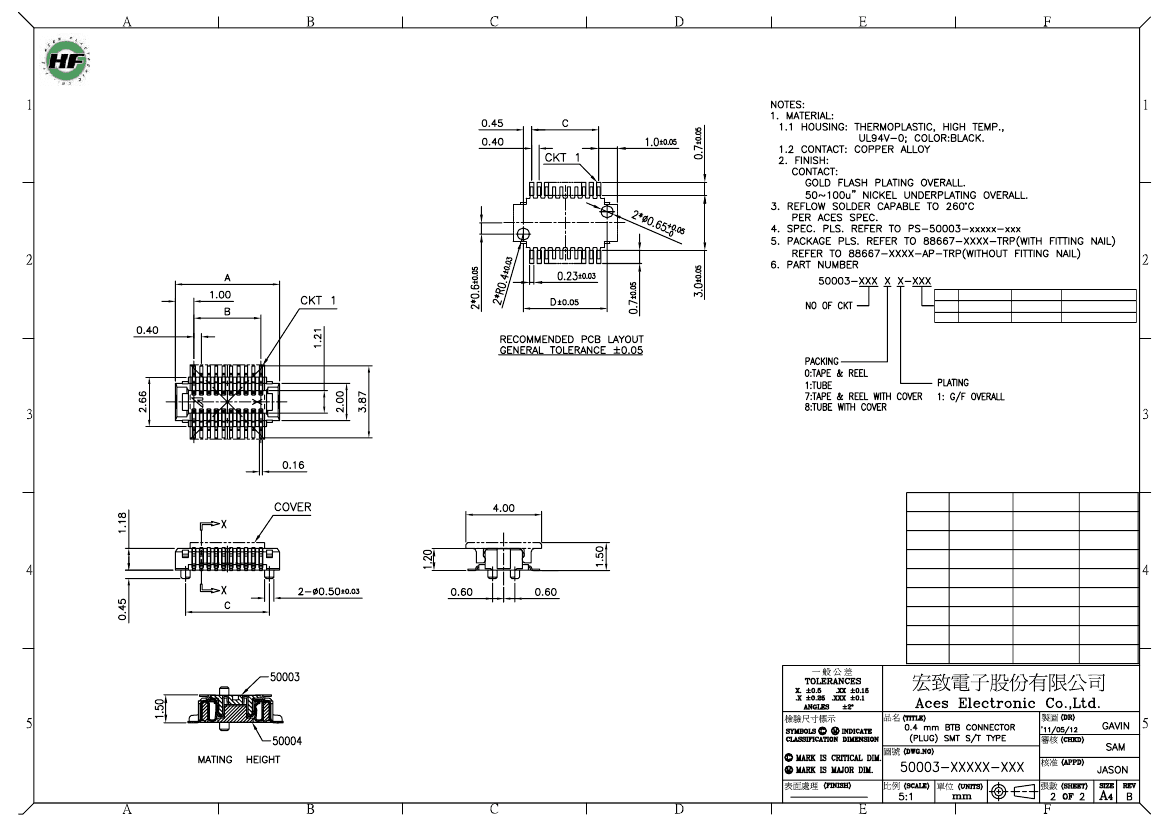

50003-02081-003: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.01 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size327KB，2 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50003-02081-003 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.01 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

50003-02081-003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	PEG
body width	0.157 inch
subject depth	0.059 inch
body length	0.22 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	300VAC V
Durability	30 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	50003
Plug contact pitch	0.01 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.683 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4064 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

Other Housing Color

002

Black

003

Black

With Boss

With Fitting Nail

CKT

Dim A

4.40

5.60

6.40

7.20

7.60

9.60

11.60

17.60

Dim B

3.80

5.00

5.80

6.60

7.00

9.00

11.00

17.00

Dim C

2.40

3.60

4.40

5.20

5.60

7.60

9.60

15.60

Dim D

3.30

4.50

5.30

6.10

6.50

8.50

10.50

16.50
